| Prod Model: |
HZ-1061 |
| Working Condition: |
Wet & Dry |
| Color: |
Red, Green, Blue, Black, Silver |
| Application: |
Drilling Various Stones |
| Material: |
65mn |
| Thickness: |
3.8/4.0/4.5 mm |
| Shipping Way: |
DHL, UPS, EMS, FedEx, Sea, Air |
| Advantage: |
Durability |
| Length: |
120/160/370/450 |
| Diameter: |
1''-14'' |
Product Description

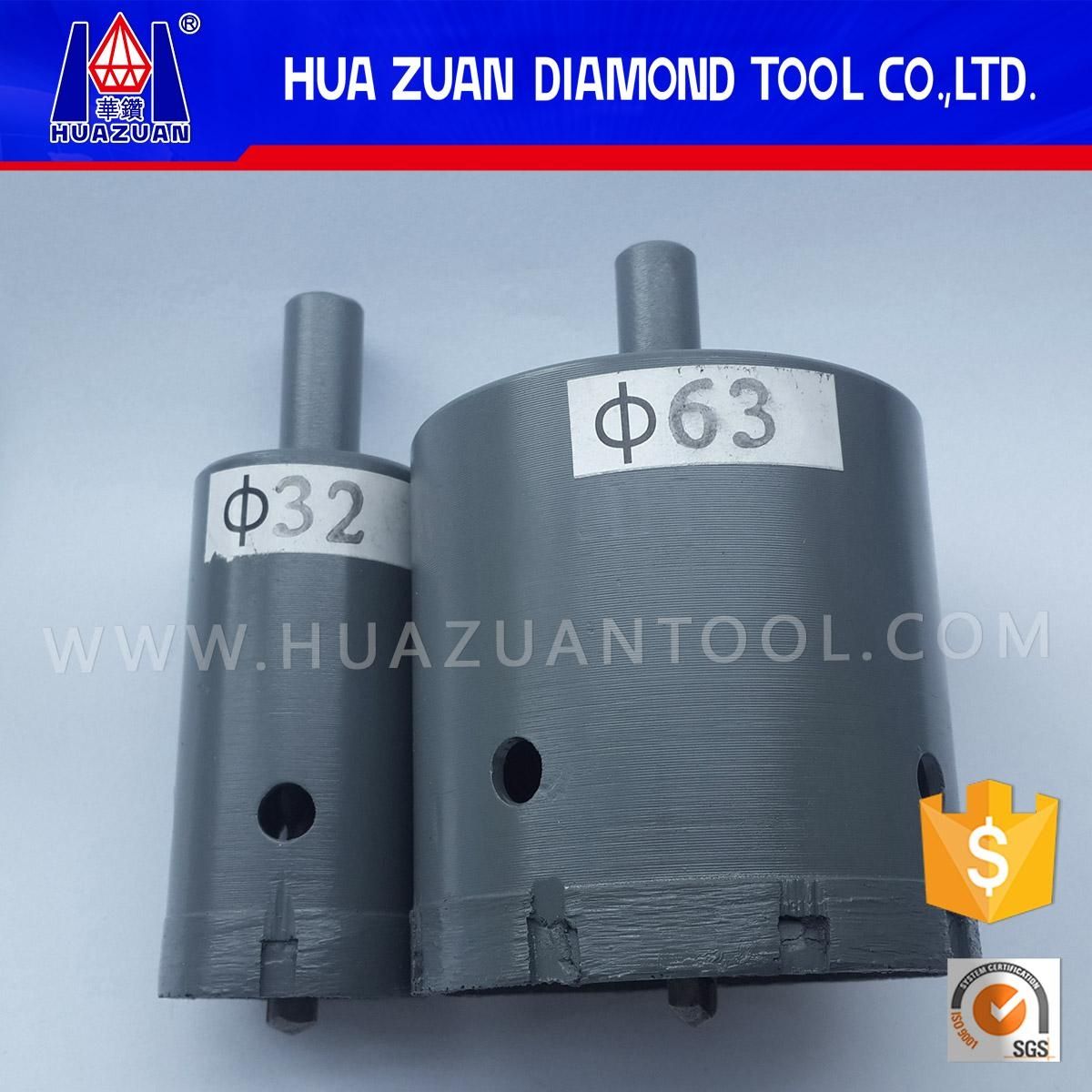

32mm/63mm Diamond Core Drill Bit for Stone Drilling
Product Description
| Product name | 32mm/63mm Diamond Core Drill Bit for Stone Drilling |
| Brand | Huazuan or OEM |
| Types | Core drill bit |
| Compose | Segment + core bit matrix |
| Diameter | 19mm-70mm |
| Length | 104mm, other length is available upon request. |
| Thread | 1 1/4-7", 5/8-11", M14,m16,m22,other thread is available upon request. |
| Machine | Drilling machine |
| Application | Drilling granite natural stones/concrete/reinforce concrete/refractory bricks,asphalt and various stones. |
Quality Control |
1. Strict Raw material inspection
2. Professional formula
3. Production process control(PDCA+7S Principle)
4. Do some cutting testing to sure the using function
5. Products pass ISO9001 and SGS inspection
|
| MOQ | 8PCS for each size |
| Payment term | TT,Western union,Paypal etc |
| Package | As customers' requirement. |
| Delivery | 7-10 days after receiving the payment. |
| Certification | ISO9001 and SGS Product quality control. |
| Diameter(mm) | Length(mm) | Seg.Thickness | Seg.Height | Thread cap |
| 27 | 120/160/370/450 | 3.8 | 8/10 | 5/8'' -- 11 |
| 30 |
| 32 |
| 36 |
| 38 |
| 40 |
| 44 |
| 46 |
| 51 |
| 56 | 1 -- 1/4 -- 7 |
| 63 |
| 66 |
| 71 | 4.0 |
| 76 |
| 83 |
| 89 |
| 96 |
| 102 |
| 108 |
| 114 |
| 120 |
| 127 | 4.5 |
| 132 |
| 152 |
| 159 |
| 168 |
| 180 |
| 200 |
| 230 |
| 250 |
| Other specifications are available upon request |
Features:
1. Better removal rates and less thermal damage to the body
2. hold simple and intricate forms through the entire working life
3. Maximum exposure of diamond particle
4. Faster drilling and more consistent performance
Our advantage:
1.Higher Price-performance ratio
2.Long lifespan
3.Stable quality
Packaging & Shipping
About Payment:
1.We accept paypal, T/T, western union. All major credit card are accepted.
2.Payment must be made within 3days after PI confirmed
3.Can place the order via Made in China online secure payment
About Shipment:
1.order processed timely after payment verification
2.we only ship to the address mentioned on PI.
3.generally we take Express company by DHL, UPS, FEDEX, TNT..etc and by airflight and by sea.
About Feedback:
We maintain high standards of excellent and strive 100% customer satisfaction.Feedback is very important, we require that your contact us immediately before you give us all kinds of problem feedback.
Contact Us:
Company name: Fujian Quanzhou Huazuan Diamond Tools Co., ltd.
Address: Miaoxia, Fengzhou, Nanan, Quanzhou, Fujian province, China 362333
Company Website:http://www.huazuantool.com
Fax number:0595-86780372
Mobile:0086 15905012421
Your inquiry will be answered within 24hours, wishing to be your long term partner.
Please do not hesitate to contact with me, we will do our best for you.
Quanzhou Huazuan Diamond Tools Co., Ltd., established in 1994 and covering an area of more than 10, 000 square meters, is an enterprise with more than 20 years' experience in research, development and production. "HUAZUAN" means made in China, as solid and stable as diamond. Driven by diamond saw blade, diamond segment and diamond wire saw as for main products, company produce a series of high quality diamond grinding and polishing tools. Continuous innovation are made with the aims to provide high efficient safe and environmental diamond tools for customers. With the support of Huaqiao University Tool Research Institute as well as more than 20 years research and practice, we keep the lead of industry for product quality and producing technology, and build the outstanding business relationship with more than 50 countries and region partners. We pursue the dreams that make HUAZUAN become the arena of realizing the dreams for clients, suppliers and staffs. In recent years, company make and practice a strategic plan to"reinforce a high quality production system, create a consultant service team" and reached great success. At present, China diamond tool constantly embody the competitiveness in the world, we expect to contribute ourself to change the poor quality image of China diamond tool in the world with our effort.
