| Prod Model: |
1.2.1.10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
14 Inch |
| Manufacturing Arts: |
Welding |
| Saw Blade External Diameter: |
350mm |
| Kind: |
Diamond Laser Saw Blade |
| Usage: |
Cutting |

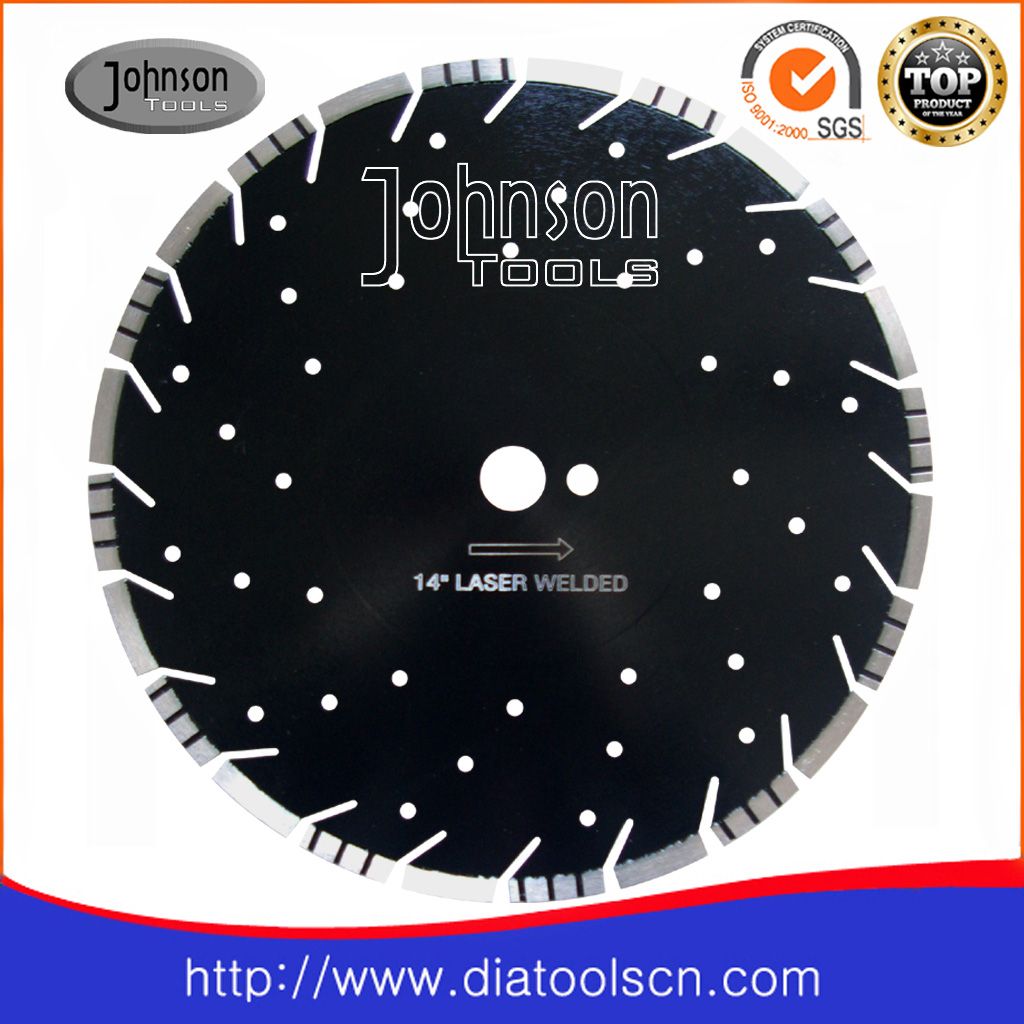

Product Description
Features:
A. Applied to cut variety materials.
B. 100% welding strength of segment tested one by one via torque wrench.
C. Superior cutting efficiency at a very competitive cost.
D. Laser welding technology ensures safe and long cutting.
E. Segmented dry cutting.
F...Good balance assures safety and excellent cutting effect.
G. Different quality grades for selection.
H. Any specification as your request.
Specification:
Diameter: 14"(350mm)
Segment size: 40x3.2x8/10/12/15mmx24nos
Inner hole: 16/20mm, 22.23mm, 25.4mm, 50mm 60mm, or upon your request
| Inch | Diameter
(mm) | Teeth length
(mm) | Teeth thickness
(mm) | Teeth height
(mm) | Teeth number
(nos) |
| 14" | 350 | 40 | 3.2 | 8/10/12/15 | 24 |
Company instruction:
1) We're direct manufacturer and 100% export to worldwide (Thailand, India, Malaysia, Jordan, South Africa, Kenya, Morocco, Australia, UK, Spain, Brazil, etc)
2) We have around fourteen years producing experience.
3) Our main product: Laser welded saw blade, sintered saw blade, diamond segments, diamond polishing and grinding products, cup wheel, core bits and electroplated diamond products etc.
4) Above 95% customers will be place a formal order after testing the samples.
