Prod Model: |
3.2.1 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
14inch |
Type: |
Ring Saw |
MOQ: |
50PCS |
Diameter: |
Od350mm |
Material: |
Mental Bond with Diamond |
OEM: |
Available |
Kind: |
Diamond Laser Saw Blade |
Usage: |
Concrete Ring Cutting |
Brand: |
Johnsontools |
Establishing Year: |
2000 |
Product Description

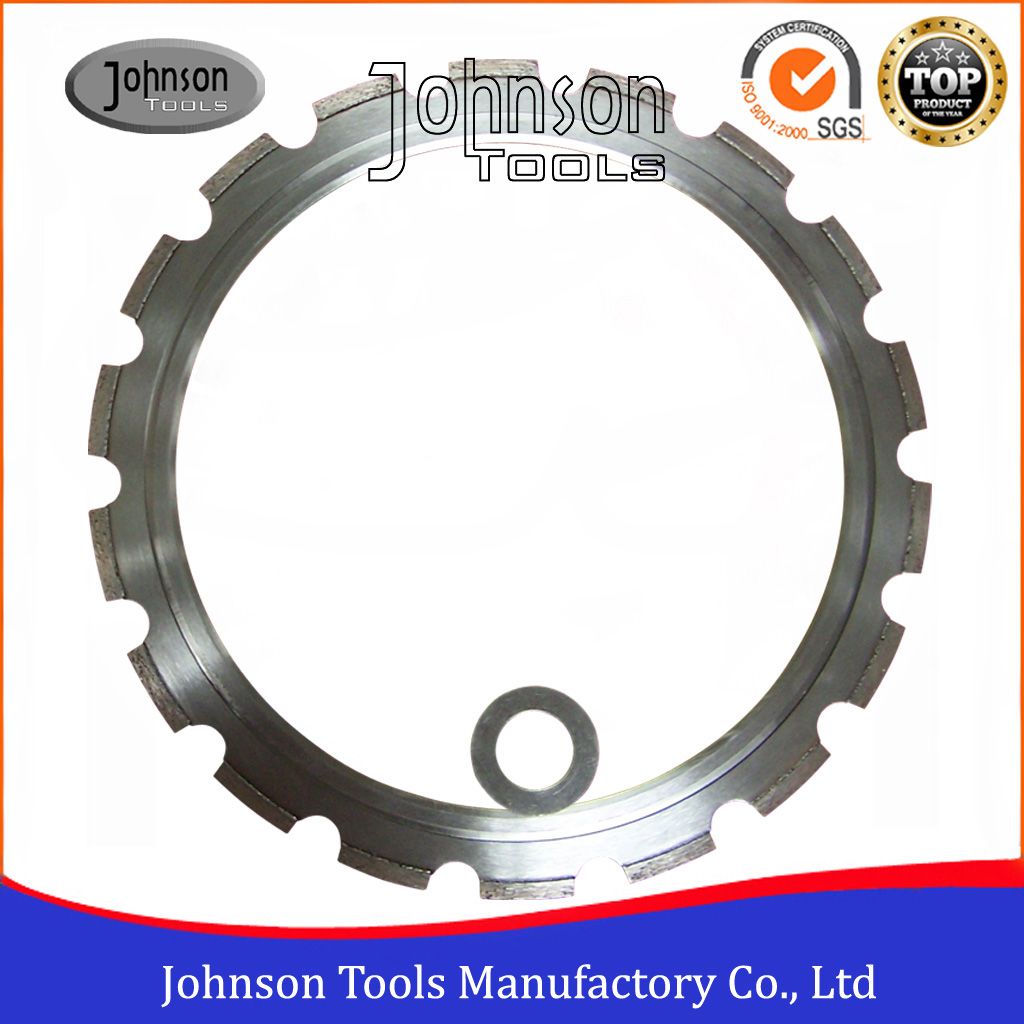

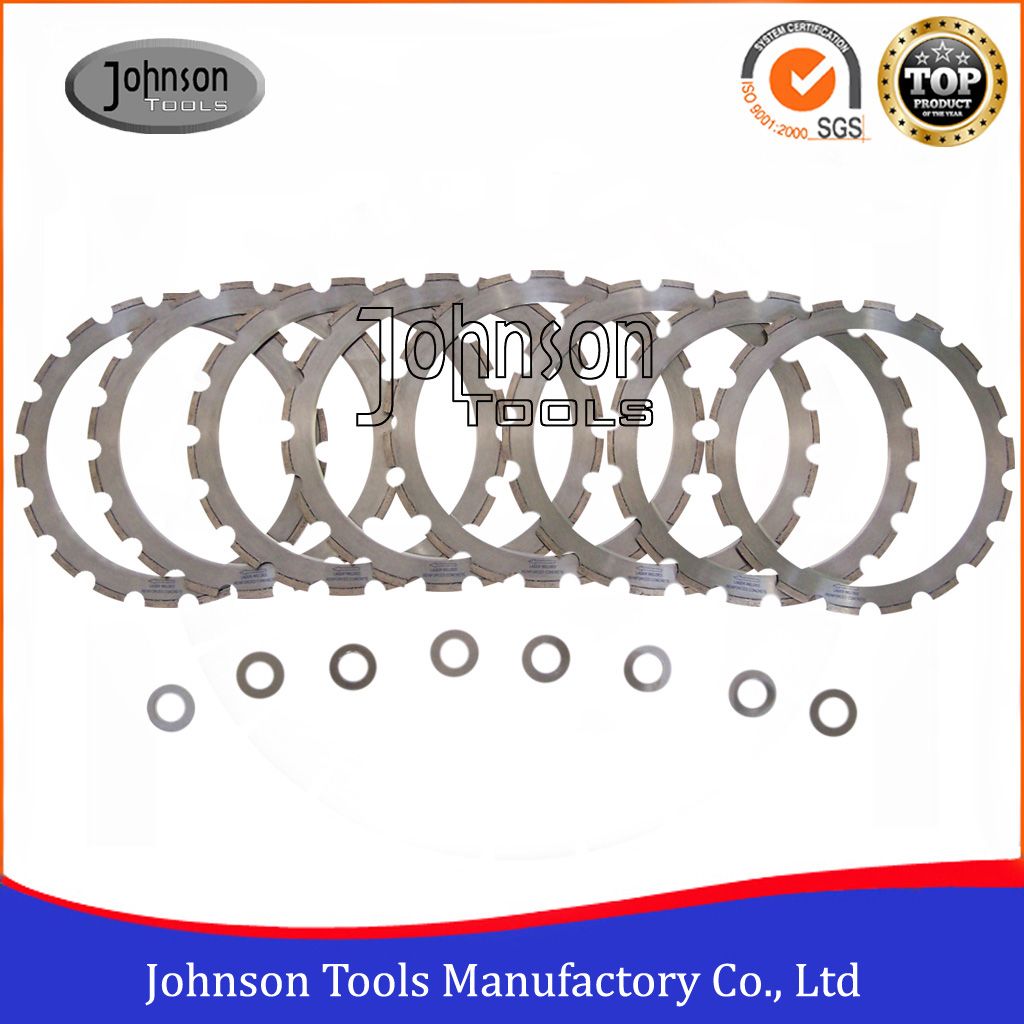

350mm Diamond Concrete Saw Blades for Concrete and Reinforced Concrete
Why choose usEstablished in 2000year == Factroy==Quality Control ==Competitive price==OEM==Short delivery time1. Description of 350mm Diamond Concrete Saw Blades for Concrete and Reinforced ConcreteDiamond concrete saw blade is the professional diamond tools which installed on handheld power saws, walk behind concrete saws, road cutting machine for cutting reinforced concrete structures, road construction. It has a good cutting ability, static non-destructive, high efficiency, no construction dust and other characteristics.
At present, our 14" diamond Ring saw blades are well exported to USA, UK, Peru, Mexico, Sweden, Iceland, Poland, Denmark, Croatia, Bulgaria, Italy, France, Spain, Norway, Netherland, Malta, Singapore, UAE, India, Australia, South Africa etc. Quality is well accepted by the customers.
2. Feature of 350mm Diamond Concrete Saw Blades for Concrete and Reinforced Concrete1) High precision and speed for cutting reinforced concrete
2) Cutting reinforced concrete is not restricted by the construction site, environmental protection, duration, and other conditions for safety reasons, to break the traditional construction method after removal of gas cutting picks or directional blasting, which does not affect the surrounding normal traffic, short construction period, safety factor advantages.3. Specification of 350mm Diamond Concrete Saw Blades for Concrete and Reinforced ConcreteOuter diameter: 14" / 350mm
Segment spec.: 40x4.1x8/10mmx18nos
Max cutting depth is 260mm.
Inch | Diameter (mm) | Teeth length (mm) | Teeth thickness (mm) | Teeth height (mm) | Teeth number (nos) |
14" | 350 | 40 | 4.1 | 8 | 18 |
14" | 350 | 40 | 4.1 | 10 | 18 |
Other size Concrete Saw Blade we could do as followingInch | Diameter (mm) | Teeth length (mm) | Teeth thickness (mm) | Teeth height (mm) | Teeth number (nos) |
4" | 105 | 32 | 2.2 | 7/10/12 | 8 |
4.5" | 115 | 31 | 2.2 | 7/10/12 | 9 |
5" | 125 | 31 | 2.2 | 7/10/12 | 10 |
6" | 150 | 34 | 2.2 | 7/10/12 | 11 |
7" | 180 | 34 | 2.4 | 7/10/12 | 14 |
8" | 200 | 40 | 2.4 | 7/10/12 | 13 |
9" | 230 | 37 | 2.6 | 7/10/12 | 16 |
10" | 250 | 40 | 2.6 | 10/12/15 | 16 |
12" | 300 | 40 | 3.0 | 10/12/15 | 20 |
16" | 400 | 40 | 3.4 | 10/12/15 | 28 |
18" | 450 | 40 | 3.6 | 10/12/15 | 32 |
20" | 500 | 40 | 4.0 | 10/12/15 | 36 |
24" | 600 | 40 | 4.4 | 10/12/15 | 42 |
26" | 650 | 40 | 4.4 | 10/12/15 | 42 |
28" | 700 | 40 | 5.0 | 10/12/15 | 40 |
30" | 750 | 40 | 5.0 | 10/12/15 | 46 |

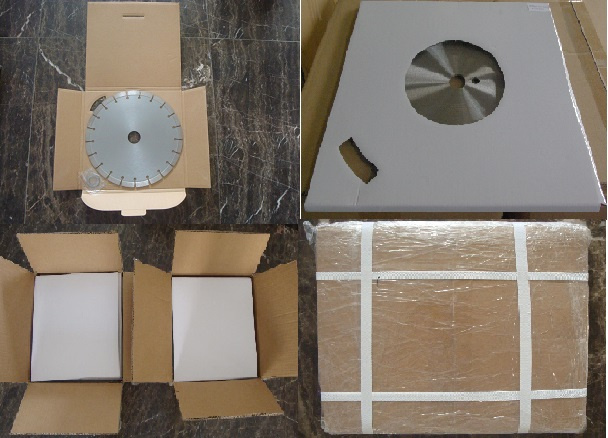

4. Packing and ShippingEach 14" laser saw blade is packed in white box, then 10pcs put in an export standard carton, gross weight per carton is limited within 20-25kg.
Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.
Delivery way: By air, by sea, by land, by courier, etc.
5. Payment termT/T, Irrevocable L/C at sight,PayPal, West Union, Credit Card, etc.
6. Client Feedback

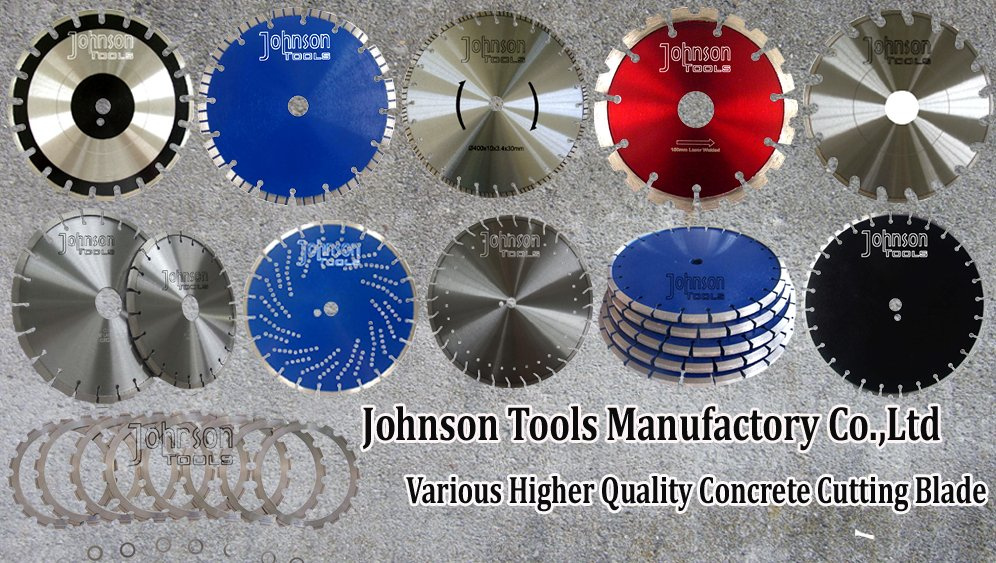

7. Our Related Products
8. Certification
9. Our Exhibition
10. FAQ
Q: How to place order to your company?
1.Required Products Details: Tell us what is your demand? Which kind of products, size, specification, cutting or grinding or drilling materials? HP of machine? Quantity? Nearest airport and seaport? Then we will give you best offer.
2.Performa Invoice: Offer satisfied, and then confirms the delivery time, payment term, logo, quantity, etc. According to this information, we will do Performa Invoice. Customers do the payment.
3.Production Process: Arrange production, based on the contract and PI description and mutual communication, we will follow closely the full production process; keep you informed of till finished the products under the contract limited time. Take photo of the goods for your reference. We take completely file in the computer from the raw material to producing process details, package, shipping. Easy for us to check each order.
4.Delivery: Dispatch the goods to appointed airport or seaport, prepare all shipping documents to customers.
5.After-Sale Service: Track the goods, learn the products' performance.
6.Feedback: Customers feedback to Johnson about quality, service, give us suggestion for our better improvement.
More information about our products, welcome to visit our website www.johnsontoolscn.com and www.diamondsaw-blade.com, you will get more than you can see
