350mm Laser Welded Diamond Saw Blade with Single U Segment for General Purpose

Name: 350mm Laser Welded Diamond Saw Blade with Single U Segment for General Purpose
Brand: tool-buy.com
SKU: 742389535
Availability: InStock
Rating: 4.4 (101 reviews)

Price:	US $ 20-30/Piece
Trade Terms:	FOB,FCA
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Johnson Tools Manufactory Co., Ltd.

Showroom Product Company Profile

Prod Model:	7.2.1.15
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	14 Inch
Manufacturing Arts:	Welding
Saw Blade External Diameter:	350mm
Kind:	Diamond Laser Saw Blade
Usage:	Cutting

Product Description

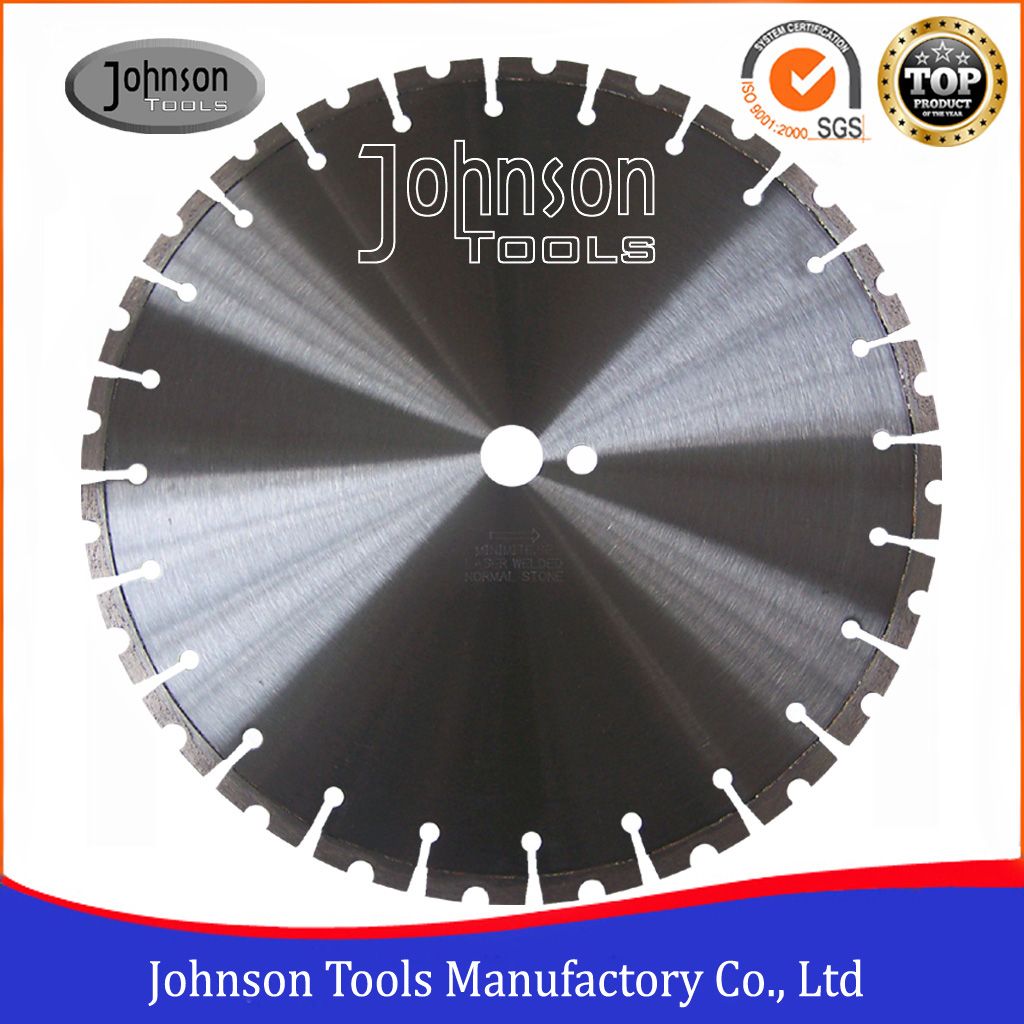

14" Diamond Laser Saw Blade for Cutting Concrete and Stone

Why choose us:
1. SGS, MPA certificate, Established in 2000 year, Rich producing experience.
2. Well approved by our worldwide clients, export more than 70 countries.
3. Success formula for concrete saw blade.
4. Quick Delivery time.
5. One-Day reply to your inquiry and question.

1. Description of 350mm Laser Welded Diamond Saw Blade with Single U Segment for General Purpose
General purpose diamond blade is perfect for those contractors who need to cut a wide variety of different materials. These materials include masonry, concrete, brick, block, slate or quarry. Universal blades also work well on a wide variety of saws including masonry saws, brick saws, concrete saws, cut-off saws, walk behind saws, gas powered saws and circular saws. One of the obvious advantage of using this type of saw blade is that the saw cutting blade does not have to be changed between jobs. This efficiency and flexibility results in lower operating costs.

We could offer a wide variety of diamond saw blades for general construction cutting, stone cutting. We also carry saw blades for brick, block, masonry, ductile iron, marble, granite, cured concrete, green concrete, and tile. Besides, We also produce other diamond tools like diamond cup wheels, tuck point blades, core drill bits, diamond polishing pads and profiling wheels. All of these diamond tools are meet to GB standart. Every diamond blade cuts fast and gives long life on abrasive materials to hard masonry, concrete and stone materials. If you need a blade for a concrete saw, asphalt saw, high speed gas powered saw or walk behind saw, please don't hesitate to call us, we could provide any tools you want.

2. Features of 350mm Laser Welded Diamond Saw Blade with Single U Segment for General Purpose
1) 100% laser welding technology.
2) Wet or dry cutting granite, marble, sandstone, masonry, concrete, reinforced concrete, asphalt, brick etc.
3) Unercut protection segments provide longer lifetime.
4) Suit to high Speed Hand Saws, Table Saws, Low HP Walk-Behind Saws.
5) Well exported to America, European, Asia, Africa, Australia market.

3. Specification information of 350mm Laser Welded Diamond Saw Blade with Single U Segment for General Purpose
1. Diameter:350mm
2. Segment thickness:3.2mm
3. Segment height:10/12/15mm
4. Bore size:25.4mm, 25.4/20mm, 50mm, 60mm etc or as your request.

Inch	Diameter (mm)	Teeth length (mm)	Teeth thickness (mm)	Teeth height (mm)	Teeth number (nos)
14"	350	40	3.2	10	24/21
14"	350	40	3.2	12	24/21
14"	350	40	3.2	15	24/21

Other size we could do

Inch	Diameter (mm)	Teeth length (mm)	Teeth thickness (mm)	Teeth height (mm)	Teeth number (nos)
4"	105	32	2.2	7/10/12	8
4.5"	115	31	2.2	7/10/12	9
5"	125	31	2.2	7/10/12	10
6"	150	34	2.2	7/10/12	11
7"	180	34	2.4	7/10/12	14
8"	200	40	2.4	7/10/12	13
9"	230	37	2.6	7/10/12	16
10"	250	40	2.6	10/12/15	16
12"	300	40	3.0	10/12/15	20/18
16"	400	40	3.4	10/12/15	28/24
18"	450	40	3.6	10/12/15	32/26
20"	500	40	4.0	10/12/15	36/30
24"	600	40	4.4	10/12/15	42/36
32"	800	40	6.0	10/12/15	46/40

4. Packing and Shipping
Each saw blade is packed in white box or colored box packing, then according to the size, 10pcs put in an export standard carton, gross weight per carton is limited within 20-25kg.
Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.
Delivery way: By air, by sea, by land, by courier, etc.

5. Payment term:

T/T, Irrevocable L/C at sight,PayPal, West Union, Credit Card, etc.

6. Our Technology
We are processing advanced production equipment, modern checking system, strict management and a strong technical force with the combination of many skilled workers and technical engineers.
Providing our customers with satisfactory diamond cutting tools is our aim!

7. Certification:

8. Our exhibition:

9. FAQ.

Q: How to place order to your company?
1. Required Products Details: Tell us what is your demand? Which kind of products, size, specification, cutting or grinding or drilling materials? HP of machine? Quantity? Nearest airport and seaport? Then we will give you best offer.
2. Performa Invoice: Offer satisfied, and then confirms the delivery time, payment term, logo, quantity, etc. According to this information, we will do Performa Invoice. Customers do the payment.
3. Production Process: Arrange production, based on the contract and PI description and mutual communication, we will follow closely the full production process; keep you informed of till finished the products under the contract limited time. Take photo of the goods for your reference. We take completely file in the computer from the raw material to producing process details, package, shipping. Easy for us to check each order.
4. Delivery: Dispatch the goods to appointed airport or seaport, prepare all shipping documents to customers.
5. After-Sale Service: Track the goods, learn the products' performance.
6. Feedback: Customers feedback to Johnson about quality, service, give us suggestion for our better improvement.

10. Company Information

Established in 2000 year, Johnson Tools Manufactory Co.,Ltd have been acting as one of leading manufacturers in China's stone and construction industries. We enjoy good reputation among customers with trustworthy product quality and creditable service. Provide good quality diamond tools on sawing, grinding, polishing and drilling industry, such as laser welded wall saw blade, floor saw blade, concrete saw blade, asphalt saw blade, stone saw blade, electroplated saw blade, tuck pointing saw blade, diamond segments, grinding wheels, polishing pad, core bits, TCT saw blade, also stone cutting machine, etc.
Johnson Tools people sincerely looking forward to serving you in the near future!
Let's work together to make the business better and better.

Contact us, you will get more than what you see.
www.johnsontoolscn.com

Why clients choose Johnson?

1) Quality & Service:

We, Johnson Tools Manufactory Co., Ltd have very strict quality control system. There is one QC team in our factory on examination of every product before dispatching. We try our best to achieve zero defects.

2) Convenience of One-Stop Sourcing:

On stone and construction industry, from cutting, grinding, drilling, polishing, profiling field, till stone and its cutting machine, we can help you select the best tools, finish your project perfectly.

3) Flexible payment term:

T/T, Letter of Credit, PayPal, West Union, Credit Card, etc.

4) Delivery time:

Around 5-30days based on quantity of clients' order.

Repeated orders, we help our clients prepare one order's raw materials to shorten the producing time.

5) Good evaluation of our clients' from our deferent's countries.

6) Sales Teams:

We have a friendly, enthusiastic, energetic sales team, ready to service with you all the time.

Professional Manufacturer on Diamond Tools since Year 2000.

Above 95% Diamond Tools products export to Six Continent, over 70 Countries.

Our diamond tools differ diamond Cutting tools, diamond Grinding tools, diamond Polishing tools, diamond Drilling tools, and other accessories & stone cutting machine. Wildly used on Stone and Construction industry.

*****Customer Evaluation*****

To do the same bond as we use is very important. We did many tests at your blades And the performance is very good. -- Remco

The cutting of the blade on concrete road was very good. Cutting life is estimated at 800 meters. Note: Client use our 14" laser saw blade. -- Jabar

Segments from you is very good, durable and sharp. Note: Client use our 102mm-300mm diamond segments for core bits for reinforced concrete. -- Zainul

First of all I would like to thank you for the sending the samples of the Diamond Saw Cutting Blades. We have tested it and are very much impressed. -- Ancila

About your 200mm&250mm tuck point saw blade, we made about 11000 meters and it' s a very good indice! -- Julia

And its good, We need more: ) Saw blade 20X 600mm 20X 800mm 3X 1000mm 10X1200mm.

-- Kovacevic
