| Prod Model: |
7.2.1.18 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
14 Inch |
| Manufacturing Arts: |
Welding |
| Saw Blade External Diameter: |
350mm |
| Kind: |
Diamond Saw Blade |
| Usage: |
Stone and Concrete Cutting |
Product Description

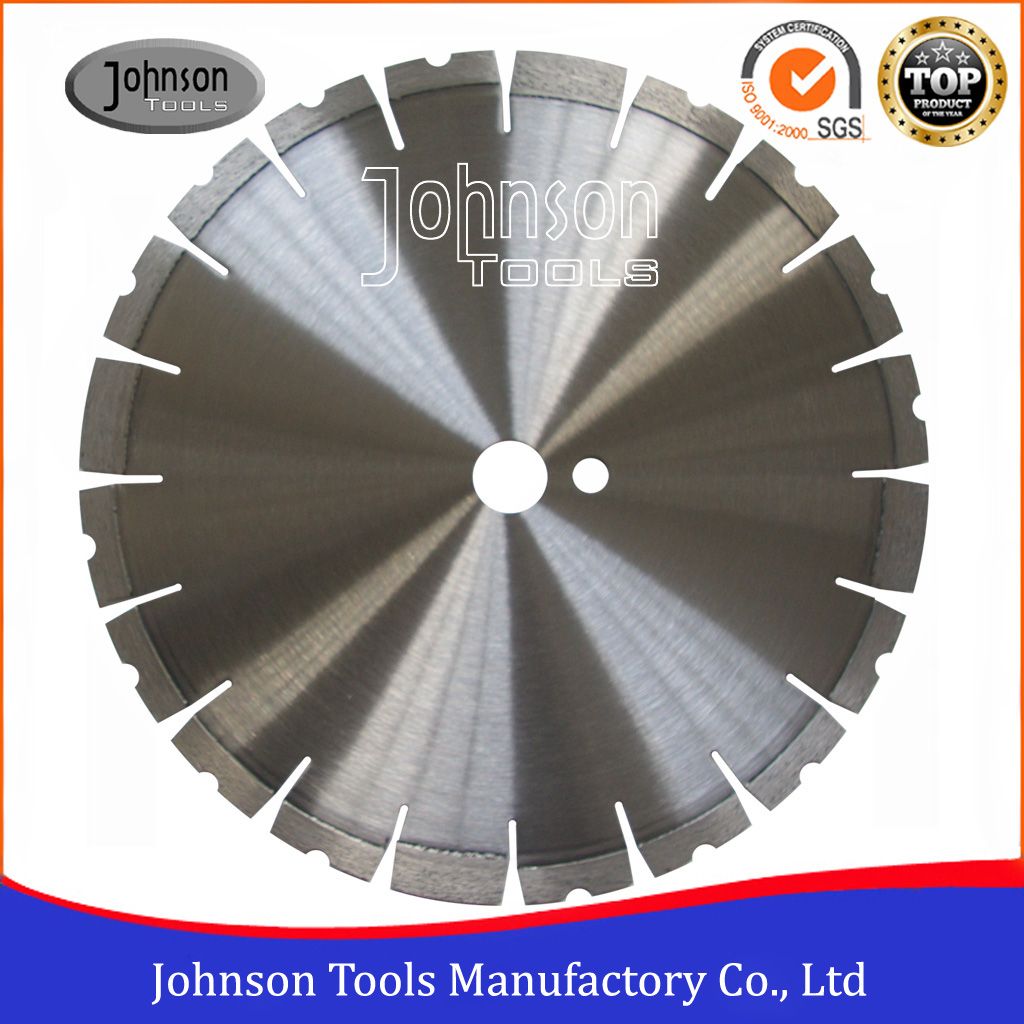

350mm Laser Welded General Purpose Saw Blade with Alternating Turbo Segment
Why choose us:
1.SGS, MPA certificate, Established in 2000 year, Rich producing experience.
2.Well approved by our worldwide clients, export more than 70 countries.
3.Success formula for concrete saw blade
4.Quick Delivery time.
5.One-Day reply to your inquiry and question.
1. Description of 350mm Laser Welded General Purpose Saw Blade with Alternating Turbo Segment
As a direct manufacturer, for meeting customers' different request, we launched general purpose saw blade for cutting different materials, 350mm Laser Welded General Purpose Saw Blade with Alternating Turbo Segment is suitable for cutting: Ductile Iron, Granite, Clay, Clay Roof Tiles, Quarry Tiles, Hard Slate, River Gravel Aggregate Concrete, Flint Aggregate Concrete, Reinforced Concrete, Concrete Kerbs, Concrete Slabs, Reinforced Lintels, Hard Limestone, Limestone Aggregate Concrete, Concrete paviours, Soft Facing Bricks, Concrete Blocks, Hard Sandstone, Soft Slate, Medium Sandstone, Concrete Roof Tiles, Concrete with Medium Sharp Sandstone, Coarse Sandstone, Asphalt over Concrete, Shallow Concrete Screed, Breeze Blocks etc.
Mainly exported to America and Europe market. Performance is well accepted by customers.
2. Features of 350mm Laser Welded General Purpose Saw Blade with Alternating Turbo Segment
1) 100% laser welded technology.
2) Decorated holes good for cooling during cutting.
3) Segment type:alternated standard tooth and turbo tooth.
4) Special segments make faster cutting, longer cutting.
3. Specification information of 350mm Laser Welded General Purpose Saw Blade with Alternating Turbo Segment
1). Diameter:350mm
2). Segment thickness:3.2mm
3). Segment height:10/12/15mm
4). Bore size:25.4mm, 25.4/20mm, 50mm, 60mm etc or as your request.
| Inch | Diameter
(mm) | Teeth length
(mm) | Teeth thickness
(mm) | Teeth height
(mm) | Teeth number
(nos) |
| 14" | 350 | 40 | 3.2 | 10 | 24/21 |
| 14" | 350 | 40 | 3.2 | 12 | 24/21 |
| 14" | 350 | 40 | 3.2 | 15 | 24/21 |
Other size we could do
| Inch | Diameter
(mm) | Teeth length
(mm) | Teeth thickness
(mm) | Teeth height
(mm) | Teeth number
(nos) |
| 4" | 105 | 32 | 2.2 | 7/10/12 | 8 |
| 4.5" | 115 | 31 | 2.2 | 7/10/12 | 9 |
| 5" | 125 | 31 | 2.2 | 7/10/12 | 10 |
| 6" | 150 | 34 | 2.2 | 7/10/12 | 11 |
| 7" | 180 | 34 | 2.4 | 7/10/12 | 14 |
| 8" | 200 | 40 | 2.4 | 7/10/12 | 13 |
| 9" | 230 | 37 | 2.6 | 7/10/12 | 16 |
| 10" | 250 | 40 | 2.6 | 10/12/15 | 16 |
| 12" | 300 | 40 | 3.0 | 10/12/15 | 20/18 |
| 16" | 400 | 40 | 3.4 | 10/12/15 | 28/24 |
| 18" | 450 | 40 | 3.6 | 10/12/15 | 32/26 |
| 20" | 500 | 40 | 4.0 | 10/12/15 | 36/30 |
| 24" | 600 | 40 | 4.4 | 10/12/15 | 42/36 |
| 32" | 800 | 40 | 6.0 | 10/12/15 | 46/40 |
4. Packing and Shipping
Each saw blade is packed in white box or colored box packing, then according to the size, 10pcs put in an export standard carton, gross weight per carton is limited within 20-25kg.
Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.
Delivery way: By air, by sea, by land, by courier, etc.
5. Payment term
T/T, Irrevocable L/C at sight,PayPal, West Union, Credit Card, etc.
6.Our technology
We are processing advanced production equipment, modern checking system, strict management and a strong technical force with the combination of many skilled workers and technical engineers.
Providing our customers with satisfactory diamond cutting tools is our aim!
7.FAQ.
Q: How to place order to your company?
Required Products Details: Tell us what is your demand? Which kind of products, size, specification, cutting or grinding or drilling materials? HP of machine? Quantity? Nearest airport and seaport? Then we will give you best offer.
Performa Invoice: Offer satisfied, and then confirms the delivery time, payment term, logo, quantity, etc. According to this information, we will do Performa Invoice. Customers do the payment.
Production Process: Arrange production, based on the contract and PI description and mutual communication, we will follow closely the full production process; keep you informed of till finished the products under the contract limited time. Take photo of the goods for your reference. We take completely file in the computer from the raw material to producing process details, package, shipping. Easy for us to check each order.
Delivery: Dispatch the goods to appointed airport or seaport, prepare all shipping documents to customers.
After-Sale Service: Track the goods, learn the products' performance.
Feedback: Customers feedback to Johnson about quality, service, give us suggestion for our better improvement
