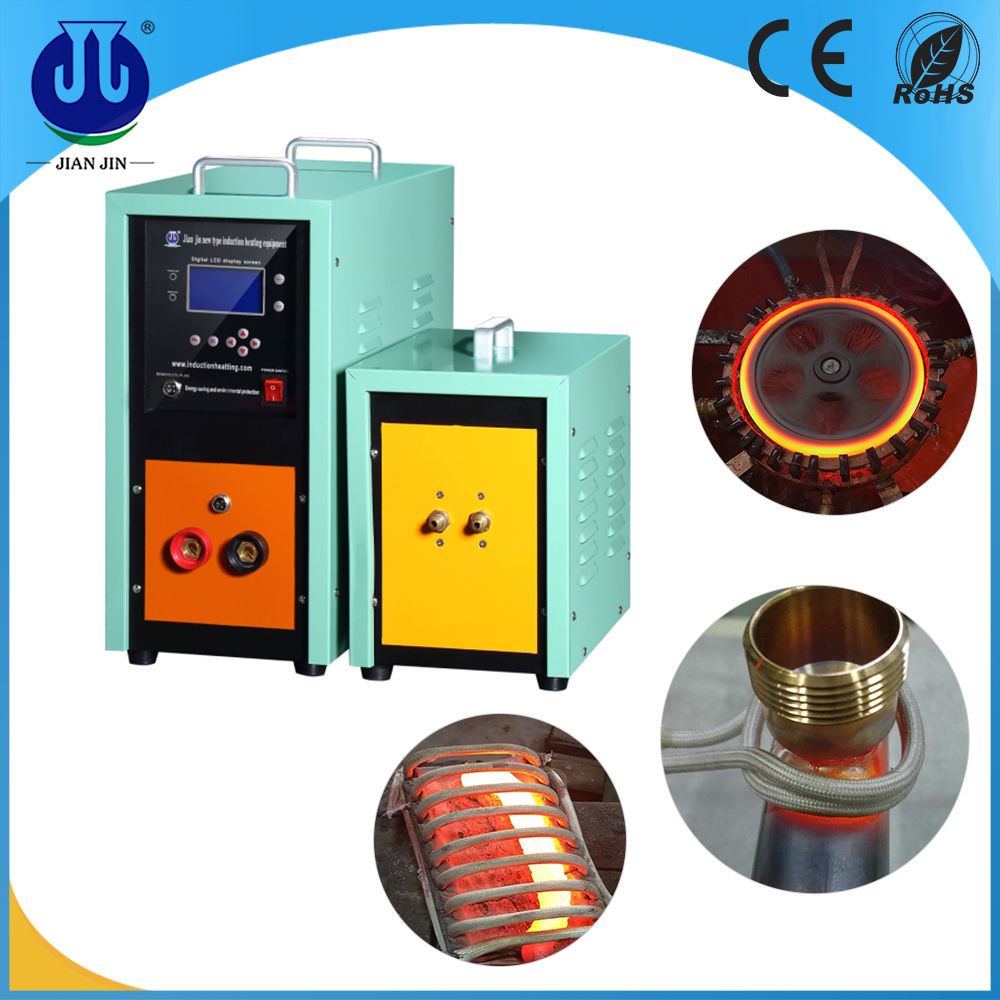

35kw Induction Heating Equipment for Forging Round Bar

Name: 35kw Induction Heating Equipment for Forging Round Bar
Brand: tool-buy.com
SKU: 823844965
Availability: InStock
Rating: 4.4 (71 reviews)

Price:	US $ 3000-5000/Set
Min Order:	1/Set
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Yongkang Jianjin Electronic Equipment Factory

Showroom Product Company Profile

Prod Model:	JJ-GP35X
Input Power:	35kw
Input Voltage:	Three Phase 380V, 50-60Hz
Oscillation Frequency:	30-100kHz
Net Weight:	20.2/19.4kg
Certificate:	Ce RoHS SGS
Application:	Metal Heat Treatment
Used For:	Quenching, Annealing, Welding, Melting, Forging
Color:	Black+Green
Name:	Induction Heater
Model:	Jj-Gp35X
Forging Forming Method:	Mold Forging
Certification:	RoHS SGS

Product Description

35kw induction heating equipment for forging round bar

Main characteristics

1. Adoping MOSFGT and IGBT inverting device, tracking frequency automatically
2. High frequency, heated quickly, its power consumption is only 20%~30% of eletronic tube induction heating machine and other heating style.
3. Security and reliability, the equipments have the secure voltage and it's secure to operate
4. Manual, automatic regulating automatically, it can protect itself from over voltage, over current, lack of water, phase fail, over hot, etc
5. It has no open-fire, noise and pollution, be suit for the environmental protection and fire, improve the image of the company
6. Recommend usage: Weld, forging, hot cooperate, melting, quenching, anneat etc

Technical Parameters

Model	JJ-GP20X	JJ-GP25X	JJ-GP30X	JJ-GP35X	JJ-GP40X	JJ-GP50X	JJ-GP60X	JJ-GP80X
Input power desire	Single phase 220V 50/60HZ	3 phase 380V 50/60HZ	3 phase 380V 50/60HZ	3 phase 380V 50/60HZ	3 phase 380V 50/60HZ	3 phase 380V 50/60HZ	3 phase 380V 50/60HZ	3 phase 380V 50/60HZ
Oscillate power max	20KW	25KW	30KW	35KW	40KW	50KW	60KW	80KW
Actual power	5KW	8KW	10KW	15KW	20KW	22KW	45KW	70KW
Max input current	30-40A	25A	30A	35A	40A	50A	70A	130A
Oscillate frequency	30-100KHZ	30-100KHZ	30-100KHZ	30-100KHZ	30-100KHZ	30-100KHZ	30-100KHZ	30-100KHZ
Cooling water desire	>0.2MPa 2-6L/Min	>0.2MPa 2-6L/Min	>0.2MPa 2-6L/Min	>0.2MPa 2-6L/Min	>0.2MPa 2-6L/Min	>0.2MPa 2-6L/Min	0.3Mpa≥6L/MIN	0.3Mpa≥6L/MIN
Duty cycle	100% 40°C	100% 40°C	100% 40°C	100% 40°C	100% 40°C	100% 40°C	100% 40°C	100% 40°C
Dimensions(LWH)	45X19.5X40CM	50X23X44.5CM	55X24X43.5CM	50X23X44.5CM	55.5X26.5X46.5CM	55.5X26.5X46.5CM	63.5X31X62.5CM	63.5X31X62.5CM
Net weight	22KG	27.5KG	33kg	20.2/19.4KG	27.6/26.7KG	29/31KG	42.8/37.3KG	49.4/50KG
Cable length	2-6(Meters)	2-6(Meters)	2-6(Meters)	2-6(Meters)	2-6(Meters)	2-6(Meters)	2-6(Meters)	2-6(Meters)

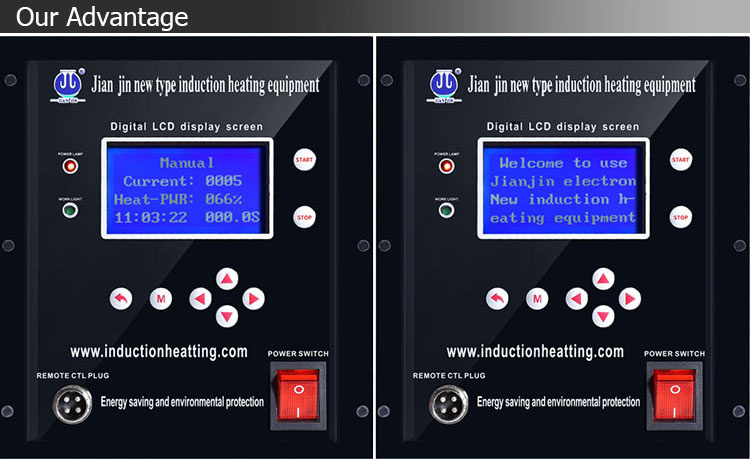

Our front panel use new digital LCD display have advantage as follows:

1.it has manual mode

2.it has automatic mode

3.it has clock

4.it has timing function(with millisecond)

5.it has count function

6.it is more convenient to adjust and use.

7.it can be accurate to microseconds

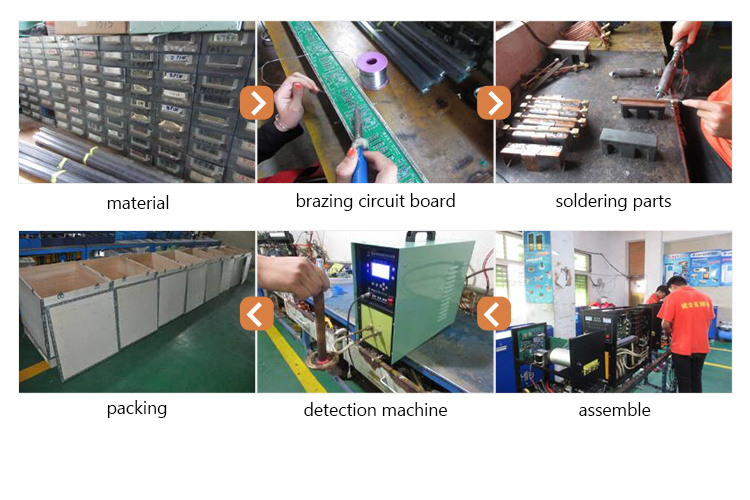

Production process:

Heat treatment for various hardware and tools, such as plier, wrench, hammer, ax,screwing tools and shear
Heat treatment for various automobile and motorcycle fittings, such as crankshaft,connecting rod, piston pin, chain wheel, aluminum wheel, valve, rock arm shaft,semi drive shaft, small shaft and fork.
Heat treatment for various electric tools, such as gear and axes.
Heat treatment for machine tools,such as lathe deck and guide rail.
Hardening for various hardware metal parts and machined parts, such as shaft,gear chain wheel, cam,chuck and clamp etc.
Heating for hardware molds, such as small-size mold, mold accessory and inner hole of mold.
Annealing of various stainless steel products, such as stainless steel basin,annealed and extruded can, annealed folded edge, annealed sink, stainless steel tube, tableware and cup.
Forging of various other metal work pieces, such as round steel, sheet/plate, pipe and others.

Welding of various meatal products,such as drill bits,cutter teeth,accessories,tool bit etc.

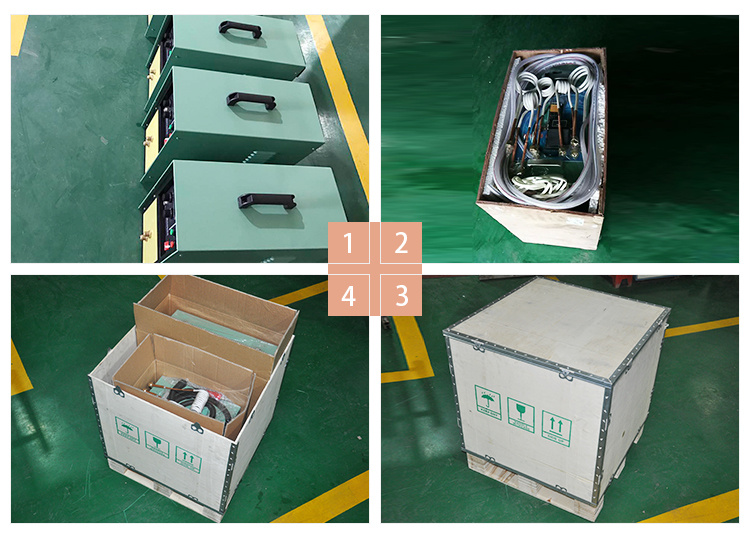

Packing details:

Company introduction

YongKand JianJin Electronics Co.,Ltd is a China based company with 12 years experience in special induction heating equipment region. Our R& D team has developed different induction machines for varied applications, and our machines have been successfully installed and commissioned all world wide.

We are a leading manufacturer of reliable, high quality induction heating equipments, that ensures an excellent payback on your investment. Besides, JianJin Electronics Co.,Ltd can provide specific application oriented equipment to meet individual needs of our customers and assist you with automation of the machines offered.If you have any interest in our products, pls do not hesitate any more, our staff will give you the best service at the first time.

FAQ:

1.which countries your products are exported to ?

Our products are sold all over the world and with related certifications.

2.How to install your machine?

We have paper installation instructions and videos ,we will teach till you learn it.

3.How about the warranty?

All our products have one year quality warranty,during the warranty time,the spare parts replacement is free,and we

provide life long time technical support and other assistance.

4.Which export port you use?

Any China port,commonly we will use Ningbo Shanghai port,can appoint as you like.

5.If I have paid but can not receive the goods,how should I do?

Alibaba international website is a famous trade platform and has been mature those years,every merchant on it has

paid large integrity fund,and we have China business licenses which can be checked on China official website or we

can show it to you,so that situation will never appear, please be assured.

6. How about the payment ways and delivery time?

30% deposit,70% before sending the goods(we will shoot total delivering process for customer's confirmation)and the

related papers.You can pay by T/T,L/C,western union or other ways.The small machinedelivery date is within 7 days,

the bigger one takes about 15days,we will delivery goods on time.

7.What is your nature of your company,dealer or factory?

We are manufacturer, warmly welcome to visit our factory.

Contact details:
Yongkang jianjin electonic equipment factory
Tel:86-0579-83967118
Fax:86-579-87237793
Cell:86-18067607118

http://www.inductionheatting.com

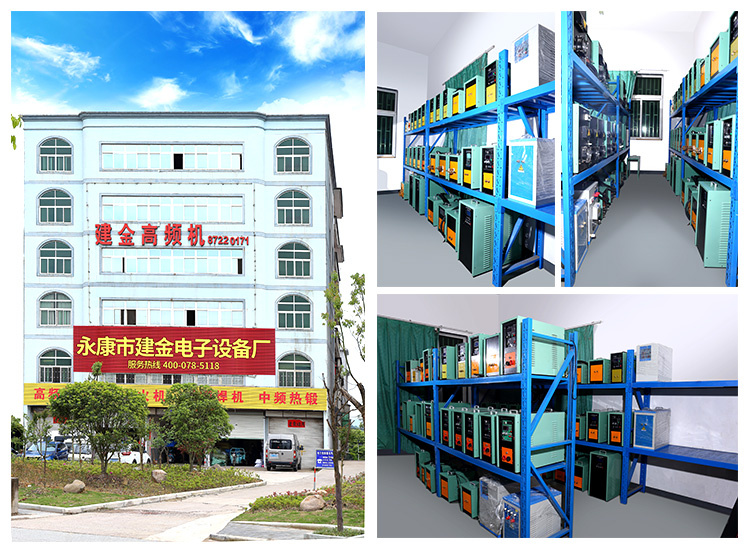

Yongkang Jianjin electronic equipment factory was established in 2006, We are specialized in the researching and manufacturing of new type induction heating equipment. It include high frequency(20kw to 80kw), superaudio frequency(40kw to 350kw), medium frequency(15kwto 600kw), ultrahigh frequency(5kw-60kw) series. Can be used for hot forging, quenching machine tool guide rail, quenching, shaft on-line annealing, smelting, metal welding, etc. Can match CNC quenching machine tool, automatic feeding device. One-stop solution to all your induction heating demand.

We cooperated many well-known companies and domestic enterprises, such as Wangli group, xingyue group, Gree air conditioning, qingnian Auto and so on. Especially for non-standard and automation products have a strong design and processing capacity, the company has more than 100 sets of processing equipment to meet the needs of induction equipment to achieve the independent production of mechanical and electrical integration, the annual production capacity of 5, 000 units.

Depend on our advanced technologies, reliable solutions and excellent after-sales service, our induction heating machines are welcomed by domestic and abroad clients.

Welcome to enquiry more information, any questions or technique support, please contact us via e-mail for details. Your satisfaction are our team's goal.
