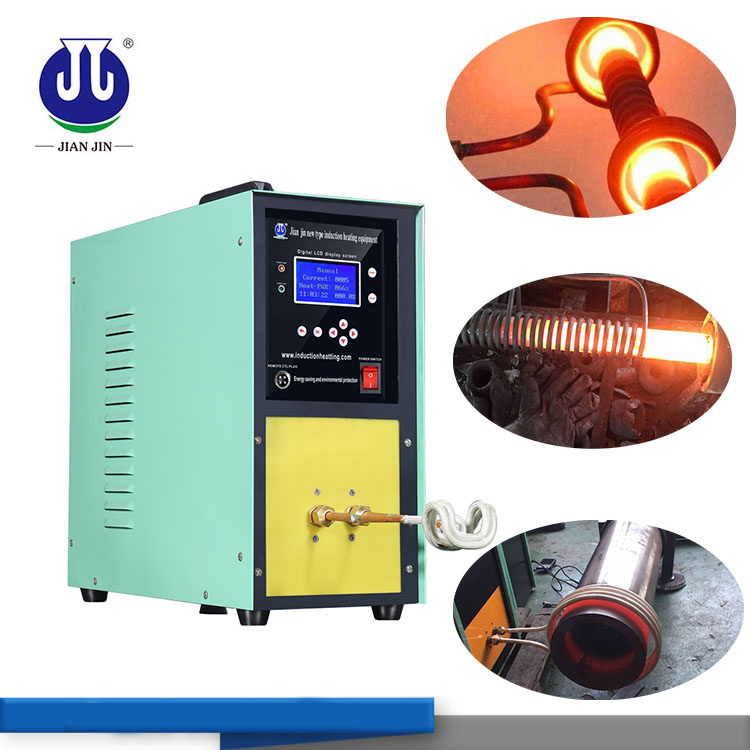

Low Price Heat Treatment Induction Heating Machine of 20kw New Induction Heating Equipment

Product Description

Main characteristics:

• Adoping MOSFGT and IGBT inverting device, tracking frequency automatically.
• High frequency, heated quickly, its powei consumption is only 20%~30% of eletronic tube induction heating machine and other heating style.
• Security and reliability, the equipments have the secure voltage and it's secure to operate.
• Manual, automatic regulating automatically, it can protect itself from over voltage, over current, lack of water, phase fail, over hot, etc.
• It has no open-fire, noise and pollution, be suit for the environmental protection and fire, improve the image of the company.
• Recommend usage: Weld, forging, hot cooperate, melting, quenching, anneat etc
• High Frequency Series JJ (30-100KHZ)

• Model	JJ-GP20X	JJ-GP25X	JJ-GP30X	JJ-GP35X	JJ-GP40X	JJ-GP50X	JJ-GP60X	JJ-GP80X
  Input voltage	single phase  220v 50-60HZ	3phase 380v 50-60HZ
  Oscillation power	20KVA	25KVA	30KVA	35KVA	40KVA	50KVA	60KVA	80KVA
  Max input current	30-40A	25A	30A	35A	40A	50A	70A	130A
  oscillation frequency	30-100KHZ
  cooling water desire	>0.2MPa  2-6L/Min						0.3Mpa≥6L/MIN
  Duty cycle	100%
  Net weight	22KG	27.5KG	33KG	20.2/19.4KG	30/25KG	30/30KG	42.8/37.3KG	49.5/50KG
  Cable length	2-6(Meters)

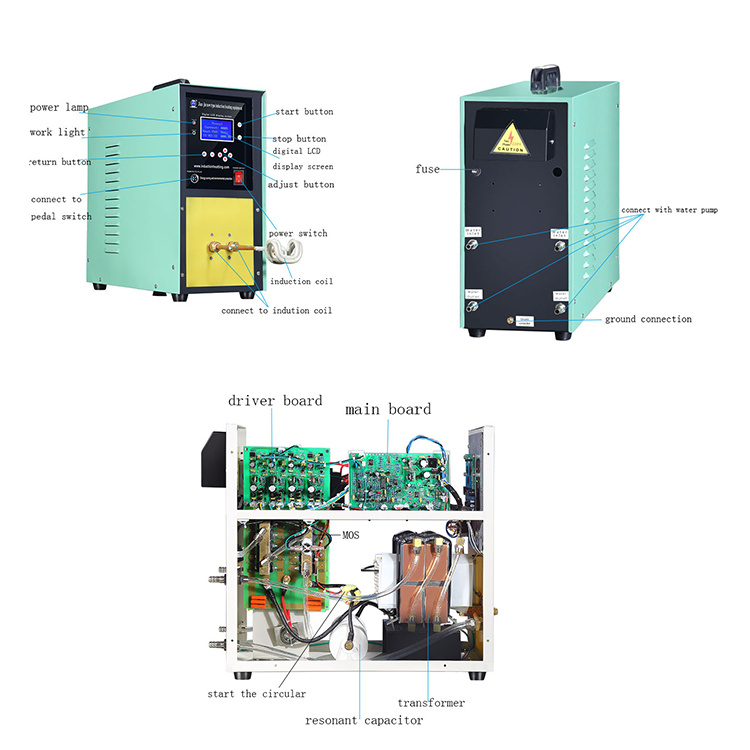

Main Parts Introduction:

• Germany SIEMENS INFINEON IGBT Module. ( 30-100KHZ oscillation frequency, fast response time, superhigh stability, almost spatter-free welding )
• Japan Nichicon electrolytic capacitor. ( filter capacitor )
• Imported transistor integrated block.
• All water pipe use thermostability, High pressure resistance best quality material.
• Main card, signal circuit, drive circuit board,control circuit board and components are adopted:Toshiba, Hitachi,Motorola, China's top manufacturers.
• International advanced all-solid-state semiconductor power devices.
• Technical advantage:perfect control, alarm display circuit, getting full automatic tracking frequency, continuous adjustable power, safe dependable protection,clear and accuracy data display and etc.
• Superiority Advantages: fast heating, wide application, small size, easy installation, simple operation, low power consumption, high efficiency.

Application

2. Induction Brazing Welding Soldering

Brazing is a fusion and solidification process which refers to the use of magnetic field induction heating to make the temperature of metal materials junction reach the melting point of welding, or the temperature of metal materials to reach between nonmetallic material. Such as metal tube, metal joint, carbide saw blade, carbide tips etc.

3. Melting: small amount metal melting, such as gold, silver, platinum, copper, brass, steel, iron etc.

4.quenching  treatment of automobile parts and motorcycle parts.

5.tensile annealing of stainless steel products.

Our Service

(1). Pre-sale service:

• 1. recommend the most suitable machine for customers, according to their requirements.
• 2. Inquiry and consulting support.
• 3. Sample testing support.
• 4. View our Factory.

(2). In-sale service:

• 1. Strictly manufacture the machine, according to relevant technical standards.
• 2. Take run test, according to relevant equipment test run regulations.
• 3. Strictly check up the machine, before delivery
• 4. Delivery on time.

(3). After-sale service:

• 1. 12 months warranty period
• 2. Within one year free warranty, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, Jinlai shall provide replacement parts after detecting the faults.
• 3. If any big quality problems occurs out of the guarantee period, Jinlai will send maintenance
• 4. technician to provide visiting service after checking with the customer and charge for a favorable price.
• 5. Jinlai will provide a lifetime favorable price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
• 6. The above mentioned are only basic after-sale service requirements, we will make more promises related to quality assurance and operation guarantee mechanism.

FAQ

Jianjin Supplies Induction Heating Power Supply
Questions and Answers:

1. Which countries your products are exported to?
Our products are sold all over the world and with related certifications.

2.How about the warranty?
All our products have one year quality warranty, during the warranty time, the spare parts replacement is free. And we provide life long time technical support and other assistance.

3.How to install your machine?
We have paper installation instructions and videos, we will teach till you learn it.

4. Which export port you use?
Any China port, commonly we will use NINGBO/SHANGHAI port, it can appoint as you like.

5.How about the payment terms and delivery time ?
Payment terms for small machines: 100% T/T/ Western Union/Cash in advance.
The big machines and big amount: 30% deposit,70% before shipment (we will shoot total delivering process for customer's confirmation)and the related papers. You can pay by T/T,L/C, Western Union or other ways.
The small machine delivery time is within 7 days, the bigger one takes about 15days,we will delivery goods on time.

6.If I have paid but can not receive the goods, how should I do?
Alibaba international website is a famous trade platform and has been mature those years ,every supplier on it has paid large integrity fund,and we have Chinese business licenses which can be checked on China official website or we can show it to you,so that situation will never appear, please be assured.

7.Is your goods has  CE certificate ?
Yes, all our goods has  CE certificate. All machines are high quality goods.

8.What is your nature of your company:dealer or factory ?
We are manufacturer and have a big factory ,warmly welcome to visit our factory and contact us.
