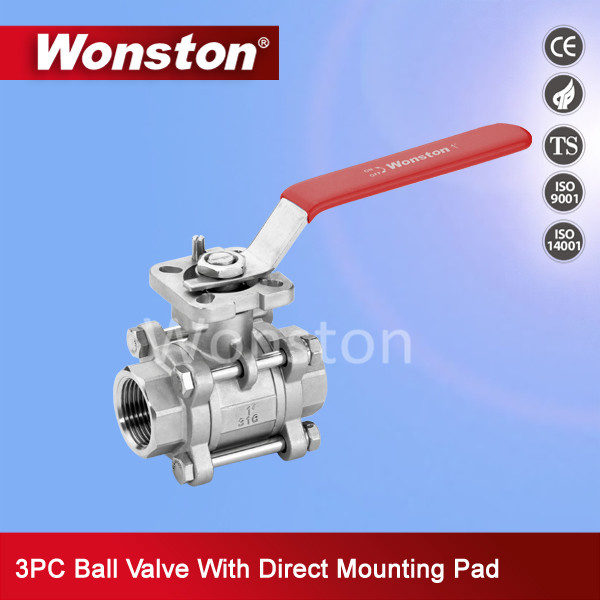

3PC Stainless Steel Ball Valve with ISO Direct Mounting Pad, Full Port 1000wog

Name: 3PC Stainless Steel Ball Valve with ISO Direct Mounting Pad, Full Port 1000wog
Brand: tool-buy.com
SKU: 710635292
Availability: InStock
Rating: 4.3 (76 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Zhejiang Wonston Valve Co., Ltd.

Showroom Product Company Profile

Prod Model:	WB-03TH
Port:	Full Port
Certificate:	ISO900, TUV Ce
Export Area:	World Wide
Handle Color:	Blue, Red, Yellow, Grey
Material:	Stainless Steel
Connection Form:	Thread
Channel:	Straight Through Type
Structure:	Floating Ball Valve
Type:	Floating Ball Valve
Application:	Household Usage
Nominal Pressure:	1000wog
Function:	Oil, Gas, Water

Product Description

3PC Stainless Steel Ball Valve with ISO Direct mounting pad, Full port ,1000WOG

Features and Benefits:

High-Cycle, Live-Loaded Stem Packing
Dynamic loading on stem packing ensures a tight seal through varying pressure and temperature conditions, reducing maintenance costs and extending service lifeFull Port Design
Improves flow resulting in increased process efficienciesl3-Piece Construction
Easy to repairBlow-Out-Proof Stem
Stem is bottom loaded to prevent removal when valve is in serviceLocking Device
Enables plant personnel to secure valve in open or closed position when manually operatedInvestment Cast
Improves dimensional control and reduces porosityPressure Blance Hole in Ball SlotAnti-Static Device for Ball-Stem-Body

Operating / Test Conditions:

Temperature Range: -20°C to 190°CMaximum Working Pressure:
1000 PSI WOGWorking Medium: Water, Oil, Gas, Acid, etcDesign: ANSI/ASME B16.34Inspection&Testing: API 598End connections: All to B16.34; NPT to B1.20.1; socket weld to B16.11; butt weld to B16.25; flanged to B16.5

Options:

End connections available in NPT, socket weld, Sch. and ANSI Class 150 and 300 flanged in SS316,SS304 or carbon steel WCBBody Material:ASTMA351-CF8M,CF8, CF3M,CF3 ASTM A216-WCB

FAQ
Q1: We are interested in your products?
A1: In order to recommend you suitable products, please provide detail information, like size, material, pressure, model.
Q2: Is the requirement for MOQ?
A2: For some small size, like 1/4''-1''(DN6-DN25), it request the MOQ is 100pcs for each size. Generally speaking, it depends on your order.
Q3: How about the warranty?
A3: The warranty time is 12 months after leaving our factory.
Q4: Payment
A4: Mainly T/T, L/C.
       Payment Term: 30% in advance, 70% balance paid before shipping or against copy of BL.
Q5: Can you manufacture different standards valves according to customer requirements?
A5: Yes. We can manufacture ANSI,DIN, JIS standards for different pressure & temperature & size according to different needs.
If you want to know more about our products, please contact freely. We will patiently answer your all questions.

Jelly
Sales Manager
-----------------------------------------------------
ZHEJIANG WONSTON VALVE CO.,LTD
Shacheng Industry Zone,Longwan Wenzhou,Zhejiang China.
Tel:  86-577-56900878
Mob:  86-15258058209
Fax: 86-577-56900897

Web: www.wonston.com
            www.wonston.net

Wonston provides the right solutions

Wonston is a leading manufacturer of ball valves. Founded in the early 1996's, the company expanded into the design and production of 1, 2, 3- piece ball valves, gate valve, globe valve, check valve etc, which are widely used in the following industries: Chemical, petrochemical, oil refinery, energy, offshore drilling, marine, pulp and paper, pharmaceutical, biotech, food and beverage and others.

The company occupies a land area of 18, 000 square meters, has 100 staff, with nc lathe, milling machine, radial drilling machine, laser marking machine etc, and testing equipments such as spectrometers, chemistry analyzers, plug gauge, pressure test machine etc to ensure quality. The company has acquired ISO14001, ISO9001 and ce authentication.

Wonston products have been exported to America, Europe, Russia, Middle East, Asia, Africa etc.

Advanced design and flexibility

Research, development and continuous technological advances ensure that wonston stays in the forefront of the industry. Wonston's expertise in valve design means that the company can supply not only standard valves, but also complex, custom-designed valve packages for many applications. As a result of its on-going modification and upgrading of current valve designs, together with the development of new valve products, wonston offers the highest degree of sophisticated products that meet customers' requirements.

Our mission

Wonston complies to the management idea: "combine the talents, improve whole system, ensure the safety, achieve competitive product, service sincerely, strive for a first-rate" be market-oriented. We believe that under the help and support from the customers and friends, wonston can make a huge achievement and create bigger refulgence.

Performance and reliability

In industries where performance, quality and reliability are essential, wonston ball valves and other products are a secure choice. Each valve is manufactured to strict technical specifications, guaranteeing customer satisfaction, more than 5 times quality from beginning to the end ensure each valve was 100% eligibility.
