| Prod Model: |
HXSAW115 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diameter: |
105mm, 115mm, 125mm, 175mm |
| Hole Size: |
20/22.23mm |
| Thickness: |
1.2-1.4mm |
| Segment Height: |
10mm |
| Usage: |
for Cutting Stone |
Product Description

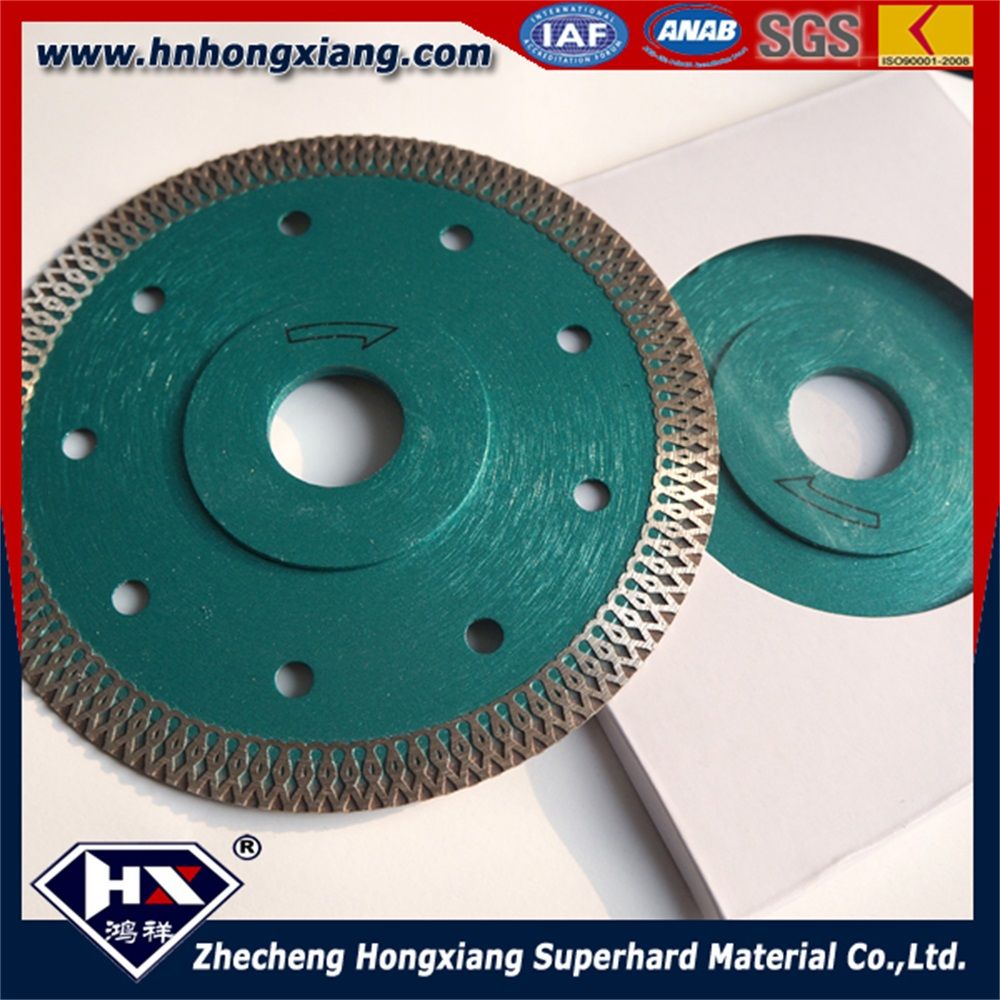

Product Name: X turbo mesh diamond blade
Specifications
1.30% faster Sharpness
2.30%-40% higher Cutting Life
3.Noise reduction by 30%
4.Save 20% Power Absorption
HOT PRESSED SUPER THIN TURBO BLADES
Detail Size:
| Diameter | Hole size | Thickness | Segment Height |
| 105mm | 20mm/22.23mm | 1.2mm | 10mm |
| 115mm | 22.23mm | 1.2mm | 10mm |
| 125mm | 22.23mm | 1.2mm | 10mm |
| 175mm | 22.23mm | 1.4mm | 10mm |
Features:
Super thin turbo rim and soft band are especially designed for fast and smooth cutting.
Applications:
All kinds of ceramic tiles and porcelain.
Machinery:
Angle hand grinder, circular saw.
Other diamond tools:
Diameter core bit for concrete
Desingned for drilling granite, marble, concrete etc, used on powder tools
Advange
Grinding efficiently, good wear resistance,
Fast drilling speed
Used for stone, granite, marble, concrete.
Best diamond material
Can be customized
Original manufacturer with 20 years experience
Size
Diameter: 28mm--230mm
Thread type: M14, 1/2 gas, 5/4 UNC etc
Other size can be customized
Details
| Outside | Diamond Segment |
| Diameter |
| mm | Quantity / pc | Size /mm |
| 27 | 3 | 10*3.7 |
| 30 | 3 | 10*3.7 |
| 32 | 3 | 10*3.7 |
| 36 | 3 | 10*3.7 |
| 38 | 4 | 10*3.7 |
| 40 | 4 | 10*3.7 |
| 44 | 4 | 10*3.7 |
| 46 | 4 | 10*3.7 |
| 51 | 5 | 12*3.7 |
| 56 | 5 | 12*3.7 |
| 63 | 5 | 12*3.7 |
| 66 | 6 | 12*3.7 |
| 71 | 6 | 12*4 |
| 76 | 7 | 12*4 |
| 83 | 7 | 12*4 |
| 89 | 8 | 12*4 |
| 96 | 8 | 12*4 |
| 102 | 9 | 12*4 |
| 108 | 9 | 12*4 |
| 112 | 10 | 12*4 |
| 114 | 10 | 12*4 |
| 116 | 10 | 12*4 |
| 120 | 10 | 12*4.2 |
| 127 | 10 | 12*4.2 |
| 133 | 11 | 12*4.2 |
| 152 | 11 | 12*4.5 |
| 159 | 12 | 12*4.5 |
| 168 | 13 | 12*4.5 |
| 180 | 14 | 12*4.5 |
| 200 | 15 | 12*5 |
| 220 | 16 | 12*5 |
| 230 | 16 | 12*5 |
Zhecheng Hongxiang Superhard Material Co., Ltd. Affiliated with Wanke Group, is a highly professional and experienced manufacturer of synthetic diamond powder & diamond tools in China. We have specialized in this field over 27 Years and always dedicated to the produce the diamond tools in high quality and good service.
Our products include,
Synthetic diamond
Diamond powder
Diamond saw blade
Diamond drill bit
Poly crystalline Diamond composite ( PDC )
PCD wire drawing dies
Diamond glass tools
Diamond polishing pad
Diamond cutting tools
Diamond grinding tools
Diamond wheels
Diamond tools, etc.
Why choose us?
1. Since 1990, with over 27 years diamond tools manufacturer experience.
2. Rich experience in OEM order
3. Advanced production equipment
4. Own design team, can help you custom the packaging
5. Own provincial engineering technology center
6. D&B and ISO9001 Certificates
We are a professional synthetic diamond powder & diamond tools company integrating development, production and sales. Factory located in middle of China-Henan, with more than 124000 square meters. "High quality products, competitive prices, and classic services" is the soul of our business.
Warmly welcome all partners to join us for mutual benefits cooperation.
