| Prod Model: |
4SH 4SP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Rubber Pipe for Hydraulic Machinery |
| Model No.: |
4sh 4sp |
| Tube: |
NBR |
| Cover: |
NBR |
| Reinforcement: |
Wire Spiral |
| Length: |
10m 20m 30m 40m 50m 100m |
| Temperature: |
-40c to +100c |
| Characteristic: |
Flexible |
| Application: |
Hydraulic Oil Fluid Delivery |
| Safety Factor: |
4:1 |
| Material: |
Nitrile Rubber |
| Capability: |
Rubber Oil Hose |
| Color: |
Black |
Product Description
Wire Spiral Hydraulic Rubber Pipe for Hydraulic MachineryTube: Oil resistant synthetic rubber(NBR)
Reinforcement: Four wire spiral
Cover: Abrasion and weather resistant synthetic rubber(NBR. As your request)
Temperature Range: -40 ºC~ +100 ºC
Datasheet of 4 Wire Hydraulic PIpe 4sh 4sp4SH
DN
| Hose I.D | Wire O.D | Hose O.D | WP | BP | Mini. B.R | Weight |
| inch | mm | mm | mm | MPa | psi | MPa | psi | mm | kg/m |
| 19 | 3/4 | 19.0 | 28.4 | 32.0 | 42.0 | 6000 | 168.0 | 24000 | 280 | 1.61 |
| 25 | 1 | 25.4 | 35.2 | 38.6 | 38.0 | 5500 | 152.0 | 22000 | 340 | 2.00 |
| 32 | 1 1/4 | 31.8 | 41.9 | 45.8 | 32.5 | 4700 | 130.0 | 18800 | 460 | 2.64 |
| 38 | 1 1/2 | 38.1 | 48.8 | 53.3 | 29.0 | 4200 | 116.0 | 16800 | 560 | 3.36 |
| 51 | 2 | 50.8 | 63.2 | 68.1 | 25.0 | 3600 | 100.0 | 14400 | 700 | 4.98 |
4SP
DN | Hose I.D | Wire O.D | Hose O.D | Working Pressure | Burst Pressure | Mini. B.R | Weight |
| inch | mm | mm | mm | MPa | psi | MPa | psi | mm | kg/m |
| 10 | 3/8 | 9.5 | 17.5 | 21.4 | 44.5 | 6450 | 180.0 | 26000 | 180 | 0.78 |
| 13 | 1/2 | 12.7 | 20.2 | 24.0 | 41.5 | 6000 | 166.0 | 24000 | 230 | 0.89 |
| 16 | 5/8 | 15.9 | 23.8 | 28.2 | 35.0 | 5000 | 140.0 | 20000 | 250 | 1.11 |
| 19 | 3/4 | 19.0 | 28.2 | 32.2 | 35.0 | 5000 | 140.0 | 20000 | 300 | 1.59 |
| 25 | 1 | 25.4 | 35.5 | 39.7 | 28.0 | 4000 | 112.0 | 16000 | 340 | 2.02 |
| 32 | 1 1/4 | 31.8 | 46.0 | 50.8 | 21.0 | 3000 | 84.0 | 12000 | 460 | 3.32 |
| 38 | 1 1/2 | 38.1 | 52.4 | 57.7 | 18.5 | 3650 | 74.0 | 10800 | 560 | 3.70 |
| 51 | 2 | 50.8 | 65.3 | 69.6 | 16.5 | 2360 | 66.0 | 9600 | 660 | 5.47 |

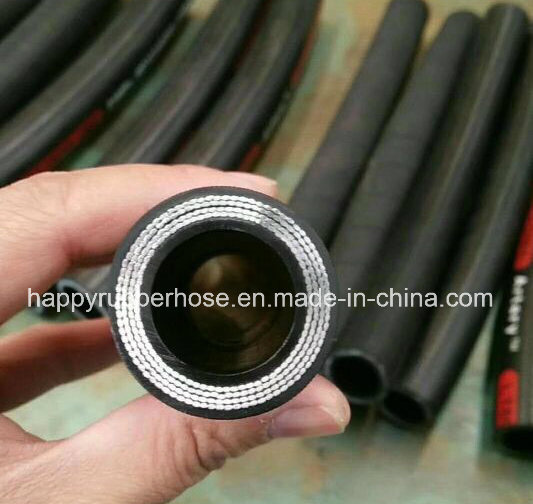

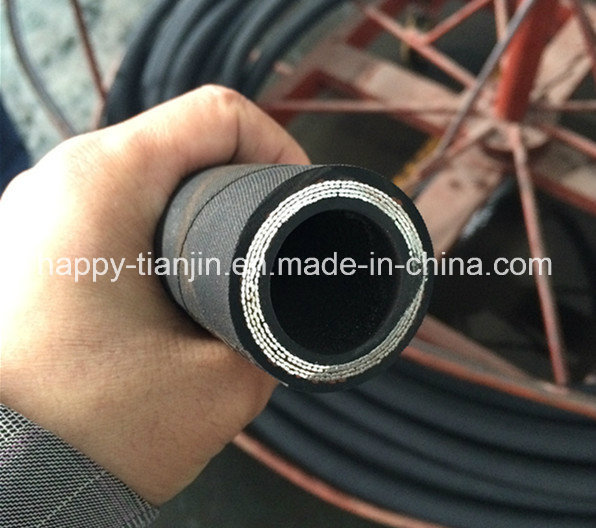

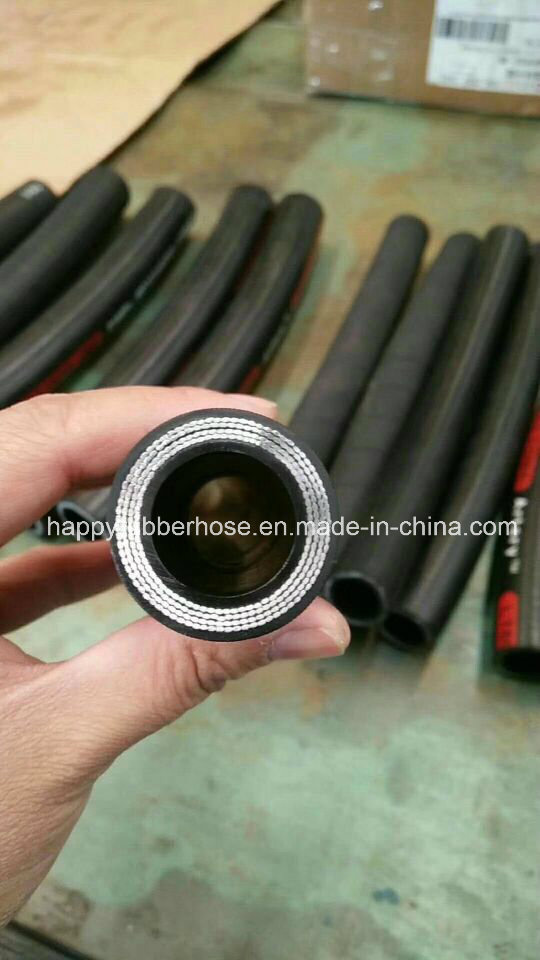

Pictures of Four Wire Hydraulic Pipe 4sh 4sp
Happy (Tianjin) Technology and Development Co., Ltd. Is based on integrity of Research & Development, Manufacturing & Sales. Our main products include hydraulic hose, drilling hose, concrete hose, oil suction hose, water suction hose, fuel hose, oil delivery hose, water delivery hose, steam hose, sandblast hose, chemical hose, air hose, welding hose, flex metal hose and so on.
Our workshop covers about 128900 meters. We have 23 advanced production lines. Our yearly production of each kind of rubber hose are about 55, 000, 000 meters. Now we have more than 400 workers and 22 authoritative enginners.
Our company offers some famous companies' OEM production for the long term and our main markets are North America, South America, Germany, Russia, Middle East, Africa and so on. At the mean time, we have stable and long term cooperation with Chinese Petroleum, Railway Department, Chinese Mining Group and so on.
Our principle - Excellent Quality, Fast delivery time and Integrity Service.
