| Prod Model: |
XY-400F |
| Usage: |
Water Well |
| Voltage: |
Customized |
| Power(W): |
24HP |
| Weight: |
3000kgs |
| Warranty: |
One Year |
| Diesel Engine: |
24HP, 2200r/Min |
| Application: |
Water Well, Soil Sampling, Pile Foundation etc |
| Stratum: |
Gravel, Soil, Sand, Hard Rock etc |
| Control System: |
Hydraulic System.High Efficiency |
| Color: |
Green/Blue/Yellow or as Your Requirement |
Product Description

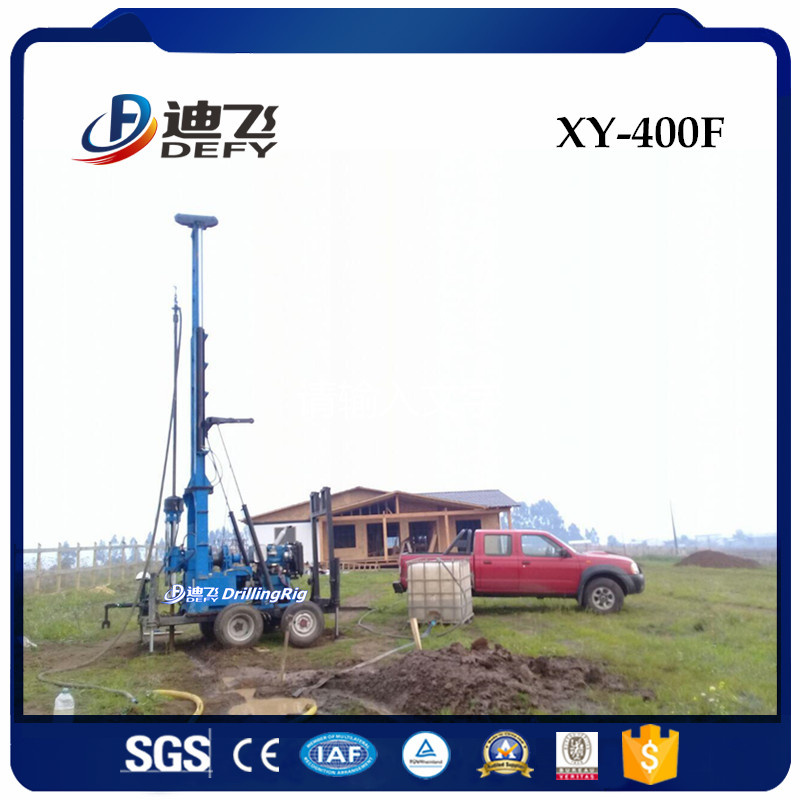

XY-400F multi usage water drilling rigs spindle drilling machine
Production Usage:
XY-400F water drilling rigs can be used for water wells, geological core drilling, geothermal wells, and irrigation wells, blast hole.
XY-400F can drill soft stratums, mix stratums, hard stratums.
Attracting Features:
1.Power engine
24HP diesel engine, with electric starter, very easy to start the machine.
2. Mud pump
BW-200 mud pump, have large water flushing rate, 200L/min. Can cool bits and wash the wells.
3. Hydraulic control system:
Hydraulic drill tower and hydraulic support legs, save labor, easy to operate even if don`t have experience, you can learn well in short time.
4. Wheels or crawler type for your choice:
5. Certificates:
Our machine has BV and SGS certificates. with high quality.
6. Spindle type:
XY-400C water drilling rigs is are spindle type. high efficiency when drilling wells.
Technical Parameter:
| 1. Main Parameters |
| Max. Drilling Depth | 400m |
| Diameter of drill pipe | Φ42,Φ50,Φ60,Φ76 |
| Angle of vertical spindle | 0°~90° |
| Drilling capability |
| Φ75mm drill diameter | Max. Depth 400m |
| Φ108mm drill diameter | Max. Depth 320m |
| Φ127mm drill diameter | Max. Depth 280m |
| Φ168mm drill diameter | Max. Depth 220m |
| Φ219mm drill diameter | Max. Depth 160m |
| Φ273mm drill diameter | Max. Depth 130m |
| Φ400mm drill diameter | Max. Depth 100m |
| Φ500mm drill diameter | Max. Depth 50m |
| Φ600mm drill diameter | Max. Depth 30m |
| 2. Vertical Spindle |
| Rotation speed | Forward 8 grades | 50-1150r/min |
| | Reverse 2 grades | 29-137r/min |
| Spindle stroke | 600mm |
| Spindle bore | 62mm |
| Hoisting capability | 6000kg |
| Max. Torque | 2800N.m |
| 3. Main hoist |
| Lifting speed of single wire | 0.5-1.9m/s |
| Diameter of wire rope | 14.0mm |
| Carry capacity of single wire | 4000kg |
| Diameter of winding drum | 300mm |
| Volume of winding drum | 50m |
| Lifting capability of single wire | 3000kg |
| 4.Auxiliary Hoist | |
| Winding drum | 140mm |
| Diameter of steel wire rope | 6mm |
| Volume of winding drum | 450m |
| 5. Mud pump(as per your choice) |
| Horizontal triplex mud pump | BW-200II |
| Displacement | 200L/min |
| Working pressure | 50kg/cm² @ 5MPa |
| Diameter of water inlet hose | 65mm |
| Diameter of water outlet hose | 38mm |
| 6.Power supply(choose one between the following two) |
| Diesel engine | 17.6kw (24HP) |
| Electrical motor | Y160L-4,18.5kw |
| 7. Weight and Dimension of main drilling rig |
| Weight | 3000kg |
| Dimension | 3980×1950×2750mm |
| 8.Six-wheel Trailer | |
| Walking speed | Less than 10Km/h |
| Frame carrying capacity | 8.5 tons |
| Steering wheel 600-14(Single wheel) | 0.68 tons |
| Bearing wheel 650-14(double wheels) | 0.9 tons |
| Minimum turing angle | 6.8m |
