| Prod Model: |
6.4.2.1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
16 Inch |
| Usage: |
Stone Cutting |
| Manufacturing Arts: |
Welding |
| Kind: |
Diamond Laser Saw Blade |
| Saw Blade External Diameter: |
400mm |
Product Description

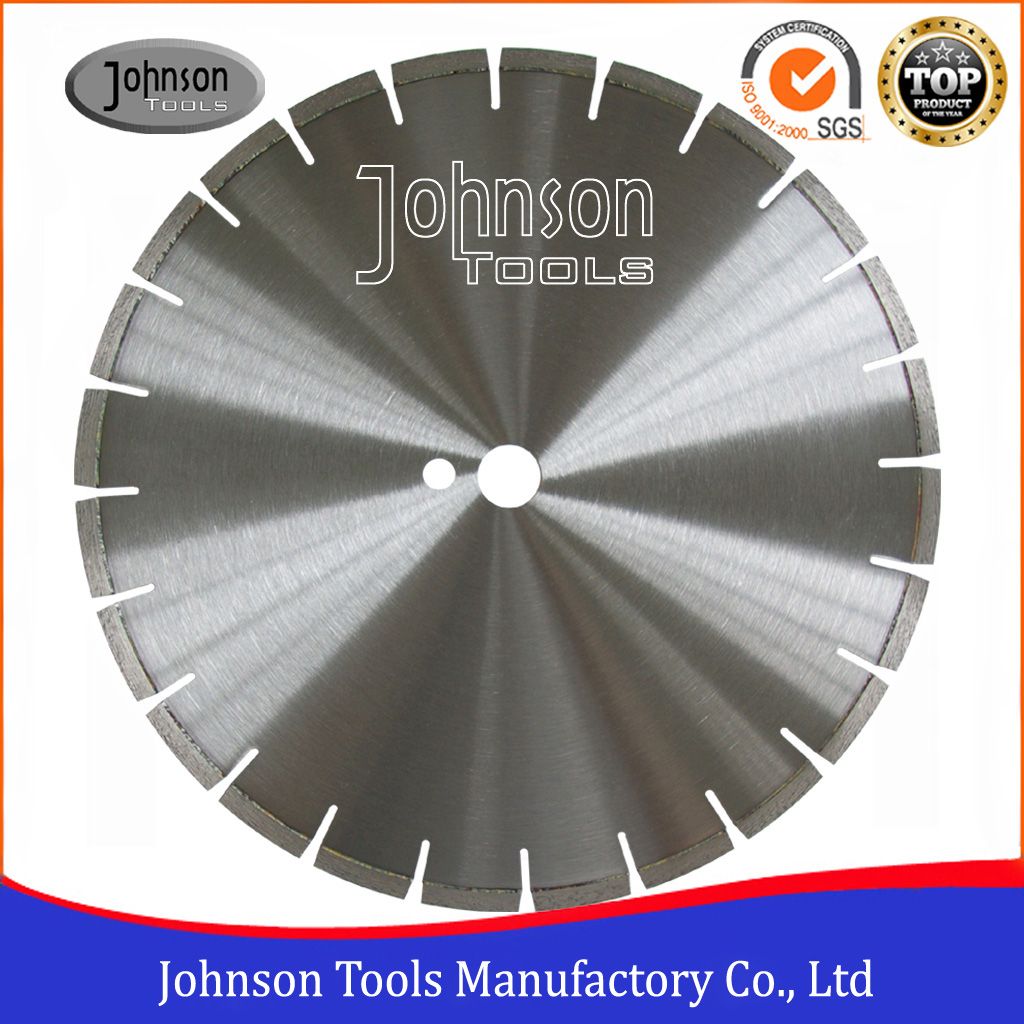

OD400mm Laser Welded Saw Blade for Cutting Granite
Why choose us:
1. SGS, MPA certificate, Established in 2000 year, Rich producing experience.
2. Well approved by our worldwide clients, export more than 70 countries.
3. Success formula for concrete saw blade
4. Quick Delivery time
5. One-Day reply to your inquiry and question.
1. Description of OD400mm Laser Welded Saw Blade for Cutting Granite
With its large application range and broad cutting spectrum these diamond cutting blades offer the user great durability, performance and lifetime. These diamond disc can be used on angle grinders, disc cutters, bench saws. These cutting edge diamond blades allow unrivalled performance in most common stone materials; these high quality diamond blades provide the user with the great cutting versatility and some of the fastest diamond cutting characteristics available from any comparable diamond blade on the market.
We can offer our clients good after-sale service and professional technical assistance.
2. Features of OD400mm Laser Welded Saw Blade for Cutting Granite
1. For cutting granite
2. Competitive price and opportune delivery.
3. Suit to a variety of stone, such as granite, sandstone, limestone, basalt.
4. 100% laser welding brazed technology.
5. Accurate cutting and no chipping.
6. Different specifications and grades meet different requirement.
7. Dry or wet cutting.
3. Specification Information of OD400mm Laser Welded Saw Blade for Cutting Granite
1. Diameter: 16"/400mm
2. Segment length: 40mm
3. Segment thickness: 3.4mm
4. Segment height: 10/12/15mm
5. Inner hole: 22.23mm, 25.4mm, 50mm, 60mm or as your request.
6. Type: normal steel disc and silent steel disc
| Inch | Diameter
(mm) | Teeth length
(mm) | Teeth thickness
(mm) | Teeth height
(mm) | Teeth number
(mm) |
| 16" | 400 | 40 | 3.4 | 10/12/15 | 32 |
Other size of the Diamond laser saw blade for granite
| Inch | Diameter
(mm) | Teeth length
(mm) | Teeth thickness
(mm) | Teeth height
(mm) | Teeth number
(mm) |
| 4" | 105 | 32 | 2.2 | 7/10/12/15 | 8 |
| 4.5" | 115 | 31 | 2.2 | 7/10/12/15 | 9 |
| 6" | 150 | 34 | 2.2 | 7/10/12/15 | 11 |
| 7" | 180 | 34 | 2.4 | 7/10/12/15 | 14 |
| 8" | 200 | 40 | 2.4 | 7/10/12/15 | 13 |
| 9" | 230 | 37 | 2.6 | 7/10/12/15 | 16 |
| 10" | 250 | 40 | 2.6 | 7/10/12/15 | 18 |
| 12" | 300 | 40 | 3.0 | 7/10/12/15 | 21 |
| 14" | 350 | 40 | 3.2 | 7/10/12/15 | 24 |
| 18" | 450 | 400 | 3.6 | 10/12/15 | 32 |
| 20" | 500 | 40 | 4 | 10/12/15 | 36 |
| 24" | 600 | 40 | 4.4 | 10/12/15 | 42 |
| 32" | 800 | 24 | 6.0 | 10/12/15 | 46 |
| 36" | 900 | 24 | 6.5 | 10/12 | 64 |
4. Packing and shipping of OD400mm Laser Welded Saw Blade for Cutting Granite
Packing: Each saw blade is packed in white box or colored box packing, then according to the size, 10pcs put in an export standard carton, carton size: 41x 41x15cm.
Shipping: Usually by courier, air and sea, we could recommend the suitable way for actually quantity and gross weight.
5.Payment terms
T/T, Irrevocable L/C at sight,PayPal, West Union, Credit Card, etc.
6. Our Technology
We are processing advanced production equipment, modern checking system, strict management and a strong technical force with the combination of many skilled workers and technical engineers.
Providing our customers with satisfactory diamond cutting tools is our aim!
7. FAQ
Q: How to place order to your company?
1) Required Products Details: Tell us what is your demand? Which kind of products, size, specification, cutting or grinding or drilling materials? HP of machine? Quantity? Nearest airport and seaport? Then we will give you best offer.
2) Performa Invoice: Offer satisfied, and then confirms the delivery time, payment term, logo, quantity, etc. According to this information, we will do Performa Invoice. Customers do the payment.
3) Production Process: Arrange production, based on the contract and PI description and mutual
communication, we will follow closely the full production process; keep you informed of till finished the products under the contract limited time. Take photo of the goods for your reference. We take completely file in the computer from the raw material to producing process details, package, shipping. Easy for us to check each order.
4) Delivery: Dispatch the goods to appointed airport or seaport, prepare all shipping documents to customers.
5) After-Sale Service: Track the goods, learn the products' performance.
6) Feedback: Customers feedback to Johnson about quality, service, give us suggestion for our better improvement.
Many other related tools, welcome to contact us now.
