| Prod Model: |
7.2.2.3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
16 Inch |
| Usage: |
Stone and Concrete Cutting |
| Manufacturing Arts: |
Welding |
| Kind: |
Diamond Laser Saw Blade |
| Saw Blade External Diameter: |
400mm |
Product Description

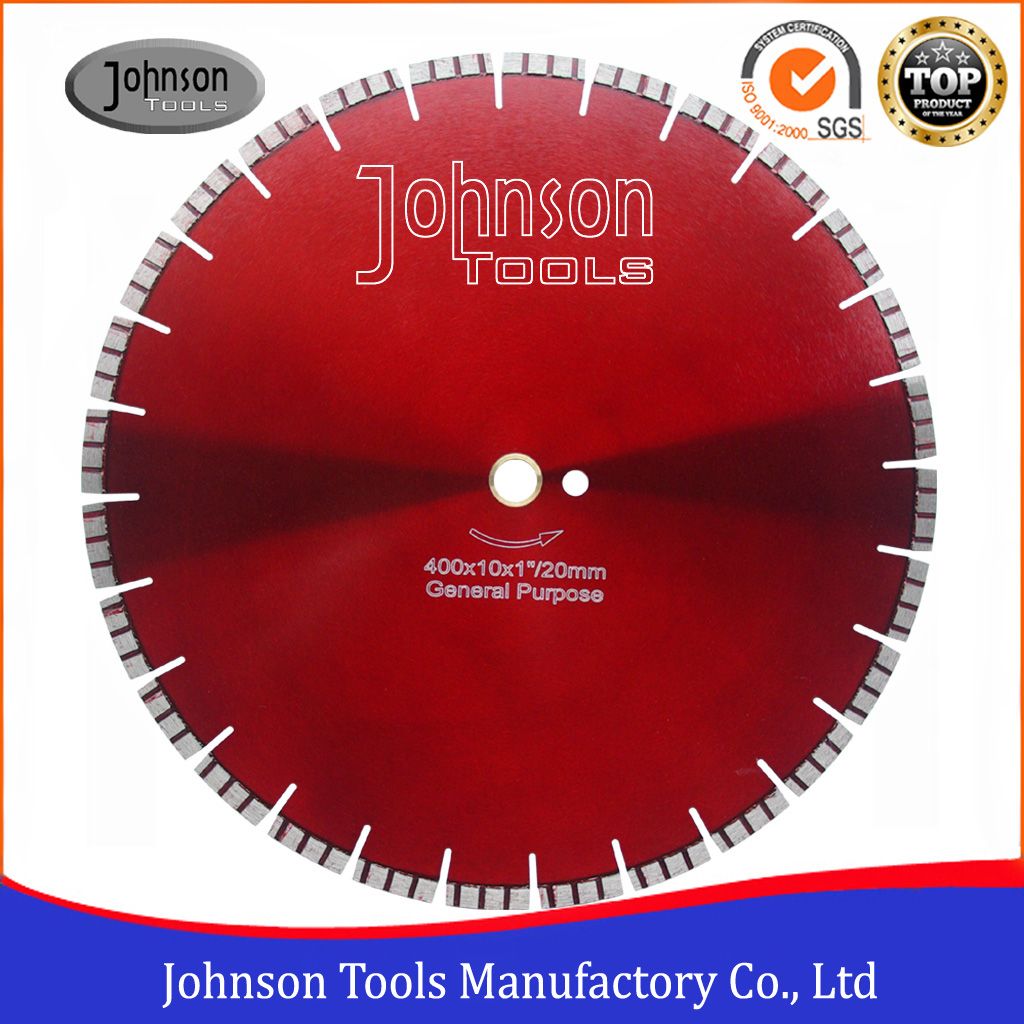

400mm Diamond Saw Blade for General Purpose with Turbo Segment
Why choose us:
1. SGS, MPA certificate, Established in 2000 year, Rich producing experience.
2. Well approved by our worldwide clients, export more than 70 countries.
3. Success formula for concrete saw blade.
4. Quick Delivery time.
5. One-Day reply to your inquiry and question.
1. Description of 400mm Laser Diamond Cutting Saw Blade with Turbo Segment for General Purpose
A multi-application diamond blade used for fast cutting on a very wide range of concrete, masonry and construction materials. These diamond blades are designed for moderate to heavy saw cutters who want to cut materials with minimal blade changes. General blades cut the entire construction material spectrum and feature undercut protection for use on asphalt and green concrete. This blade is perfect for landscapers, general contractors, utilities, municipalities, sewer and water departments and rental companies.
Applications: Refractory brick, marble, granite, asphalt, green concrete, masonry, brick, block, concrete, hard concrete, pavers, field stone, ductile iron pipe.
Suitable Machinery: Angle grinder, circular saw, high speed saws, walk behind saw (13 HP max), masonry saw.
2. Features of 400mm Laser Diamond Cutting Saw Blade with Turbo Segment for General Purpose
• Laser Welded Segments
• Turbo Segment
• Undercut Protection For Abrasive Materials Like Asphalt and Green Concrete
• Wet or Dry Use
3. Specification information of 400mm Laser Diamond Cutting Saw Blade with Turbo Segment for General Purpose
Diameter:400mm
Segment thickness:3.4mm
Segment height:10/12/15mm
inner hole:22.23mm, 25.4mm, 50mm.
| Inch | Diameter
(mm) | Teeth length
(mm) | Teeth thickness
(mm) | Teeth height
(mm) | Teeth number
(nos) |
| 16" | 400 | 40 | 3.4 | 10 | 28/24 |
| 16" | 400 | 40 | 3.4 | 12 | 28/24 |
| 16" | 400 | 40 | 3.4 | 15 | 28/24 |
Other size we could do
| Inch | Diameter
(mm) | Teeth length
(mm) | Teeth thickness
(mm) | Teeth height
(mm) | Teeth number
(nos) |
| 4" | 105 | 32 | 2.2 | 7/10/12 | 8 |
| 4.5" | 115 | 31 | 2.2 | 7/10/12 | 9 |
| 5" | 125 | 31 | 2.2 | 7/10/12 | 10 |
| 6" | 150 | 34 | 2.2 | 7/10/12 | 11 |
| 7" | 180 | 34 | 2.4 | 7/10/12 | 14 |
| 8" | 200 | 40 | 2.4 | 7/10/12 | 13 |
| 9" | 230 | 37 | 2.6 | 7/10/12 | 16 |
| 10" | 250 | 40 | 2.6 | 10/12/15 | 16 |
| 12" | 300 | 40 | 3.0 | 10/12/15 | 20/18 |
| 14" | 350 | 40 | 3.2 | 10/12/15 | 24/21 |
| 18" | 450 | 40 | 3.6 | 10/12/15 | 32/26 |
| 20" | 500 | 40 | 4.0 | 10/12/15 | 36/30 |
| 24" | 600 | 40 | 4.4 | 10/12/15 | 42/36 |
| 26" | 650 | 40 | 4.4 | 10/12/15 | 42/36 |
| 28" | 700 | 40 | 5.0 | 10/12/15 | 42/36 |
| 32" | 800 | 40 | 6.0 | 10/12/15 | 46/40 |
4. Packing and Shipping of 400mm Laser Diamond Saw Blade for Stone Cutting
Each saw blade is packed in white box or colored box packing, then according to the size, 10pcs put in an export standard carton, gross weight per carton is limited within 20-25kg.
Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.
Delivery way: By air, by sea, by land, by courier, etc.
5. Payment term:
T/T, Irrevocable L/C at sight,PayPal, West Union, Credit Card, etc.
6. Our Technology
We are processing advanced production equipment, modern checking system, strict management and a strong technical force with the combination of many skilled workers and technical engineers.
Providing our customers with satisfactory diamond cutting tools is our aim!
7. FAQ.
Q: How to place order to your company?
1. Required Products Details: Tell us what is your demand? Which kind of products, size, specification, cutting or grinding or drilling materials? HP of machine? Quantity? Nearest airport and seaport? Then we will give you best offer.
2. Performa Invoice: Offer satisfied, and then confirms the delivery time, payment term, logo, quantity, etc. According to this information, we will do Performa Invoice. Customers do the payment.
3. Production Process: Arrange production, based on the contract and PI description and mutual communication, we will follow closely the full production process; keep you informed of till finished the products under the contract limited time. Take photo of the goods for your reference. We take completely file in the computer from the raw material to producing process details, package, shipping. Easy for us to check each order.
4. Delivery: Dispatch the goods to appointed airport or seaport, prepare all shipping documents to customers.
5. After-Sale Service: Track the goods, learn the products' performance.
6. Feedback: Customers feedback to Johnson about quality, service, give us suggestion for our better improvement.
8. Company Information
Established in 2000 year, Johnson Tools Manufactory Co.,Ltd have been acting as one of leading manufacturers in China's stone and construction industries. We enjoy good reputation among customers with trustworthy product quality and creditable service. Provide good quality diamond tools on sawing, grinding, polishing and drilling industry, such as laser welded wall saw blade, floor saw blade, concrete saw blade, asphalt saw blade, stone saw blade, electroplated saw blade, tuck pointing saw blade, diamond segments, grinding wheels, polishing pad, core bits, TCT saw blade, also stone cutting machine, etc.
Johnson Tools people sincerely looking forward to serving you in the near future!
