| Prod Model: |
7.2.2.2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
12 Inch |
| Usage: |
Stone and Concrete Cutting |
| Manufacturing Arts: |
Welding |
| Kind: |
Diamond Laser Saw Blade |
| Saw Blade External Diameter: |
300mm |
Product Description
Why choose us:1. SGS, MPA certificate, Established in 2000 year, Rich producing experience.
2. Well approved by our worldwide clients, export more than 70 countries.
3. Success formula for concrete saw blade.
4. Quick Delivery time.
5. One-Day reply to your inquiry and question.
1.

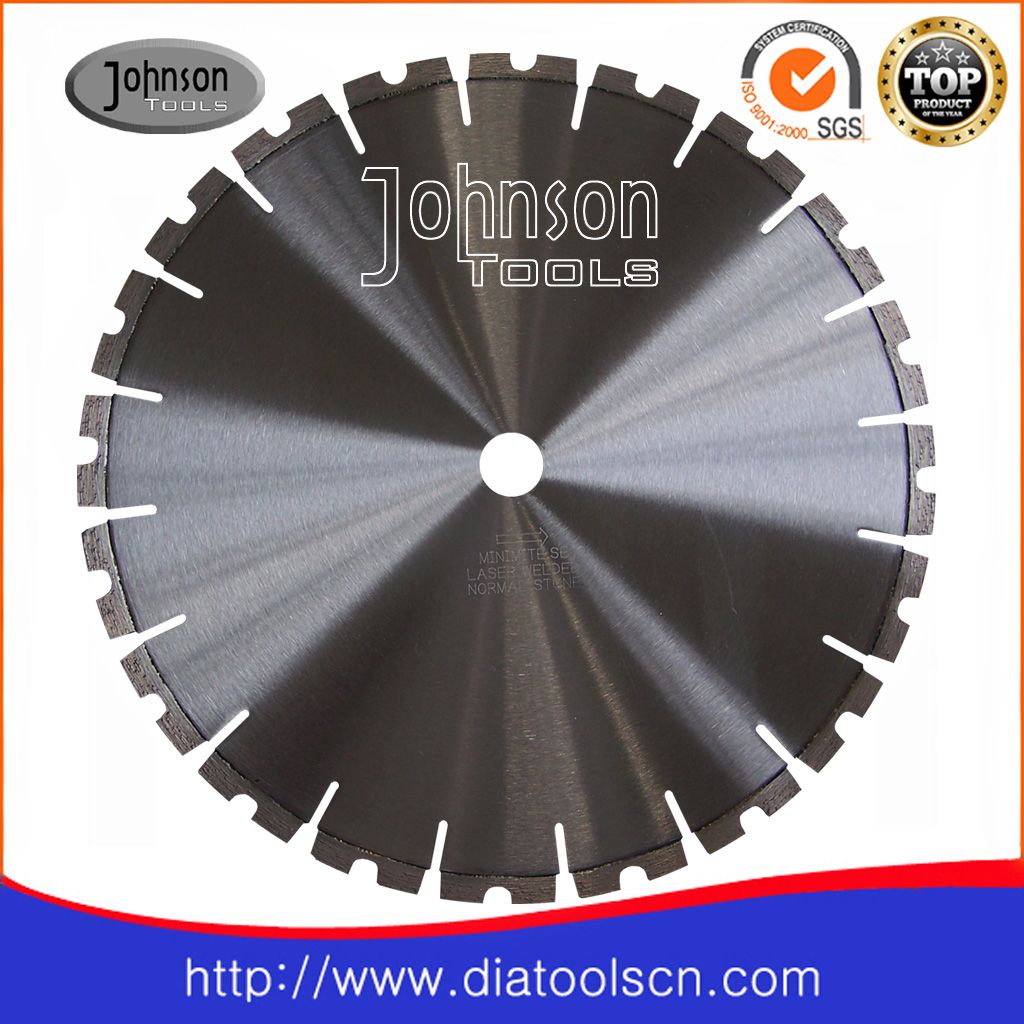

Description of 400mm Laser Diamond Saw Blade with Single U Segment for General Purpose Cutting
400mm Single U segmented universal saw blades are still exported to European market, for cutting various normal stone. Regular exported diameter is 300mm,350mm, 400mm, 415mm, 600mm, 800mm. As a direct manufacturer, we could provide any general purpose saw blade as your request.
2.
Features of 400mm Laser Diamond Saw Blade with Single U Segment for General Purpose Cutting

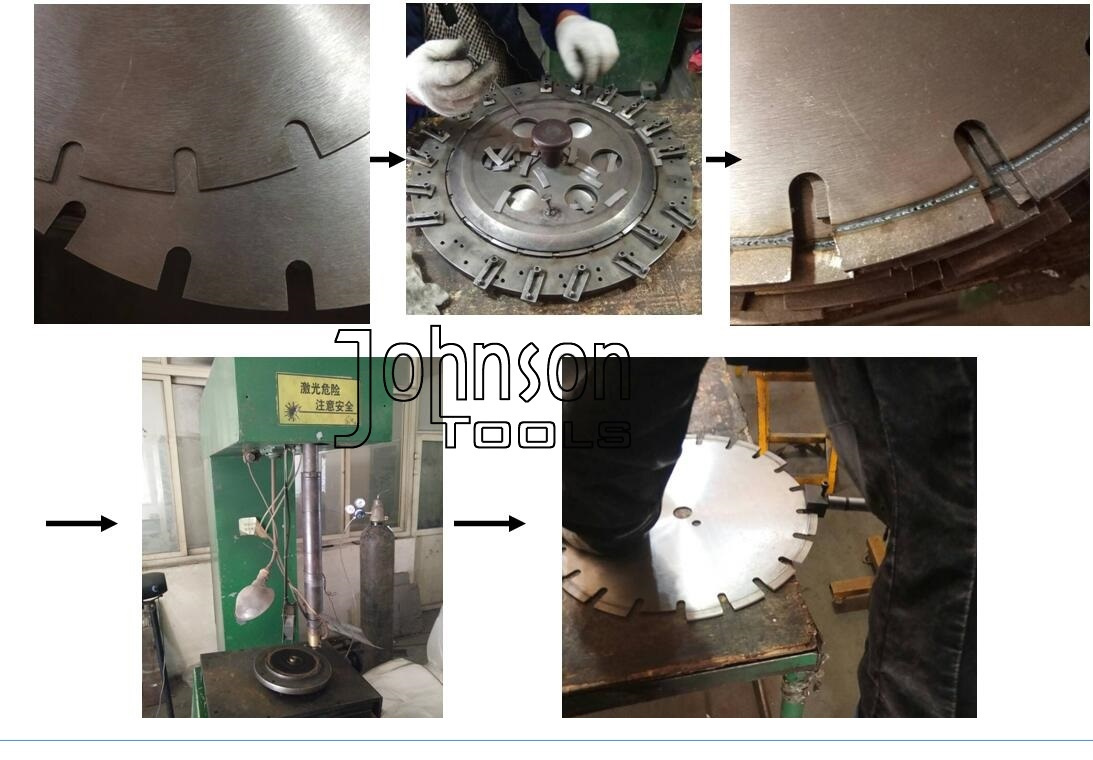

1) 100% Laser welding technology.
2) Application: for cutting normal stone, such as marble, granite, limestone, sandstone etc.
3) Segment type: Single U segment.
4) Delivery time: around 15-40days.
5) Fast cutting, long lifetime.
3.
Specification information of 400mm Laser Diamond Saw Blade with Single U Segment for General Purpose Cutting
1. Diameter:400mm
2. Segment thickness:3.4mm
3. Segment height:10mm
4. inner hole:22.23mm, 25.4-22.23mm.
| Inch | Diameter
(mm) | Teeth length
(mm) | Teeth thickness
(mm) | Teeth height
(mm) | Teeth number
(nos) |
| 16" | 400 | 40 | 3.4 | 10 | 28 |
| 16" | 400 | 40 | 3.4 | 12 | 28 |
| 16" | 400 | 40 | 3.4 | 15 | 28 |
Other size we could do
| Inch | Diameter
(mm) | Teeth length
(mm) | Teeth thickness
(mm) | Teeth height
(mm) | Teeth number
(nos) |
| 4" | 105 | 32 | 2.2 | 7/10/12 | 8 |
| 4.5" | 115 | 31 | 2.2 | 7/10/12 | 9 |
| 5" | 125 | 31 | 2.2 | 7/10/12 | 10 |
| 6" | 150 | 34 | 2.2 | 7/10/12 | 11 |
| 7" | 180 | 34 | 2.4 | 7/10/12 | 14 |
| 8" | 200 | 40 | 2.4 | 7/10/12 | 13 |
| 9" | 230 | 37 | 2.6 | 7/10/12 | 16 |
| 10" | 250 | 40 | 2.6 | 10/12/15 | 16 |
| 12" | 300 | 40 | 3.0 | 10/12/15 | 20/18 |
| 14" | 350 | 40 | 3.2 | 10/12/15 | 24/21 |
| 18" | 450 | 40 | 3.6 | 10/12/15 | 32/26 |
| 20" | 500 | 40 | 4.0 | 10/12/15 | 36/30 |
| 24" | 600 | 40 | 4.4 | 10/12/15 | 42/36 |
| 26" | 650 | 40 | 4.4 | 10/12/15 | 42/36 |
| 28" | 700 | 40 | 5.0 | 10/12/15 | 42/36 |
| 32" | 800 | 40 | 6.0 | 10/12/15 | 46/40 |
4.
Packing and Shipping of 400mm Laser Diamond Saw Blade for Stone Cutting
Each saw blade is packed in white box or colored box packing, then according to the size, 10pcs put in an export standard carton, gross weight per carton is limited within 29kg.
Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.
Delivery way: By air, by sea, by land, by courier, etc.
5.
Payment term:T/T, Irrevocable L/C at sight,PayPal, West Union, Credit Card, etc.
6.
Our TechnologyWe are processing advanced production equipment, modern checking system, strict management and a strong technical force with the combination of many skilled workers and technical engineers.
Providing our customers with satisfactory diamond cutting tools is our aim!
7.
FAQ.
Q: How to place order to your company?
1. Required Products Details: Tell us what is your demand? Which kind of products, size, specification, cutting or grinding or drilling materials? HP of machine? Quantity? Nearest airport and seaport? Then we will give you best offer.
2. Performa Invoice: Offer satisfied, and then confirms the delivery time, payment term, logo, quantity, etc. According to this information, we will do Performa Invoice. Customers do the payment.
3. Production Process: Arrange production, based on the contract and PI description and mutual communication, we will follow closely the full production process; keep you informed of till finished the products under the contract limited time. Take photo of the goods for your reference. We take completely file in the computer from the raw material to producing process details, package, shipping. Easy for us to check each order.
4. Delivery: Dispatch the goods to appointed airport or seaport, prepare all shipping documents to customers.
5. After-Sale Service: Track the goods, learn the products' performance.
6. Feedback: Customers feedback to Johnson about quality, service, give us suggestion for our better improvement.
Contact us, you will get more than what you see.
