Product Description

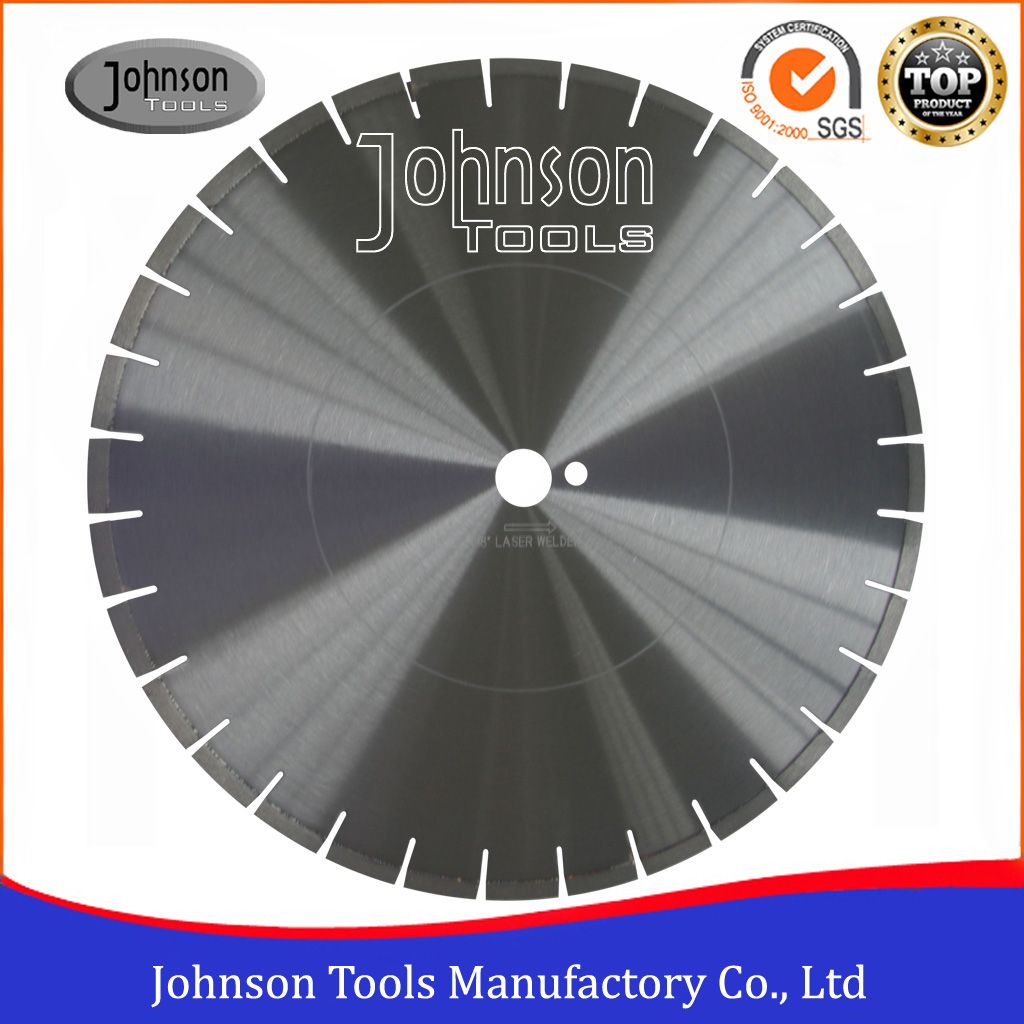

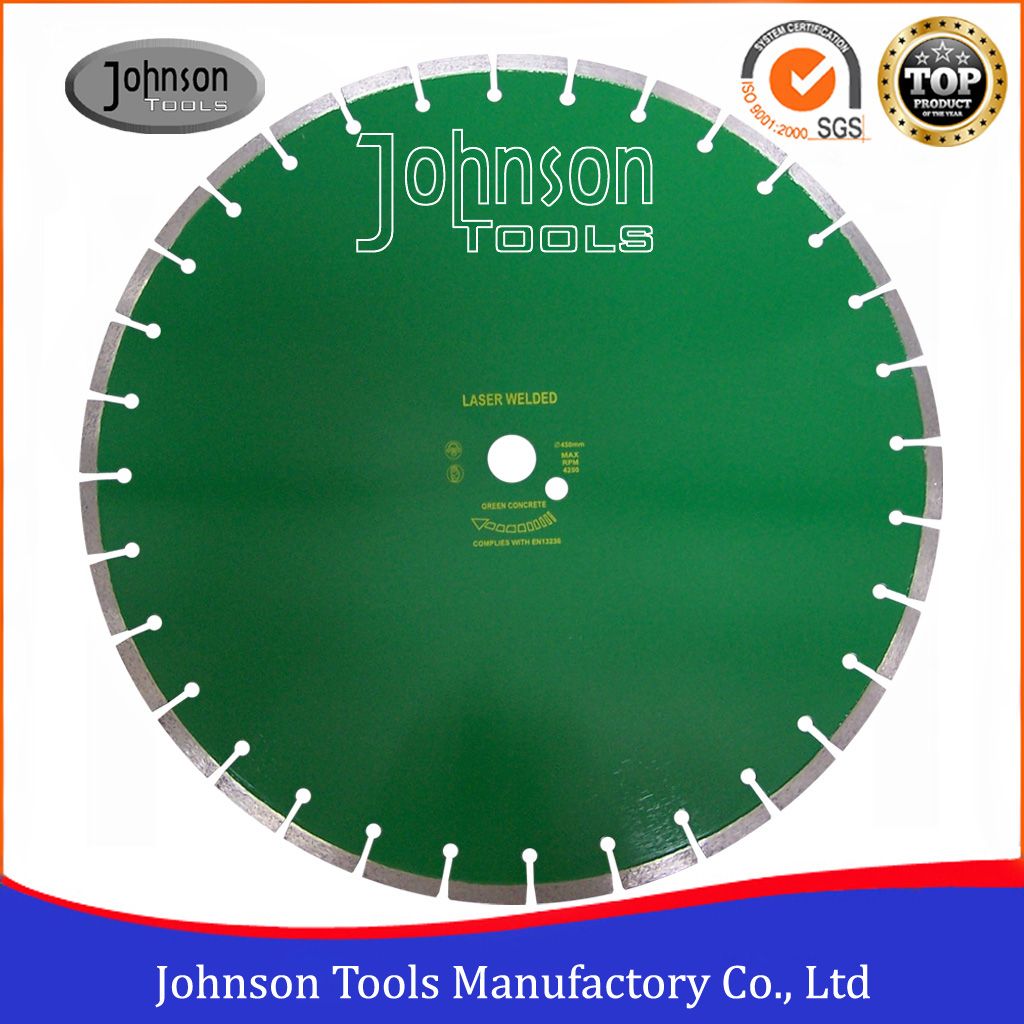

450mm Circular Diamond Saw Blade for Cutting Green Concrete
Why choose usEstablished in 2000year == Factroy==Quality Control ==Competitive price==OEM==Short delivery time1. Description of 450mm Circular Diamond Saw Blade for Cutting Green ConcreteAs one of Diamond Cutting Blade Specialist and Diamond Tools Experts. You could find any diamond tool and diamond cutting blade that you want here.
450mm Green concrete diamond blade is premier product which combines high performance at a competitive price. It is designed to be used on both hand held and low horsepower walk behind saws. They are engineered with under cut protection segments to protect the core and extend blade life. Intended for use in hard aggregate.
Providing different bond specifications according to the type of concrete aggregates, reinforcing shares, and curing times.
2. Feature of 450mm Circular Diamond Saw Blade for Cutting Green Concrete1) Specially for cutting green concrete, new concrete, fresh concrete and other abrasive materials.
2) Different slot desigh as different cutting materials.
3) Protection segment against under cutting.
4) High speed&fast cutting.
5) Laser welding techology.
6) Cutting surface more smoothly, longer lifetime.
3. Specification of 450mm Circular Diamond Saw Blade for Cutting Green ConcreteDiameter:450mm
Segment thickness:3.6mm
Segment height:10/12/15mm
Inner hole:25.4mm, 50mm, 60mm, 80mm or as your request Inch | Diameter (mm) | Segment length (mm) | Segment thickness (mm) | Segment height (mm) | Segment number (nos) |
18" | 450 | 40 | 3.6 | 10 | 28/32 |
18" | 450 | 40 | 3.6 | 12 | 28/32 |
18" | 450 | 40 | 3.6 | 15 | 28/32 |
Other size Concrete Saw Blade we could do as followingInch | Diameter (mm) | Teeth length (mm) | Teeth thickness (mm) | Teeth height (mm) | Teeth number (nos) |
6" | 150 | 34 | 2.2 | 7/10/12 | 11 |
8" | 200 | 40 | 2.4 | 7/10/12 | 13 |
9" | 230 | 37 | 2.6 | 7/10/12 | 16 |
10" | 250 | 40 | 2.6 | 10/12/15 | 16 |
12" | 300 | 40 | 3.0 | 10/12/15 | 18/20 |
14" | 350 | 40 | 3.2 | 10/12/15 | 21/24 |
16" | 400 | 40 | 3.4 | 10/12/15 | 24/28 |
26" | 650 | 40 | 4.4 | 10/12/15 | 44 |
30" | 750 | 40 | 5.0 | 10/12/15 | 50 |
32" | 800 | 40 | 5.0 | 10/12/15 | 46 |
36" | 900 | 40 | 5.0 | 10/12/15 | 64 |

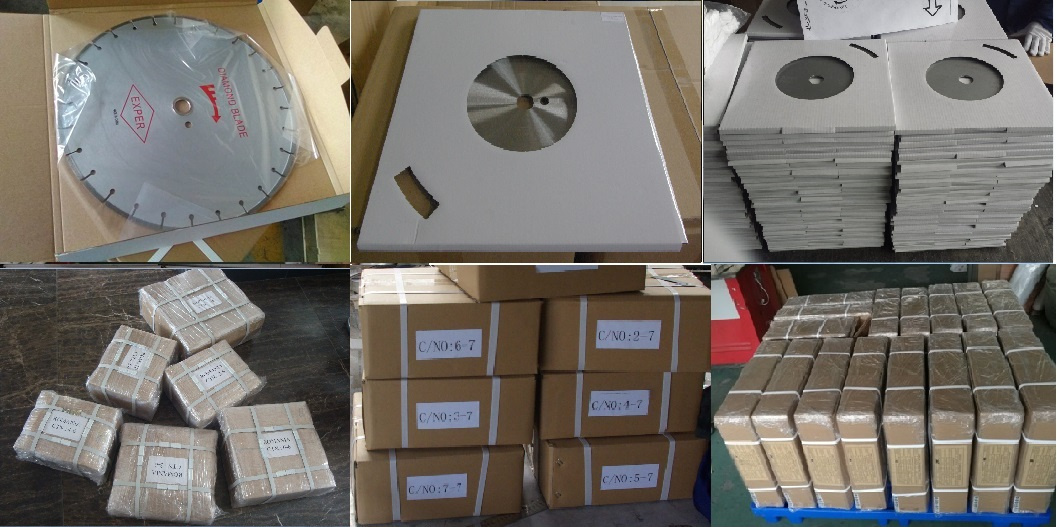

4. Packing and Shipping5pcs 450mm laser welded floor saw blades are packed in one plywood, gross weight per plywood is limited within 25kg.
Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.
Delivery way: By air, by sea, by land, by courier, etc.
5. Payment termT/T, Irrevocable L/C at sight,PayPal, West Union, Credit Card, etc.

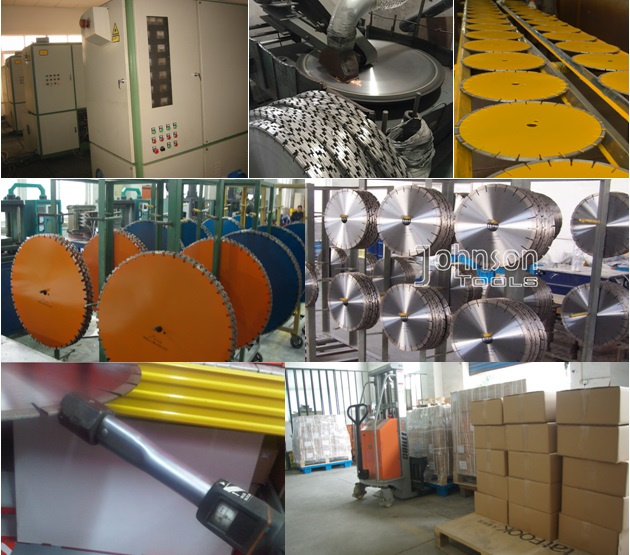

6. Our Stock

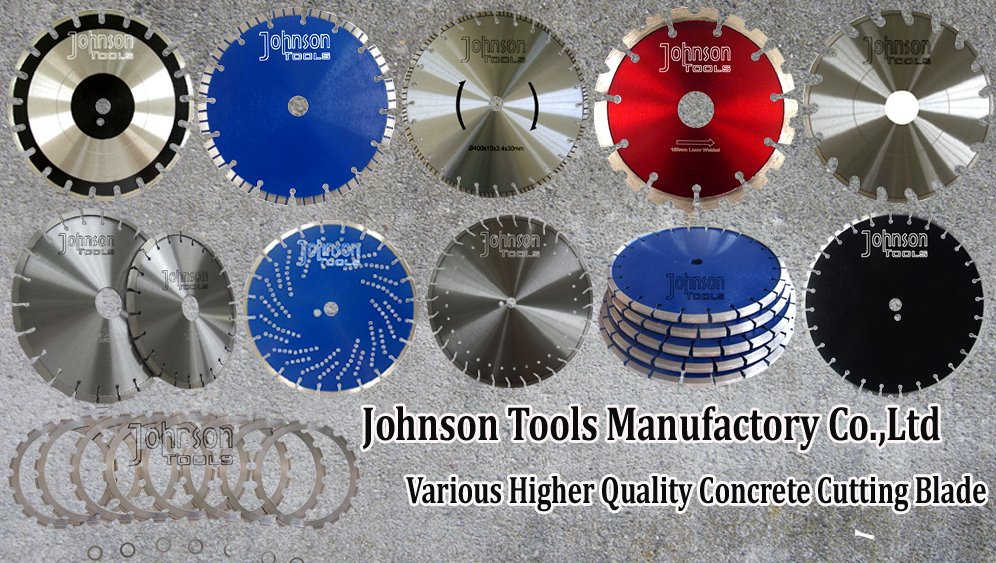

7. Our Related Products

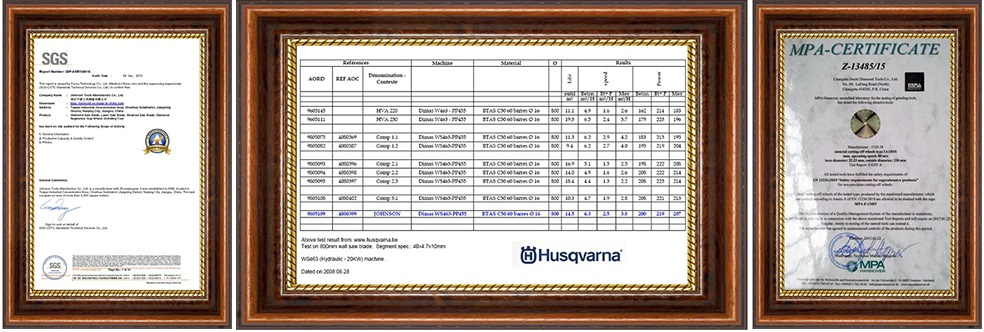

8. Certification
9. Our Stock
10. FAQ
Q: How to place order to your company?
1.Required Products Details: Tell us what is your demand? Which kind of products, size, specification, cutting or grinding or drilling materials? HP of machine? Quantity? Nearest airport and seaport? Then we will give you best offer.
2.Performa Invoice: Offer satisfied, and then confirms the delivery time, payment term, logo, quantity, etc. According to this information, we will do Performa Invoice. Customers do the payment.
3.Production Process: Arrange production, based on the contract and PI description and mutual communication, we will follow closely the full production process; keep you informed of till finished the products under the contract limited time. Take photo of the goods for your reference. We take completely file in the computer from the raw material to producing process details, package, shipping. Easy for us to check each order.
4.Delivery: Dispatch the goods to appointed airport or seaport, prepare all shipping documents to customers.
5.After-Sale Service: Track the goods, learn the products' performance.
6.Feedback: Customers feedback to Johnson about quality, service, give us suggestion for our better improvement.
More information about our products, welcome to visit our website www.johnsontoolscn.com and www.diamondsaw-blade.com, you will get more than you can see
