| Prod Model: |
KET-MXTA Series |
| Name: |
48666n.M Square Driven Torque Wrench |
| Certificate: |
Ce ISO9001:2008 |
| Max. Torque(Nm): |
1837~48666 Nm |
| Square Drive Size(Inch): |
3/4~2-1/2 |
| Pressure: |
700 Bar |
| Weight: |
1.7 - 85.5 Kg |
| Color: |
Blue,Yellow,Can Customize |
| Delivery Time: |
5 Days After Receive Payment |
| OEM: |
Can Customize |
| Min. Torque(N.M): |
183-4866 |
| Type: |
Socket Wrench |
| Material: |
Alloy Steel |
| Standard: |
German Type |
| Surface Treatment: |
Titanizing |
| Feature: |
Ordinary |
| Brand: |
Kiet |
| Working Mode: |
Hydraulic |
Product Description

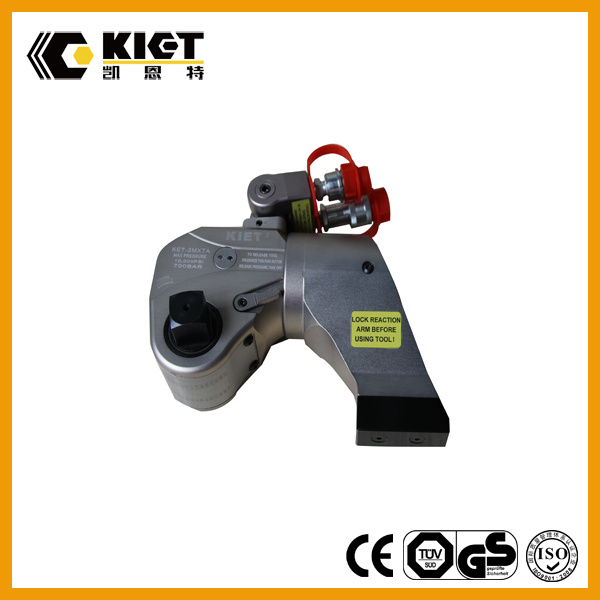

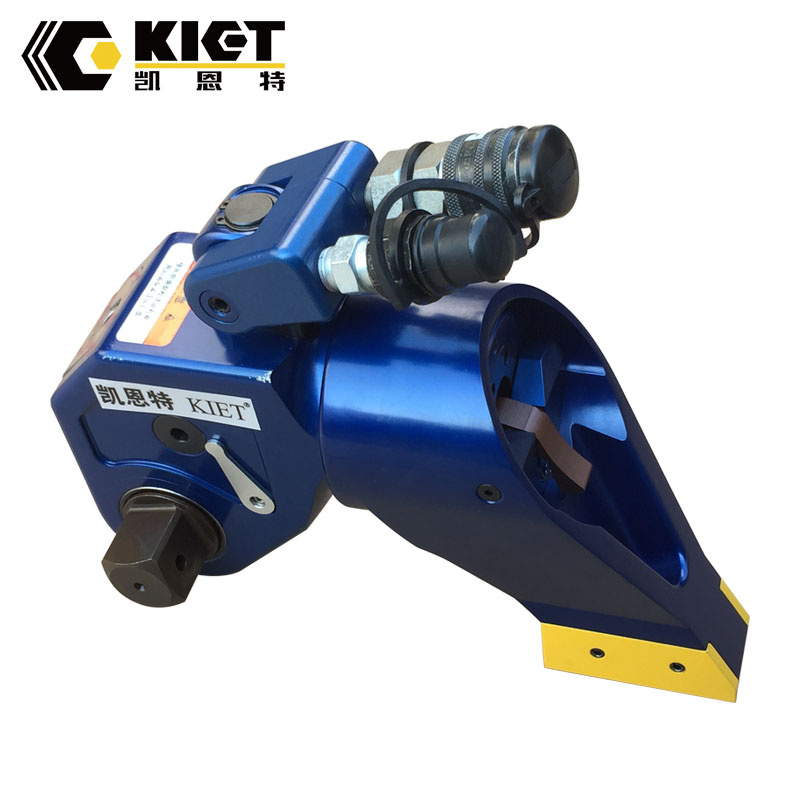

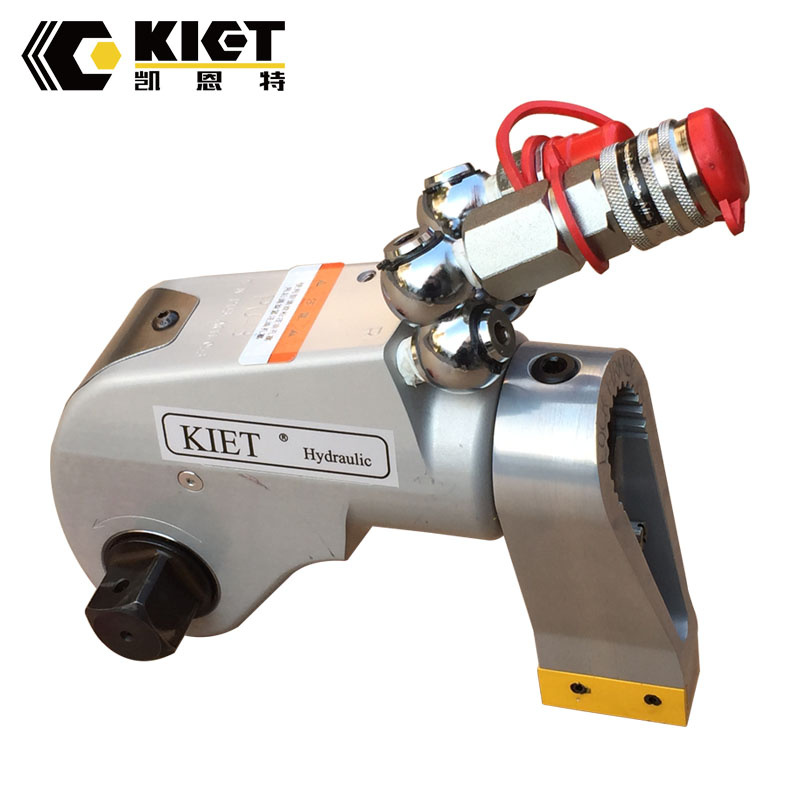

48666N.m Square Driven Torque Wrench
Features:
1. Aluminum and titanium alloy: lightweight, anti-rust, high tensile material
2. The outlet couplings and Allen key are able to rotate 360 °
3. Anti backlash design, prevent it the bolt to rotate with the nut
4. Easy-to-use and changable square drive and Allen key to adapt different sockets
5. Output torque accuracy up to ±3%, can be customized for high torque
6. Hand free operation, efficient, and continuous working, drive pawl design for unrivaled accuracy and tool longevity
7.Standard parts and accessories are available
Package:
Inner Packing:Aluminum Alloy Box Package; Outer Packing: Wooden case
Company Information
Jiangsu Canete Machinery Manufacturing Co.,Ltd. is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic bumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001:2008 consecutively.
Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
We are a manufacturer in tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
| Model | Torque Value
(Nm) | Screw Size
(mm) | Bolt Size
(mm) | Axle |
Working
Pressure
(Mpa) |
KET-1MXTA | 183-1837 | 16-36 | 24-55 | 3/4" | 70 |
| KET-3MXTA | 451-4512 | 22-48 | 34-75 | 1" | 70 |
| KET-5MXTA | 752-7528 | 27-56 | 41-85 | 1-1/2" | 70 |
| KET-8MXTA | 1078-10780 | 30-64 | 46-95 | 1-1/2" | 70 |
| KET-10MXTA | 1551-15516 | 36-72 | 55-105 | 1-1/2" | 70 |
| KET-20MXTA | 2666-26664 | 42-90 | 65-110 | 2-1/2" | 70 |
| KET-25MXTA | 3472-34725 | 48-100 | 75-145 | 2-1/2" | 70 |
| KET-35MXTA | 4866-48666 | 64-115 | 95-165 | 2-1/2" | 70
|
