| Prod Model: |
JBW-250Z/500Z |
| Delivery Time: |
3 Days |
| Certification: |
Ce ISO |
| Type: |
Impact Testing Machine |
| Weight: |
500-1000Kg |
| Power Source: |
AC220V |
| Maxcapacity: |
150/250j/500j |
| Display: |
Computer Display |
Product Description

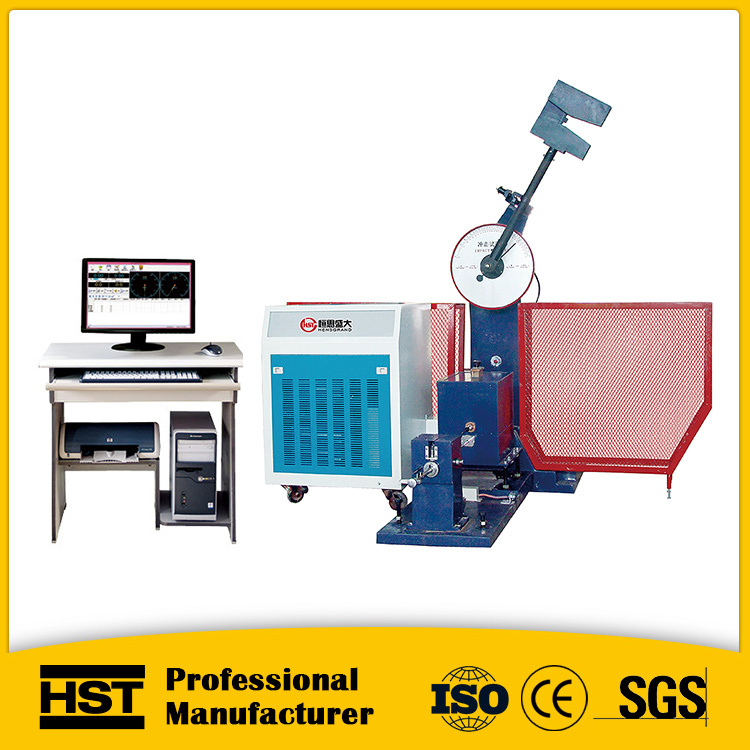

Computer Control impact testing machine/automatic feeding Impact Tester
1.Application
JBW-Z series Computer Automatic Pendulum Impact Testing Machine are mainly used to determine the anti-impact capability of metal materials under dynamic load. Carry out the functions of zero clearing and automatic return, capturing the value of lost impact energy and pendulum cycle by means of setting up with computer program, and the results can be monitored, stored and printed out. Control box or computer program control is alternative operating method. JB-W series impact testers are adopted by many institutes and high-tech enterprises.
2. Standards:
ASTM E23, ISO148-2006 and GB/T3038-2002, GB/229-2007.
3. Features:
3.1 Fully automatic, pendulum rising, impact, sample feeding, position, free releasing is realized automatically by easy PC mouse click;sample feeding, auto position the sample; high efficiency;
3.2 The impact of the blade with screw mounting
With two pendulums (big and small), PC software to display the energy loss, impact tenacity, rising angle, test average value etc. test data and result, also the curve display available; with calculation and report printing function. The dial scale can show test results too.
3.3 Safety pin guaranties the impact action, standard protection shell to avoid any accident.
3.4 Pendulum will automatically rising and ready for next impact action after specimen breakout.
4.Main Technical Specifications:
| Model | JBW-250Z | JBW-500Z |
| Display | computer automatic control |
| Min reading value | 1 J | 2J |
| Impact energy | 150/250J | 250/500J |
The distance between the
pendulum shaft and impact point | 750mm | 800mm |
| Impact speed | 5.2m/s | 5.4 m/s |
| Pre-rising angle of the pendulum | 150° |
| Specimen bearer span | 40+0.2mm |
| Round angle of bearing jaw | R1.0-1.5mm |
| Round angle of impact blade | R2.0-2.5mm,(R8mm) |
| Thickness of impact blade | 16mm |
| Angle accuracy | 0.1° |
| Standard specimen dimension | 10mm×10mm×55mm |
| Sample box capacity | 10 pcs |
| Sample centering way | Automatic face orientation |
| Power supply | 380V, 50Hz , 3 wire and 4phrases |
| Dimensions (mm) | 2124 x 600 x 1340 | 2200 ×650 ×1960 |
| Net Weight (kg) | 450 | 580 |
5.Standard Accessories
5.1 Automatic impact Main unit----1 set
5.1.1 Sample auto feeding and position device--1set
5.1.2 Pendulum --2pcs
5.1.3 S=12 Internal hexagonal wrench--1pc
5.1.4Bearing adjustment-- 1pc;
5.1.5 Sample centering--1pc;
5.1.6 Pendulum stripper-- 1pc
5.1.7 Anchor bolts (M16x300mm)---4 pcs
5.1.8 Impact testing security guards----1 pc
5.2 Measuring and control system:
5.2.1 High precision optical encoder-- 1pc
5.2.2 LENOVO computer--1 set;
5.2.3 HPA4 Colorful ink jet printer--1pc
5.2.4 Special measuring and control system--1SET
5.2.5 Under Windows operating environment special control system--1set
6. Software function:
6.1 Record impact strength, impact energy, etc. Also can calculate the max, min , average and standard deviation
6.2 WINDOWS based operating platform, the software is simple, powerful
6.3 Software supports multiple pendulum;
6.4 After finished test, the system automatically analyzes, statistical test results
6.5 Flexible report editing features, the software offers a variety of print statements Interface, such as Excel ,word
