500mm Asphalt Cutting Blade: Laser Diamond Saw Blade
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
4.1.5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
20 Inch |
| Manufacturing Arts: |
Welding |
| Saw Blade External Diameter: |
500mm |
| Kind: |
Diamond Laser Saw Blade |
| Usage: |
Asphalt Cutting |
Product Description

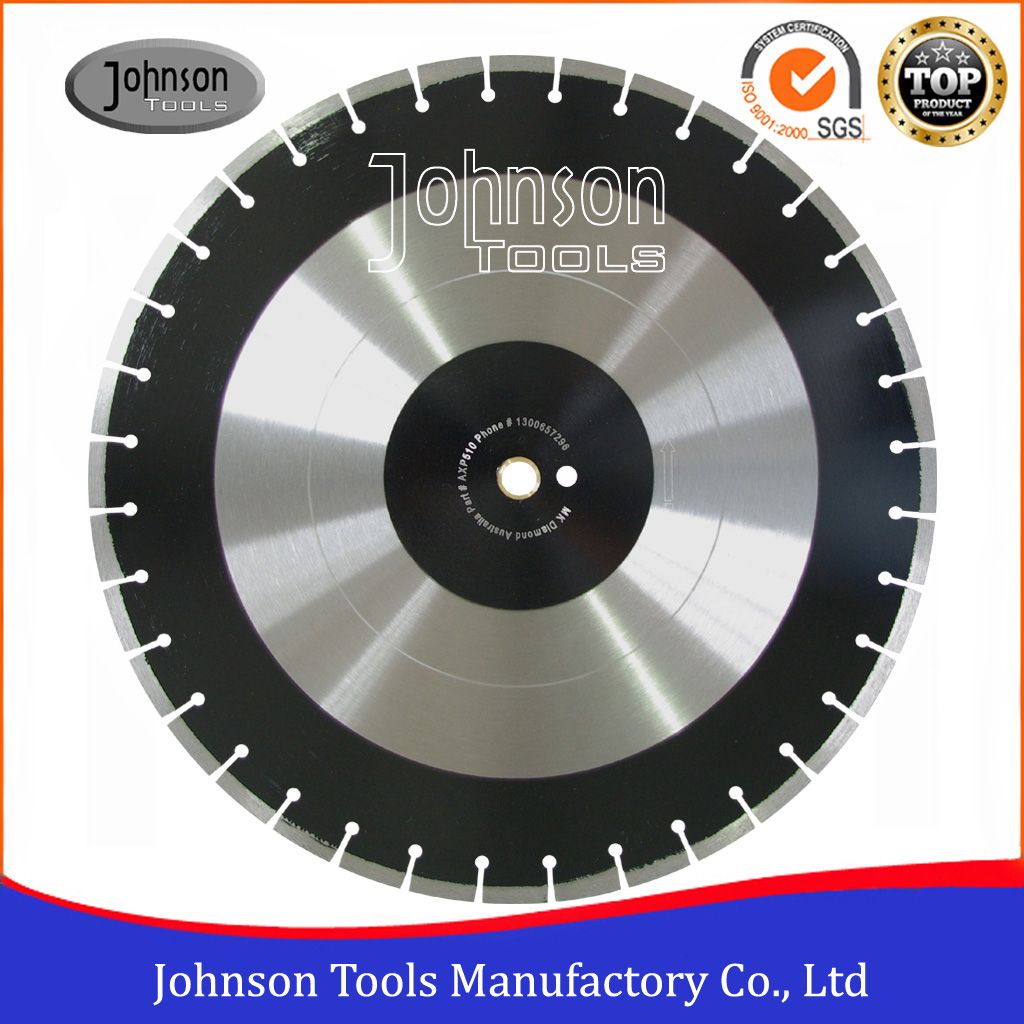

500mm Asphalt Cutting Blade: Laser Diamond Saw Blade
Why choose us
Established in 2000year == Factroy==Quality Control ==Competitive price==OEM==Short delivery time
1. Description of 500mm Asphalt Cutting Blade: Laser Diamond Saw Blade
500mm laser welded saw blade is a cutting tool that is widely used in concrete cutting, precast slab cutting, old and new road cutting, grooving other hard and brittle materials. Road saw blade mainly consists of two parts, steel core and diamond segment; The Segment is cutting part, will be consumed during in the cutting, while the steel core is not, the reason why the diamond segment can play a role in cutting because it contains diamond, diamond as the most hard substance that rub and cutting the materials processed, while the diamond particles is wrapped in the diamond segment by metal.
2. Feature of 500mm Asphalt Cutting Blade: Laser Diamond Saw Blade
1) Undercut Protection segments provide longer lifetime when cutting Abrasive Materials.
2) Fits to Petrol Cutters, Bench & Floor Saw Machines.
3) Different Cutting slot have different function, narrow U or key slot give a wider segment and longer lifetime. Wider U slot prevent clogging.
4) Dry or wet cutting reinforced concrete, aggregate concrete, hot rolled asphalt, asphalt, asphalt over concrete&green concete.
5) Well exported to Taiwan, Hongkong, Thailand, Poland, Australia, Singapore, USA etc.
3. Specification of 500mm Asphalt Cutting Blade: Laser Diamond Saw Blade
Diameter:500mm
Segment thickness:4.0mm
Segment height:10/12/15mm
Inner hole:25.4mm,60mm or others| Inch | Diameter
(mm) | Segment length
(mm) | Segment thickness
(mm) | Segment height
(mm) | Segment number
(nos) |
| 20" | 500 | 40 | 4.0 | 10/12/15 | 36 |
Other size asphalt saw blade we could do as following| Inch | Diameter
(mm) | Teeth length
(mm) | Teeth thickness
(mm) | Teeth height
(mm) | Teeth number
(nos) |
| 4" | 105 | 32 | 2.2 | 10/12/15 | 8 |
| 4.5" | 115 | 31 | 2.2 | 10/12/15 | 9 |
| 5" | 125 | 31 | 2.2 | 10/12/15 | 10 |
| 6" | 150 | 34 | 2.2 | 10/12/15 | 11 |
| 7" | 180 | 34 | 2.4 | 10/12/15 | 14 |
| 8" | 200 | 40 | 2.4 | 10/12/15 | 13 |
| 9" | 230 | 37 | 2.6 | 10/12/15 | 16 |
| 10" | 250 | 40 | 2.6 | 10/12/15 | 16 |
| 12" | 300 | 40 | 3.0 | 10/12/15 | 20 |
| 14" | 350 | 40 | 3.2 | 10/12/15 | 24 |
| 16" | 400 | 40 | 3.4 | 10/12/15 | 28 |
| 18" | 450 | 40 | 3.6 | 10/12/15 | 32 |
| 20" | 500 | 40 | 4.0 | 10/12/15 | 36 |
| 24" | 600 | 40 | 4.4 | 10/12/15 | 42 |
4. Packing and Shipping of 500mm Asphalt Cutting Blade: Laser Diamond Saw Blade

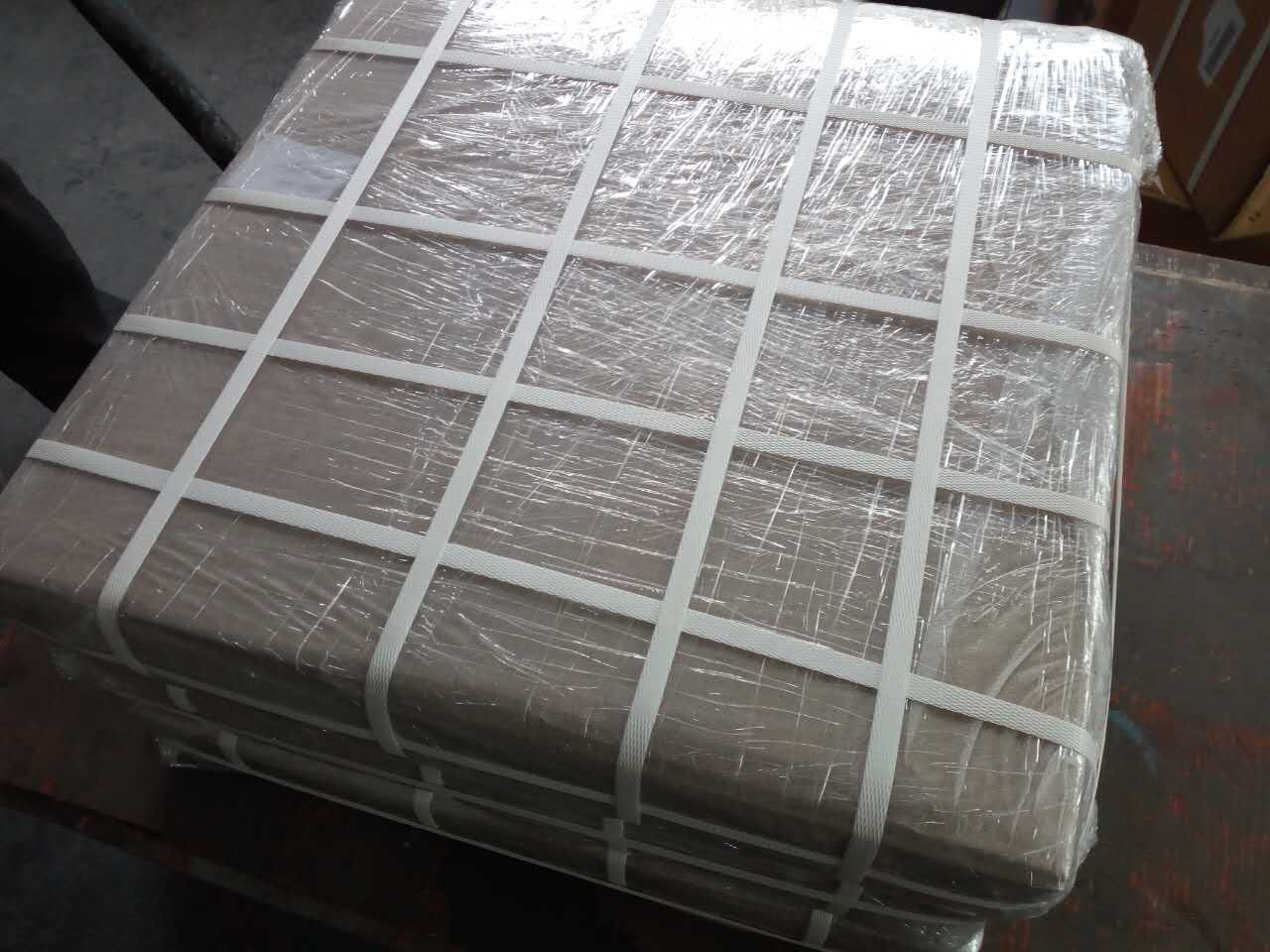

5pcs 500mm laser welded floor saw blades are packed in one carton, gross weight per plywood is limited within 29kg.
Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.
Delivery way: By air, by sea, by land, by courier, etc.
5. Payment term
T/T, Irrevocable L/C at sight,PayPal, West Union, Credit Card, etc.
6. FAQ
Q: How to place order to your company?
1.Required Products Details: Tell us what is your demand? Which kind of products, size, specification, cutting or grinding or drilling materials? HP of machine? Quantity? Nearest airport and seaport? Then we will give you best offer.
2.Performa Invoice: Offer satisfied, and then confirms the delivery time, payment term, logo, quantity, etc. According to this information, we will do Performa Invoice. Customers do the payment.
3.Production Process: Arrange production, based on the contract and PI description and mutual communication, we will follow closely the full production process; keep you informed of till finished the products under the contract limited time. Take photo of the goods for your reference. We take completely file in the computer from the raw material to producing process details, package, shipping. Easy for us to check each order.
4.Delivery: Dispatch the goods to appointed airport or seaport, prepare all shipping documents to customers.
5.After-Sale Service: Track the goods, learn the products' performance.
6.Feedback: Customers feedback to Johnson about quality, service, give us suggestion for our better improvement.
Why clients choose Johnson?
1) Quality & Service:
We, Johnson Tools Manufactory Co., Ltd have very strict quality control system. There is one QC team in our factory on examination of every product before dispatching. We try our best to achieve zero defects.
2) Convenience of One-Stop Sourcing:
On stone and construction industry, from cutting, grinding, drilling, polishing, profiling field, till stone and its cutting machine, we can help you select the best tools, finish your project perfectly.
3) Flexible payment term:
T/T, Letter of Credit, PayPal, West Union, Credit Card, etc.
4) Delivery time:
Around 5-30days based on quantity of clients' order.
Repeated orders, we help our clients prepare one order's raw materials to shorten the producing time.
5) Good evaluation of our clients' from our deferent's countries.
6) Sales Teams:
We have a friendly, enthusiastic, energetic sales team, ready to service with you all the time.
Professional Manufacturer on Diamond Tools since Year 2000.
Above 95% Diamond Tools products export to Six Continent, over 70 Countries.
Our diamond tools differ diamond Cutting tools, diamond Grinding tools, diamond Polishing tools, diamond Drilling tools, and other accessories & stone cutting machine. Wildly used on Stone and Construction industry.
