500W Fiber Laser Cutting Machinery Sheet Metal Laser Cutters
| Price: |
US $ 30000-800000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
GS-LFS3015 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
3000X1500mm |
| Laser Source: |
Ipg/Rofin |
| Cutting Head: |
Presitec/ Ray Tools |
| Power: |
500W |
| Motor: |
Imported Servo Motor |
| Control System: |
CNC Control System |
| Computer Screen: |
19 Inches |
| Drive Way: |
Single Drive |
| Cutting Materials: |
Ss, CS, Aulumium Metal |
| Laser Type: |
Fiber Laser |
Product Description

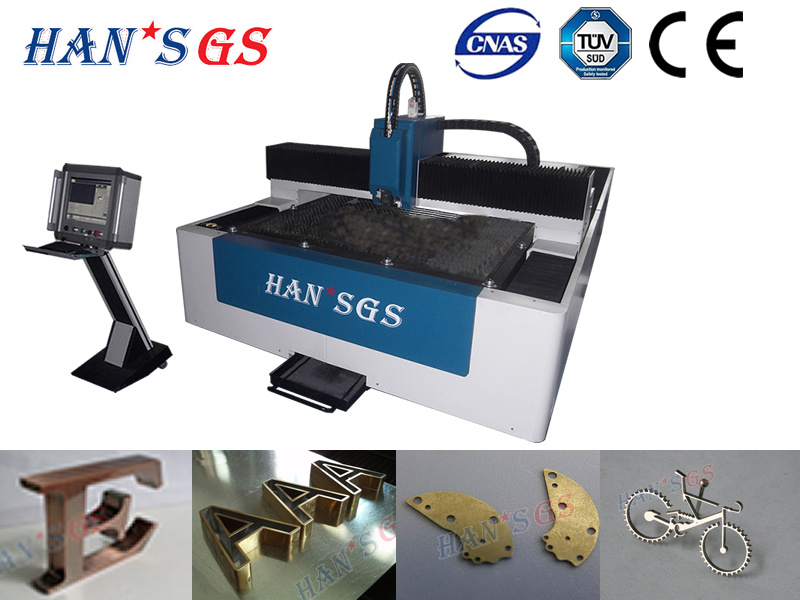

500W Fiber Laser Cutting Machinery Sheet Metal Laser Cutters
Company introduction:
We are subsidiary company of Han's Laser, one of the four biggest manufacturing bases of Han's Laser.
Company has core technology of laser source, produced China's first practical 10000W and 20000W laser source, and up to 50000W. Company successfully developed China's first 10000W TEA and China's first integrated 10000W laser source in 2007, in the leading position of high-power and super high power laser industry. We also own Optical communication core technologies----Precision optical thin film with international level.
Han's GS is located in Wuhan city, central China. We has gain over 20 patents, with 12000 M2 standard factory and all kinds of international high tech experiment and production equipment. We have laser equipment and high precision optical thin film two categories, nearly 40 products, including high-power laser source, laser cutting machine, laser welding machine, laser fusion covering machine, laser heat-processing machine, cigarette laser punching machine and so on.
Product Introduction of the fiber laser cuting machinery:
GS - LFS3015 fiber laser cutting machine is adopted with international advanced technology of high power fiber laser source, combined with the company's independent design gantry CNC machine tool system. High strength whole welding cutting bed, have been handled with high temperature annealing and large CNC gantry milling machine precision processing,thus the cutting bed has very good rigidity and stability. Driven by Precision ball screw and linear guide. It's mainly aimed at the rapid precision cutting of sheet metal under 4 mm. Widely used in metal crafts, metal products, precision machinery, auto parts, electronics, toys, glasses, jewelry, nameplates, advertising and other industries
Advantages of the fiber laser cutting machinery:
1.Adopting world's top imported fiber laser source with stable performance
2.Optic-electricity conversion rate of fiber laser is 3 times than CO2 laser, which is more energy conservation and environmental friendly
3.Power consumption of fiber laser is only 20%-30% of similar CO2 laser cutting machine, very low running cost.
4.Driven by gantry structure, dynamic performance is good. The overall layout is compact, rational, only cover a small area.
5.Equipped with special laser cnc system, which can guarantee efficiency and accuracy during high speed running process.
6.X, Y axis adopt imported ball screw and guide line, equipped with central lubrication devices at the same time to guarantee the long-term stability and reliable running.
7.Vertical and horizontal driving have adopted imported high precision helical gear and rack driving, and equipped with high-precision planetary gear reducer and AC servo system to achieve high precision transmission.
8. There is collection device below cutting bed, small cutting material and metal powder will be collected in it.
Specifications of the fiber laser cutting machinery: | Model | GS-LFS3015 |
| Medium of Laser | Fiber |
| Processing surface (L × W) | 3000mm×1500mm |
| Maximum cutting speed | 15m/min |
| Cooling method | Water cooling |
| Laser Wavelength | 1070nm |
| Output Power | 500W |
| Min line width | ≤0.1nm |
| Material cutting thickness | 0.2-6mm |
| Driven method | Imported servo motor |
| Transmission method | Imported ball screw and guild line |
| Power supply | 380V/50Hz/16A |
| Continuous Operating Hours | 24 hours |
| Machine weight | About 3000kg |
| External dimension(length×width×height) | 4270mm×2280mm×1750mm |

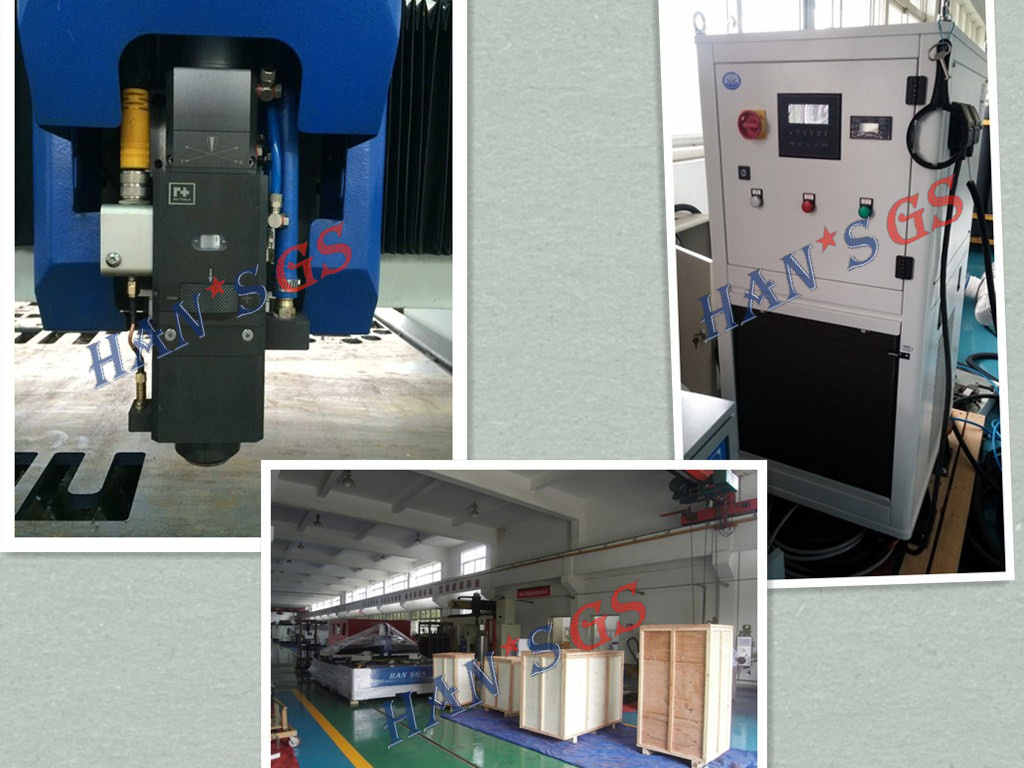

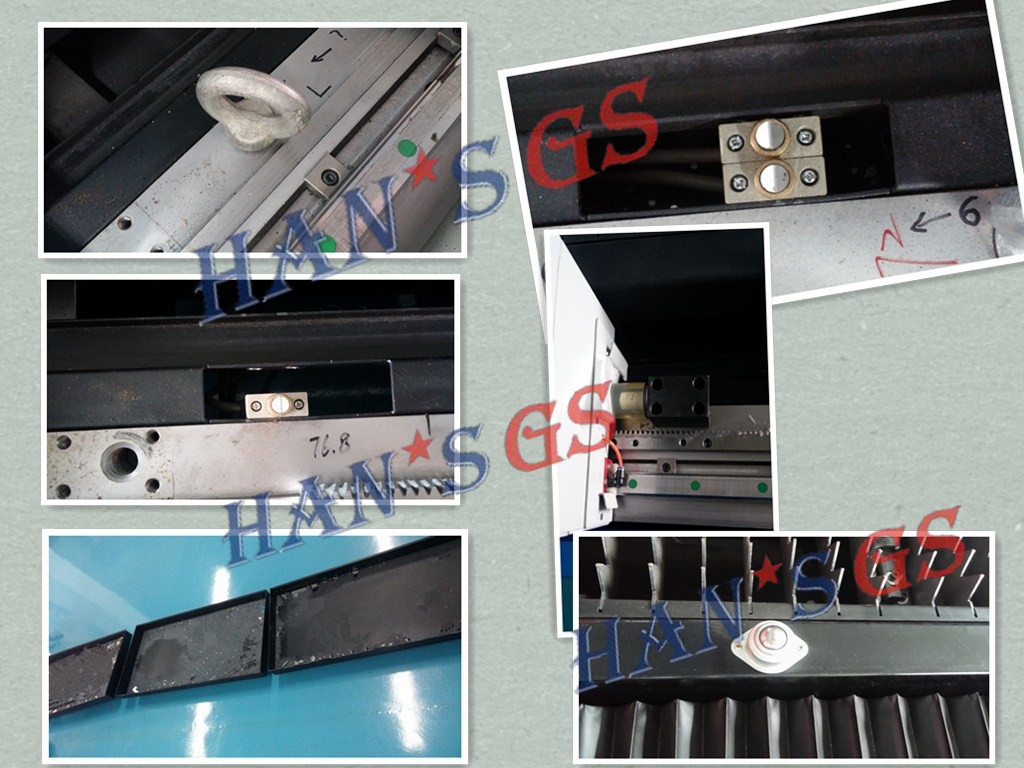

Details of the fiber laser cutting machinery:
Cutting Materials
It is used to cut the metal materials,such as stainless steel, carbon steel, alloy steel, silicon steel, spring steel, galvanize plate, pickled plate, copper plate, aluminum plate, etc.

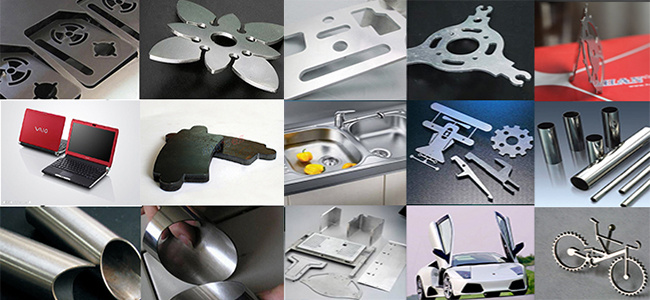

Application Industry
Widely used in sheet metal processing, aviation, aerospace, electronics, electrical appliances, tube fittings, automobile, food machinery, engineering machinery, precision parts, ships, metallurgical equipment, elevators, household appliances, kitchen utensils and appliances, craft gifts, tool processing, decoration, advertising and other manufacturing industries.

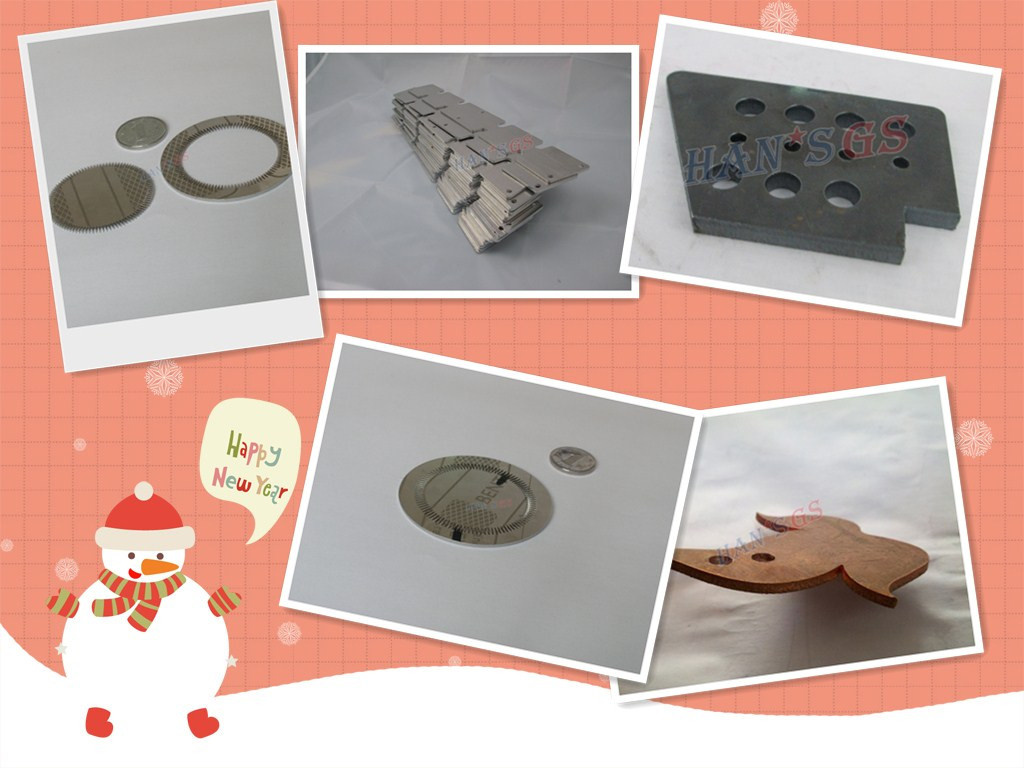

Cutting Samples of the fiber laser cutting machinery:
Please let us know following informations:
1.What kind of material do you want to cut?
2.What is the mostly used thickness and what is the maximum thickness?
3. What is the MAX. dimension of your materials ?
4. After cut, what will be the metal used for? (application)
5. Are you an end user or reseller?
According to your above information,we'll recommend the most suitable machine to you.
Wuhan Hans Goldensky Laser System Co., Ltd is subsidiary company of Han's Laser Technology Industry Group Co., Ltd, (stock code: 002008). We are high-tech enterprise specialized in R&D, manufacture and sales for complete equipment of high-power laser source, laser cutting, laser welding, laser fusion covering, laser heat-processing and high-speed laser punching machine. We also provide automatic processing solving plans.
Company has been successively undertaken the national development and reform commission (NDRC) national high-tech industrialization demonstration projects, the top ten key projects in Hubei province, Wuhan city top ten industrial projects of science and technology, and other government science and technology projects, including three products listed as a key project of national torch plan by the national ministry of science and technology. We successively obtains the national innovation fund, the electronic information industry development fund and a number of special fund support of Hubei province and Wuhan city, to be listed as the key innovation enterprise in east lake development zone, the key support leading enterprise in "large-scale laser equipment system integration and the new type laser manufacturing field" in Wuhan's 11th five-year plan.
Most of the products of our company has fully independent intellectual property rights, widely used in steel metallurgy, petroleum, tobacco, automobile, machinery, aerospace, chemical, home appliances and other manufacturing industries. In the future, the company will continue to be based on innovation of new and high technology, using its own technology advantages to contribute to the industrialization development of laser processing complete equipment.
