| Prod Model: |
hxDrill200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Graininess: |
100# |
| Thickness: |
5mm |
| Kind: |
Diamond Drill |
| Manufacturing Arts: |
Sinter |
| Shape: |
Long |
| Brand: |
Hx |
| Saw Blade External Diameter: |
18mm-260mm |
| Type: |
Wet Drilling |
Product Description

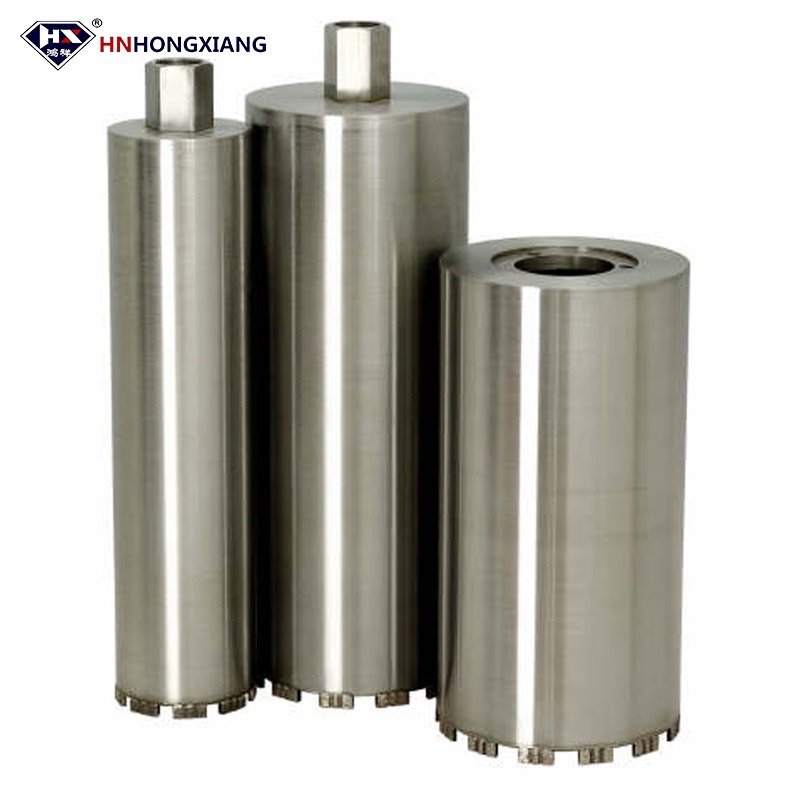

Diamond Concrete Core Bit, 8''/200mm
1. Long life time core drill bit
2. Fast drilling speed
3. Good stability diamond tools for drill
4. Sample is provided
Usage:
Drilling concrete, granite, marble, stone etc.
Size:
Diameter 200mm, segment size 24*4*7, length 370mm, 450mm
MOQ: 50PCS.
Other available size:
18mm---220mm
Length: 370mm, 450mm, etc
Can be customized.
Company introduction:
HONGXIANG tool offers different size of diamond core drill for drilling granite, marble, concrete and wall.
With more than 20 years of research and application of diamond core drill bits, we are able to offer high performance diamond core drill for different drilling use.
| Dimaond core bit |
| Outside | Diamond Segment |
| Diameter |
| mm | Quantity / pc | Size /mm |
| 28 | 3 | 16x3.5x7 |
| 32 | 3 | 16x3.5x7 |
| 37 | 3 | 20x3.5x7 |
| 42 | 4 | 20x3.5x7 |
| 47 | 4 | 24x3.5x7 |
| 52 | 4 | 24x3.5x7 |
| 57 | 5 | 24x3.5x7 |
| 62 | 5 | 24x3.5x7 |
| 67 | 6 | 24x3.5x7 |
| 72 | 6 | 24x3.5x7 |
| 77 | 6 | 24x3.5x7 |
| 82 | 7 | 24x3.5x7 |
| 87 | 7 | 24x3.5x7 |
| 92 | 8 | 24x3.5x7 |
| 102 | 9 | 24x3.5x7 |
| 107 | 9 | 24x3.5x7 |
| 112 | 9 | 24x3.5x7 |
| 122 | 10 | 24x3.5x7 |
| 127 | 10 | 24x3.5x7 |
| 132 | 10 | 24x3.5x7 |
| 142 | 11 | 24x3.5x7 |
| 152 | 12 | 24x4.0x7 |
| 162 | 12 | 24x4.0x7 |
| 172 | 13 | 24x4.0x7 |
| 182 | 13 | 24x4.0x7 |
| 192 | 14 | 24x4.0x7 |
| 200 | 14 | 24x4.0x7 |
| 212 | 16 | 24x4.0x7 |
| 225 | 18 | 24x4.5x7 |
| 254 | 20 | 20x5.0x7 |
| 257 | 20 | 20x5.0x7 |
| 300 | 24 | 20x5.0x7 |
| 350 | 24 | 20x5.0x7 |
| 400 | 26 | 20x5.0x7 |
| 450 | 30 | 20x5.0x7 |
| 500 | 32 | 20x5.0x7 |
| 550 | 35 | 20x5.0x7 |
| 600 | 40 | 20x5.0x7
|
