| Prod Model: |
DDML5578WC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Centres: |
78mm |
| Forend: |
Ss304 |
| Stricke Plate: |
Ss304 |
| Latchbolt: |
Ss304 |
| Deadbolt: |
Ss304 |
| Type: |
Key Lock |
| Style: |
European |
| Shape: |
Mortise Door Lock |
| Anti-theft Standard: |
A |
| Part: |
Lock |
| Door Thickness Fits: |
35-50mm |
| Lock Cylinder Length: |
70mm |
| Usage: |
Channel Lock |
| Material: |
Stainless Steel |
| Backset: |
55 mm |
Product Description
5578 DIN Bathroom Lock Door HardwareStainless Steel Mortise Door LockCE standard Mortise lock

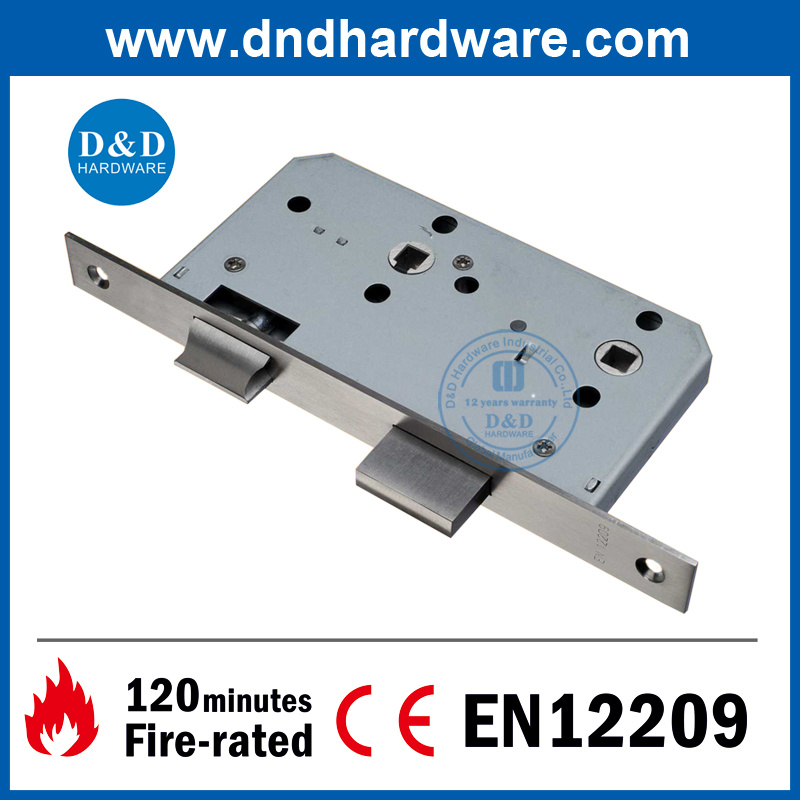

Stainless Steel Mortise Door Lock
CE standard Mortise lock

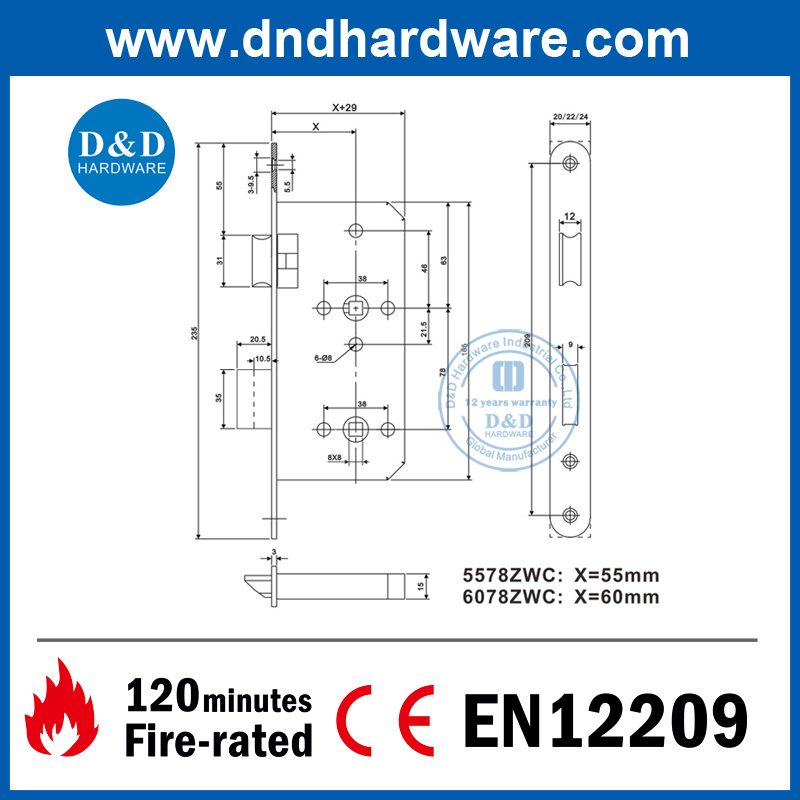

1.Centre Distance :78mm ; Backset 55 / 60 mm
2.Case:Galvanizen steel SECC,Tickless:1.5mm
3.Latch/Dead bolt: SS304
4.Forend and striking plates: SS304
5.Follower:SS304
6.Tested according to EN12209 / DIN 18251
CE Classification:3X910G-B020
7.Forend and strick plate available square or radius
8.Pierced to accept bolt through furniture and escutcheons at 38mm centres
9.Suitable for bathroom or toilet doors
10.Lever handle retracts latchbolt . Thumbturn operates deadbolt.
5578 DIN Bathroom Lock Door Hardware
It can be used on Wooden door, Metal door, Interior door, outer door, swing door etc.
The main sizes are 25/35/40/45/50/55/60(C to Plate)x72/85(C to C)mm
The main raw materials contain Steel Body, SS front plate, Brass Latch&Dead bolt, SS strike plate.
Lacth & Dead bolt is up to customer's choice.
Customers can choose according to door thickness, width, weight and using environment.
Custom designs, sizes, colors, and logos are welcome.
More door hardware items including -
1. UL Listed & fire rate stainless steel door hinge
2. BS EN 1906 stainless steel door handles
3. Fire rate door locks
4. panic exit device in UL standard
5. Glass hardware / bathroom hardware
All our products strictly according to international Standard, such as the BS EN/CE, UL, ANSI, BHMA standard.
5578 DIN Bathroom Lock Door HardwareD&D provide one stop hardware solution for commercial projects.
