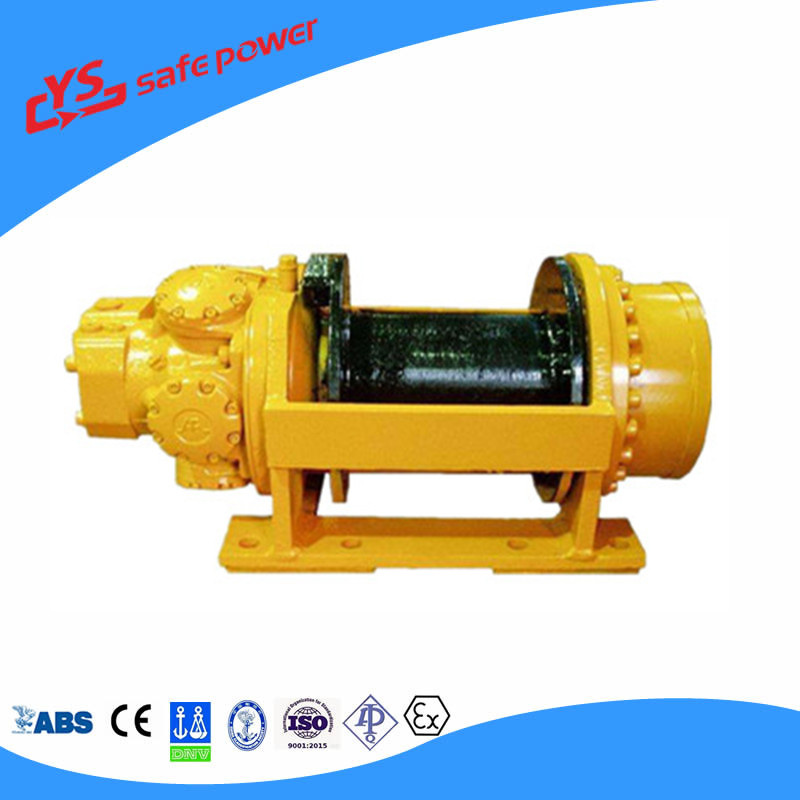

5ton Hydraulic Power Unit Single Drum Winch for Sale
| Price: |
US $ 7500-7820/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
YSYJ |
| Colour: |
as Customers' Need |
| Application: |
Mine, Oilfield, Construction, Engineer |
| Warranty: |
12months |
| Standards: |
ISO9001:2008; API; CCS;BV;Dnv |
| Pulling Force: |
50kn |
| Model Number: |
Ysyj |
| Capacity: |
1-10t |
| Brake: |
Auto Hydraulic Brake |
| Brand Name: |
Ys Safe Power |
| Driven Type: |
Hydraulic |
| Carrying Capacity: |
Light Level |
| Tonnage: |
5T |
| Running Mode: |
Moving |
| Feature: |
Explosion-Proof |
| Standard: |
National Standards |
| Type: |
Hydraulic Winch |
| Speed: |
Adjust |
| Certification: |
API ABS Dnv CCS |
Product Description

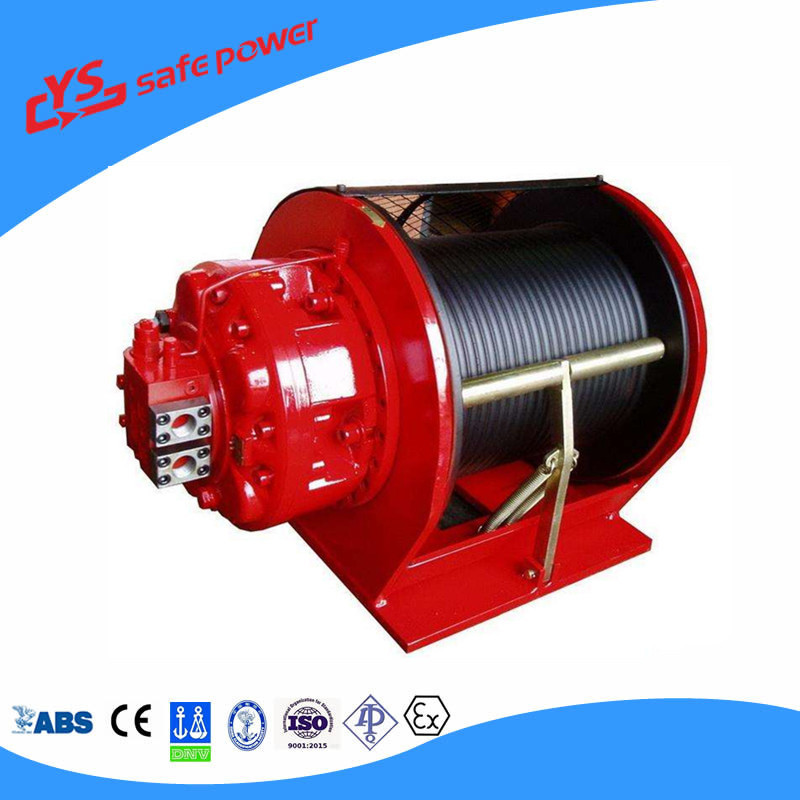

Product DescriptionThe hydraulic motor, planetary gearbox and brake are installed and hide in the drum of the winch, so the overall length is kept to the minimum. The compact design is very suitable for applications where the installing room is limited.
Parameters| Model | YSYS-3 | YSYJ-5 |
| Hydraulic system flow rating | L/min | 120 | 120 |
| Hydraulic system pressure rating | Mpa | 16.6 | 16.6 |
| Rated line pull | Kn | 30 | 50 |
| Line speed | m/min | 27 | 11 |
| Rope capacity | m | 150 | 100 |
| Overall dimensions | mm | 690*480*440 | 880*520*710 |
| Weight | kg | 230 | 190
|
Application They're widely used in construction equipments, mining industry, deck machinery and truck cranes. MAIN FEATURES1. Compact and elegant design
2. High starting& working efficiency
3. Reliable operation with little noise
4. Low maintenance relieves your anxiety
5. Cost saving
6. A range of accessories such as rope guides and pressure rollers are available on request.WHY YSYS Knows Your Application.With a history spanning 47 years, YS has served a wide variety of industries including marine, mining, manufacturing, material handling, inland terminal, and construction to name a few. No matter how diverse the applications, one thing connects them all - YS moves it all from big to small. YS products are manufactured to the highest industrial and quality standards because your application is our application.
FAQQUESTIONS WE ASK TO FIND THE WINCH FOR YOU:· Is it lifting or pulling?
· What weight is it lifting or pulling?
· If pulling, what are the ground/surface conditions?
· What rope length and diameter are required?
· What line speed is required?
· What power source is required/is available?
· Does the winch need a freewheeling clutch?
· What type of controls are required?
· Is multi-reeving involved?
