| Prod Model: |
OPT-6.4-010 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Voltage: |
6.4V |
| Rated Capacity: |
10ah |
| Cycle Life: |
>2000 Times at 1c Rate, 100% Dod |
| Battery Type: |
LiFePO4 Battery |
| Weight: |
1/3weight of SLA |
| Warranty: |
2years |
| Application: |
UPS,Small Medical Equipment ,etc |
| Certificate: |
CE, UL, RoHS,etc . |
| Export Market: |
America, Europe, Aisa, etc |
| Size: |
130*72*35mm |
| Type: |
Lithium-Ion Batteries |
| Usage: |
Solar System |
| Discharge Rate: |
Low Discharge Rate |
| Shape: |
Cylindrical Battery |
| Rechargeable: |
Chargeable |
| Nominal Voltage: |
6.4 |
| Electrolyte: |
LiFePO4 |
Product Description

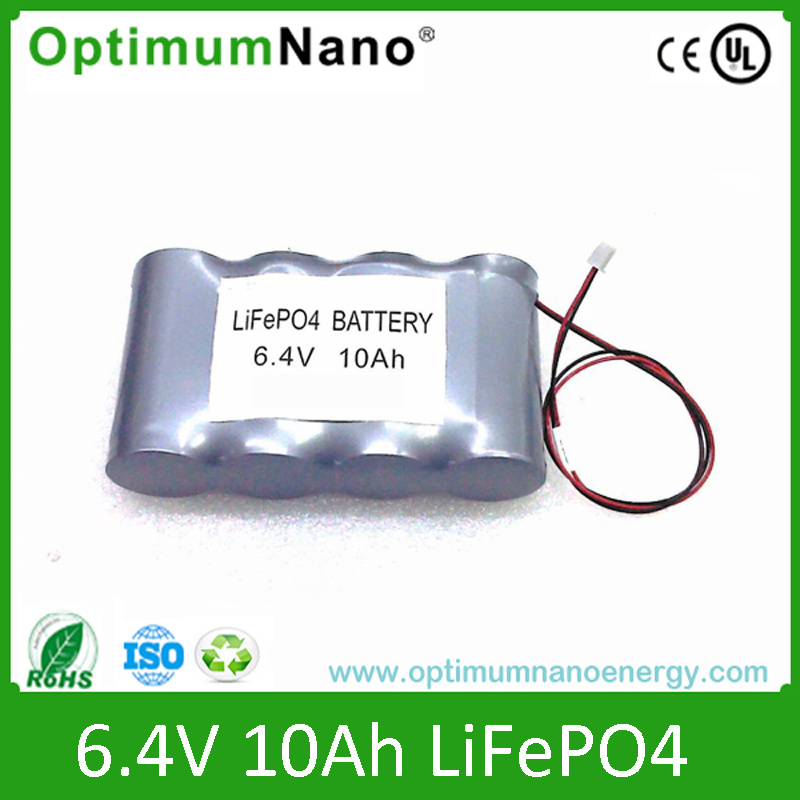

6.4V 10ah Lithium-Ion Battery for electric tools toys etc application
6.4V 10Ah LiFePO4 main data:
No
|
Item |
Data |
1 |
Battery Model |
64Wh, 6.4V 10Ah LiFePO4 |
2 |
Cells and connection |
32650, 3.2V 5Ah, 2S 2P |
3 |
Battery Voltage |
6.4V (Standard Working Voltage) |
4 |
Standard Charge Voltage |
About 7.3V |
5 |
Discharge Cut-off Voltage |
5V |
6 |
Battery Capacity |
10Ah |
7 |
BMS Model |
PCM(PCB style BMS) |
8 |
Charge Current |
2A (need 5 hours to full charge,can design) |
9 |
Max Continuous Discharge Current |
5A (can design) |
10 |
Peak Discharge Current |
7A (can design) |
11 |
Whole Battery Size |
130*72*35±2mm Blue PVC Film Packing (can design) |
12 |
Net Weight |
About 0.6kg
|
Product Features
1.Safe:Rigid aluminum alloy housing protection, BMS or PCB built inside to protect the battery over charge or discharge.
2.Environmental-friendly: Accredited with RoHS, without any hazardous and noxious substances.
3.Lighter and smaller: 1/3 weight of lead acid battery, 70% size/weight of Ni-MH/Ni-Cd battery.
4.Powerful: Able to discharge at -20 and 65°C max.
5.Long cycle life: Over 2000 cycles with capacity staying at minium 80%. Lead battery and other Li-ion batteries only have 300-500 cylces, such as Ni-Cd battery, Ni-MH battery.
6.Wide temperature range: Available for use when the temperature ranges from -20°C to 70°C.
7.Quality assurance: BV and SGS approved supplier, with TS16949 and ISO9001 quality management certificates and UL, CE,IEC62133, RoHS certificates.
Our Advantages
1.Specialized in production of lithium iron phosphate batteries for over 4 years.
2.Providing tailor-made high-standard energy solutions in accordance to client's demands.
3.With technical of over 2 years in on-site installation and debugging for more than 1000 HEV and EV.
4.Having made and implemented energy solutions for over 100 styles of EV.
5.With rich experience in drawing up and executing new energy solutions such as special energy-storage systems like wind-solar hybrid power generation and UPS for military and hospital.
6.Whole-journey nanny service after sale.
Applications
1. Large-scale electric vehicles: Electric bus, electric car, E-Tour Car
2. Light electric car: E-bike, electric scooter, e-motor, electric golf car, forklift, cleanness car, electric wheelchairs
3. E-tool: Electric drill, electric saw, lawn mower and so on
4. Remote control cars, boat, aircraft, toys
5. Solar and wind power generation energy storage devices
6. Small medical equipment and portable equipment
Normal performance |
| No | Item | General Parameter |
| 1 | Cell Model(Single cell) | IFR32650 |
| 2 | Standard Capacity | 10Ah |
| 3 | Rated Voltage | 6.4V |
| 4 | Max.Charge Voltage | 7.3V |
| 5 | Cut-off Voltage | 4V |
| 6 | Standard Charge Current | 2A |
| 7 | Standard Charging Time | 5h |
| 8 | Dimensions | customized |
| 9 | Total Weight(Approx.) | About 0.8 kg |
| 10 | Impedance(Max, at 1000Hz.) | ≤ 50mΩ |
| 11 | Temperature | Standard 0ºC~45ºC |
| discharge -20ºC~60ºC |
| storage -20ºC~45ºC |
