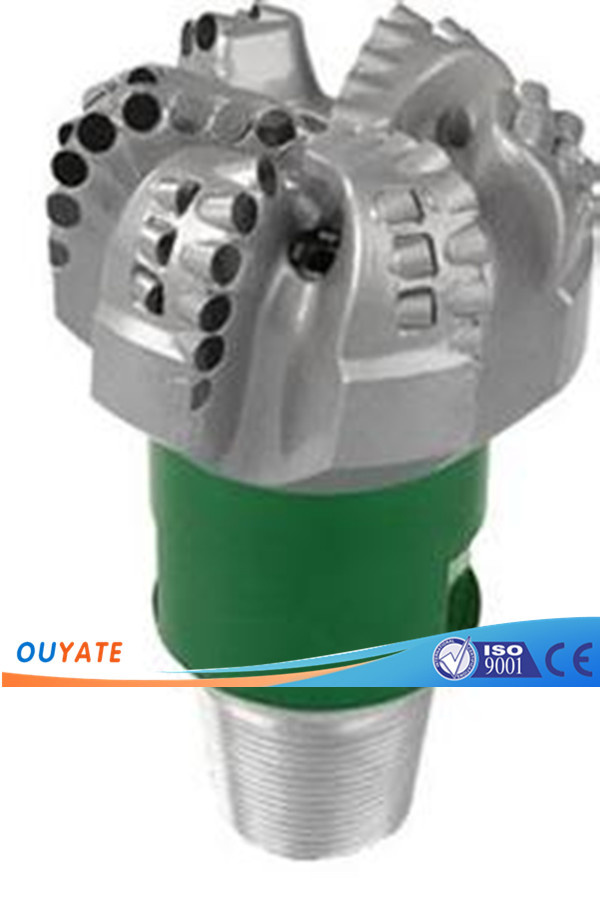

| Prod Model: |
6blades PDC bit |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
8.5inch |
| Blade: |
6 |
| Nozzle: |
5 |
| Cutter: |
13mm |
Product Description
Specifications
PDC bit
1.70HRC soldering surface
2. Good impact-abrasion resistance
3. Optimized Hydraulics
4. Lowest Vibration design
Applications:
PDC drill bit is mainly used to drill Oil well, gas well, water well, etc.
We design and produce specifie PDC bit with good performance for each soft, medium and hard formation.
Clay stone/lignite/siltstone/sands: We design 3-5 blades with low density cutter placement, large slot. Low cost, high speed.
Mudstone: We have experience to design suitalbe blades shape and cutter direction to get high drill speed and stalbe drill.
How to find your demands? You can: Select the products directly in our company website: www.wolfni.cnYou can also: Proposed product specifications and area (or your professional requirements), we will recommend quantity of blade, blade shape, cutter size and cutter quantity, tec. Size& parameter for choosing directlySizePAI whorlPAI whorlRotation speedWeight on bitDiameter(in)specificationrate (gpm)(rpm)(lbs)tolerance(mm)6"3 1/2 API Reg200-35080-3802000-15000+0, -0.388 1/2"4 1/2 API Reg300-50060-3503000-11000+0, -0.519 1/2"6 5/8 API Reg400-60060-3504000-20000+0, -0.7612 1/4"6 5/8 API Reg550-85060-3504000-14000+0, -0.7617 1/2"7 1/2 API Reg550-85060-2405000-24000+0, -1.14OthersDepending on your requirements, we can design and produce all above specification(All sizes 3 1/2"~26"). Backgound of Chengdu WolfniLocated in Chengdu, our company specializes in the new project development, manufacture, marketing and after-sales service of Steel Body PDC Dill Bits. Chengdu Wolfni Technology Co., Ltd. Has an excellent design team and a highly efficient management team. We have strict internal management systems and highly talented technicians who have rich working experience in oil drilling. In addition, we have set up several departments, including R & D, Production, Sales and Service. We always insist on the spirit of "People oriented, united and pragmatic, advanced technology, sincere pursuit, perfect production and service for the world". Thus, our corporation has won trust and compliments from customers. We are looking forward to having good cooperation with partners from at home and abroad to create a glorious future.
Thank you for your time to view our website. I am the organizer of PDC Bit project with 6years experience in designing, manufacturing and field operation. It is great honor to introduce our PDC bit to you and have change to cooperate hand in hand.
Hospital Wolfni friend are waiting for your factory site view. The best wish for you! ! !
Gravel/limestone/shale/clay stone/tuff: Round crown and reasonable cutter direction. Drill smoothly in good speed.
Introduction of PDC drill bit:
Steel body with hardening tungsten carbide surface(WC), make the drill bit both high strength and very strong abrasion resistance.
Dedicated PDC cutter can improve the life and shield the risk of complex formation drill not passed.
Raw materials: Alloy steel with a special treatment, achieve better mechanical properties (Rp0, 2: 1200MPa; Rm: 1100 MPa)
Low torque spiral design and software designed tooth reduce the cutting edge wear & increase life
(no repair life up to 8300M/pc).
The unique parabolic crown-shaped design and tooth balance design keeps smooth drilling under high speed.
(Speeds up to 30~40m/h. )
The scientific drilling dynamic equilibrium design and hydraulic balance design make the drilling process more smooth.
Authoritative API standard and ISO certification, quality and service will be better ensured.
| Model | TCI BIT, STEEL TOOTH BIT |
IADC CODE | 116 117 12 6127 136 137 216 217 226 226 316 317 326 327 336 337 115 125 135 215 225 235 315 325 335 114 124 214 314 111 121 131 346 347 |
| 417 427 437 517 527 537 617 627 637 737 837 832 415 425 435 445 525 625 635 416 427 436 446 447 516 526 537 547 516 536 535 |
| available sizes: | From 2 7/8 to 26"
larger sizes for hole opener bit ,reamer bit |
| advantage | most favourable price and best qualtity |
| bearing type: | sealed bearing and non-sealed bearing
HJ(metal sealed journal bearing)
HA (rubber sealed journal bearing
aircooled bearing type |
| Formation or layer | soft ,medium soft ,hard,medium hard,very hard formation |
| Button size (extra features) | Button bit,saw teeth
1) Y-Conical teeth 2) X-chisel teeth
3)K- wide teeth
4)G- Gague protection |
| Material | Alloy steel ,carbide |
| Packing | Wooden case or steel case |
| Payment terms | T/T,L/C,Western union |
| Delivery terms | By sea or by air |
| Delivery time | Within 3 to 7 days |
| Market | Canada, USA,Middle east ,Africa,Europe |
Hebei HengJi Drill Bit Manufacture Co., Ltd., as a leading manufacturer of tricone bit and PDC bits, our products are made strictly complying with API specifications and ISO9001.
Hebei HengJi Drill Bit Manufacture Co. Ltd was established in 1997. We have kept our clients ahead of schedule and under budget by providing the highest quality tools at the best possible prices.
We ship to more than 30 different countries and serve industries such as Oil & Gas, water well, Construction, Mining, Horizontal Directional Drilling (HDD), Geothermal and Environmental. Our experienced staff is here to assist you with
Everything from choosing the right bit to shipping around the globe.
Our goal is to provide our customers with the best quality tools, accessories and service in the industry. We are supported by many years of experience, trained professionals and a full machine shop. Reduce the cost, Speed the drilling, Guarantee the safety is always our aim.
