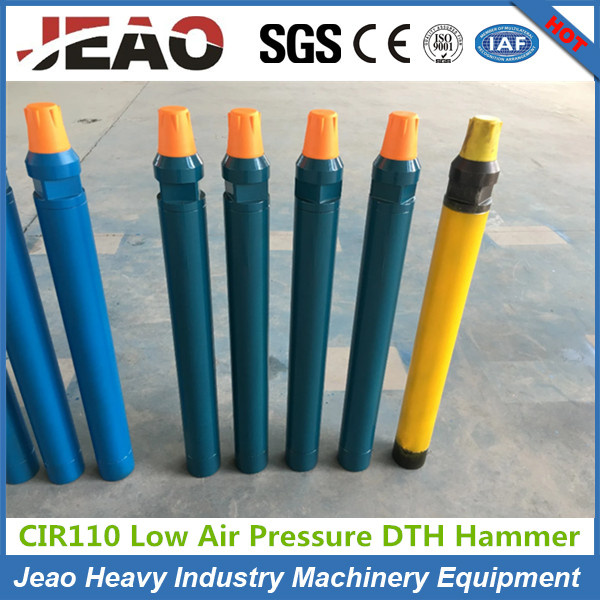

Prod Model: |
CIR110 |
Size: |
110mm |
Bit Shank: |
CIR110 |
Weight: |
33kg |
Working Pressure: |
6-12 |
Air Consumption: |
8-12m3/Min |
Product Description
Product Description
Application: DTH hammers are used for blast hole drilling and water well drilling project. working with DTH drilling pipe and DTH drill bit, mainly applied in Mining,Marble quarry or well drilling and other construction projects.
Our Advantages:

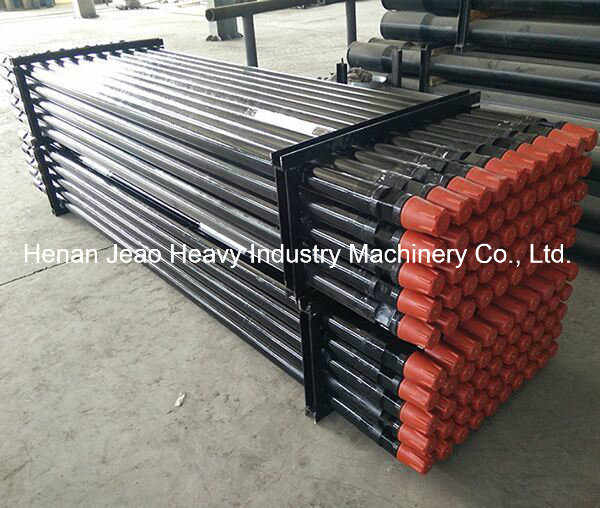

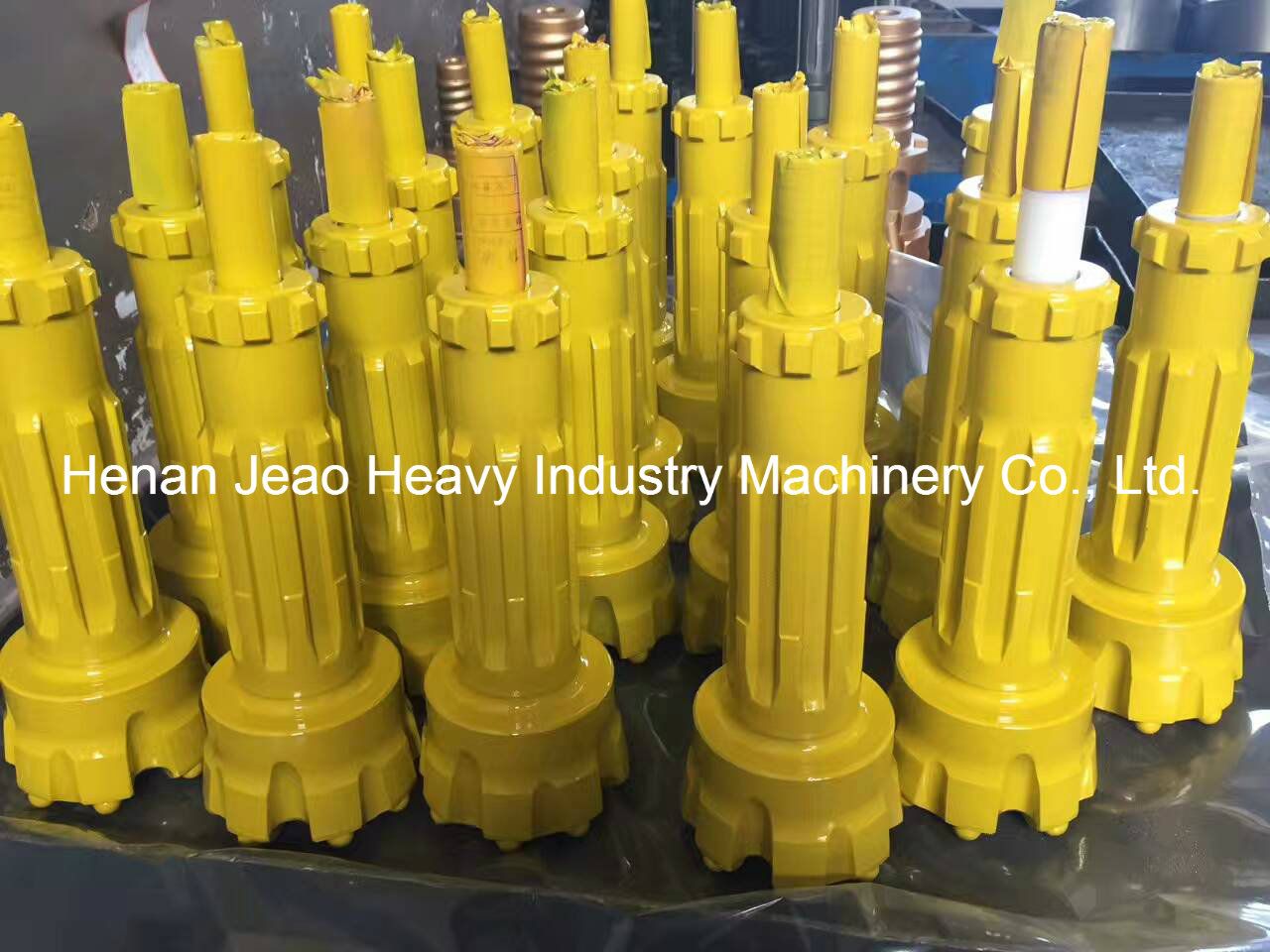

1.WE CAN PROVIDE THE COMPLETE SOLUTION ( DTH drill bit, DTH hammer, DTH Drill Rod, Air Compressor, DTH Drilling rig and added value services)
2.Lower energy consumption and higher impact frequency.the drilling speed is 15%~30% higher than other series DTH Hammer.
3.Simple structure,reliable parts,long life,easy and cheap maintenance.
4.Lower air and oil consumption.The oil consumption is about 10% lower than the one with foot valve.
5.The check valve can be replaced to the one with bigger ail controlling hole to provide more efficient cuttings discharge.Low Air Pressure DTH Hammer Technical Date :CIR series Low air pressure DTH hammer includes: CIR76, CIR 90, CIR110, CIR150, CIR170, CIR200 etc.Model No | Length(mm) | Top Sub Thread | Out Dia (mm) | Weight(Kg) | Bit Dia(mm) | Working Pressure(Bar) | Air Consumption (m3/min) |
CIR76 | 811 | F48*10 PIN | 66 | 13.5 | 76 | 4~10 | 6~10 |
CIR90 | 840 | F48*10 PIN | 80 | 22 | 90~120 | 4~12 | 8~12 |
CIR110 | 871 | API 2 3/8 REG BOX | 98 | 33 | 110~150 | 6~12 | 8~12 |
CIR130 | 890 | API 2 3/8 REG BOX | 112 | 48.5 | 130~175 | 6~12 | 8~12 |
CIR150 | 904 | F70*10 PIN | 136 | 70 | 150~200 | 6~12 | 10~16 |
CIR170 | 1030 | F100*28 PIN | 156 | 96 | 170~250 | 8~14 | 12~18 |
CIR200 | 1058 | F100*28 PIN | 182 | 130 | 200~250 | 8~14 | 16~20 |

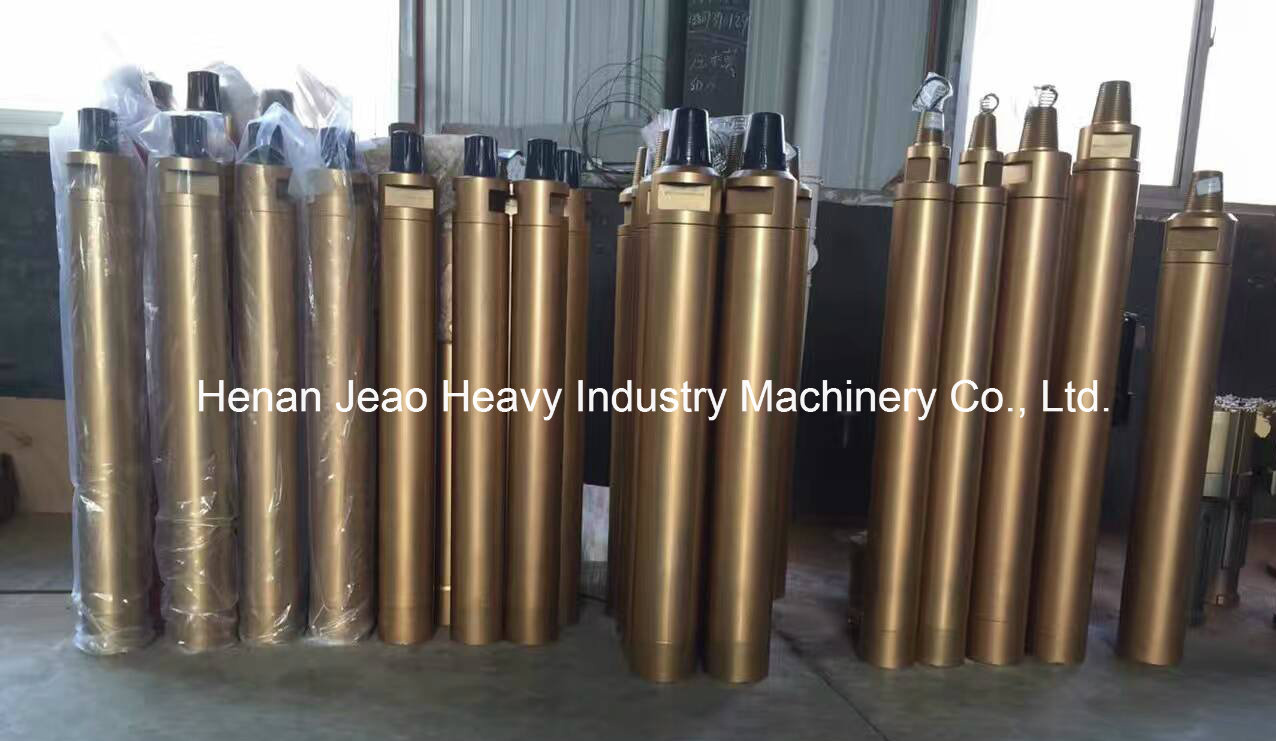

High Air Pressure DTH Hammer Technical Date :
DHD/COP Series DTH Hammer DTH hammer type | DHD3.5 | DHD340 | DHD350 | DHD360 | DHD380 | DHD1120 |
Bit shank | DHD3.5 | COP44 DHD340 | COP54 DHD350R | COP64 DHD360 | COP84 DHD380 | DHD1120 |
Hole range(mm) | 90-115 | 110-135 | 135-155 | 155-203 | 195-254 | 305-445 |
Connection thread | API 2 3/8"Reg | API 2 3/8"Reg | API 2 3/8"Reg | API 3 1/2"Reg | API 4 1/2"Reg | API 6 5/8"Reg |
| | | API 3 1/2"Reg | | | |
Working pressure | 1.0-1.5Mpa | 1.0-2.5Mpa | 1.0-2.5Mpa | 1.0-2.5Mpa | 1.0-2.5Mpa | 1.0-2.5Mpa |
QL Series DTH HammerDTH hammer type | QL40 | QL50 | QL60 | QL80 |
Bit shank | QL40 | QL50 | QL60 | QL80 |
Hole range(mm) | 110-135 | 135-155 | 155-203 | 195-254 |
Connection thread | API 2 3/8"Reg | API 2 3/8"Reg | API 3 1/2"Reg | API 4 1/2"Reg |
| | API 3 1/2"Reg | |
Working pressure | 1.0-2.5Mpa | 1.0-2.5Mpa | 1.0-2.5Mpa | 1.0-2.5Mpa |
SD series DTH Hammer DTH hammer type | SD4 | SD5 | SD6 | SD8 | SD10 | SD12 |
Bit shank | SD4 | SD5 | SD6 | SD8 | SD10 | SD12 |
Hole range(mm) | 110-135 | 135-155 | 155-203 | 195-254 | 254-311 | 305-445 |
Connection thread | API 2 3/8"Reg | API 2 3/8"Reg | API 3 1/2"Reg | API 4 1/2"Reg | API 6 5/8"Reg | API 6 5/8"Reg |
| | API 3 1/2"Reg | | | |
Working pressure | 1.5-2.0Mpa | 1.0-2.5Mpa | 1.0-2.5Mpa | 1.0-2.5Mpa | 1.0-2.5Mpa | 1.0-2.5Mpa |
MISSION Series DTH Hammer DTH hammer type | MISSION4 | MISSION5 | MISSION6 | MISSION8 |
Bit shank | MISSION4 | MISSION5 | MISSION6 | MISSION8 |
Hole range(mm) | 110-135 | 155-190 | 155-203 | 195-254 |
Connection thread | API 2 3/8"Reg | API 2 3/8"Reg | API 2 7/8"Reg | API 4 1/2"Reg |
| | API 3 1/2"Reg | API 3 1/2"Reg |
| | API 2 7/8"Reg | 2 7/8"IF | |
Working pressure | 1.2-2.0Mpa | 1.3-2.3Mpa | 1.5-2.5Mpa | 1.5-3.0Mpa |
NUMA Series DTH HammerDTH hammer type | NUMA100 | NUMA120 | NUMA125 |
Bit shank | NUMA100 | NUMA120 | NUMA125 |
Hole range(mm) | 254-311 | 305-445 | 305-445 |
Connection thread | API 6 5/8"Reg | API 6 5/8"Reg | API 6 5/8"Reg |
Working pressure | 1.0-2.5Mpa | 1.0-2.5Mpa | 1.0-2.5Mpa |
