| Prod Model: |
1.1.1.0 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Outer Diameter: |
600-1500mm |
| Technology: |
Laser Welding |
| Cutting Material: |
Concrete, Reinforced Concrete, etc. |
| Delivery Time: |
Based on Actual Order Quantity, Generally 20~30day |
| Establishing Year: |
2000 |
| Company Type: |
Direct Manufacturer and Trading Company |
| Warehouse: |
with Enough Capacity |
| Inner Hole: |
25.4/50/60mm |
Product Description

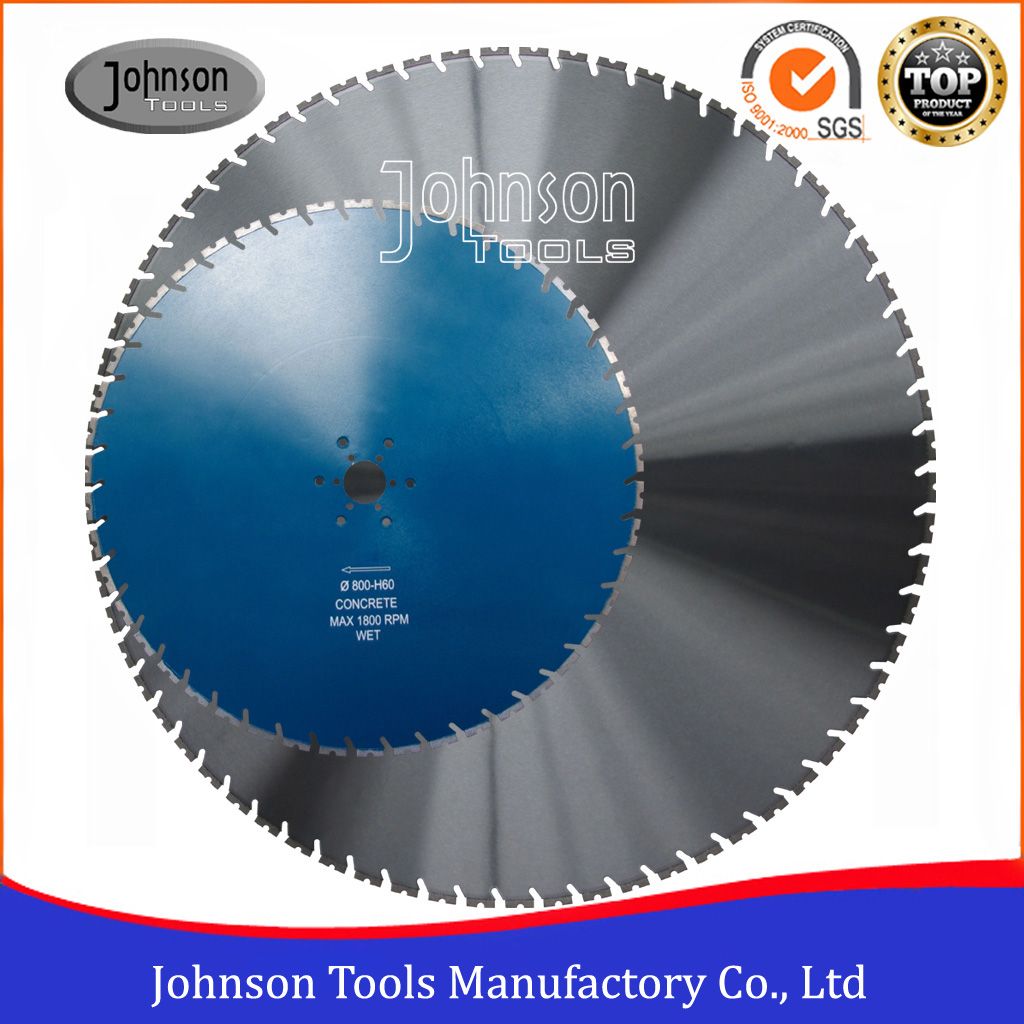

600-1500mm Wall Diamond Saw Blade for Concrete and Reinforced Concrete
Why choose us
Established in 2000year == Factroy==Quality Control ==Competitive price==OEM==Short delivery time
1. Description of 600-1500mm Wall Diamond Saw Blade for Concrete and Reinforced Concrete
As a direct factory, we could provide 600-1600mm 100% laser welded wall saw blade, if you need bigger size, we could do as your request. Fit to Hydraulic or electric power wall saw.
All is well doing work on opening concrete walls for replacement of doors, windows, ducts. Especially on removing walls and floors for expansion or demolition, instead of traditional blasting demolition.
Well exported to American, Canada, Thailand, Singapore, Hongkong, Coratia, Iceland, CZ, Malaysia, Netherland, UK, Sweden, UAE, India, Saudi Arabia etc.
2. Feature of 600-1500mm Wall Diamond Saw Blade for Concrete and Reinforced Concrete
1) 100% laser welding technology.
2) Dry cutting.
3) "Single U" type segment good for cooling.
4) High speed&fast cutting, smooth and long cutting life.
5) Fit to 3HP-85HP, or do as your request.
6) Installed for any brand wall saw machine.
3. Specification of 600-1500mm Wall Diamond Saw Blade for Concrete and Reinforced Concrete
Diameter:600-1500mm
Segment thickness:4.8/5mm
Segment height:10/12mm
Inner hole:25.4mm, 50mm, 60mm, 80mm or as your request
| Inch | Diameter
(mm) | Segment length
(mm) | Segment thickness
(mm) | Segment height
(mm) | Segment number
(nos) |
| 24" | 600 | 40 | 4.8/5 | 10/12 | 36 |
| 28" | 700 | 40 | 4.8/5 | 10/12 | 40 |
| 32" | 800 | 40 | 4.8/5 | 10/12 | 46 |
| 36" | 900 | 40 | 4.8/5 | 10/12 | 52 |
| 40" | 1000 | 40 | 4.8/5 | 10/12 | 58 |
| 48" | 1200 | 40 | 4.8/5 | 10/12 | 68 |
| 56" | 1400 | 40 | 4.8/5 | 10/12 | 86 |
| 60" | 1500 | 40 | 4.8/5 | 10/12 | 90 |
4. Packing and Shipping
2-5pcs laser welded wall saw blades are packed in one plywood, gross weight per plywood is limited within 85-240kg.
Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.
Delivery way: By air, by sea, by land, by courier, etc.
5. Payment term
T/T, Irrevocable L/C at sight,PayPal, West Union, Credit Card, etc.
6. Our Technology:
We are processing advanced production equipment, modern checking system, strict management and a strong technical force with the combination of many skilled workers and technical engineers.
Providing our customers with satisfactory diamond cutting tools is our aim!
7. FAQ
Q: How to place order to your company?
1) Required Products Details: Tell us what is your demand? Which kind of products, size, specification, cutting or grinding or drilling materials? HP of machine? Quantity? Nearest airport and seaport? Then we will give you best offer.
2) Performa Invoice: Offer satisfied, and then confirms the delivery time, payment term, logo, quantity, etc. According to this information, we will do Performa Invoice. Customers do the payment.
3) Production Process: Arrange production, based on the contract and PI description and mutual communication, we will follow closely the full production process; keep you informed of till finished the products under the contract limited time. Take photo of the goods for your reference. We take completely file in the computer from the raw material to producing process details, package, shipping. Easy for us to check each order.
4) Delivery: Dispatch the goods to appointed airport or seaport, prepare all shipping documents to customers.
5) After-Sale Service: Track the goods, learn the products' performance.
6) Feedback:Customers feedback to Johnson about quality, service, give us suggestion for our better improvement.
8. Company information
Established in 2000 year, Johnson Tools Manufactory Co.,Ltd have been acting as one of leading manufacturers in China's stone and construction industries.
We enjoy good reputation among customers with trustworthy product quality and creditable service. Provide good quality diamond tools on sawing, grinding, polishing and drilling industry, such as laser welded wall saw blade, floor saw blade, concrete saw blade, asphalt saw blade, stone saw blade, electroplated saw blade, tuck pointing saw blade, diamond segments, grinding wheels, polishing pad, core bits, TCT saw blade, also stone cutting machine, etc.
Johnson Tools people sincerely looking forward to serving you in the near future!
Let's work together to make the business better and better.
