| Prod Model: |
XY-600F |
| Usage: |
Water Well |
| Voltage: |
380V |
| Power(W): |
38kw |
| Weight: |
2880kg |
| Warranty: |
One Year |
| Diesel Engine: |
50HP, 2200r/Min |
| Application: |
Water Well, Soil Sampling, Pile Foundation etc |
| Stratum: |
Gravel, Soil, Sand, Hard Rock etc |
| Control System: |
Hydraulic System.High Efficiency |
| Color: |
Green/Blue/Yellow or as Your Requirement |
Product Description
XY-600F water well rotary drilling rig for sale
XY-600F can drill up to 600m depth,diameter from 500mm to 75mm,with Hydrualic Foldable Mast and Hydraulic Support Legs, 53 HP Diesel Engine,BW-200 or BW-250 Mud pump,can be used for Water wells,Geothermal wells,Explorationg coing works and so on.
To meet different user requirements, we design and manufactuer different types:
(1) XY-600F four-wheel trailer mounted drilling rig
(2) XY-600C crawler mounted self-propelled drilling rig
(3) XY-600 truck mounted drilling rig.
| 1. Main Parameters |
| Max. Drilling Depth | 600m |
| Diameter of drill pipe | Φ42,Φ50,Φ60,Φ76 |
| Angle of vertical spindle | 90°~65° |
| Drilling capability | |
| Φ75mm drill diameter | 600m depth |
| Φ108mm drill diameter | 500m depth |
| Φ127mm drill diameter | 400m depth |
| Φ159mm drill diameter | 300m depth |
| Φ219mm drill diameter | 210m depth |
| Φ273mm drill diameter | 150m depth |
| Φ500mm drill diameter | 80m depth |
| 2. Vertical Spindle |
| Rotation speed | Forward 10 grades
Reverse 2 grades | 30-1050r/min
29-137r/min |
| Spindle stroke | 560mm |
| Spindle bore | 96mm |
| Hoisting capability | 6000kg |
| Max. Torque | 3800N.m |
| 3. Main hoist |
| Lifting speed of single wire | 0.5-1.9m/s |
| Diameter of wire rope | 12.5mm |
| Carry capacity of single wire | 4000kg |
| Diameter of winding drum | 300mm |
| Volume of winding drum | 50m |
| Lifting capability of single wire | 3000kg |
| 4.Auxiliary Hoist |
| Winding drum | 140mm |
| Diameter of steel wire rope | 6mm |
| Volume of winding drum | 450m |
| 5. Mud pump(as per your choice) |
| Horizontal triplex mud pump | BW-200II |
| Displacement | 200L/min |
| Working pressure | 50kg/cm² @ 5MPa |
| Diameter of water inlet hose | 65mm |
| Diameter of water outlet hose | 38mm |
| 6.Power supply(choose one between the following two) |
| Diesel engine | Model 4100,38kw(50PS) |
| Electrical motor | Y180M-4B35,22kw |
| 7. Weight and Dimension of main drilling rig |
| Weight | 2880kg |
| Dimension | 3700×1850×3200mm |
| 8.Six-wheel Trailer |
| Walking speed | 25Km/hr |
| Frame carrying capacity | 4 tons |
| Steering wheel 600-14 | 0.75 tons |
| Bearing wheel 650-15 | 0.9 tons |
| Minimum turing angle | 6.8m |
| 9. Oil Pump | CBN-F32 |
| Working pressure | 20Mpa |
| Displacement | 32L/min |
Main Features
1. It can move.
Slide base: It is to make machine move when you need to adjust drilling position.
2. It has different types.
Four-wheel, crawler.
3. Hydraulic control system
With integrative drilling tower, supported by two high strength oil cylinder, hydraulic controlling the rise and fall of the tower. Operation is extremely convenient, saving time and labor effort, creat max. benefit for the user.
4. Different bits
Three-wing Bit, Alloy Bit, Diamond Bit. According to your Geological conditions, I can help you choose suitable bit.
5. Spare parts
We provide factory cost accessory all year round.
6. Power
Diesel engine
7. Mud pump
The machine is equipped with a complete set of independent BW-200 mud pump, with high pump flow rate and pressure, convenient maitenance, convenient to buy spare and accessory parts all around.

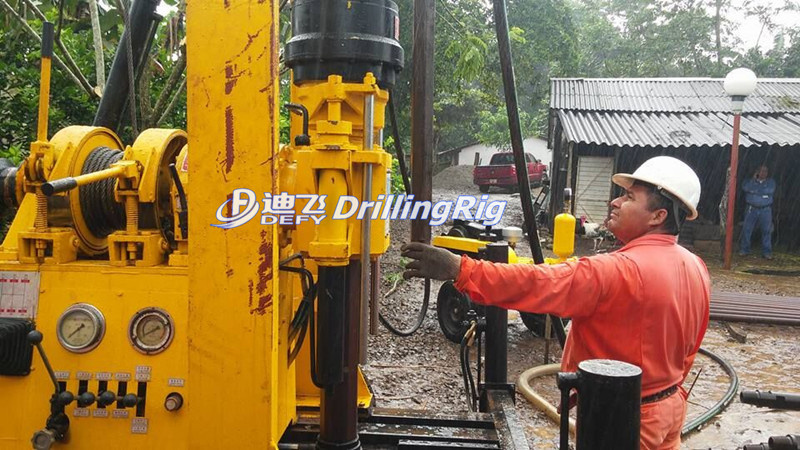

Work site
Packing & Delivery
Certifications
Our Service
Pre-Sales Service
We have QC department, before shipping, goods will be strictly checked.
After-Sales Service
- 24 hours * 7 days online pre & after sale service ;
- Factory site training or engineers go to overseas to train the workers ;
