Product Description

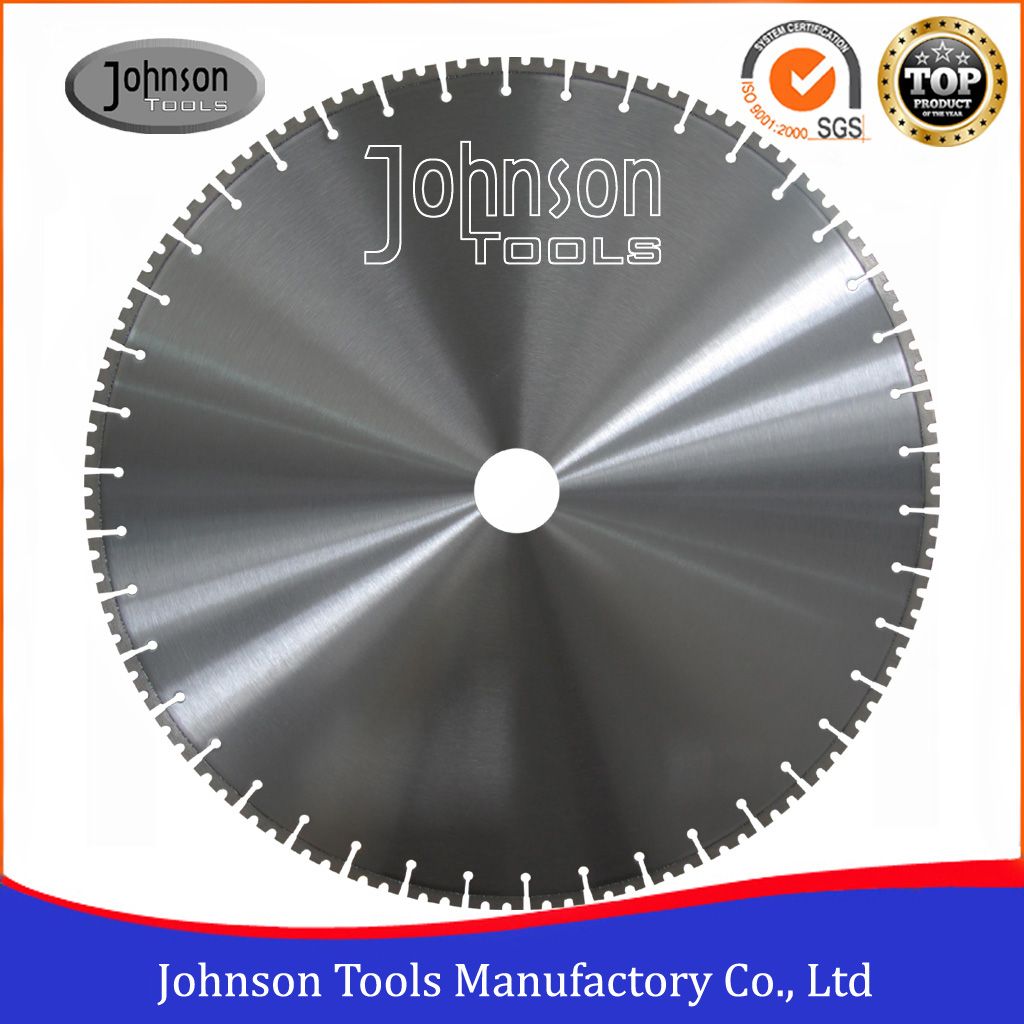

600mm Diamond Natural Stone Cutting Saw Blade with Double U Segment
1. Description of 600mm Diamond Natural Stone Cutting Saw Blade with Double U Segment
600mm professional grade general purpose diamond blade for fast cutting on a various concrete, masonry and construction materials. They are designed for heavy saw cutters who want to cut different materials without having to change blade. These saw blades feature undercut protection for use on asphalt and green concrete. The Profession diamond Blade is a good choice for landscaping contractors, general contractors, utilities, municipalities, sewer and water departments and rental companies.
2. Features of 600mm Diamond Natural Stone Cutting Saw Blade with Double U Segment
1) Laser welding technology could be dry cutting, and wet cutting better.
2) Application: for cutting normal stone, such as marble, granite, limestone, sandstone etc.
3) Fits to bridge cutter machine, table saws etc.
4) Double U segment easy draining attle.
5) Fast cutting, long lifetime.
6) Good balance assures safety and excellent cutting effect.
7) Different quality grades for selection.
8) Any specification as your request.
3. Specification information of 600mm Diamond Natural Stone Cutting Saw Blade with Double U Segment
Diameter:600mm
Segment thickness:4.4mm
Segment height:10/12/15mm
Bore size:25.4mm, 25.4/20mm, 50mm, 60mm etc or as your request.
| Inch | Diameter
(mm) | Teeth length
(mm) | Teeth thickness
(mm) | Teeth height
(mm) | Teeth number
(nos) |
| 24" | 600 | 40 | 4.4 | 10/12/15 | 42 |
| 24" | 600 | 40 | 4.4 | 10/12/15 | 42 |
| 24" | 600 | 40 | 4.4 | 10/12/15 | 42 |
Other size we could do
| Inch | Diameter
(mm) | Teeth length
(mm) | Teeth thickness
(mm) | Teeth height
(mm) | Teeth number
(nos) |
| 4" | 105 | 32 | 2.2 | 7/10/12 | 8 |
| 4.5" | 115 | 31 | 2.2 | 7/10/12 | 9 |
| 5" | 125 | 31 | 2.2 | 7/10/12 | 10 |
| 6" | 150 | 34 | 2.2 | 7/10/12 | 11 |
| 7" | 180 | 34 | 2.4 | 7/10/12 | 14 |
| 8" | 200 | 40 | 2.4 | 7/10/12 | 13 |
| 9" | 230 | 37 | 2.6 | 7/10/12 | 16 |
| 10" | 250 | 40 | 2.6 | 10/12/15 | 16 |
| 12" | 300 | 40 | 3.0 | 10/12/15 | 20/18 |
| 14" | 350 | 40 | 3.2 | 10/12/15 | 24/21 |
| 16" | 400 | 40 | 3.4 | 10/12/15 | 28/24 |
| 18" | 450 | 40 | 3.6 | 10/12/15 | 32/26 |
| 20" | 500 | 40 | 4.0 | 10/12/15 | 36/30 |
| 26" | 650 | 40 | 4.4 | 10/12/15 | 42/36 |
| 28" | 700 | 40 | 5.0 | 10/12/15 | 42/36 |
| 32" | 800 | 40 | 6.0 | 10 | 46/40 |
4. Packing and Shipping
Each saw blade is packed in white box or colored box packing, then according to the size, 5pcs put in an export standard carton, gross weight per carton is limited within 50kg.
Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.
Delivery way: By air, by sea, by land, by courier, etc.
5. Payment term
T/T, Irrevocable L/C at sight,PayPal, West Union, Credit Card, etc.
6.Our technology
We are processing advanced production equipment, modern checking system, strict management and a strong technical force with the combination of many skilled workers and technical engineers.
Providing our customers with satisfactory diamond cutting tools is our aim!
