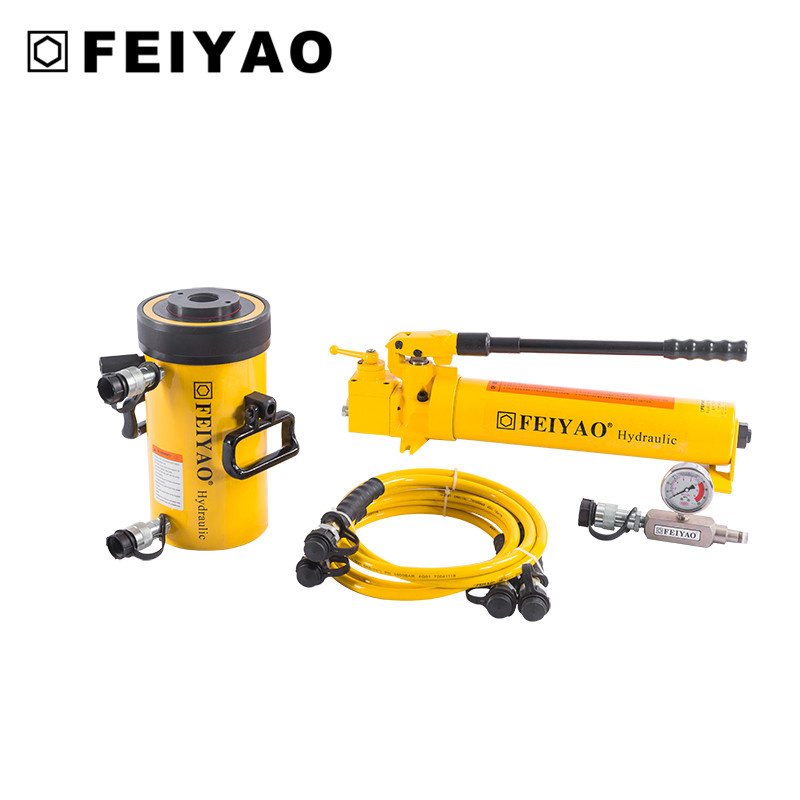

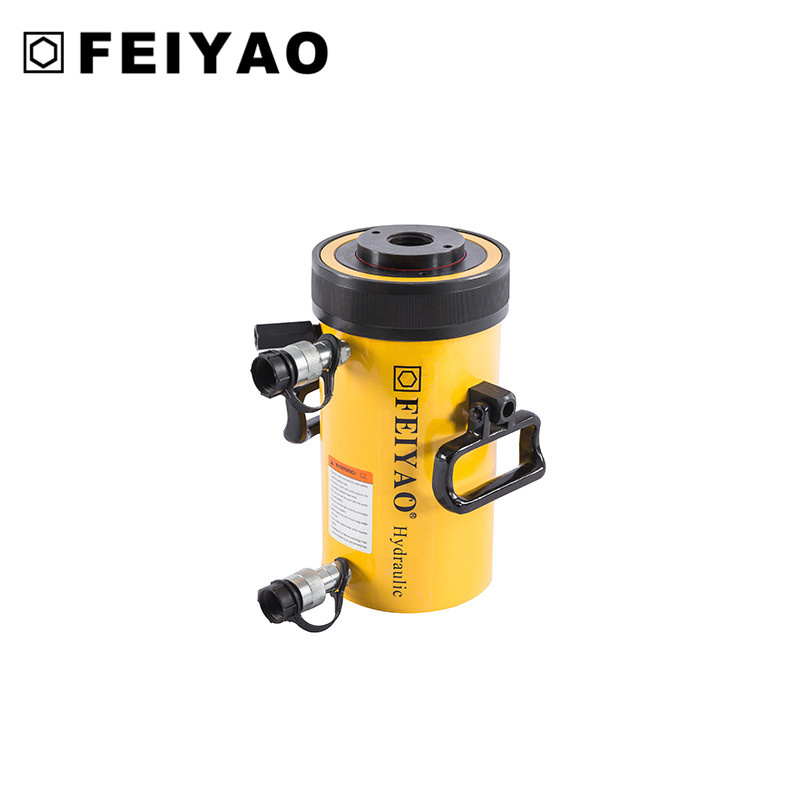

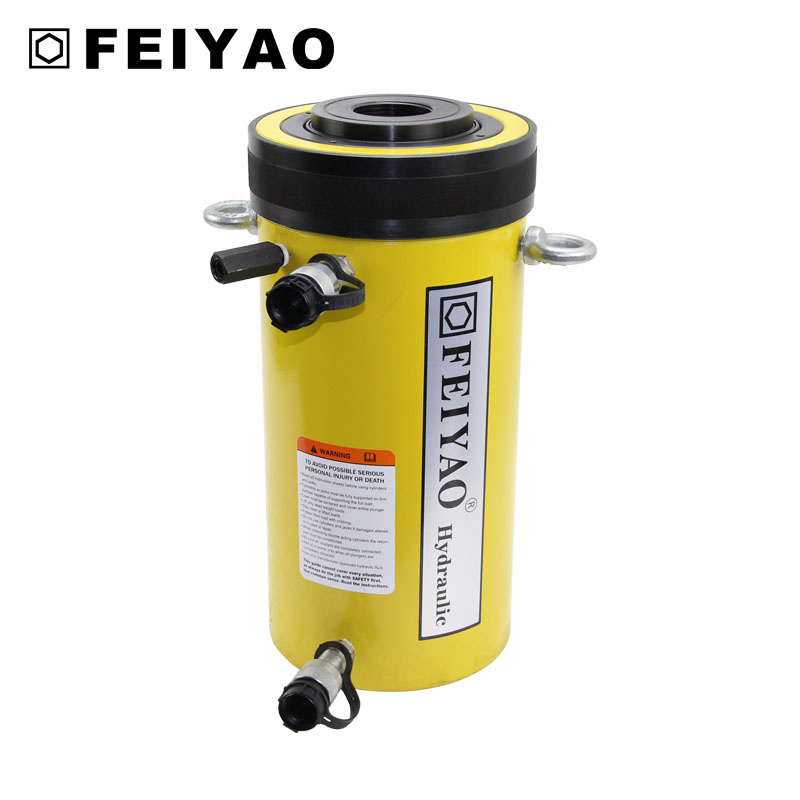

60t High Capacity Double Acting Hollow Plunger Hydraulic RAM

Name: 60t High Capacity Double Acting Hollow Plunger Hydraulic RAM
Brand: tool-buy.com
SKU: 718778215
Availability: InStock
Rating: 4.4 (39 reviews)

Price:	US $ 500-4000/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Jiangsu Feiyao Machinery Manufacturing Co., Ltd.

Showroom Product Company Profile

Prod Model:	FY-RRH
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name:	High Capacity Double Acting Hollow Plunger Hydraul
Color:	Yellow or Customized
Model:	Fy-Rrh307/Fy-Rrh 1508
Certificate:	Ce and ISO 9001 2008
Working Pressure:	700bar
Business Type:	Manufacturer
Shipment:	by Sea, Air or Express
Warranty:	1 Year
OEM:	Available
MOQ:	1PC
Type:	Hydraulic Jack
Structure:	Hydraulic Jack
Power Source:	Hydraulic
Capacity (',Load):	30-150t

Product Description

High Capacity Double Acting Hollow Plunger Hydraulic Ram

Features:
1 Hollow plunger allows for both pull and push forces
2 Relief valves prevent damage in case of over-pressurization
3 Baked enamel finish for increased corrosion resistance
4 Collar threads enable easy fixturing (except RRH-1001 and RRH-1508)
5 Double-acting version for fast hydraulic retraction
6 Nickel-plated, floating center tube increases product life
7 Plunger wiper reduces contamination, extending cylinder life
8 CR 400 coupler and dustcap included on all models

Application
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance

Parameter

Model	Pressure @700bar ton (KN)	Stroke (mm)	Capacity (ton)		Effective Area(cm2)		Oil Capacity (cm3)		Closed Height A(mm)	Extending Height B(mm)	Out Diameter D(mm)	Central Hole Diameter Y(mm)	Weight (kg)
Model	Pressure @700bar ton (KN)	Stroke (mm)	Push	Pull	Push	Pull	Push	Pull	Closed Height A(mm)	Extending Height B(mm)	Out Diameter D(mm)	Central Hole Diameter Y(mm)	Weight (kg)
FY-RRH-307	30(326)	178	30	23.0	46.6	30.4	829	541	330	508	114	33.3	22
FY-RRH-3010	30(326)	257	30	23.0	46.6	30.4	1202	781	432	689	114	33.3	27
FY-RRH-603	60(576)	89	60	41.8	82.2	54.0	733	481	248	337	159	53.8	28
FY-RRH-606		165	60	41.8	82.2	54.0	1366	891	324	489	159	53.8	35
FY-RRH-6010		257	60	41.8	82.2	54.0	2115	1388	438	695	159	53.8	46
FY-RRH-1001	100(931)	38	100	67.7	133.1	87.4	505	332	165	203	213	79.2	39
FY-RRH-1003		76	100	67.7	133.1	87.4	1011	664	254	330	213	79.2	61
FY-RRH-1006		152	100	67.7	133.1	87.4	2035	1328	342	495	213	79.2	79
FY-RRH-10010		257	100	67.7	133.1	87.4	3420	2246	460	718	213	79.2	107
FY-RRH-1508	150(1333.3)	203	150	76.0	204.1	102.6	4144	2083	349	552	248	79.2	111

Company Introduction

Jiangsu Feiyao Machinery Manufacturing Co., Ltd. is a professional hydraulic tools manufacturer with 30-year experience in the design, production, sale and service of Hydraulic Products, Electrical Control Equipment and Mechanical Devices.

Jiangsu Feiyao has been in hydraulic tools industry since 1978. Mainly export:

Hydraulic cylinder jacks (5-1500ton), single double acting, hollow plunger; low height, lock nut;

Hydraulic torque wrenches(100-72000Nm);

PLC synchronous lifting system;

Hydraulic lifting pumps, manual and electric type;

Hydraulic pullers, manual and hydraulic type;

Hydraulic bolt tensioners;

Hydraulic flange spreader, manual and hydraulic type;

Hydraulic steel wire rope press machine;

Hydraulic accessories(hoses, couplers, oil distributors, etc.)

Over the years we have grown into a diversified market based that now services customers all over the world. We enjoy listening to our customers needs and ideas while working hard to provide the best service and delivering the highest quality of parts.

We believe "service" is our number one customer. We hope our commitment to provide our customers quickly and efficiently with competitive prices will keep you coming back.

IF YOU ARE LOOKING FOR SOME HYDRAULI JACKS BUT DO NOT HAVE WHOLE SPECS, PLEASE AT LEAST TELL US THREE FACTORS: 1. TONNAGE; 2. STROKE; 3. CLOSED HEIGHT. WE WILL RECOMMEND THE MOST SUITABLE TYPE FOR YOU.

Factory Show

FAQ
Q1: How to contact sales?
A1: Please call: +86-13901432906 for pre-sales.

Q2: How to make payment?
A2: Once order confirmed, we will prepare proforma invoice with our banking details.

Q3: How long does it take to process orders?
A3: It usually takes 10-14 business days to process most orders for no stock. If stock available, it only takes 2-3 business days.

Q4: What is the packing method?
A4: For small piece, we use carton box; for big piece, we use exporting grade plywood case.

Q5: How to ship?
A5: Sea freight, Air freight or International express(DHL, FEDEX, UPS...) all are available.

Q6: What is the warranty?
A6: 12 months against B/L date.
