7*14inch Variable Speed 2500 Rpm Mini Metal Lathe
| Price: |
US $ 590/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
minicc |
| Item: |
Mini Metal Lathe Machine |
| Spindle Taper: |
Mt3 |
| Type: |
Horizontal Lathe |
| Tool Holder: |
Single-tool Holder CNC Lathe |
| Power Source: |
Electric |
| Automatic Grade: |
Semiautomatic |
| Setting Mode: |
Floor-type |
| Precision: |
High Precision |
Product Description

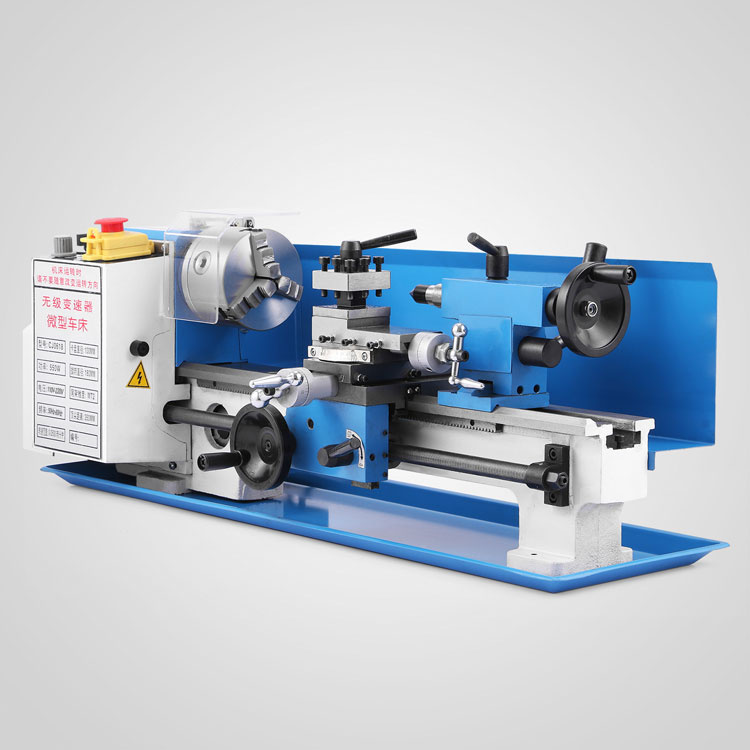

7*14inch Variable Speed 2500 RPM 550W Mini Metal Lathe Machine
Product adwantage:

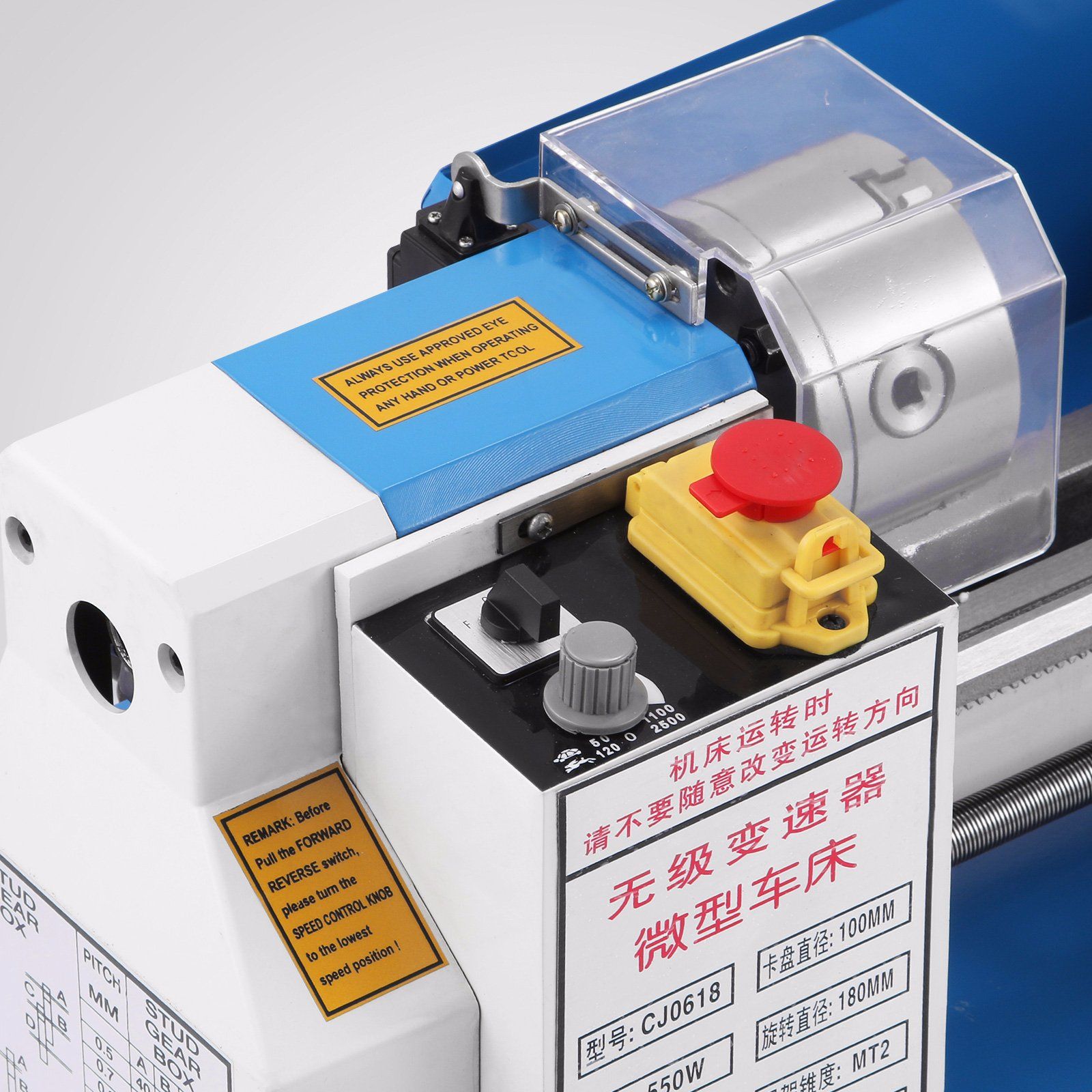

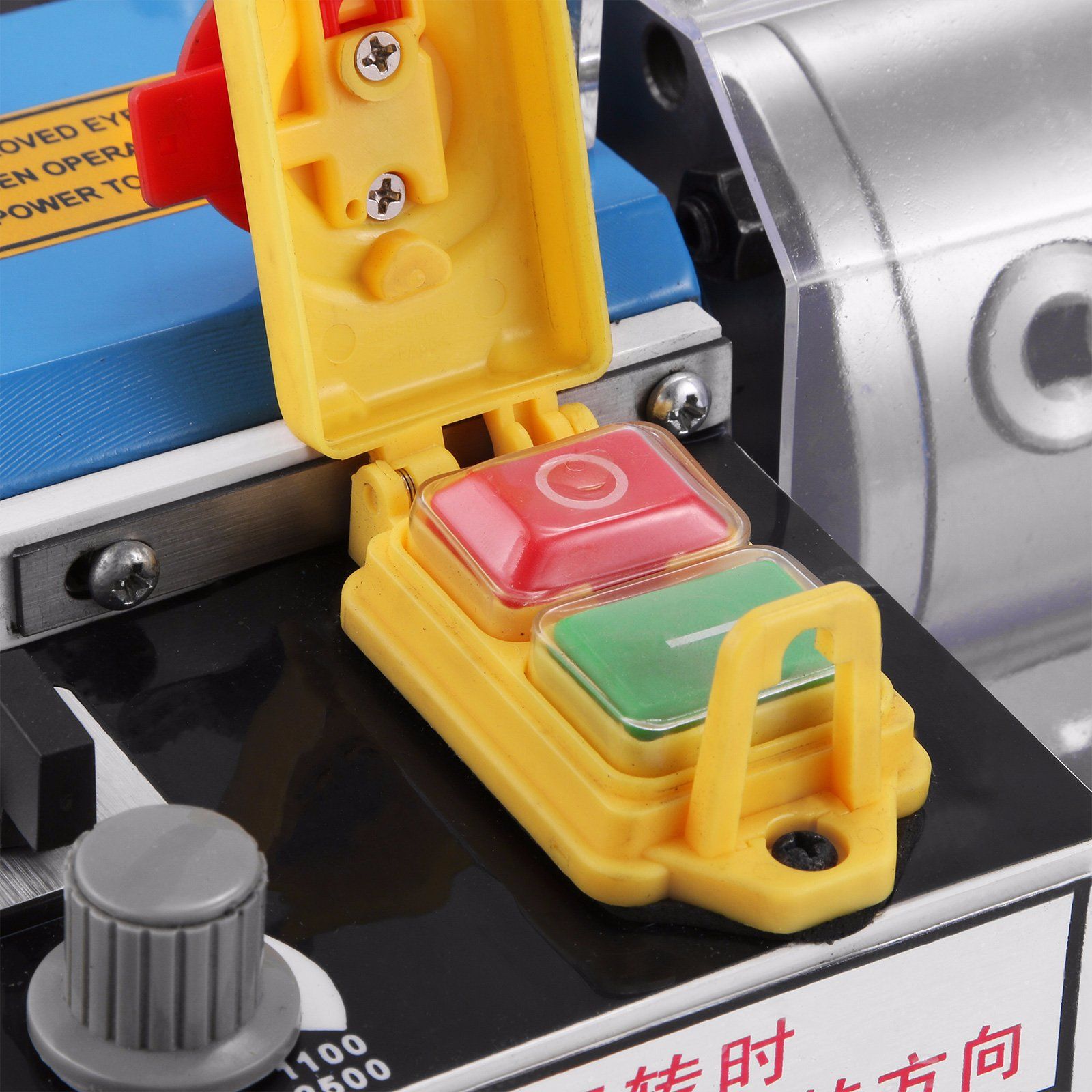

- Open the switch to start the operation, do not need to worry about not touch the boot to bring security risks, emergency shutdown, just take the red cover to shut down, very safe.
- Telescopic sets with scale, you can intuitively see the length of the telescopic handle scale, precise scaling can be digitally standardized, but also lateral movement.
- By adjusting the speed switch can control the spindle speed 100 to 2500RPM.
- Machine is equipped with strong nylon gears, power strong, wear-resistant, durable, more accurate rotation. In particular, the thread is more accurate.
- Machine using four-way rotating turret, which can be four common turning.
- Large slide mobile handle, small slide mobile handle, bed saddle mobile handle, tailstock mobile handle, tailstock telescopic cover, tailstock side of the moving position of the scale, the operation more accurate, more professional performance.
Features:- This machine DC motor drived.
- The spindle speed readout is infinitely variable from 100 to 2500RPM.
- Spindle speed adjusted by MCU.Rotary direction"F"or"R"changed by key.
- The feed can be adjusted according to the requirement of different workpieces.
- This can be used as mini precision parts processing, sample processing, and modeling works.
- Automatic feeding.
- 550w strong power, 350mm processing distance, DIY processing of metal, wood.
- With high precision, can turn out the standard qualified works.
- Bed saddle tail scale precision, feed more precise fine-tuning, telescopic sleeve scale practical.
- Multi-function and multi-usage, can be turned within the foreign aid, turning thread, turning taper and so on.
- Automatic tool, Infinitely variable, professional tool post.
Technical :- Variable Speed Gear: Plastic Nylon
- Spindle Taper: MT3
- Tail Stock Taper: MT2
- Distance Between Centers: 14" (350mm)
- Swing Over Bed: 7" (180mm)
- Chuck Diameter: 3.93" (100mm)
- Spindle Bore: 0.8" (21mm)
- Cross Slide Travel: 2.56" (65mm)
- Top Slide Travel: 1.38" (35mm)
- Range of Metric Threads: 0.5-2.5" (12-52 T.P.I Range of Imperial Threads)
- Spindle Accuracy: 0.0004" (0.01mm)
- Spindle Speed: 100-2500 RPM Infinitely Variable
- Power Of Motor: 0.75HP/550W/110v
- Net Weight: 50kg
- Product Dimensions:
- Width: 8"(203.2mm)
- Length: 30.5"(774.7mm)
- Height: 10.5"(266.7mm)
- MS2 # Fix The Top
- Double-Headed Wrench
- Oil Can
- Nylon Gears
- Chuck Claw
- Hexagon Bar Wrench
- Chuck Wrench
- Protecting Mask
- 4 × Shockproof Foot Cushion
