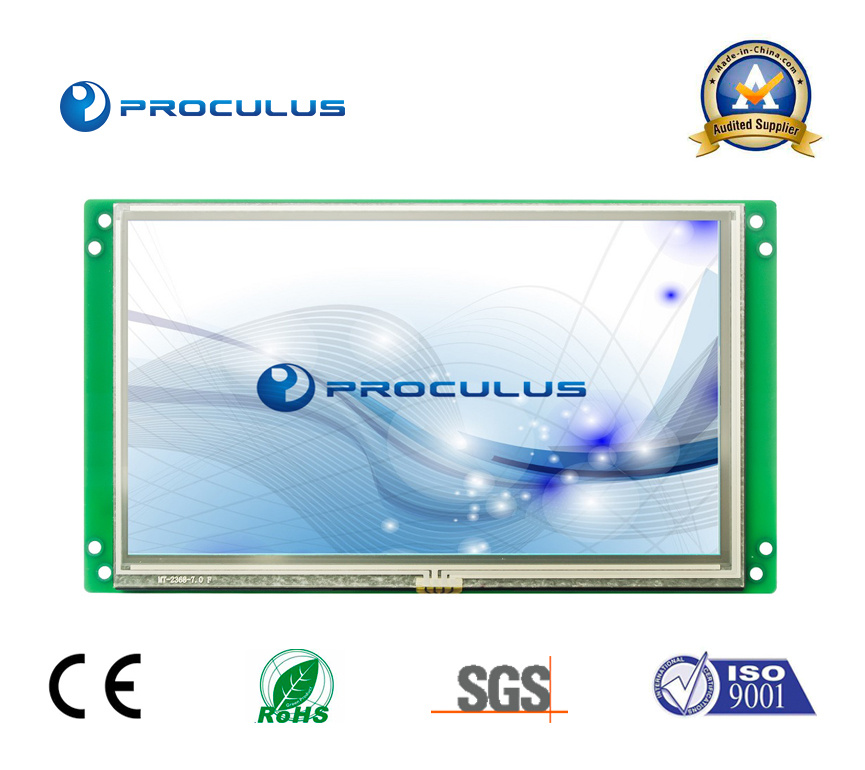

7'' 800*480 TFT LCD with Capacitive Touch Screen+RS232
| Price: |
US $ 1-56/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Paypal |
| Prod Model: |
P80480V70I_P30 |
| Scale: |
16:9 |
| Voltage: |
6-40V |
| Brightness: |
400 Nits |
| Interface: |
RS232 |
| Resolution: |
800*480 |
| Communication Mode: |
Serial Port |
| Development Method: |
with Guis Software That Picture Embedded |
| Type: |
LCM |
| Response Time: |
1ms |
| Display Technology: |
TFT |
Product Description
| Item | Parameter | Description |
| Color | 65K (65536) colors | 16 bit color 5R6G5B |
| Visual Angle L/R/U/D | 70°/70°/50°/70° | |
| Resolution | 800*480 | 90° rotated display (480*800) |
| Backlight /Lifecycle/Brightness | LED/20,000 HOURS/ 400 cd/m² |
Working Temperature/
Storage Temperature | -20~+70ºC/-20~+70ºC |
| Static ESD | ±14KV |
| Item | Conditions | Min | Typ | Max | Unit |
| Power Voltage | - | 6 | 12 | 40 | V |
| Operation Current | VIN = 12V, Backlight on | - | 240 | - | mA |
| VIN = 24V, Backlight on | - | 130 | - | mA |
| VIN = 12V, Backlight off | - | 80 | - | mA |
| Item | Conditions | Min | Typ | Max | Unit |
| Baudrate | Standard | 1200 | - | 115200 | bps |
| Interface | RS-232C |
| Data Format | 1 byte for initial, 8 bytes for data, invalid bytes for checksum, 1 byte for end |
| Socket | SMD2.0-8P with lock catch |
| No. | Parameter | Description |
| 1 | Touch Screen | 4-wire resistance touch screen: P80480V70I_T30 |
| 4-wire capacitive touch screen: P80480V70I_P30 |
| No touch screen: P80480V70I_N30 |
| 2 | Buzzer | YES |
| 3 | RTC | YES |
| 4 | USB | YES. For downloading offline or user data copy. | External board needed for online debugging |
| 5 | USB Mini | YES. For online debugging. |
| 6 | Audio | Support *.MP3 files. Theoretically 4096 file at maximum. Speaker power: 4Ω2W or 8Ω2W. |
| 7 | Keyboard | Support external row keyboard (8*8 maximum). |
| 8 | Memory | 128M(support *.jpg files, maximum 65536 files theoretically), extended to 1G at maximum. |
