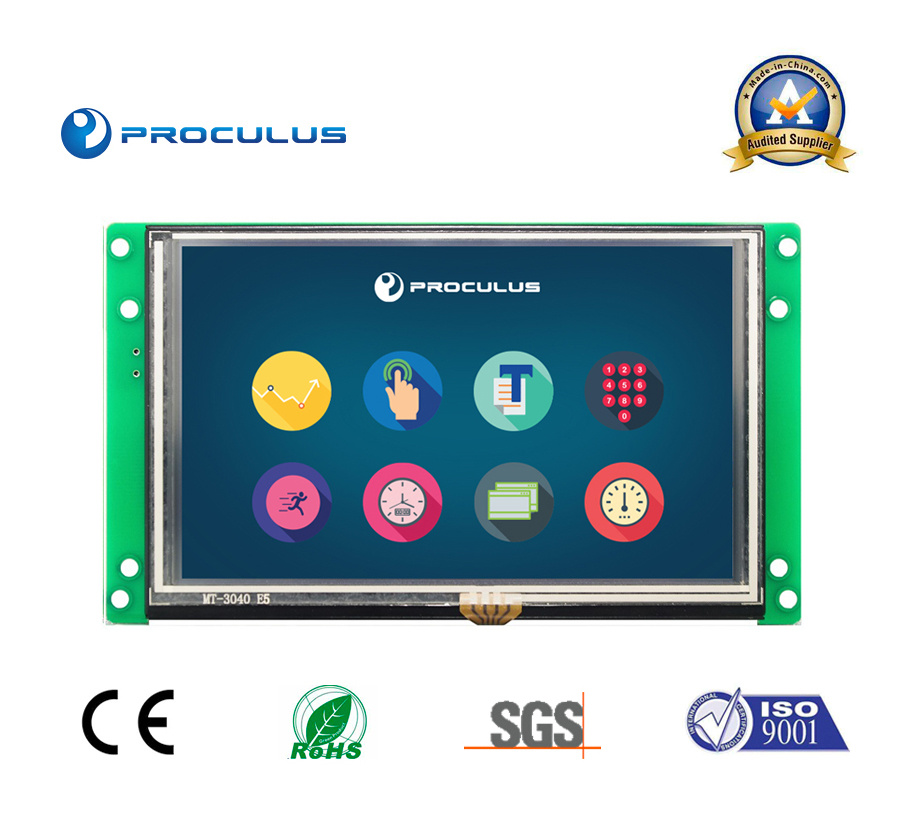

High Defination, 5'' 800*480 TFT LCD for Engineering Machinery
| Price: |
US $ 1-30/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Paypal |
| Prod Model: |
P80480V50C_T17 |
| Scale: |
16:9 |
| Brightness: |
400 Nits |
| Interface: |
Ttl / RS232 |
| Voltage: |
5V450mA |
| Resolution: |
800*480 |
| Communication Mode: |
Serial Port |
| Development Method: |
with GUIs software that picture embedded |
| Usage: |
LCM |
| Touch Screen Type: |
Resistive |
| Type: |
LCM |
| Response Time: |
1ms |
| Display Technology: |
TFT |
Product Description
| Item | Parameter | Description |
| Color | 65K (65536) colors | 16 bit color 5R6G5B |
| Visual Angle L/R/U/D | 70°/70°/50°/70° | |
| Resolution | 800*480 | 90° rotated display (480*800) |
| Backlight /Lifecycle/Brightness | LED/20,000 HOURS/ 350 cd/m² |
| Working Temperature | -20~+70ºC/-30~+80ºC | 64 levels adjustment |
| Item | Conditions | Min | Typ | Max | Unit |
| Power Voltage | - | 3.5 | 5 | 6 | V |
| Operation Current | VIN = 5V, Backlight on | - | 450 | - | mA |
| VIN = 5V, Backlight off | - | 190 | - | mA |
| Item | Conditions | Min | Typ | Max | Unit |
| Baudrate | Standard | 1200 | - | 115200 | bps |
| Interface | TTL/CMOS |
| Data Format | 1 byte for initial, 8 bytes for data, invalid bytes for checksum, 1 byte for end |
| Socket | SMD1.0-10P with lock catch |
Note: Short-circuit J17 to choose RS232| No. | Parameter | Description |
| 1 | Touch Screen | 4-wire resistance touch screen: P80480V50C_T17 |
| 4-wire capacitive touch screen: P80480V50C_P17 |
| No touch screen: P80480V50C_N17 |
| 2 | Buzzer | YES |
| 3 | RTC | YES |
| 4 | USB | YES. For downloading offline or user data copy. | External board needed for online debugging |
| 5 | USB Mini | YES. For online debugging. |
| 6 | Memory | 128M(support *.jpg files, maximum 65536 files theoretically), extended to 1G at maximum. |
Founded in the year of 2010, Proculus Technologies has been putting concentration on intelligent display solution with a kind of easy-to-go software UnicView AD which empowers user to have a more cost-effective and quicker access to finish the GUIs as well as communication with embedded system. Unlike other user interface technologies, the strength that we emphasize is visualization of interface design from low cost software and simplification of programming in project construction as well as easy-to-use in processing.
Proculus business range mainly expanded into hardware display introducing and production, and assorted software developments. Besides, Proculus Technologies accepts customization of display-related for control in embedded world as of that advantages to being on the project to assistance for machines in end field.
In further step, Proculus Technologies is going to move forward on smallest size display besides of 3.5'' inches to 18.5'' inches that we are working currently, based on serving for over 2000 end users in the industry. We will release out different options including software and hardware to resolve the obstacles that you met possibly in the course of products design in terms of controller/display part.
As an overall design-to-display touch screen solution provider, Proculus Technologies saved lots of troubles for users in terms of researching and developing on display part by providing an entire solution including professional software and stable plug-and-play hardware.
