| Prod Model: |
7 11 12 degree tapered Buttons bit |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Prodrill |
| Model: |
Taper Button Bit |
| Color: |
Red, Black, Yellow |
| Service: |
OEM |
| Buttons: |
4 5 7 8 Buttons |
| Tapered: |
4 7 11 12 Degree |
Product Description

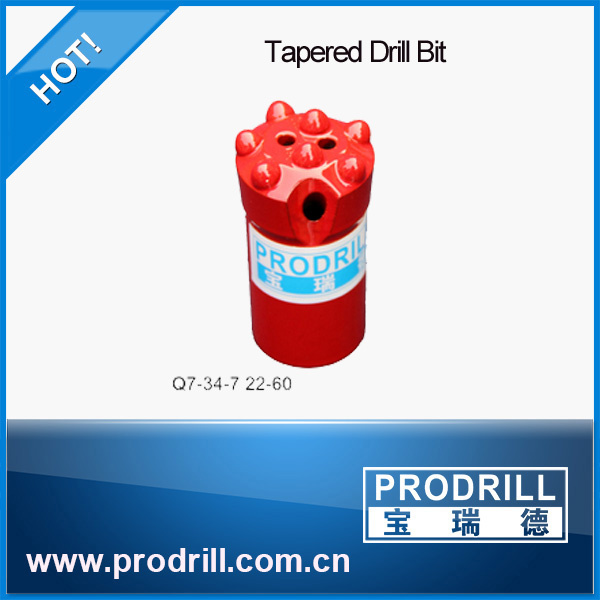

Taper Drill Bits
Our taper drilling tools include taper drill bits and taper drill rod, and taper drill bits come into two types, taper button drill bits, taper chisel drill bits. These drill tools are mainly equipped on rock drilling equipment, well drilling equipment and oil field equipment. They are widely used for rock drilling, blasting holes and other drill works in quarries, coal mines, rod and dam constructions and other similar projects.
Description:
Comparing with tapered chisel bits and tapered cross bits, button bits has higher technology, much longer primary drilling time and higher drilling efficiency, so that the button bit is popular among the users.
Made with high quality of raw material through special heat treatment, especially, tungsten carbide of tapered button bits are from Boart long year, widely applied in Hand Hold ( short-hole) drilling system for dimensional stone quarrying. At now, we are exporting the huge qty of Q7- 33- 7 22-80, Q9 -45 -12 22- 71 for Indian quarry and Norway, Finland quarry.
Diameter of bits from 30mm to 50mm with 4, 6, 7, 11, 12 degree, premium alloy tapered drill steel with Hexagonal. 22mm and Hexagonal. 25mm, The deliver capacity are very strong and can completely meet customer's requirements on delivery design, number of buttons is 4, 5, 6, 7, 8, 9, 7 buttons is very popular for hold held (short holes ) and blast drilling system.
Main Products:
1-12 inch middle-low/high air pressure DTH hammers & bits
Big hole high air pressure DTH hammer using in water well, oil, gas and construction drilling
Eccentric overburden drilling Equipment
Hole opener bit
Rock thread bit (R22, R25, R28, R32, R35, R38, T38, T45, T51, ST58, GT60)
Extension Rod, M/F Rod, M/m Rod, Drift Rod,
Shank adapter, coupling sleeves and all kinds of adapters
Advantages:
Compared with the oversea brands, our advantages are bellowing:
A. Our products can match over 95% against the original products
B. Price are competitive against the famous brands and best quality against the small factory
About Us:
1. Our factory has been specialized in manufacturing drilling tools and spare parts for over 10 years.
2. We have advanced technology and equipment.
3. Our technician has more than 13 year's professional working experience.
4. Rock drilling tools are exported throughout the world. Main market: Norway, Turkey, USA, Canada, Australia, Brazil, Uruguay, Iran, Philippines, Thailand, India, etc.
| Product Name: | T ungsten carbides tapered drill bit |
| Types | R ock cross drill bit, Tapered cross bits, Tapered button bits/ 34mm button drill bit |
| Application:: | U se in granite and marble quarry, gold mine, railway, tunnel, etc. for drilling |
| Feature: | Tapered drill bits connect tapered drill steel of rock drill for drilling holes |
| Material: | High quality carbide and high quality steel |
| MOQ: | 5pcs |
| We can design and manufacture according to your requirement of diameter, number air holes and carbide button shape. |
| Types of drill bits | Diameter (mm) | Taper Angle (Degree) | Length (mm) |
| Tapered chisel bits | 20/22/28/30/32/34/36/38/40 | 4 degree/ 6 degree/ 7 degree/ 11 degree/ 12 degree | 50/55/60/71/80 |
| Tapered cross bits | 24/26/28/30/32/33/34/35/36/3/38/40/42/48/50/55 | 50/55/60/71/80 |
| Tapered button bits | 28/29/30/32/33/34/35/36/37/38/40/41/42/45 | 50/55/60/71/80 |
Xiamen PRO Drill Equipment Co., Ltd is a specialized company of Rock Tools, which is experienced in developing and manufacturing Top hammer and DTH rock drilling equipments. The main products include high, medium and low air pressure DTH hammers and bits, Symmetric and eccentric overburden advanced casing drilling tools, and Threaded button bits, Drill rods and Couplings, also
Air grinder for button bit, chisel bit, Diamond grinding cup for cemented carbide
Reconditions and sharpener.
PRO Drill Rock Tools can be perfectly matched with the world famous brand such as Atlas Copco, Sandvik, Ingersoll-Rand and other well-known manufacturers' Drill rigs and they are widely applied to varies of areas including blast holes, earthwork projects, mineral exploration, water-well, construction, geo-thermal exploration.
PRO Drill plants has introduced the most advanced manufacturing equipments and technology in the world, such as Electro-hydraulic forging hammers for forging process, Germany atmosphere-controllable sealed quench furnace for heat treatment, Super CNC machines and Processing Centre for accurate finishing and experienced staff in metal machining all contribute to the high performance rock tools.
In response to the demand from dimensional stone quarry, we also offer all kinds of splitting, pushing and grinding tools like Expansive Mortar, Soundless Cracking Agent Shims and Wedges, Hydraulic Rock Splitter, Cyliner Type Rock splitter, Hydro bag, Air Pushing Bag and Cemented Grinding Stone are available as integral services working for the worldwide quarry owners.
Our believe that innovative think drives the delivery of quality rock tools to customers, . Prodrill rock drilling tools are renowned for their great reliability, excellent and even quality and long services life with an expertise direct to any corner of the world.
We are committed for groundbreaking solution of drilling and Splitting & cutting for your unique operation in quarrying, mining and construction project. Looking forward to hearing from your enquiry.
