| Prod Model: |
SV31LB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max. Pressure Of Hydraulic Wrench: |
700bar |
| Torque Range: |
110-72000 Nm |
| Square Drive: |
3/4 - 2 1/2 Inch |
| Bolt Diameter: |
14-125 Mm |
| Weight Of Hydraulic Wrench: |
1.7-85.5 Kg |
| Type: |
Torque Wrench |
| Material: |
Aluminum Alloy |
| Standard: |
German Type |
| Surface Treatment: |
Chrome |
| Feature: |
Anti-Magnetic |
| Brand: |
Sov |
| Working Mode: |
Hydraulic |
Product Description
Product Description

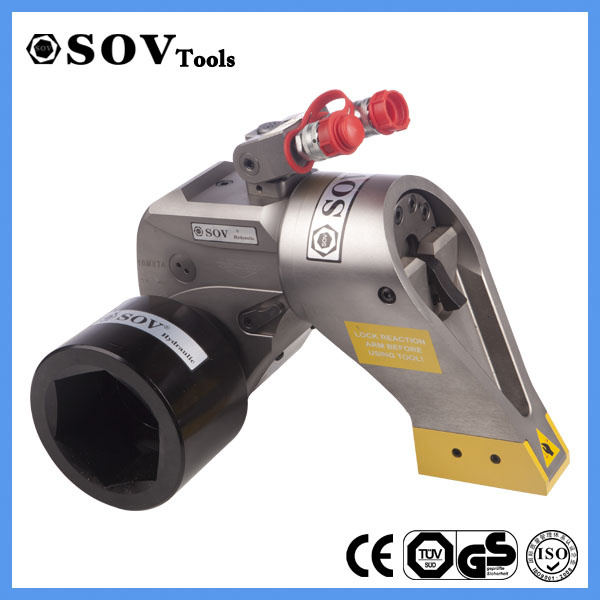

SV31LB series sqaure drive hydraulic spanner wrench is made from aluminum titanium alloy, providing high strength, high toughness and light weight.
Features
1. 360º×180º swivel hose connection allows easier positioning in confined areas.
2. Push-button drive release; no tools needed to reverse drives for tightening or loosening
3. Its cylinder and head features small size, compact structure and slim nose radius.
4. High degree of rotation angle for increased productivity
5. Constant torque output provides high precision operation.
6. Easy maintenance without any special tool
7. Precision ratchet available
Model | Torque range
(mm ) | Bolt diameter
(mm ) | Hex
(mm ) | Square drvie axis
(inch ) | Max pressure
(Bar ) | Weight
(Kg ) |
| SV31LB180 | 180-1800 | 16-36 | 24-55 | 3/4 |
700 | 2.3 |
| SV31LB450 | 450-4510 | 22-48 | 34-75 | 1 | 4.8 |
| SV31LB750 | 755-7558 | 27-56 | 41-85 | 1-1/2 | 8.1 |
| SV31LB1000 | 1050-10550 | 30-64 | 46-95 | 1-1/2 | 11 |
| SV31LB1500 | 1550-15500 | 36-72 | 55-105 | 1-1/2 | 14.5 |
| SV31LB2500 | 2650-26500 | 42-90 | 65-110 | 2-1/2 | 26.5 |
| SV31LB3500 | 3500-35000 | 48-100 | 75-145 | 2-1/2 | 34.5 |
| SV31LB5000 | 4850-48500 | 64-120 | 95-170 | 2-1/2 | 48.2 |
Packaging & Shipping
1. Each hydraulic wrench is packed with wooden case.
2. Shipping is designated by customer.
Our Services
1. One Year Warranty for Hydraulic Wrench
2. Endless free maintenance service
3. Quick response
4. OEM service available
