| Name: |
Cane Knife Edge |
| Size: |

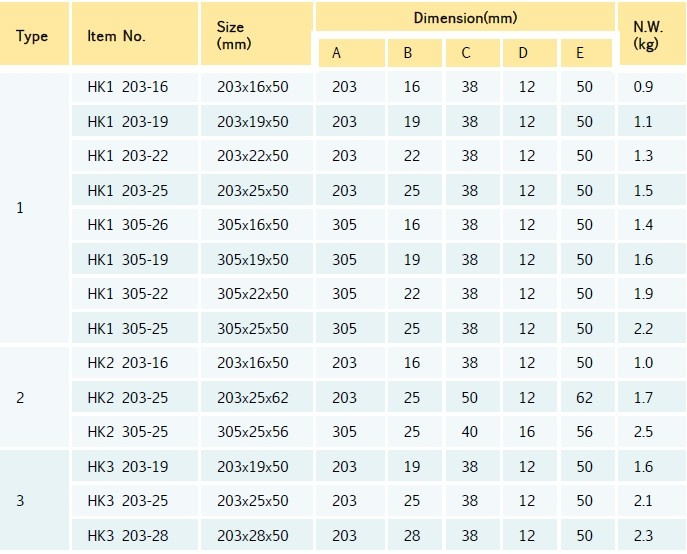

HK1 203-16,HK1 203-25, HK2 203-16, HK3 203-28,etc |
| Hardness: |
63HRC/700bhn |
| Tensile Strength: |
630MPa Min |
| Shearing Strength: |
250MPa Min |
| Micro-Structure: |
Carbide+Martensite+Retained Austenite |
| Fuction: |
Cutting |
| Advatage: |
Excellent Wear Resistance |
| Materials: |
White Iron, Mild Steel |
Product Description

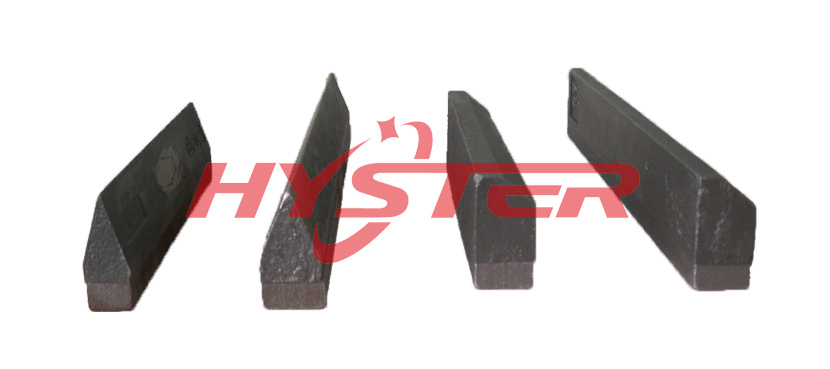

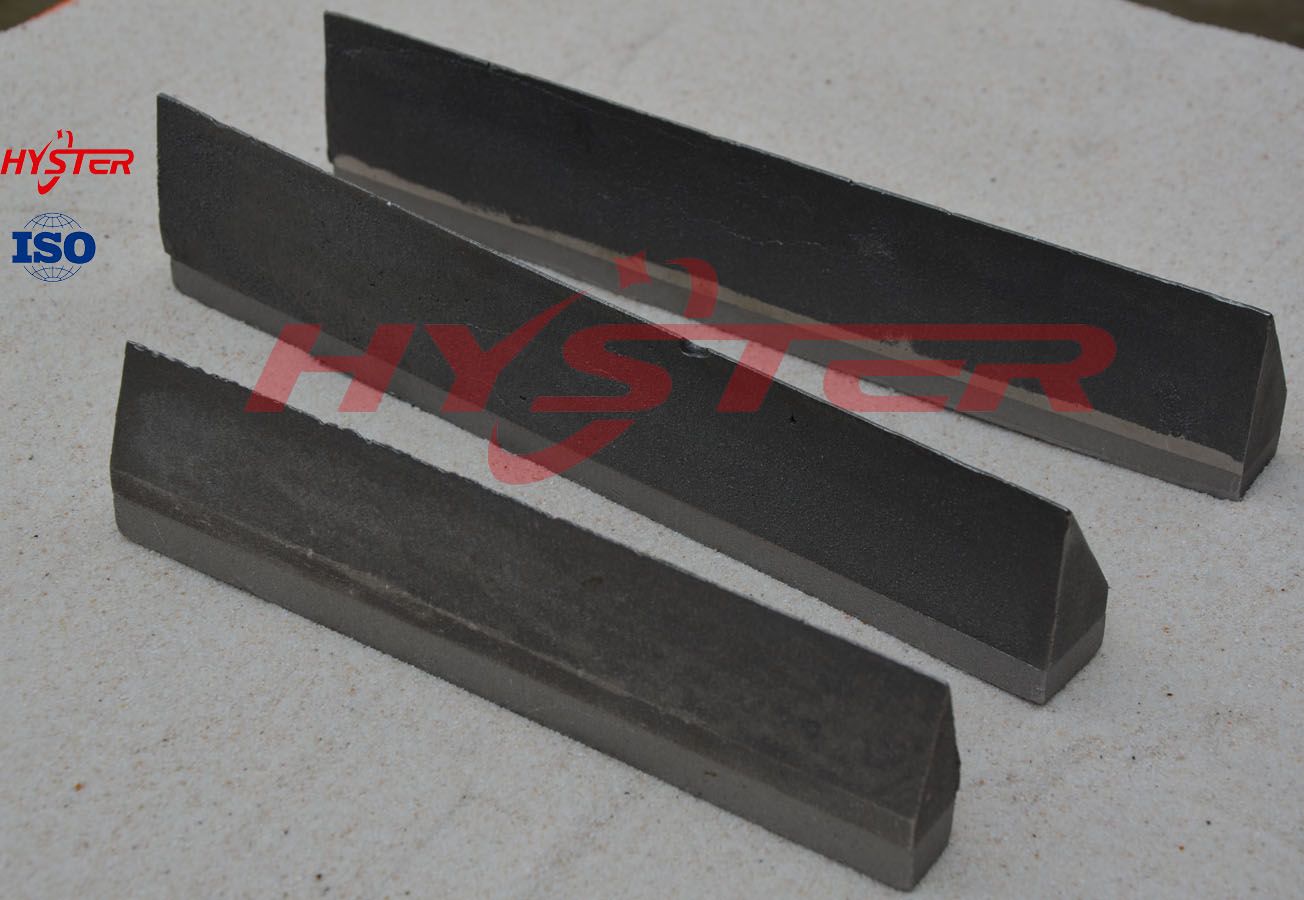

700BHN Cane Knife Edges
1) Cane Knife Edge
Hardness: 63HRC Min /700BHN
Shearing strength: 250Mpa Min
Tensile strength: 630Mpa Min
Main material:
high chrome cast iron(63HRC,wear resistance) + weldable mild steel(impact resistance)
2) Application
Hyster Knife edges can be used in sugar or coal industry to do crushing and shredding performance, it has excellent impact and abrasion resistance properties & enhanced service life.
3) We can produce according to your specification and drawings for Knife Edges and other bimetallic wear materials
.
We promise that our products are always of the best quality!
4) Chemicals:| C | Cr | Mn | Mo | Cu | P | Si | S | B,V,Nb |
| 2.5-3.5 | 15-18 | 0.5-1.0 | 0.5-2.5 | 0.5-1.0 | 0.02max | 0.5-1.0 | 0.02max | 0.1-0.5 |
5) Types: Cane knife edge
6) Some of our products and services:
--Wear plates, wear liners --Chocky bars and wear buttons
--Wear blocks, wear bars
--Custom made wear liners
--Bucket repair and protection
--Full Fabrication services
--Sugar mill hammer tips
--Drilling, milling or machining
--Casting/Investment casting
--Fast service and timely delivery
--Vacuum brazed Bi-metallic Wear Buttons and Donuts
Hunan Hyster Material Technology Co., Ltd., formerly name is hyper casting parts Co., Ltd., is an independent international supply, design and engineering company, in operation since 1995, we specializes in high quality of wear products.
Hyster offer our clients a wide range of wear products and professional wear solutions. We also welcome custom made one off's and consumables.
Some of our products and services:
--Wear plates, wear liners
--Chocky bars and wear buttons
--Wear blocks, wear bars
--Custom made wear liners
--Bucket repair and protection
--Full Fabrication services
--Sugar mill hammer tips
--Drilling, milling or machining
--Casting/Investment casting
--Fast service and timely delivery
With strict management system and strong technical base, Hyster Corporation is committed to provide high-quality products and services for the fields of Mine and Mining, Quarrying, Electrical power, Cement, Sugar, Aviation, Marine, Railway, Engineering plant and Petroleum machinery industries.
Quality is very important to the development of Hyster Corporation. The company strictly operates according to ISO9001: 2000 quality management system. Over 95% products have been sold to Australia, Canada, South Africa, Brazil, America, Chile, Indonesia, Argentina, Thailand, Mexico, Russia, Holland, as well as many other countries and areas.
Moreover, breaking out of the traditional practice that only provide OEM products, our company has created the new sales concept whose main points are providing solutions, terminal products and customer services, which enables us to better fulfill customer specifications in a positive manner.
Please contact us directly with any questions or inquiries!
