7kw Portable IGBT Induction Heating Machine for Diamond Segment Welding
| Price: |
US $ 900-1500/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
GHF-15 |
| Style: |
Cast-in |
| Ceramic Heating Equipment Type: |
Ceramic Electric Heater |
| Recuperative Heat Exchanger Type: |
Immersive Snake Tube Heat Exchanger |
| Application: |
Heater |
| Structure Material: |
Metal Material |
| Heat Transfer Surface: |
Plate Heat Exchanger |
| Principle: |
Regenerative Heat Exchanger |
| Mixing Heat Exchanger Type: |
Cooling Tower |
| Core: |
Aluminum Heat Exchanger |
Product Description
7kw Portable IGBT Induction Heating Machine for Diamond Segment WeldingApplications of induction brazing machineWelding (braze welding, silver soldering and brazing)
It mainly aims to melt the solder by heating it to a certain temperature for the purpose of connecting two types of metals of the same material or different materials.
A. Welding of various hardware cutting tools, such as diamond tool, abrasive tool, drilling tool, alloy saw blade, hard alloy cutter, milling cutter, reamer, planning tool and solid center bit.
B. Welding of various hardware mechanical gadget: Silver soldering and brazing of metals of the same variety or different varieties, such as hardware toilet and kitchen products, refrigerating copper fitting, lamp decoration fitting, precision mold fitting, hardware handle, eggbeater, alloy steel and steel, steel and copper as well as copper and copper.
C. Compound pot bottom welding is mainly applicable to the braze welding of circular, square as well as other irregular plain pot bottom. It is also applicable to plain braze welding of other metals.
D. Welding of heating disc of electric hot-water kettle mainly refers to the braze welding of stainless steel flat base, aluminum sheet and tubular electric heating elements of various formsMain Model:
GHF-15 --Normal;
GHF-15A--With time
GHF-15B Split type
GHF-15AB With time and split
Main characteristics:
1, MOSFET and Inverting technologies of First generation been used;
2, Simple structure and light weight;
3, Simple to operate, A few minutes is enough to learn it;
4, Simple to install, Installation can be done by unprofessional person very easily;
5, Advantages of the model with timer: The power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability;
Typical Applications:

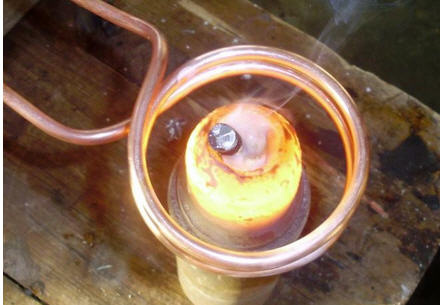

Brazing of the diamond blade tool
Brazing of the Machining tools
Brazing of the Micrometer
Brazing of Copper tube
Brazing of the connector
Heat treatment of small parts, quenching, annealling, and mor
Melting below 2KG for gold, sliver, copper, brass, steel and iorn
Installing Desire:
1, power supply wire: 6mm2 soft copper; Ground wire 4mm2 soft copper;
2, cooling water desire: Clean and not easy to scale, Inlet water temperature 25-36degree';
3, cooling water systerm: Running water; Circulating water from a pump to a tank; Use an industry refrigerate machine.

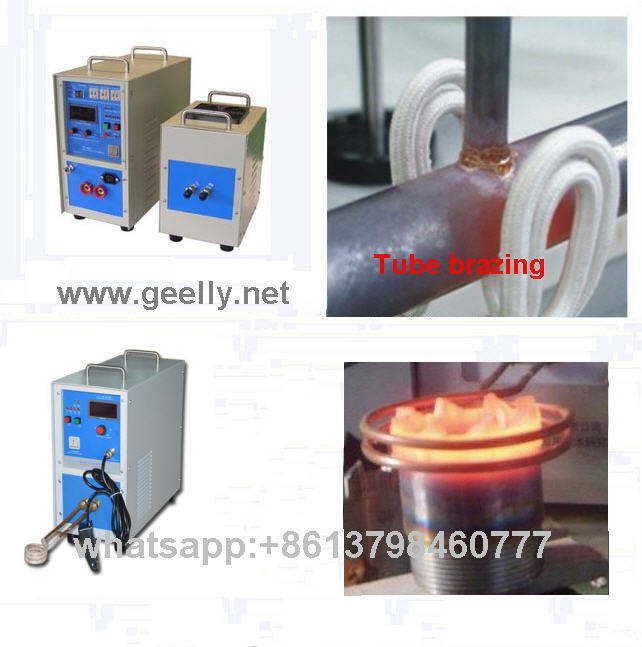

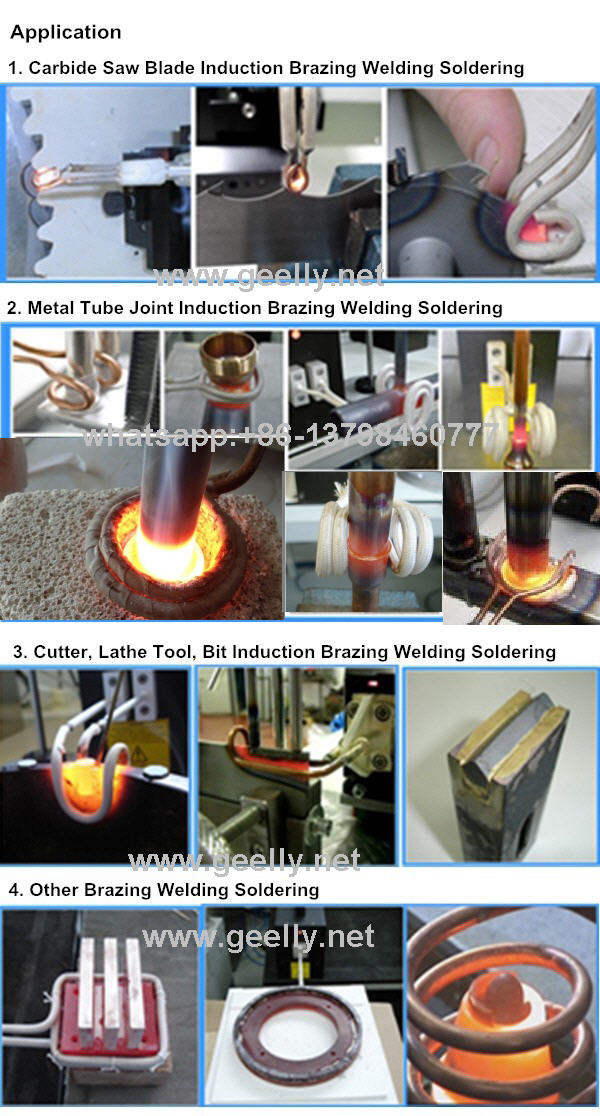

Application Show
| Model | Input power | Frequency | input voltage | Duty cycle | Heating current | Retaining current | Time | Size CM/weight |
| GHF15 | 7KW | 30-80KHZ | 180-240V, 50/60Hz, single-phase | 80% | 170-600A | | | 46*20*44/18KG |
| GHF15A | 7KW | 30-80KHZ | 180-240V, 50/60Hz, single-phase | 80% | 170-600A | 170-600A | 1--99s | 46*20*44/18KG |
| GHF15B | 7KW | 30-80KHZ | 180-240V, 50/60Hz, single-phase | 80% | 170-600A | | | Generator:
46*20*44/14KG
Transformer:
31*19*433/10KG |
| GHF15AB | 7KW | 30-80KHZ | 180-240V, 50/60Hz, single-phase | 80% | 170-600A | 170-600A | 1--99s |
| Cable length from generator to transformer is 2 meters, and max. length is 6 meters |
FAQ
Q: What's your advantage? Why we choose you?
A: 1,Our factory has over 15 years induction line production experience, we have rich experience in the production and design the induction technology machine for customers.
2, Great production capacity Sustainable Supply . According to customer requirements, We support the customized including the packing
3, We use 100% new materials and the striclty control for the production process, in consequence our defective rate is lower than 0.01%
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: How about warranty
A: 12 Months
Q: Do you test all your goods before delivery?
A: Sure, we double test all our machines before delivery
For more questions or details about us and our machines, please contact us as below,
Shenzhen Geelly Technology Co., Limited is specialized in manufacturing High and Medium Frequency Induction Heating heaters and related equipment.
We own gifted engineers for developing and improving of induction heating generators. We have research lab and production base, We manufacture wide range of product lines which include induction heaters in range of power from 3KW to 240KW and output frequency range from 2kHz to 1.1MHz. We also manufacture and design Gold melting furnace, Platinum melting furnace, and the coils of induction heaters. Industrial chiller. Quartz ceramic crucible and pure graphite crucible. We also offer spare parts of induction heater and some auxiliary parts.
Our induction heater have been used by more and more customers home and abroad due to the good quality and reasonable cost. Our products offer a perfect solution in the fields of metal heating soldering and brazing, forging, shaping, heat treatment and melting.
We offer technical consultation to inquires with instant feedback and recommend suitable machine models for varied applications.
