Product Description
Induction Heating Machine for heating welding brazing Diamond Saw Blades
Applications of induction brazing machineWelding (braze welding, silver soldering and brazing)
It mainly aims to melt the solder by heating it to a certain temperature for the purpose of connecting two types of metals of the same material or different materials.
A. Welding of various hardware cutting tools, such as diamond tool, abrasive tool, drilling tool, alloy saw blade, hard alloy cutter, milling cutter, reamer, planning tool and solid center bit.
B. Welding of various hardware mechanical gadget: Silver soldering and brazing of metals of the same variety or different varieties, such as hardware toilet and kitchen products, refrigerating copper fitting, lamp decoration fitting, precision mold fitting, hardware handle, eggbeater, alloy steel and steel, steel and copper as well as copper and copper.
C. Compound pot bottom welding is mainly applicable to the braze welding of circular, square as well as other irregular plain pot bottom. It is also applicable to plain braze welding of other metals.
D. Welding of heating disc of electric hot-water kettle mainly refers to the braze welding of stainless steel flat base, aluminum sheet and tubular electric heating elements of various formsMain characteristics:
1, IGBT and Inverting technologies of First generation been used;
2, Simple structure and light weight;
3, Simple to operate, A few minutes is enough to learn it;
4, Simple to install, Installation can be done by unprofessional person very easily;
5, Advantages of the model with timer: The power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability;
Typical Applications:
Brazing of the diamond blade tool
Brazing of the Machining tools
Brazing of the Micrometer

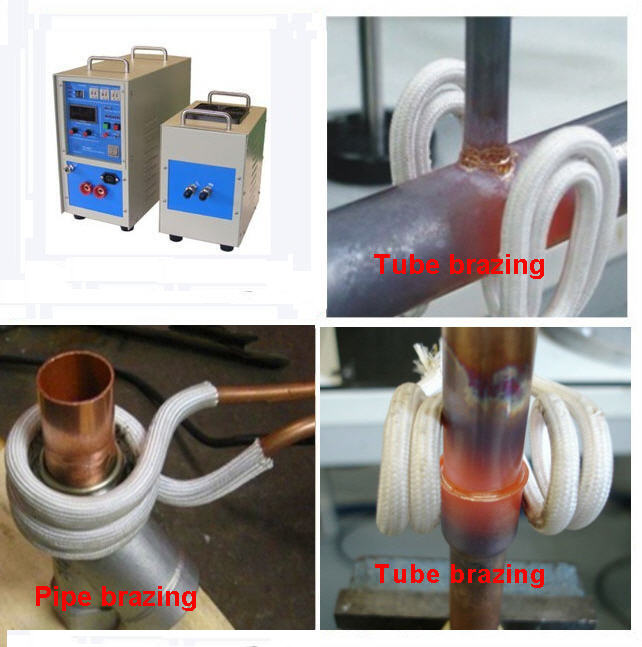

Brazing of Copper tube
Brazing of the connector
Heat treatment of small parts, quenching, annealling, and mor
Melting below 5KG for gold, sliver, copper, brass, steel and iorn
Installing Desire:
1, power supply wire: 6mm2 soft copper; Ground wire 4mm2 soft copper;
2, cooling water desire: Clean and not easy to scale, Inlet water temperature 25-36degree';
3, cooling water systerm: Running water; Circulating water from a pump to a tank; Use an industry refrigerate machine.
Boxing list of GHF-25 or 25A Induction heating machine:
1. Induction heating machine---1PC
2. Induction coil: According to your requirements- 1-3PCS
3. Foot switch: With line of 2 meters long- 1PC
4. Three-way water tube---1SET
5. Stainless steel hose clamp: ¢ 10-20- 7PCS
6. Fuse: 1A -5PCS
7. User's manual--- 1PC
GHF-25 25A parameter| Model | Input power | Frequency | Input voltage | Duty cycle | Heating current | retainning current | Time | Size CM/weight |
| GHF-25 | 15KW | 30-80KHZ | 380V,415V,440V,50/60Hz, three-phase | 80% | 200-1000A | | | 52*28*44/28KG |
| GHF-25A | 15KW | 30-80KHZ | 380V,415V,440V,50/60Hz, three-phase | 80% | 200-1000A | 200-1000A | 1--99s | 52*28*44/28KG |

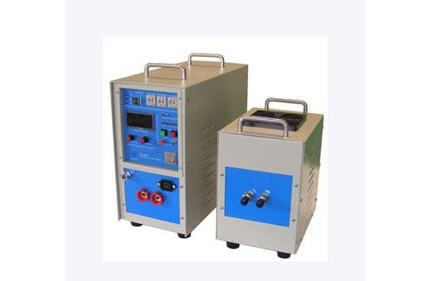

GHF-25AB with timer

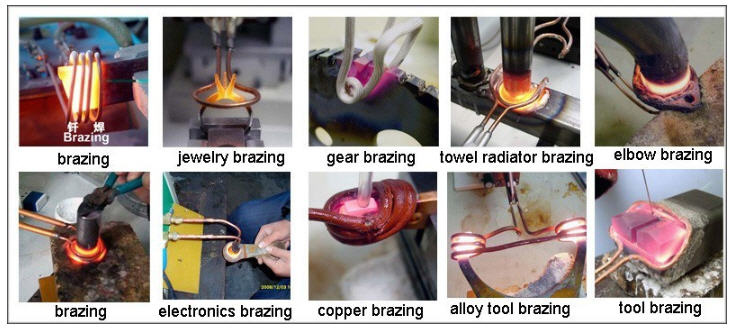

Application Show

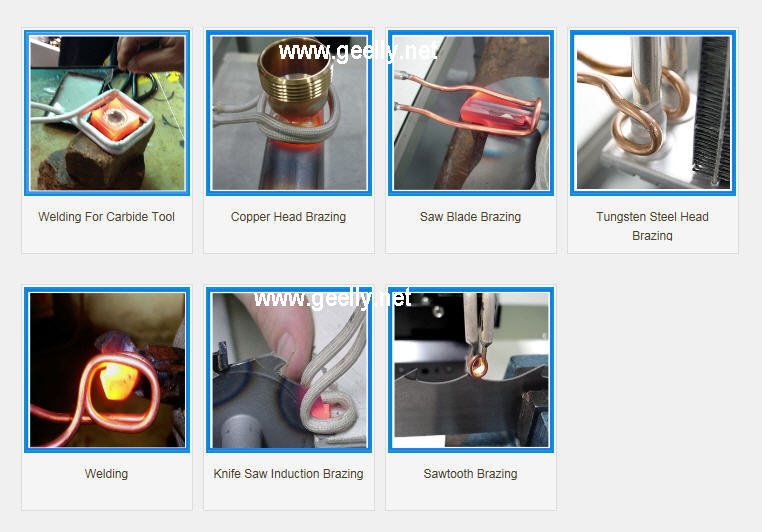

More application Show
Packing detail:1.Standard wooden case, plywood case, and custormized case;
2. Inner packing: packing plastic film and foam to avoid any damage during shipping
3.Accessories: induction coilX 2, foot pedal X1, installing and operating instruction X1 and custormized;Our service 1. Pre-sale service:
- 1. recommend the most suitable machine for customers, according to their application details.
- 2. Inquiry and consulting support.
- 3. Sample testing support.
- 4. View our Factory.
2. In-sale service:
- 1. Strictly control all the prduction process
- 2. Take run test, according to relevant equipment test run regulations.
- 3. Strictly inspection the machine, before delivery
- 4. Delivery on time.
3. After-sale service:
- 1. 12 months warranty period
- 2. Within one year free warranty, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, we will provide replacement parts after detecting the faults.
- 3. If any big quality problems occurs during the guarantee period, we will send maintenance
- 4. technician to provide visiting service after checking with the customer and charge for a favorable price.
- 5. We provide a lifetime favorable price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
- 6. The above mentioned are only basic after-sale service requirements, we will make more promises related to quality assurance and operation guarantee mechanism.
