8000lbs Electric Power Resource Winch with Wire Rope
| Price: |
US $ 160-180/Piece |
| Min Order: |
15/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
PS8000 |
| Item: |
PS8000 |
| Rated Pull: |
8000lbs(3629kgs) |
| Power: |
12V DC |
| Out Put: |
5.5HP/4.0kw |
| Type: |
Electric Winch |
| Power Type: |
Series Motor DC |
| Pull Direction: |
Forward |
| Working Voltage Of Electric Winch: |
Low Voltage |
| Certification: |
SGS |
| Brand: |
Zhme |
| Applicable Environment: |
off Road |
| Electric Winch Model: |
off Road |
Product Description

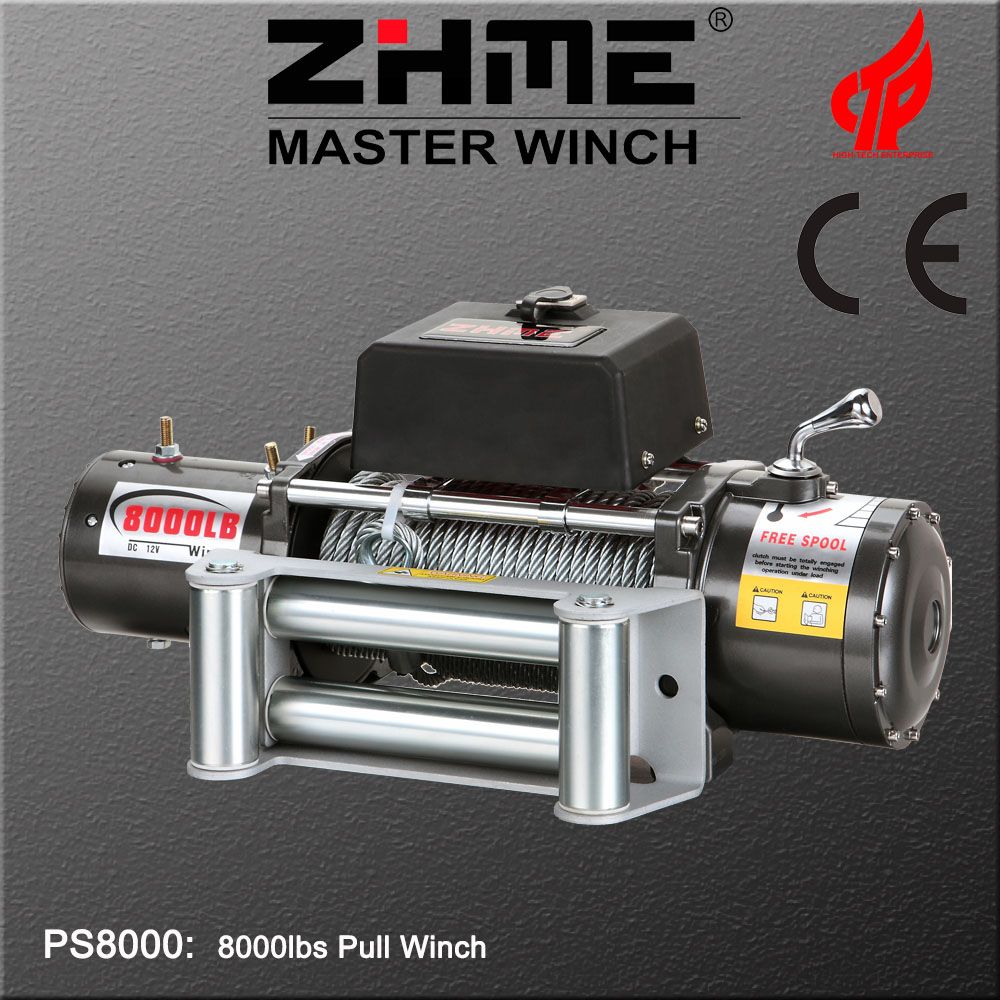

8000lbs electric power resource winch with wire rope

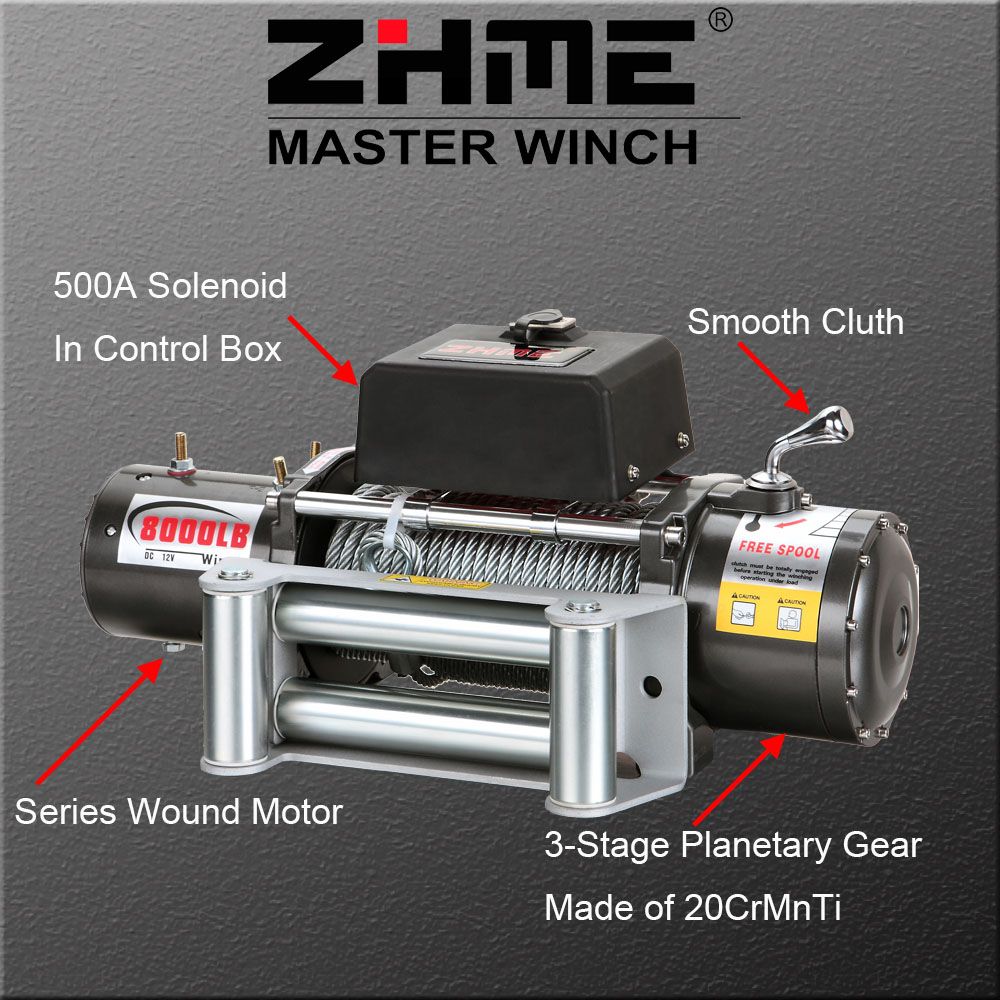

Advantage:
1. Motor: High performance series wound motor.
2. Brake: Automatic brake in the drum.
3. Solenoid: 2pcs 250A solenoids as one group in control box.
4. Gear: 3-Stage planetary gear made of 20CrMnTi material, hard enough and reduce speed perfect.
5. Clutch: Smooth clutch fell comfortable when operating.
Specifications:| Specification |
| Item | PS8000 |
| Rated Line Pull | 8000lbs(3629kgs) single line |
| Motor | Series wound 5.5hp/4.1kw 12V DC |
| Gear Train | 3 stage planetary |
| Gear Ratio | 218:1 |
| Braking Action | Automatic in the drum |
| Fairlead | 4-way roller fairlead |
| Wire Rope | 5/16″x 92″(7.8mm x 28m) |
| Drum Size | 2.5″x 8.8″(63.5mm x 224mm) |
| Dimensions | 21.6″x 6.3″x 8.6″(546mm x 160mm x 218mm) |
| N.W. | 80lbs(36kgs) |
| Mounting Bolt Pattern | 10″x 4.5″(254mm x 114.3mm) |
| Packing | 620mm x 360mm x 260mm, 420pcs/20' container |
| Ling speed and Motor Current(First Layer) |
| Line pull | Lbs | 0 | 2000 | 4000 | 6000 | 8000 | |
| Kg | 0 | 907 | 1814 | 2722 | 3629 | |
| Ling speed | FPM | 25.6 | 16 | 11.9 | 9.79 | 8.01 | |
| Motor current | MPM | 7.8 | 4.88 | 3.63 | 2.98 | 2.44 | |
| AMPS | 80 | 130 | 180 | 230 | 290 | |
| Ling pull and cable capacity |
| Layer of cable | | 1 | 2 | 3 | 4 | |
| Rated line pull per layer | Lbs | 8000 | 6640 | 5600 | 4800 |
| Kg | 3629 | 3012 | 2540 | 2177 |
| Cable capacity per layer | Ft. | 19.6 | 43 | 72 | 92 |
| M | 6 | 13.2 | 22 | 28 |

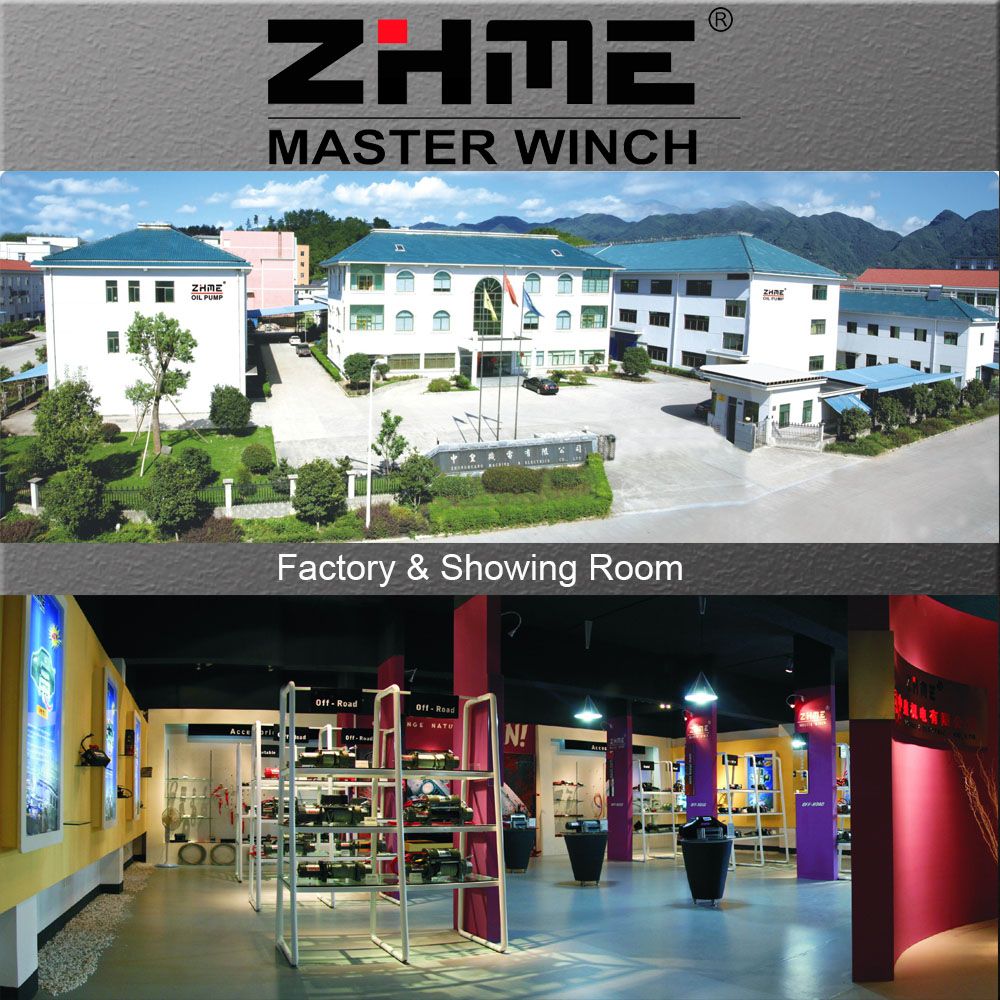

Factory and Showing Room:
ZHME owns more than 15000m2 factory including 150 works and 150m2 showing room.
Technical Department:

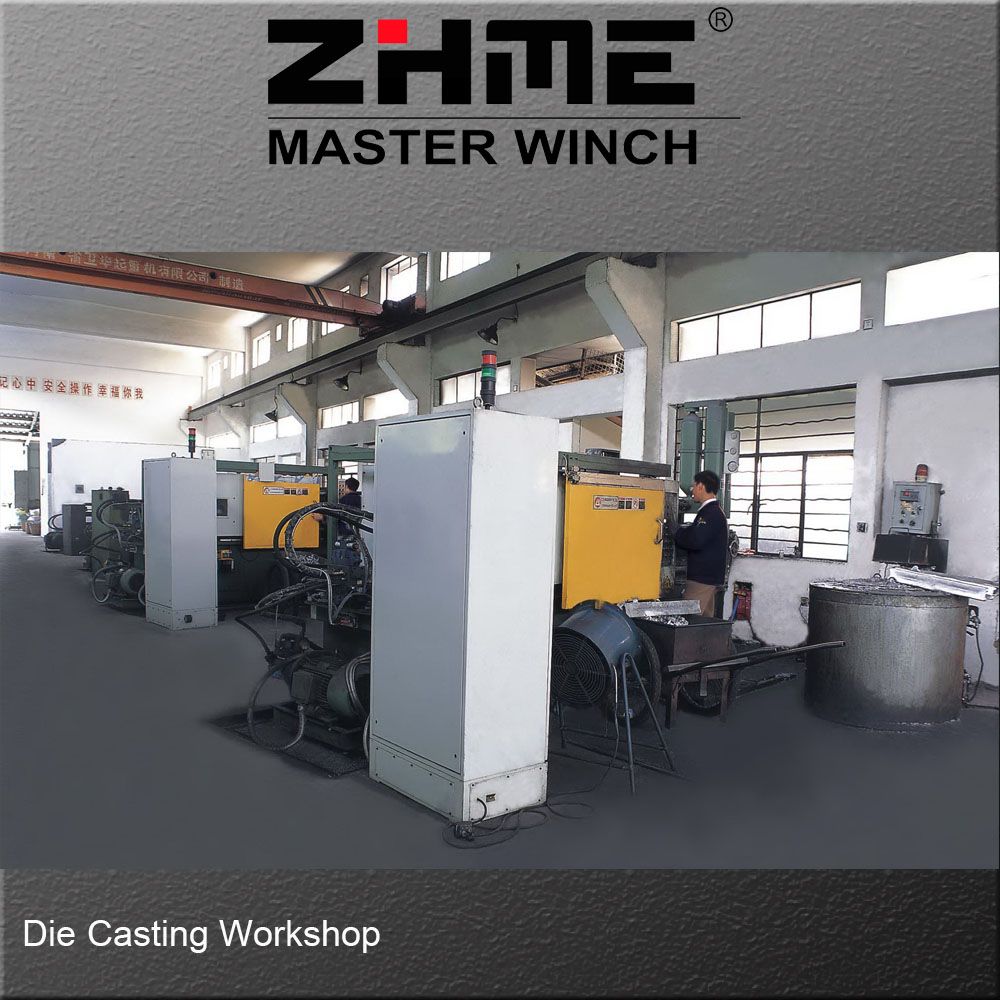

ZHME technical department is in charge of research and development, improving products.Die Casting Workshop:
ZHME has own die casting workshop which can die cast winch support, gear box, aluminum fairlead and other accessories.

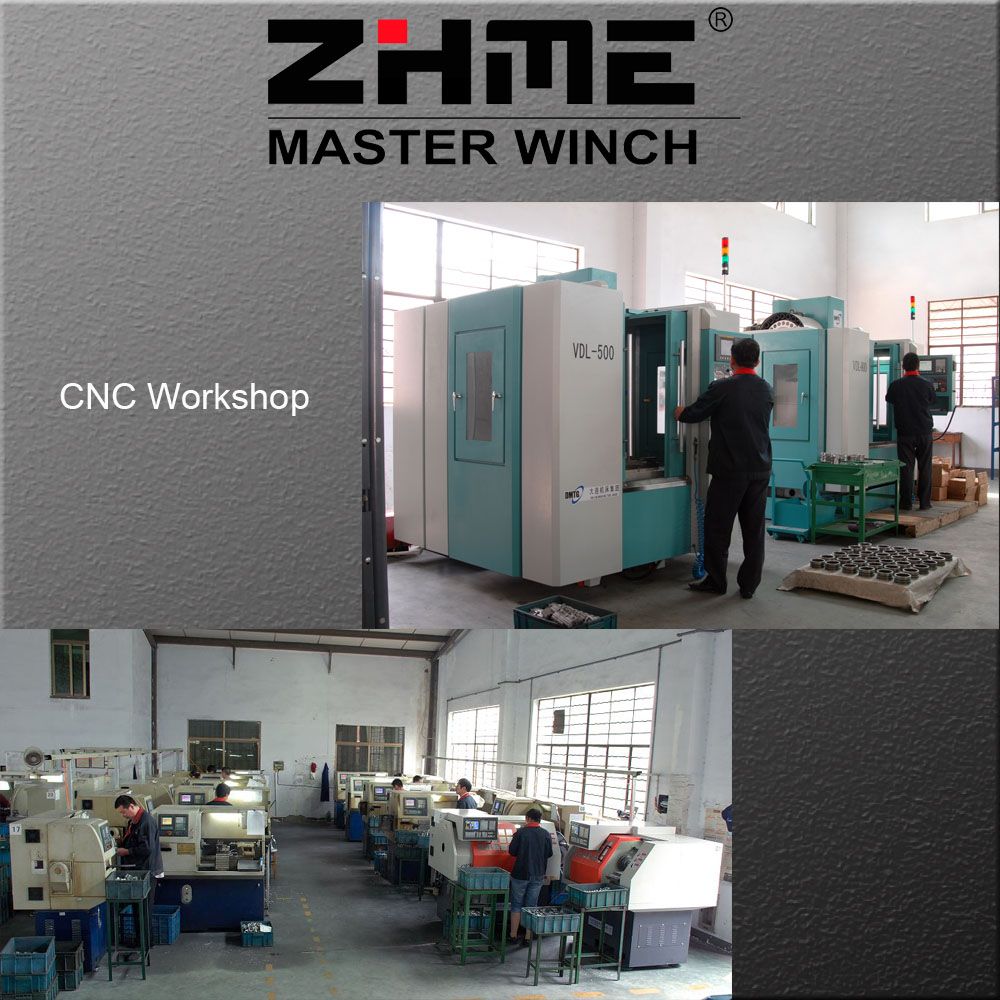

CNC Center:ZHME has own CNC ceter which can process winch parts such as support, gear box, fairlead, etc..

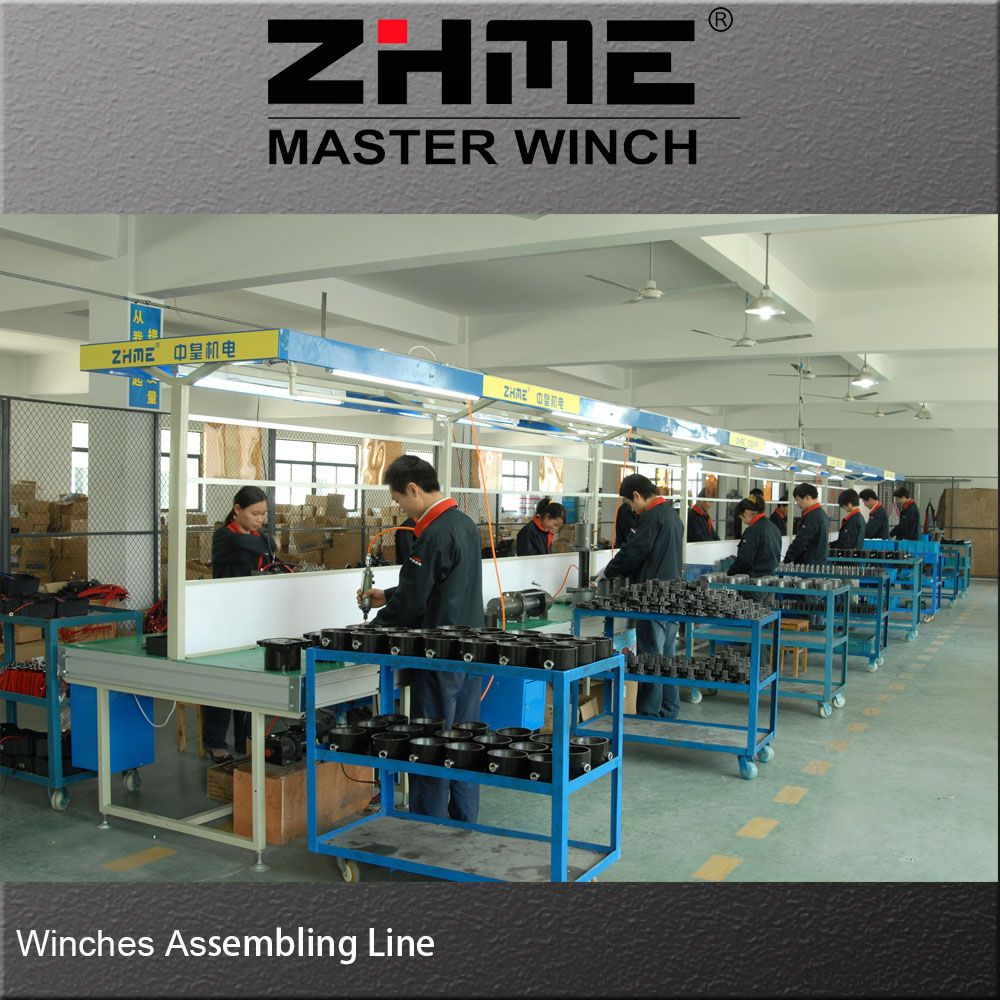

Assembling Line:ZHME has own auto assembling line where can assembly more than 500pcs winches every day.

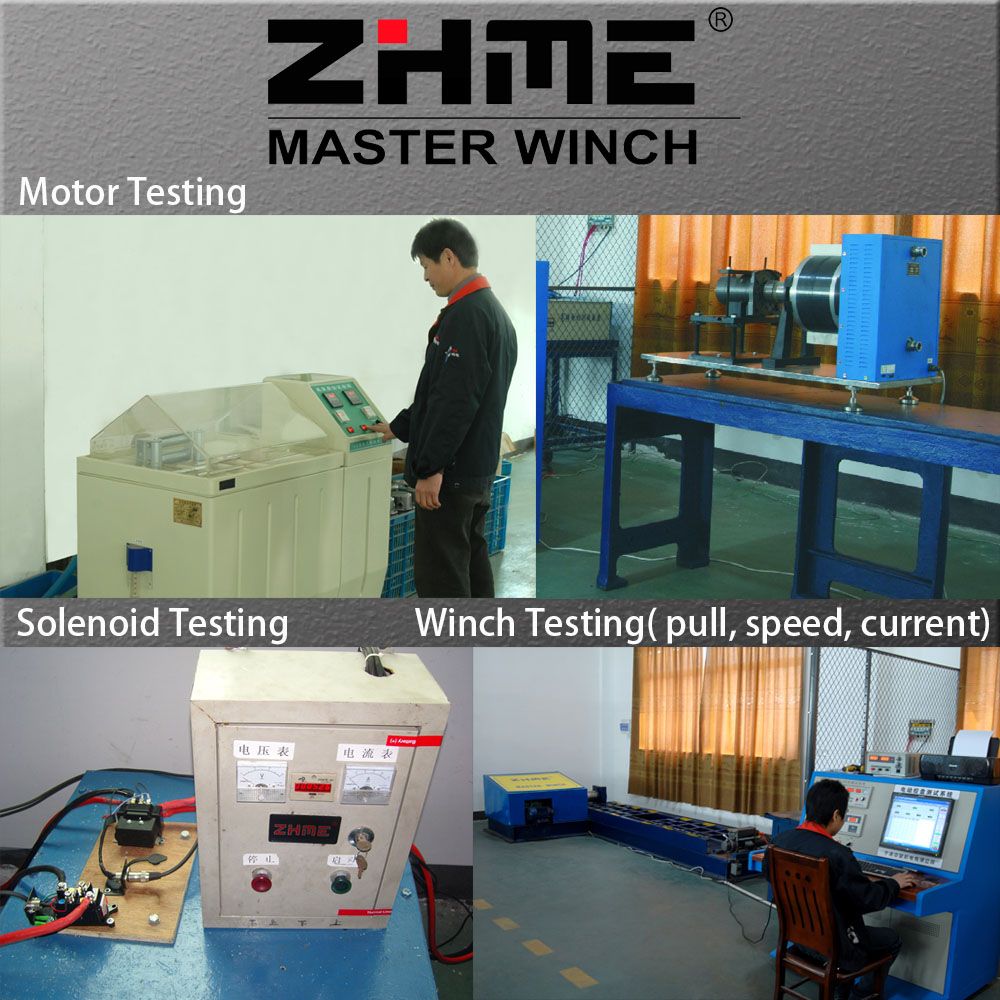

Testing facilities:
ZHME has motor facilities of motor, solenoid, winch pull, speed and electric current.
Ningbo Zhonghuang Machine & Electrics Co., Ltd (ZHME) is a specialized winch manufacturer situated in Ningbo, Zhejiang province, China, ZHME has 17 years experience in electric winches, our manufacturing plant has state-of-the-art assembly lines, together with in-house precision die-casting, CNC machining, heat treatment, polishing, high-pressure cleaning and finishing facilities. We also have advanced and fully-automated electric motor and winch testing facilities.
Established in 1995, ZHME has become a highly progressive and intensive R&D programmed into winch design, using the latest technology, to improve the performance and efficiency of products. We currently own patents on our many improved winch design features and strive to maintain our unsurpassed build-quality and outstanding value. ZHME has awards NINGBO high-technology enterprise since 2009
Today, ZHME has a comprehensive range of winch products and is developing more, Our philosophy is simple, To stay ahead in our business by being totally professional, but have fun doing it by remaining young in our hearts and minds.
