Prod Model: |
1.2.1.5 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Outer Diameter: |
800mm |
Outer Diameter (Inch): |
32 Inches |
Segment Size: |
40X5X10mm X46nos |
Technology: |
Laser Welding |
Machine Type: |
Wall Saw |
Cutting Material: |
Concrete, Reinforced Concrete, etc. |
Thickness Of Blank: |
3.5mm |
Kind: |
Wall Saw |
Product Description

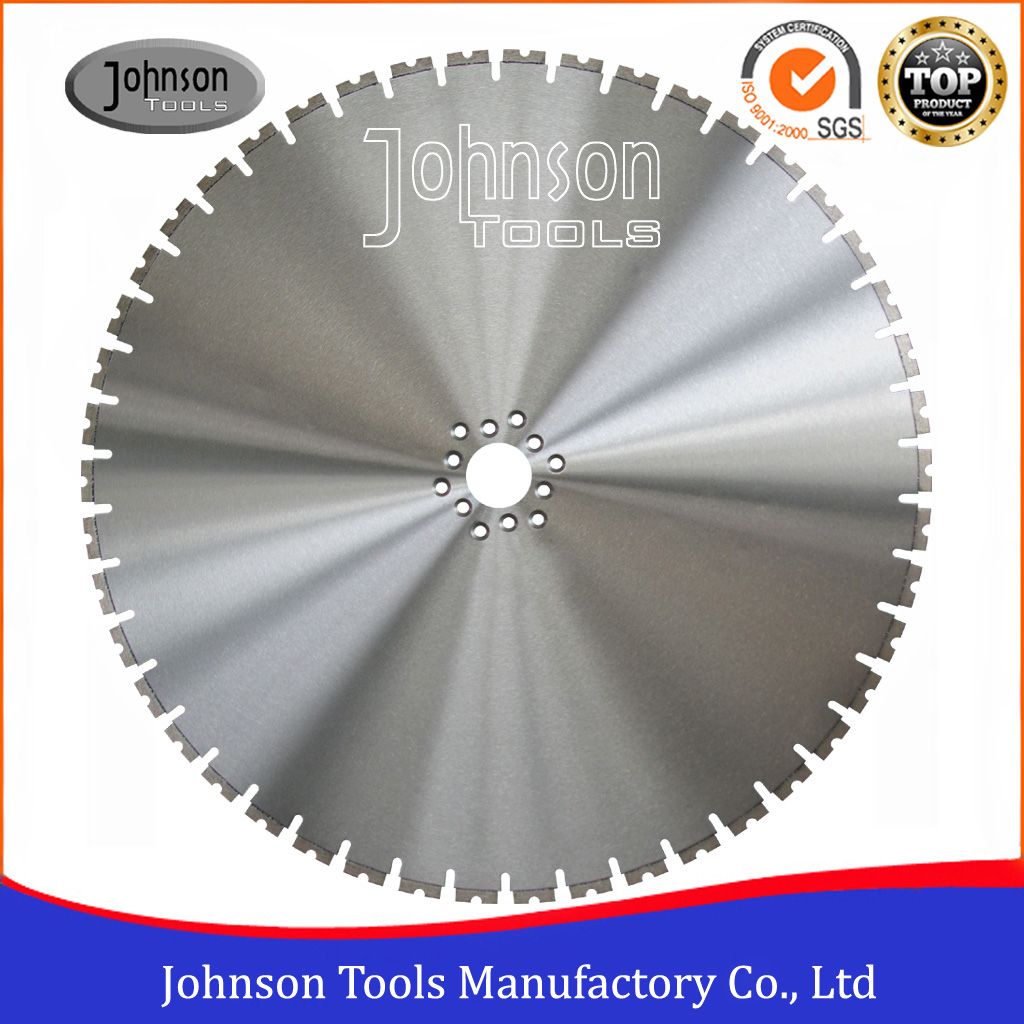

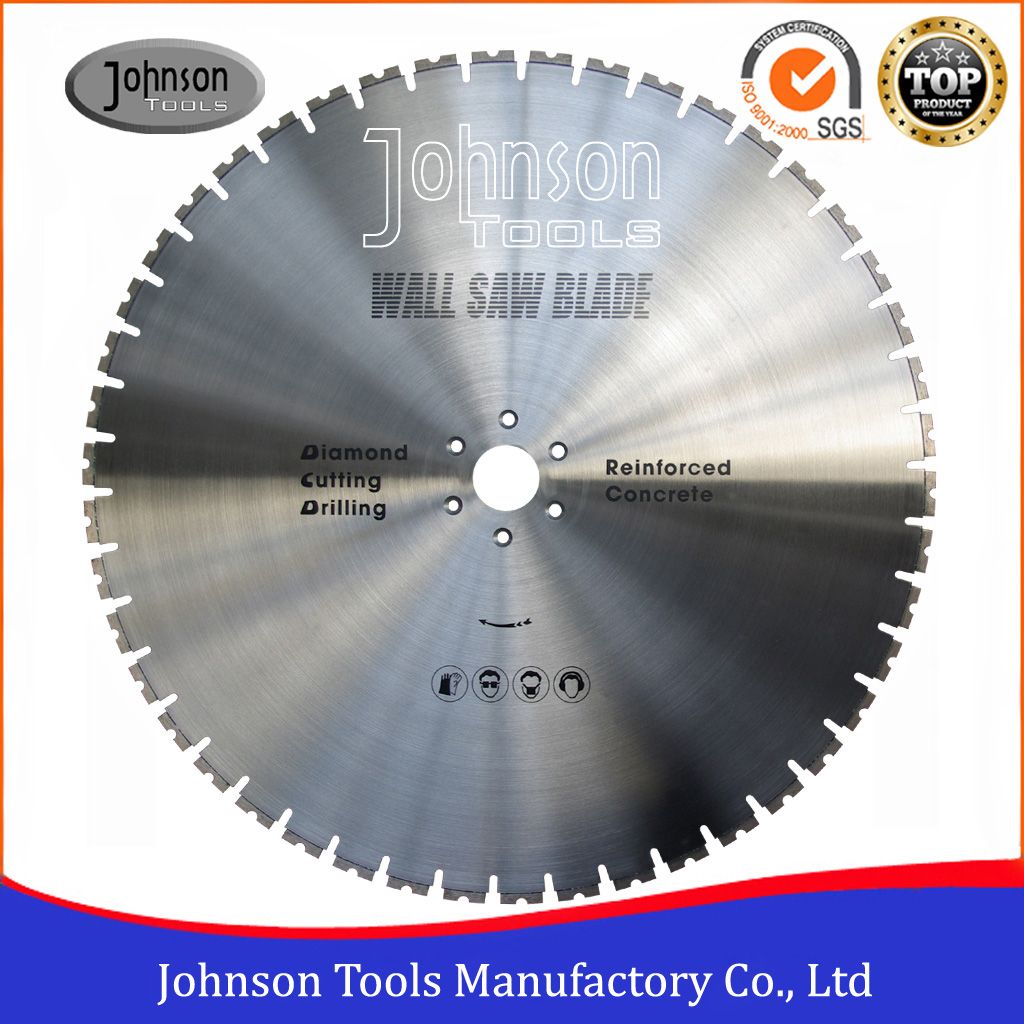

800mm Diamond Wall Saw Blades for Cutting Highly Reinforced Concrete

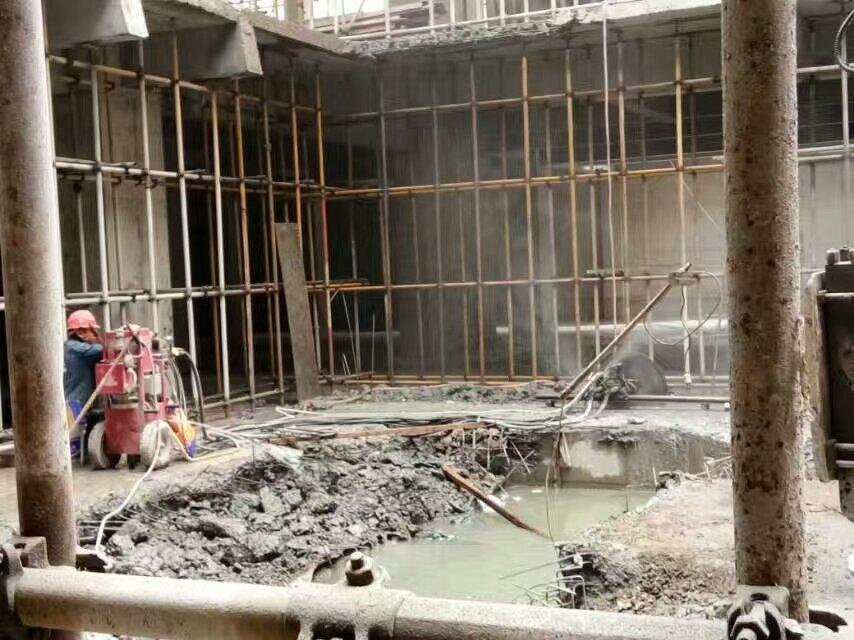

Why choose usEstablished in 2000year == Factroy==Quality Control ==Competitive price==OEM==Short delivery time1. Description of 800mm Diamond Wall Saw Blades for Cutting Highly Reinforced Concrete800mm wall saw blade is exported more for demolition reinforced concrete construction, including the partial modification and buildings and walls delimotion, opening window holes, doorways, demolition of reinforced concrerte bridges etc. As a direct factory, any size could be customized and designed as your request.2. Feature of 800mm Diamond Wall Saw Blades for Cutting Highly Reinforced Concrete1) 100% laser welding technology.
2) Dry cutting.
3) "Single U" type segment good for cooling.
4) High speed&fast cutting, smooth and long cutting life.
5) Fit to 3HP-85HP, or do as your request.
6) Installed for any brand wall saw machine.3. Specification of 800mm Diamond Wall Saw Blades for Cutting Highly Reinforced ConcreteDiameter:800mm
Segment thickness:4.8/5mm
Segment height:10/12mm
Inner hole:25.4mm, 50mm, 60mm, 80mm or as your request Inch | Diameter (mm) | Teeth length (mm) | Teeth thickness (mm) | Teeth height (mm) | Teeth number (nos) |
32" | 800 | 40 | 4.8/5 | 10 | 46 |
32" | 800 | 40 | 4.8/5 | 12 | 46 |
Other size we could doInch | Diameter (mm) | Teeth length (mm) | Teeth thickness (mm) | Teeth height (mm) | Teeth number (nos) |
24" | 600 | 40 | 4.8/5 | 10/12 | 36 |
28" | 700 | 40 | 4.8/5 | 10/12 | 40 |
36" | 900 | 40 | 4.8/5 | 10/12 | 52 |
40" | 1000 | 40 | 4.8/5 | 10/12 | 58 |
48" | 1200 | 40 | 4.8/5 | 10/12 | 62 |
56" | 1400 | 40 | 4.8/5 | 10/12 | 86 |
60" | 1500 | 40 | 4.8/5 | 10/12 | 90 |
64" | 1600 | 40 | 4.8/5 | 10/12 | 92 |

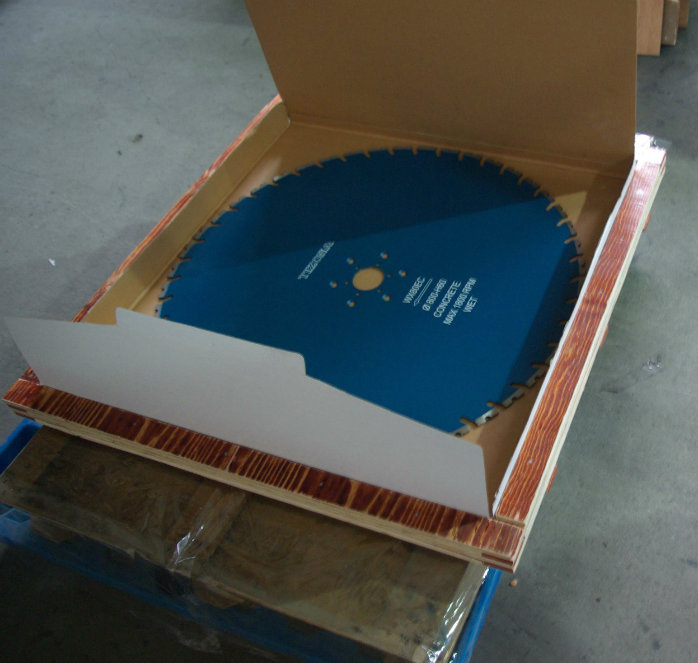

4. Packing and ShippingEach laser welded saw blade is packed in white box, then 5pcs put in an export standard plywood, gross weight per plywood is limited within 75kg.
Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.
Delivery way: By air, by sea, by land, by courier, etc.
5. Payment termT/T, Irrevocable L/C at sight,PayPal, West Union, Credit Card, etc.
