800mm Wall Diamond Cutting Saw Blade for Reinforced Concrete Cutting

Name: 800mm Wall Diamond Cutting Saw Blade for Reinforced Concrete Cutting
Brand: tool-buy.com
SKU: 675214905
Availability: InStock
Rating: 4.4 (144 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Johnson Tools Manufactory Co., Ltd.

Showroom Product Company Profile

Prod Model:	1.1.1.3
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Outer Diameter:	800mm
Segment Size:	40X5X10mmx46nos
Technology:	Laser Welding
Cutting Material:	Concrete, Reinforced Concrete, etc.
Delivery Time:	Around 25-35days
MOQ:	10PCS
Sample:	Available
OEM:	Available
Graininess:	#30/#40
Usage:	Concrete Cutting

Product Description

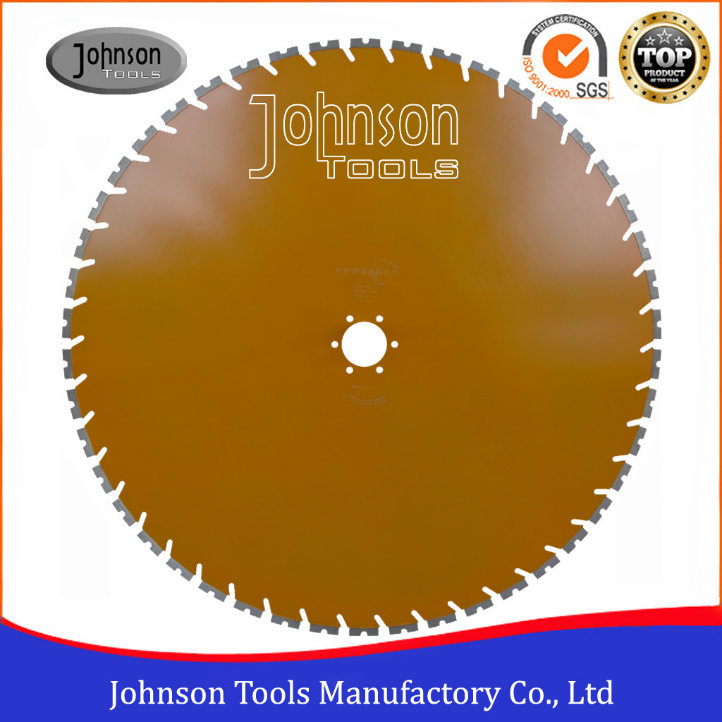

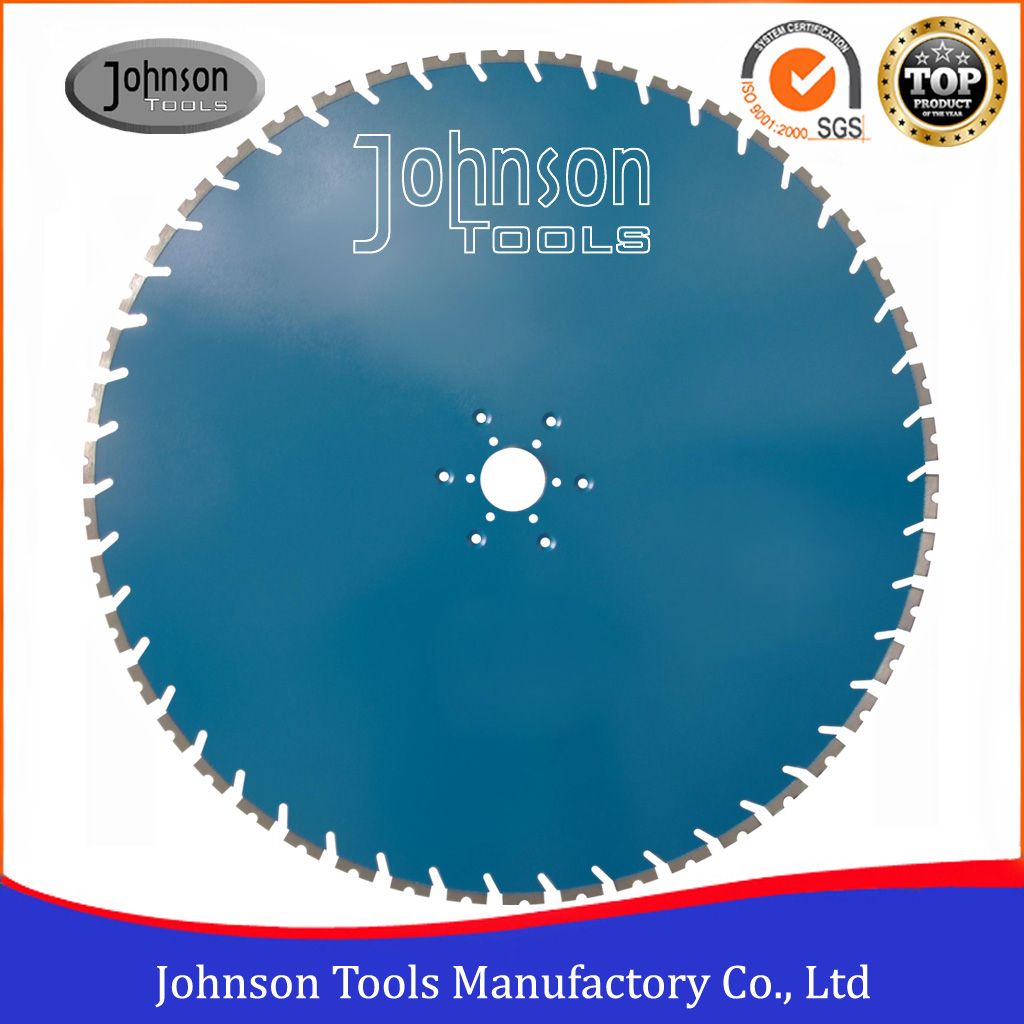

800mm Wall Diamond Saw Blade with Tapered U

Why choose us

Established in 2000year == Factroy==Quality Control ==Competitive price==OEM==Short delivery time

1. Description of 800mm Wall Diamond Saw Blade

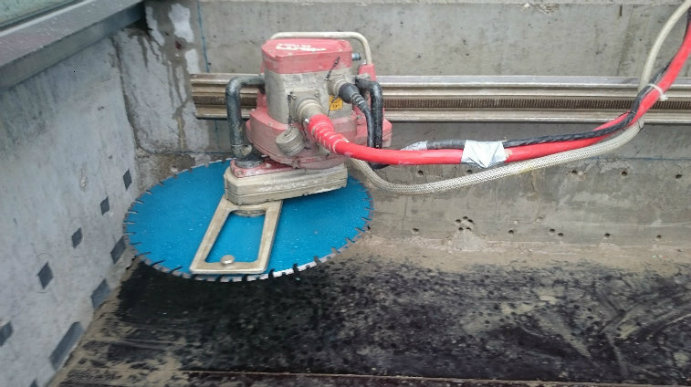

800mm wall saw blade is exported more for demolition reinforced concrete construction, including the partial modification and buildings and walls delimotion, opening window holes, doorways, demolition of reinforced concrerte bridges etc.

As a direct factory, any size could be customized and designed as your request.

2. Feature of 800mm Wall Diamond Saw Blade

1) 100% laser welding technology.
2) Dry cutting.
3) "Single U" type segment good for cooling.
4) High speed&fast cutting, smooth and long cutting life.
5) Fit to 3HP-85HP, or do as your request.
6) Installed for any brand wall saw machine.

3. Specification of 800mm Wall Diamond Saw Blade

Diameter:800mm
Segment thickness:4.8/5mm
Segment height:10/12mm
Inner hole:25.4mm, 50mm, 60mm, 80mm or as your request

Inch	Diameter (mm)	Teeth length (mm)	Teeth thickness (mm)	Teeth height (mm)	Teeth number (nos)
32"	800	40	4.8/5	10/12	46

Other size we could do

Inch	Diameter (mm)	Segment length (mm)	Segment thickness (mm)	Segment height (mm)	Segment number (nos)
24"	600	40	4.8/5	10/12	36
28"	700	40	4.8/5	10/12	40
36"	900	40	4.8/5	10/12	52
40"	1000	40	4.8/5	10/12	58
48"	1200	40	4.8/5	10/12	62
56"	1400	40	4.8/5	10/12	86
60"	1500	40	4.8/5	10/12	90
64"	1600	40	4.8/5	10/12	92

4. Packing and Shipping

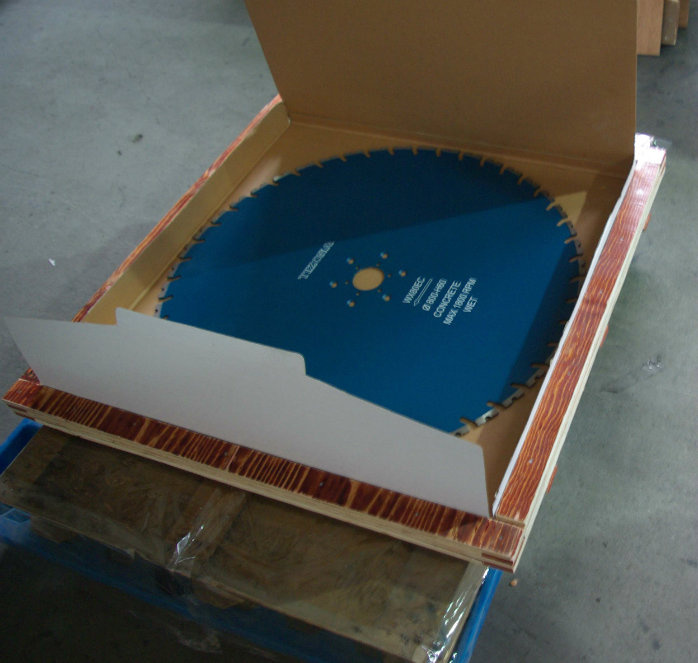

Each laser welded saw blade is packed in white box, then 5pcs put in an export standard plywood, gross weight per plywood is limited within 75kg.

Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.

Delivery way: By air, by sea, by land, by courier, etc.

5. Payment term

T/T, Irrevocable L/C at sight,PayPal, West Union, Credit Card, etc.

6. Client Feedback

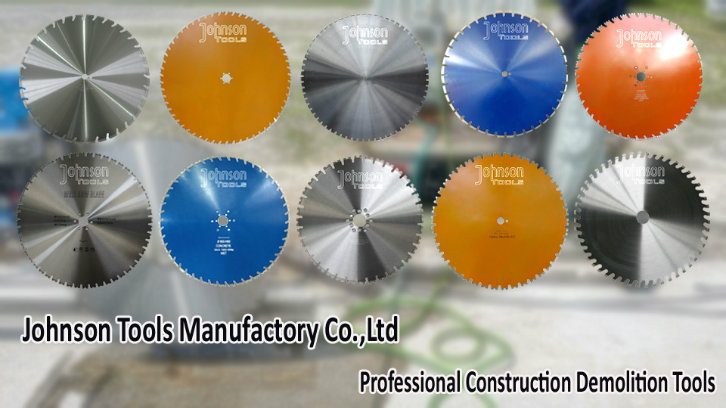

7. Our Related Products

8. Certification

9. Our Exhibition

10. Company information

Established in 2000 year, Johnson Tools Manufactory Co.,Ltd have been acting as one of leading manufacturers in China's stone and construction industries.

We enjoy good reputation among customers with trustworthy product quality and creditable service. Provide good quality diamond tools on sawing, grinding, polishing and drilling industry, such as laser welded wall saw blade, floor saw blade, concrete saw blade, asphalt saw blade, stone saw blade, electroplated saw blade, tuck pointing saw blade, diamond segments, grinding wheels, polishing pad, core bits, TCT saw blade, also stone cutting machine, etc.

Johnson Tools people sincerely looking forward to serving you in the near future!

Let's work together to make the business better and better.

Why clients choose Johnson?

1) Quality & Service:

We, Johnson Tools Manufactory Co., Ltd have very strict quality control system. There is one QC team in our factory on examination of every product before dispatching. We try our best to achieve zero defects.

2) Convenience of One-Stop Sourcing:

On stone and construction industry, from cutting, grinding, drilling, polishing, profiling field, till stone and its cutting machine, we can help you select the best tools, finish your project perfectly.

3) Flexible payment term:

T/T, Letter of Credit, PayPal, West Union, Credit Card, etc.

4) Delivery time:

Around 5-30days based on quantity of clients' order.

Repeated orders, we help our clients prepare one order's raw materials to shorten the producing time.

5) Good evaluation of our clients' from our deferent's countries.

6) Sales Teams:

We have a friendly, enthusiastic, energetic sales team, ready to service with you all the time.

Professional Manufacturer on Diamond Tools since Year 2000.

Above 95% Diamond Tools products export to Six Continent, over 70 Countries.

Our diamond tools differ diamond Cutting tools, diamond Grinding tools, diamond Polishing tools, diamond Drilling tools, and other accessories & stone cutting machine. Wildly used on Stone and Construction industry.

*****Customer Evaluation*****

To do the same bond as we use is very important. We did many tests at your blades And the performance is very good. -- Remco

The cutting of the blade on concrete road was very good. Cutting life is estimated at 800 meters. Note: Client use our 14" laser saw blade. -- Jabar

Segments from you is very good, durable and sharp. Note: Client use our 102mm-300mm diamond segments for core bits for reinforced concrete. -- Zainul

First of all I would like to thank you for the sending the samples of the Diamond Saw Cutting Blades. We have tested it and are very much impressed. -- Ancila

About your 200mm&250mm tuck point saw blade, we made about 11000 meters and it' s a very good indice! -- Julia

And its good, We need more: ) Saw blade 20X 600mm 20X 800mm 3X 1000mm 10X1200mm.

-- Kovacevic

Welcome to join us to be a Johnson Tools partner!

Let's work together to make the business better and better.
