| Price: | US $ 20-50/Roll |
|---|---|
| Min Order: | 100/Roll |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: | YHY-hwm5 |
|---|---|
| Length: | Commonly 15m-100m |
| Width: | 0.5m-2.5m |
| Wire Diameter: | 0.8mm-4mm |
| Sample: | Free |
| Certificate: | ISO 9001: 2015 |
| Package: | Black Water-Proof Paper, Then Pallet |
| Feature: | High Tensile Strength |
| Material: | Galvanized Iron Wire |
| Application: | Decorative Mesh |
| Surface Treatment: | Galvanized |
| Weave Method: | Twist |
| Weave Technique: | Plain Weave |
Hexagonal wire mesh, Hexagonal wire netting, Chicken wire mesh, Rabbit fencin
1. Material: Hot Dip Gal. /Electro Gal. /Black Iron Wire, PVC coat wire.
Stainless Steel Chicken Wire
PVC coat Chicken Wire: PVC coat after or before weaving
Hot Dip Gal. Chicken Wire: Hot Dip Gal. after or before weaving
Electro Gal. Chicken Wire: Electro Gal. after or before weaving
2. Features: Chicken wire is also named Hexagonal Wire Mesh or Hexagonal Wire Netting; it has well erosion-resisting and rustproof properties.
3. Applications: Chicken Wire is extensively used in industrial and agricultural construction, building works, and all such made for the purpose of reinforcing and fencing as protective cage, guards for window and machinery safety isolation, floor screen reinforcement and poultry cage, fishing, garden and children's play-ground

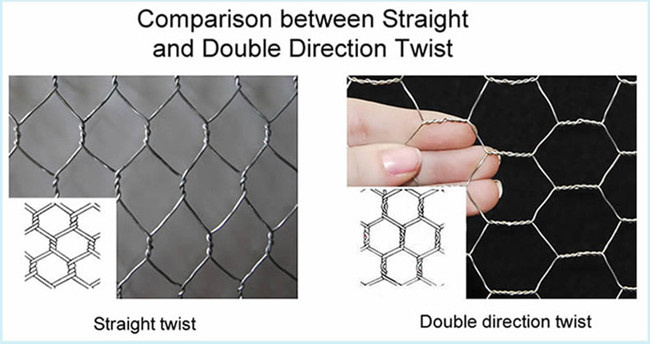

4. Weaving Types: Straight Twisted, Reversed Twisted
5. Packing: moist-proof paper/pallet or loose packing
6. Chicken Wire Specification Table:
| Galvanized hex. wire netting in normal twist (width of 0.5M-2.0M) | ||
| Mesh | Wire Gauge (BWG) | |
| Inch | mm | |
| 3/8" | 10mm | 27,26,25,24,23,22,21 |
| 1/2" | 13mm | 25,24,23,22,21,20, |
| 5/8" | 16mm | 27,26,25,24,23,22 |
| 3/4" | 20mm | 25,24,23,22,21,20,19 |
| 1" | 25mm | 25,24,23,22,21,20,19,18 |
| 1-1/4" | 32mm | 22,21,20,19,18 |
| 1-1/2" | 40mm | 22,21,20,19,18,17 |
| 2" | 50mm | 22,21,20,19,18,17,16,15,14 |
| 3" | 75mm | 21,20,19,18,17,16,15,14 |
| 4" | 100mm | 17,16,15,14 |
| Galvanized hex. wire netting in reverse twist (width of 0.5M-2.0M) | ||||
| Mesh | Wire Gauge(BWG) | Reinforcement | ||
| Inch | mm | (BWG) | Width(ft) | Strand |
| 1" | 25mm | 22,21,20,18 | 2' | 1 |
| 1-1/4" | 32mm | 22,21,20,18 | 3' | 2 |
| 1-1/2" | 40mm | 20,19,18 | 4' | 3 |
| 2" | 50mm | 20,19,18 | 5' | 4 |
| 3" | 75mm | 20,19,18 | 6' | 5 |
| Hex. wire netting PVC-coated (width of 0.5M-2.0M) | ||
| Mesh | Wire Dia(mm) | |
| Inch | mm | |
| 1/2" | 13mm | 0.9mm,0.1mm |
| 1" | 25mm | 1.0mm,1.2mm,1.4mm |
| 1-1/2" | 40mm | 1.0mm,1.2mm,1.4mm,1.6mm |
| 2" | 50mm | 1.0mm,1.2mm,1.4mm,1.6mm |

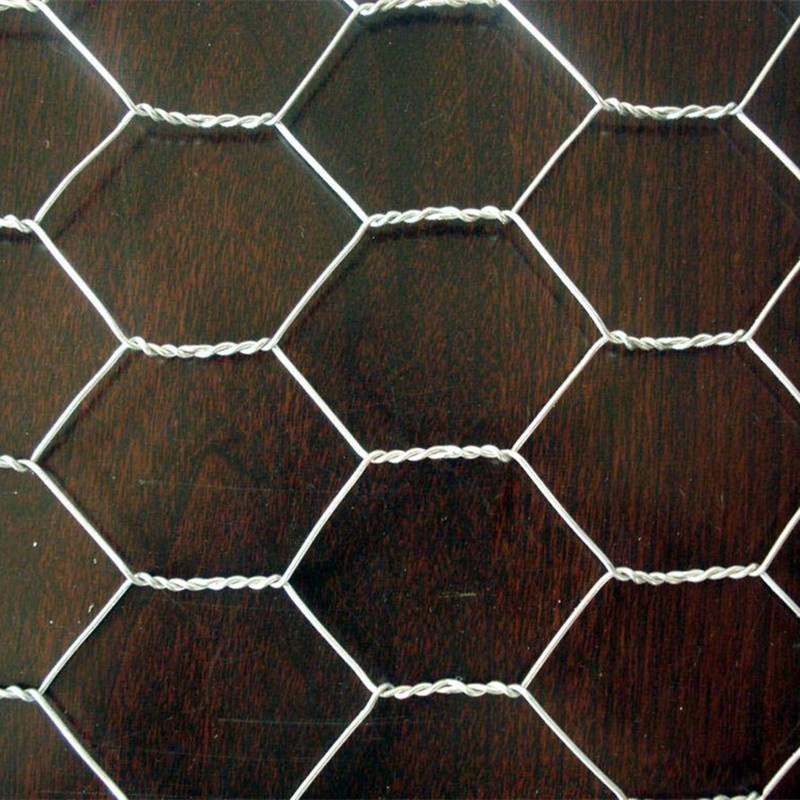

Pictures of detail:

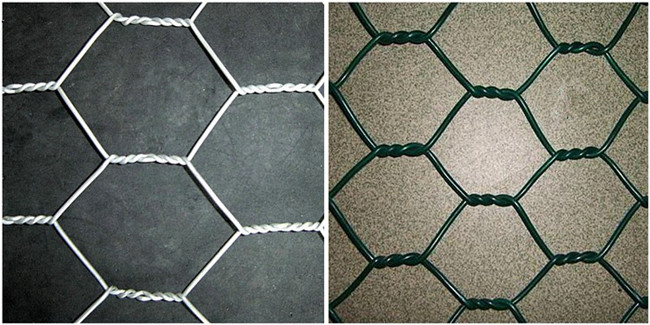

Galvanized wire PVC coated wire
1. Free samples are available.
2. Post service can be provided.
3. All kinds of certificates can be provided.
4. Third party inspection is available.

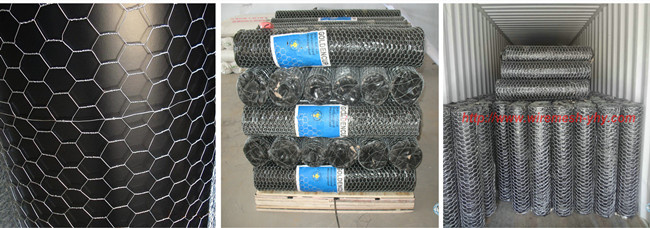

Package and Loading
Packing: Packed with plastic film, and Pallet, etc. Or packed as customized requirement.

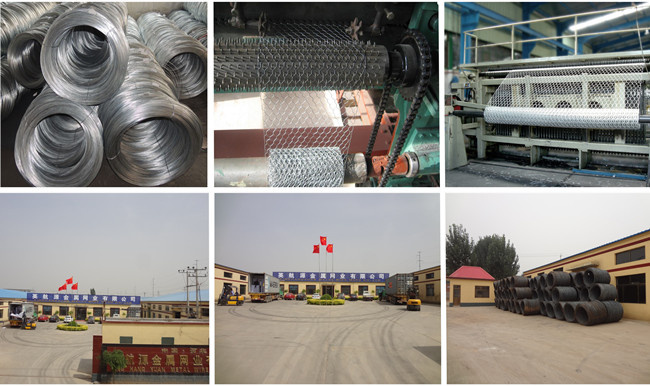

Production and Factory
Anping YingHangYuan Metal Wire Mesh Co., Ltd. (The predecessor is Anping County Hongshuo
wire- drawing and Woven Factory) was founded in 1988.
It is located in the largest wire mesh manufacture base in Asia, Anping County, Hebei, China. It has become a big comprehensive wire mesh company which is engaged in domestic and foreign trade.
Our products are sold well throughout the world, such as USA, Germany, Italy and Southeast Asia etc.
