| Prod Model: |
NT-SSBVSE |
| Other Standard: |
SMS, DIN, Idf, Rjt, BS, ISO, Bpe etc |
| Wall Thick: |
1.65mm etc |
| Warranty: |
1 Year |
| Process: |
Pipe-Raw Material-Polish-Check-Packing |
| Treatment: |
Mirror Polish/Brushed/Electric Polish |
| Connection: |
Male |
| Shape: |
Equal |
| Head Code: |
Round |
| Angle: |
90 Degree |
| Material: |
Stainless Steel |
| Technics: |
Forged |
| Certification: |
3A etc |
| Color: |
Silver |
| Wall Thickness: |
1.65/2/3mm etc. |
Product Description

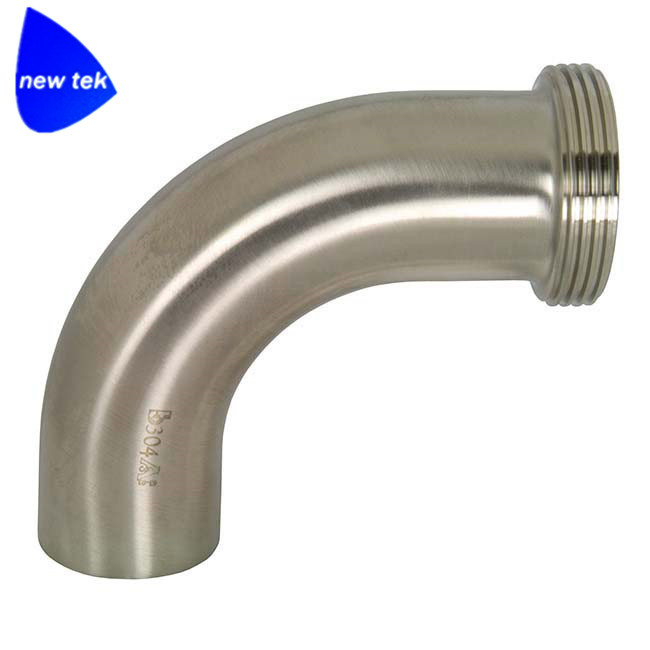

90 Degree Threaded Bevel Seat to Buttweld Elbows
Looking for 316L Stainless Steel? Please call for pricing and availability.
Bevel Seat Fittings are used on process equipment and piping to ensure rigidity of the system. Bevel Seat Unions consist of a threaded Bevel Ferrule mated with a Plain Bevel Ferrule. Both are offered in 304 SS and 316L SS material. Hex Union Nuts made of only 304 SS material are used to complete the union.
Your applications demand quality and reliability with quick delivery. That's why businesses from dairy, food and beverage to pharmaceutical and cosmetics have trusted Bradford buttweld fittings since 1986. Bradford buttweld fittings are manufactured to very high tolerances. Some elbows are manufactured using a hydroforming method, which makes a more uniform elbow that is easier to weld and polish. This manufacturing method allows Bradford to supply a superior quality fitting regardless of the application.
The 3A Sanitary Standard was created by the dairy industry as a voluntary benchmark for product performance and sanitary safety. The standard, collaboratively developed bya group of processors, suppliers, regulatory officials and sanitation specialists, is generally accepted by federal, state and local regulatory authorities.
Pipe and tube fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries. Sanitary fittings are used in the food, beverage, biotech, pharmaceutical, and other sanitary process industries to transport fluids through pipe lines and are available in a range of materials, finishes and shapes. When purchasing fittings, consider the application, as this will affect material type, shape, size, and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).
We ship products all over the world. | Availably standard | SMS,DIN,3A,IDF,RJT, BS, ISO |
| Material Quality | SS304,SS304L,SS316,SS316L |
| Specification | 1/2"-12" |
| Available Connection | Welding ends, triclamp ends, union ends, male ends etc. |
| Available Polishing | 180 Grit ,240 Grit, 320 Grit ,420 Grit,Unpolished |
| Available Thickness | 1.5MM,1.65MM,2MM,2.5MM,3MM,4MM etc. |
| Pressure range | -bar~10bar |
| Temperature Range | -20degree Celsius~135degree Celsius |
More products we can provide:
1 .Sanitary valve
Sanitary Butterfly Valves
Sanitary Check Valves
Sanitary Ball Valvess
Sanitary Reversal Valve
Sanitary Diaphragm Valves
Sanitary Sample Valves
Sanitary Safety Valves
Sanitary Control Valves
Sanitary Relief Pressure Valves
2. Sanitary Pipe Fittings
Sanitary Elbow
Sanitary TeeSanitary Reducer
Sanitary Cross
Sanitary Triclamp Ferrule
Sanitary Cap
Sanitary Pipe Hanger
Sanitary Tank Cleaning Ball
Sanitary Hose Joint
Sanitary Unions
Sanitary Sight Glass
Sanitary Strainer
3. Sanitary Manways
Sanitary Round Manway without Pressure
Sanitary Round Manway with Pressure
Sanitary Square Manway
Sanitary Oval Manway
4. Sanitary Pumps
Sanitary Centrifugal Pump
Sanitary Lobe Pump
Sanitary Self Priming Pump
5.Sanitary Tanks
Storage Tank
Fermentation Tank
Mixing Tank
Warm-keeping Tank
6.Sanitary Tube
Seamless Tube
Weldless Tube
7.Sanitary Gasket
Silicone/EPDM Gasket for Triclamp
Silicone/EPDM Gasket for Union
Silicone/EPDM Gasket for Butterfly Valve
Silicone/EPDM Gasket for Manhole Cover
Founded in 2002, New Tek Industrial Co., Ltd, as a global valves and Fittings manufacturer and stainless steel tanks supplier, has grown to become one of the leading stainless steel products manufacturers for high precision stainless steel sanitary valves, pumps and pipe fittings. Our products including valves, pipe fittings, tank accessories and stainless steel tanks both in sanitary and industrial field. The products are widely applied in dairy, beer, food, pharmaceutical, beverage, cosmetics and chemical industries.
New Tek introduce actively domestic and international advanced production equipment and professional manufacturing process, the series products are made from stainless steel AISI304, AISI316L, strictly according to DIN, 3A, SMS, ISO, IDF, RJT, DS, BS, BPE industrial standard request, and keep strict inspection and control during production, that make us develop stable and continuously.

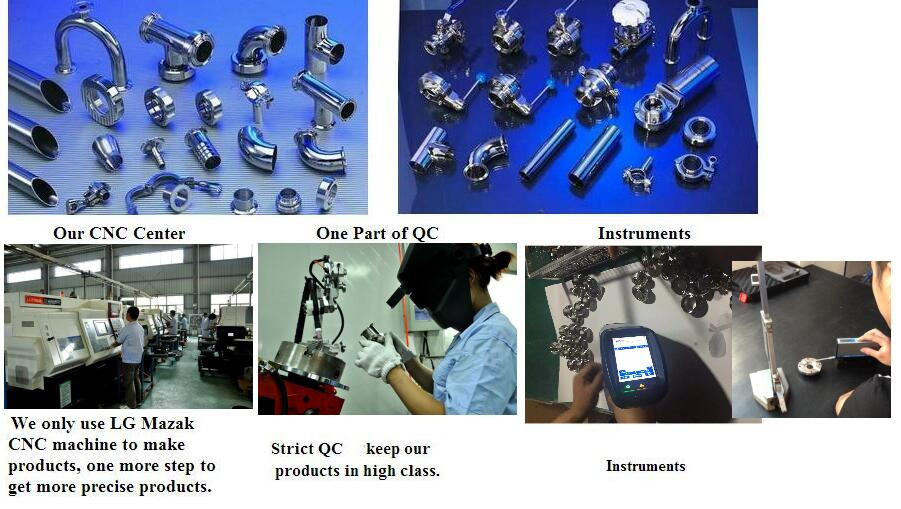

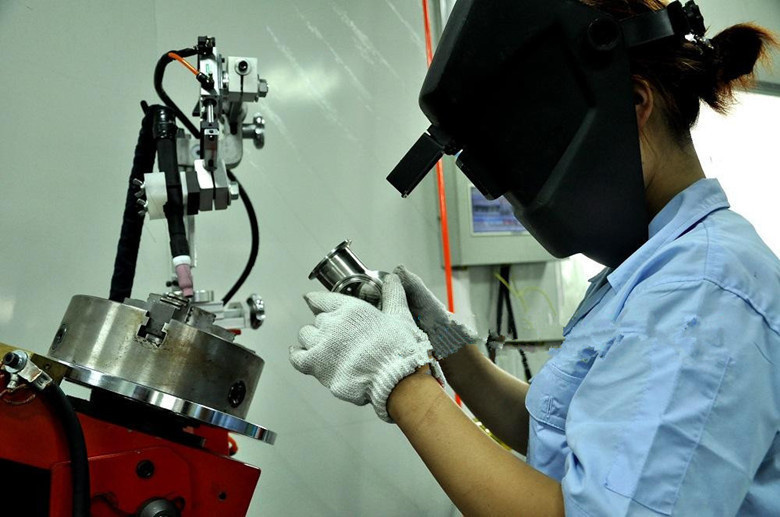

New Tek has our own factory, complete CNC machines workshop, QC team, welding and polishing workshop, gaskets workshop, package workshop, 3 floors warehouse. The real one stop service, to save more money for you.
