Tri Clamp to Bsp Male Thread adapter Slotted

Tri Clamp to Bsp Male Thread adapter Slotted
Price: US $ 2/Piece
Min Order: 1/Piece
Pay Type: T/T,D/P,Western Union,Paypal
Prod Model: NT-TCM-BSPT
Other Standard: SMS, DIN, Idf, Rjt, BS, ISO, Bpe etc
Warranty: 1 Year
Process: Pipe-Raw Material-Polish-Check-Packing
Treatment: Mirror Polish/Brushed/Electric Polish
Material: Stainless Steel
Connection: Male
Surface Treatment: CNC Machine

Product Description

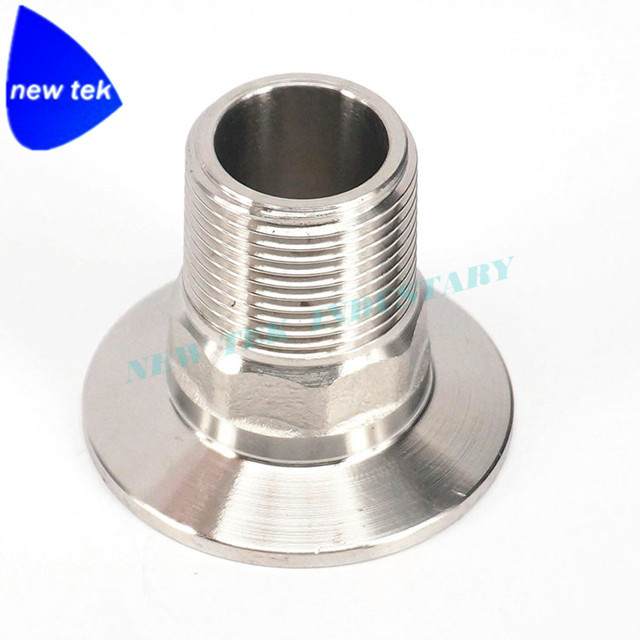

BSP Male Thread to Clamp Adapter- Sanitary Stainless Steel Fittings, BSPT and BSPP optional.

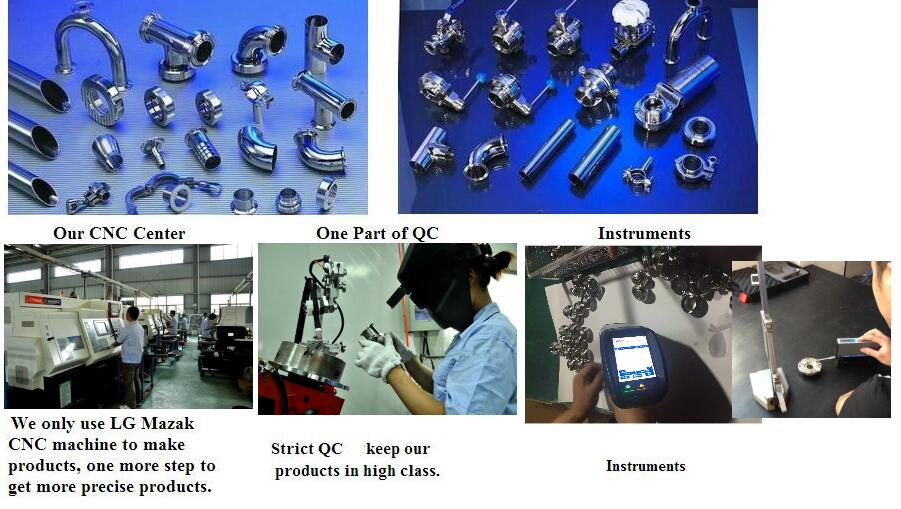

Your clamp fitting applications demand quality, reliability, and expeditious deliveries. All adapters are made by LG Mazak CNC machine. Slotted Hex type, easy to screw.

1.Male Threaded BSP x Clamp Adapters
2.Available in 304 & 316L Stainless Steel
3.Sanitary-grade line process equipment
4.Material Test Reports (MTR) available upon request
5.1/4"-4" are available, 1/4" and 1/2" are on stock
6.Application: Dairy products, beer, food, beverage, pharmacy, and bioengineering industry, etc.

Pipe and tube fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries. Sanitary fittings are used in the food, beverage, biotech, pharmaceutical, and other sanitary process industries to transport fluids through pipe lines and are available in a range of materials, finishes, and shapes. When purchasing fittings, consider the application, as this will affect material type, shape, size, and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).

Ferrule fitting for providing a seal when compressed between two mating components
Attaches to a fitting to help provide a leak-resistant seal on a tube or hose
Stainless steel 304,304L,316,316L for resistance to corrosion and high temperatures
Maximum operating pressure rating of 250 psi at 70 degrees F ambient temperature
Meets 3-A/DIN etc Sanitary Standards

    National Pipe Taper (NPT) are a standardized fitting that is commonly used for joining pipe. Due to the tapered threads (wider diameter at the base of the threads, similar to a trapezoid) the male fitting will tighten the further it is threaded into the female. NPT follows the technical standards provided by the American National Standard Pipe Thread standards, often called national pipe thread, which is often where the confusions with NPT arises, as NPT is specifically an acronym that referes to tapered pipe.

    National Pipe Straight (NPS) are straight thread that is sized to be compatible with common water heater elements and should be compatible with most NPS straight threads.

    Determining NPT/NPS Size:
    Sizing NPT/NPS is based on the nominal pipe diameter, and not the ouside diameter (OD) of the threads. For example: A 1/2" NPT male has an outside thread diameter of approximately 3/4", but as stated the correct NPT size is 1/2", including the counterpart female.

    Notice: While NPT and NPS threads may be joined together, their threads may not form a proper seal, be loose fitting, or otherwise not an optimal connection.


    We manufacture T304 or T316L Sanitary Polish Triclamp Fittings found primarily in the Bakery, Beverage, Cosmetic, Dairy, Food or Pharmaceutical Industries. Our Sanitary Butt Weld Fittings can meet or exceed 3A/DIN/BPE etc standards with an ID polish of 180 Grit or 25 Ra on the Inside of the Tube and a 150 Grit or 32 Ra on the Outside of the tube.  NEW TEK supplies each Sanitary Butt Weld product with the size and alloy and a heat number for full traceability for either alloy. Our Sanitary Butt Weld Fittings are made to close tolerances to permit easy and fast installation of a corrosion resistant, crevice free, fully sanitary process line. As a suggestion, you may wish to weld using the tungsten gas method  for true fusion of wall to minimize pitting and thinning. Material test reports can be provided.

    Pipe and tube fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries. Sanitary fittings are used in the food, beverage, biotech, pharmaceutical, and other sanitary process industries to transport fluids through pipe lines and are available in a range of materials, finishes and shapes. When purchasing fittings, consider the application, as this will affect material type, shape, size, and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).

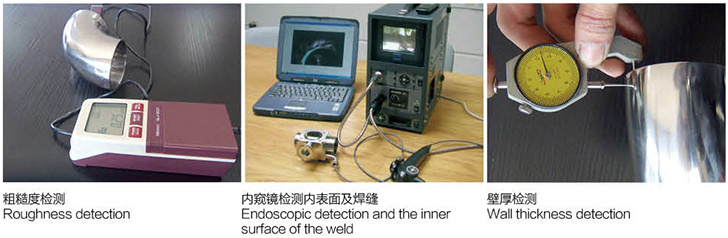

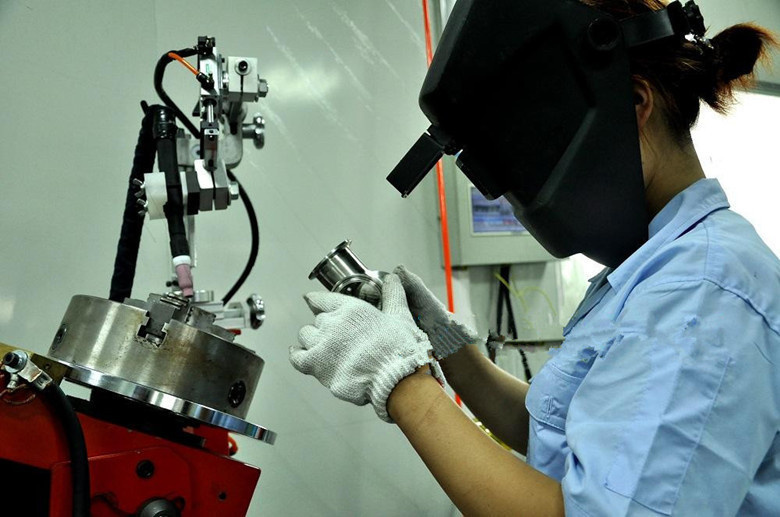

    QC Team






    We ship products all over the world.


    Availably standardSMS,DIN,3A,IDF,RJT, BS, ISO
    Material QualitySS304,SS304L,SS316,SS316L
    Specification1/2"-12"
    Available ConnectionWelding ends, triclamp ends, union ends, male ends etc.
    Available Polishing180 Grit ,240 Grit, 320 Grit ,420 Grit,Unpolished
    Available Thickness1.5MM,1.65MM,2MM,2.5MM,3MM,4MMetc.
    Pressure range-bar~10bar
    Temperature Range-20degree Celsius~135degree Celsius

    More products we can provide:
           1  .Sanitary valve
                Sanitary Butterfly Valves
                Sanitary Check Valves
                Sanitary Ball Valvess
                Sanitary Reversal Valve
                Sanitary Diaphragm Valves
                Sanitary Sample Valves
                Sanitary Safety Valves
                Sanitary Control Valves
                Sanitary Relief Pressure Valves
            2. Sanitary Pipe Fittings
                Sanitary Elbow
                Sanitary TeeSanitary Reducer
                Sanitary Cross
                Sanitary Triclamp Ferrule
                Sanitary Cap
                Sanitary Pipe Hanger
                Sanitary Tank Cleaning Ball
                Sanitary Hose Joint
                Sanitary Unions
                Sanitary Sight Glass
                Sanitary Strainer
            3. Sanitary Manways
                Sanitary Round Manway without Pressure
                Sanitary Round Manway with Pressure
                Sanitary Square Manway
                Sanitary Oval Manway
            4. Sanitary Pumps
                Sanitary Centrifugal Pump
                Sanitary Lobe Pump
                Sanitary Self Priming Pump
             5.Sanitary Tanks
                Storage Tank
                Fermentation Tank
                Mixing Tank
                Warm-keeping Tank
              6.Sanitary Tube
                Seamless Tube
                Weldless Tube
              7.Sanitary Gasket
                 Silicone/EPDM Gasket for Triclamp
                 Silicone/EPDM Gasket for Union
                 Silicone/EPDM Gasket for Butterfly Valve
                 Silicone/EPDM Gasket for Manhole Cover



    Founded in 2002, New Tek Industrial Co., Ltd, as a global valves and Fittings manufacturer and stainless steel tanks supplier, has grown to become one of the leading stainless steel products manufacturers for high precision stainless steel sanitary valves, pumps and pipe fittings. Our products including valves, pipe fittings, tank accessories and stainless steel tanks both in sanitary and industrial field. The products are widely applied in dairy, beer, food, pharmaceutical, beverage, cosmetics and chemical industries.

    New Tek introduce actively domestic and international advanced production equipment and professional manufacturing process, the series products are made from stainless steel AISI304, AISI316L, strictly according to DIN, 3A, SMS, ISO, IDF, RJT, DS, BS, BPE industrial standard request, and keep strict inspection and control during production, that make us develop stable and continuously.

    New Tek has our own factory, complete CNC machines workshop, QC team, welding and polishing workshop, gaskets workshop, package workshop, 3 floors warehouse. The real one stop service, to save more money for you.
