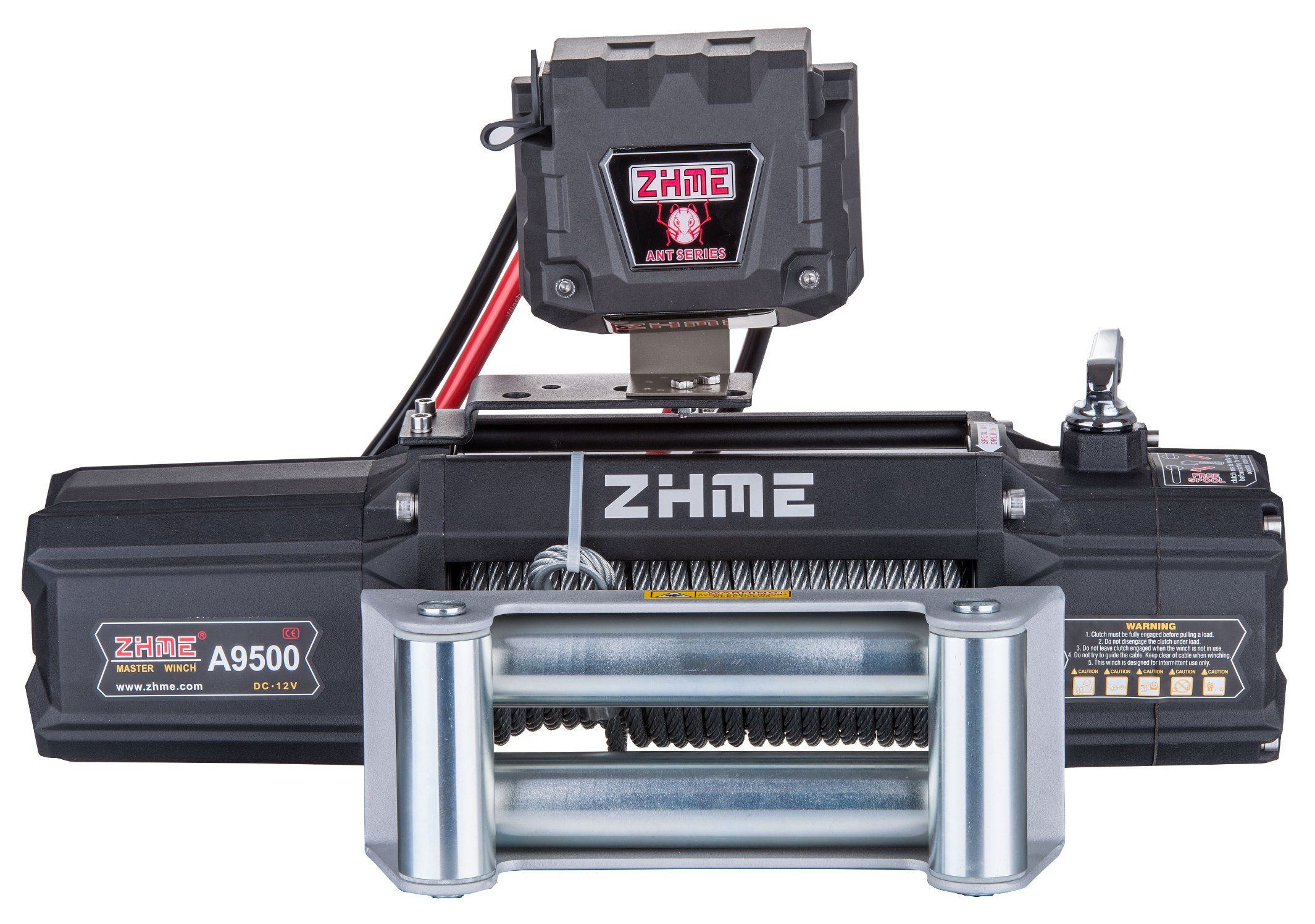

| Prod Model: |
A9500 |
| Product Name: |
off Road Electric Winch |
| Rated Line Pull: |
9500lbs (4310kgs) Single Line |
| Motor: |
Series Wound 5.5 HP /4.1kw,12V DC |
| Type: |
Electric Winch |
| Power Type: |
Series Motor DC |
| Pull Direction: |
Forward |
| Working Voltage Of Electric Winch: |
Low Voltage |
| Applicable Environment: |
Mountain Road |
| Certification: |
RoHS |
| Brand: |
Zhme |
Product Description
ANT series
Smart appearance is suitable for various vehicles. Strong power, simple operating procedure is easily for enter lever off-roader to control the winch in hostile environment.
• Our products are of well-designed, beautiful appearance and easy to install.
• The best choice for off road enter lever off-roader.
• Popular series winches with good quality at a reasonable price.

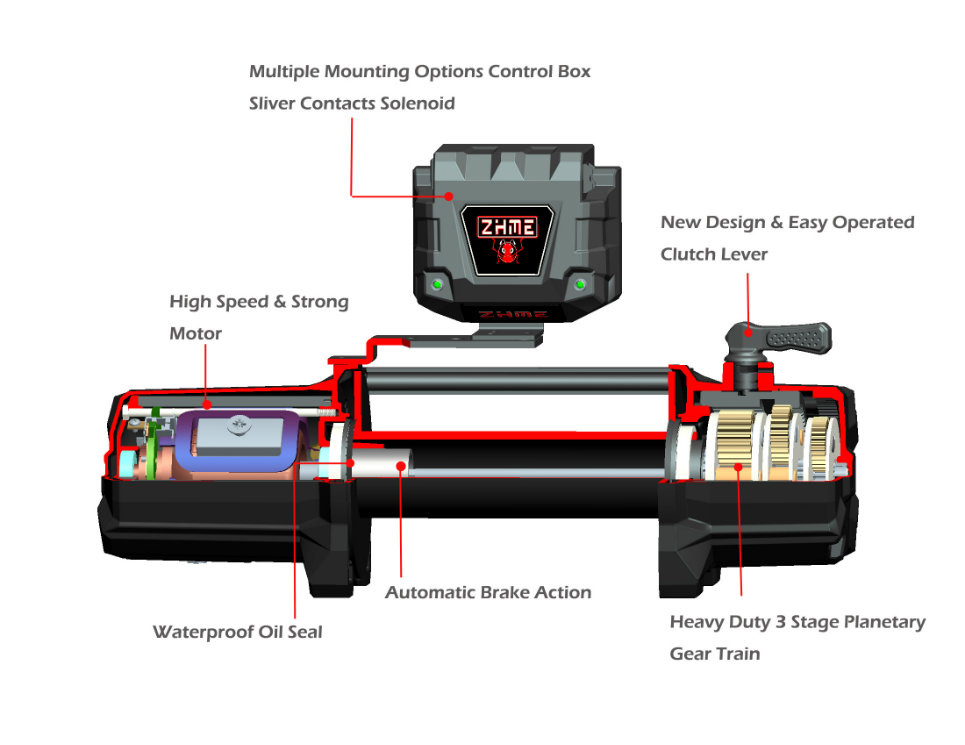

• 12V volt high performance series wound motor for power and fast line speed.
• Fully independent and automatic braking ensures safety and reliability.
• High-efficiency, lower noise steel 3-stage planetary gears.
• Aircraft grade wire rope, or synthetic rope is optional.
• Remote switch & wireless remote control being alternative.
• Multifold mounting options including vertical over tie rod, over tie rod and over motor.
| Rated line pull: | 9500 Lbs (4310kgs) single line. |
| Motor: | Series wound 5.5 hp /4.1kw,12V DC | |
| Gear Train: | 3 stage planetary | |
| Gear ratio: | 218:01:00 | |
| Clutch: | Sliding ring gear | |
| Braking action: | Automatic in the drum | |
| Fairlead: | 4-way Roller fairlead | |
| Wire rope: | 7.8mmX28m | |
| Synthetic rope | 9.5mmX26m |
| Drum size: | 2.5"×8.9"(63mm×226mm) | |
| Dimensions: | 21.5"×6.3"×7.6"( 545mm×160mm×194mm) | |
| Mounting bolt pattern: | 10"×4.5"(254mm×114.3mm) | |
| Battery | Recommended 650 CCA minimum for
winching 25 square mm,72″(1.83m) |
| N.W: | 81.4lbs (37kgs) | |
| | | | | | | | | |
| | PERFORMANCE | | | | | | |
Line speed
and motor current
(first layer) | Line pull | Lbs | 0 | 2000 | 4000 | 6000 | 8000 | 9500 |
| Kgs | 0 | 907 | 1814 | 2722 | 3629 | 4310 |
| Line speed | FPM | 25.6 | 16 | 11.9 | 9.79 | 9.2 | 7.2 |
| MPM | 7.8 | 4.88 | 3.63 | 2.98 | 2.5 | 2.2 |
| Motor current | Amps | 80 | 130 | 190 | 240 | 280 | 350 |
| | | |
Line pull
and cable
capacity | Layer of cable | 1 | 2 | 3 | 4 |
| Rated line pull per layer | Lbs | 9500 | 8000 | 7200 | 6600 |
| Kgs | 4310 | 3629 | 3266 | 2994 |
| Cable capacity per layer | Ft. | 19.6 | 43 | 72 | 92 |
| M | 6 | 13.2 | 22 | 28 |
Shipping Service
We can arrange you transportation, we have our own shipping and express company, or we can use your forwarder.
How to choose a ZHME Winch for your vehicle
Can't decide which winch is right for you? The best way to choose is to calculate the line pull needed for the application. To do this multiply your vehicle's Gross Vehicle Weight (GVW) by 1.5 - this will give an approximation for how big your winch should be. Typically, the first layer of rope around the drum is the max load the winch is capable of. Each additional layer deducts about 10% off the rated line pull. So for a winch rated 9,500lbs, the second layer will pull 8,550lbs, the third 7,700lbs, etc. A loss of pulling power can also be experienced when the rope isn't spooled evenly on the drum. So re-spool your winch before you go out!
Ningbo Zhonghuang Machine & Electrics Co., Ltd (ZHME) is a specialized winch manufacturer situated in Ningbo, Zhejiang province, China, ZHME has 17 years experience in electric winches, our manufacturing plant has state-of-the-art assembly lines, together with in-house precision die-casting, CNC machining, heat treatment, polishing, high-pressure cleaning and finishing facilities. We also have advanced and fully-automated electric motor and winch testing facilities.
Established in 1995, ZHME has become a highly progressive and intensive R&D programmed into winch design, using the latest technology, to improve the performance and efficiency of products. We currently own patents on our many improved winch design features and strive to maintain our unsurpassed build-quality and outstanding value. ZHME has awards NINGBO high-technology enterprise since 2009
Today, ZHME has a comprehensive range of winch products and is developing more, Our philosophy is simple, To stay ahead in our business by being totally professional, but have fun doing it by remaining young in our hearts and minds.
