| Price: | US $ 170-2400/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | FY-MXTA |
|---|---|
| Screw Size: | 24-185mm |
| Max.Torque(N.M): | 1940-58673 |
| Bolt Size(M): | 16-130 |
| Min.Torque(N.M): | 139-4263 |
| Color: | Customers' Requests |
| Type: | Torque Wrench |
| Material: | Alloy Steel |
| Standard: | European Type |
| Feature: | Ordinary |
| Brand: | Feiyao |
| Working Mode: | Hydraulic Automatic |
1.Very high torque-to-weight ratio
2.High speed,double acting operation
3.High degree of rotation angle
4.Never-jam mechanism
5.High repeatability,with accuracy ±3%
6.Slim nose radius and 360 degree swivel hose connection allow easier positioning in confined areas
7.Few moving parts means durability and low maintenance
8.Push button drive release;no tools needed to reverse square or allen key drives for tighening or loosening
Brief introduction of FEIYAO
Jiangsu Feiyao Machinery Manufacturing Co., Ltd. is a professional hydraulic tools manufacturer with 30-year experience in the design, production, sale and service of Hydraulic Products, Electrical Control Equipment and Mechanical Devices.
Jiangsu Feiyao has been in hydraulic tools industry since 1978. Mainly export:

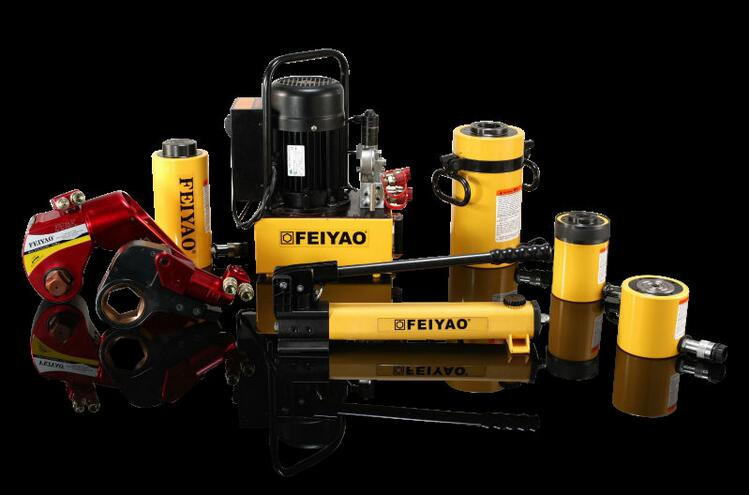

Hydraulic cylinder jacks (5-1500ton), single double acting, hollow plunger; low height, lock nut;
Hydraulic torque wrenches(100-72000Nm);
PLC synchronous lifting system;
Hydraulic lifting pumps, manual and electric type;
Hydraulic pullers, manual and hydraulic type;
Hydraulic bolt tensioners;
Hydraulic flange spreader, manual and hydraulic type;
Hydraulic steel wire rope press machine
Hydraulic accessories(hoses, couplers, oil distributors, etc.)
Over the years we have grown into a diversified market based that now services customers all over the world. We enjoy listening to our customers needs and ideas while working hard to provide the best service and delivering the highest quality of parts.

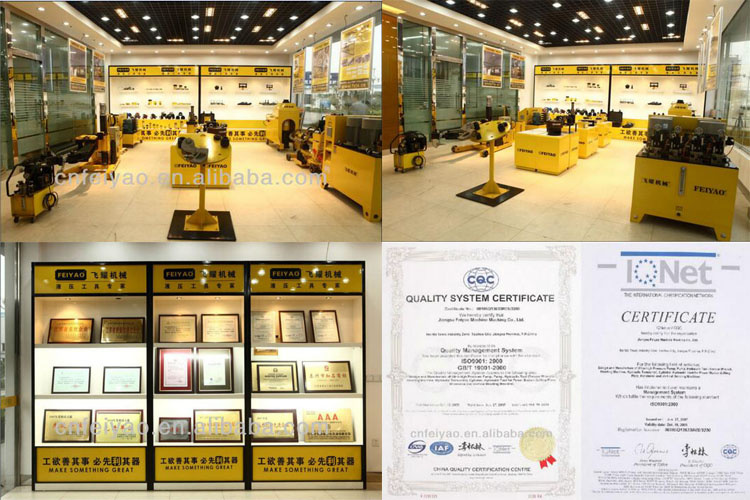

Showroom&Certification

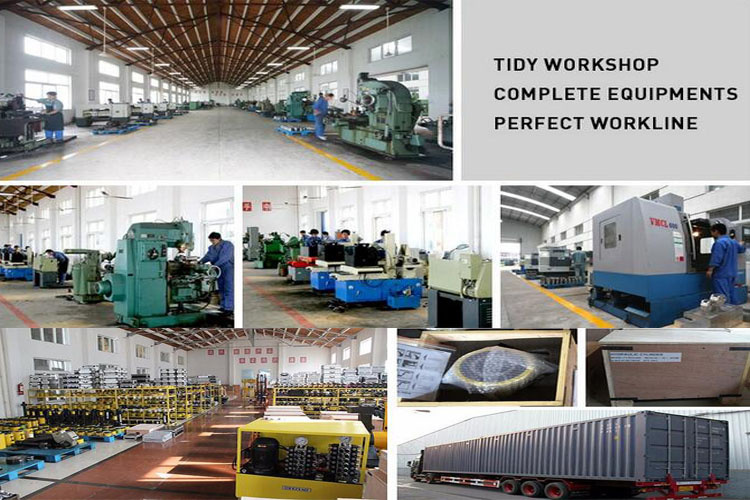

Factory Show & Packaging&shipping
We believe "service" is our number one customer. We hope our commitment to provide our customers quickly and efficiently with competitive prices will keep you coming back.
IF YOU ARE LOOKING FOR SOME HYDRAULI JACKS BUT DO NOT HAVE WHOLE SPECS, PLEASE AT LEAST TELL US THREE FACTORS: 1. TONNAGE; 2. STROKE, 3. CLOSED HEIGHT. WE WILL RECOMMEND THE MOST SUITABLE TYPE FOR YOU.
CONTACT US
Tel: +86-523-86183388
Fax: +86-523-86186999
Mobile: +86 18036786358
: +86 18036786358
IMO: 0086 18036786358
Parameter information
| Model | FY- 02MXTA | FY- 05MXTA | FY- 08MXTA | FY- 10MXTA | FY- 16MXTA | FY- 20MXTA | FY- 27MXTA | FY- 39MXTA | FY- 50MXTA | FY- 60MXTA |
| Max. Torque (N.M) | 1940 | 4763 | 8012 | 10704 | 15633 | 20782 | 28286 | 39584 | 50844 | 58673 |
| Min.torque(N. M) | 139 | 340 | 572 | 765 | 1117 | 1484 | 2020 | 2827 | 3632 | 4263 |
| Screw size(mm) | 24-55 | 32-75 | 41-85 | 46-95 | 55-105 | 60-115 | 65-130 | 75-145 | 95-170 | 105-185 |
| Bolt size(M) | 16-36 | 22-48 | 27-56 | 30-64 | 36-72 | 39-80 | 42-90 | 48-100 | 64-120 | 72-130 |
| axle | 3/4" | 1" | 1-1/2" | 1-1/2" | 1-1/2" | 2-1/2" | 2-1/2" | 2-1/2" | 2-1/2" | 2-1/2" |
| weight (kg) | 2.3 | 5.2 | 8 | 12 | 14.8 | 18.9 | 28 | 41.2 | 46.3 | 53.5 |
