| Prod Model: |
HUAZUAN021 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Wire Saw for Cutting Granite Marble Concrete |
| Hardness: |
Soft, Middle, Hard |
| Cutting Speed: |
10-40 |
| Wire Speed(M/S): |
30-40 |
| Technology: |
Sintered, Electroplated, Vacuum Brazed |
| Certification: |
ISO9001:2000, SGS |
| Beads Diameter: |
7.2-11.5mm |
| Price: |
Competitive |
| Grade: |
a |
| Production Processes: |
More Than 70 Processes, 100% Quality Testing |
| Saw Type: |
Chain Saw |
| Application: |
Granite,Marble,Concrete |
| Type: |
Fixed |
| Power Source: |
Hydraulic |
| Brand: |
Huazuan |
Product Description
New Arrival High Precision Diamond Wire Saw For Quarry
| Application | 1.For Stone Quarry,Block Squaring&Chamfering,Profiling Cutting
2.For Cutting Reinforce Concrete |
| Diameter Of Wire Saw | 7.2mm, 8.0mm, 8.5mm,9.0mm,11.0mm,11.5mm |
| Technology | Sintered,Electroplated,Vaccum Brazed |
| Coating Fix Injection | Plastic,Rubber,Spring,Rubber+Spring,Plastic+Spring |
| Beads/Meter | 40/37/33/28/26pcs |
| Attention | l. Checking the saw regularly and adjust timely.
2.Checking the pearl abrade regularly,Avoid the eccentric wear
3. Checking the joint regularly and adjust timely.
4. The tension of ropes is 250-300kg(Φ4-5mm ropes)
5.Water supply is around 15-25L/min |
| Feature | 1.Very less breakage ratio when using therefore increase working lifetime.
2.Automatic production ensures stable quality performance.
3.Safe, high efficiency and environment protecting. |

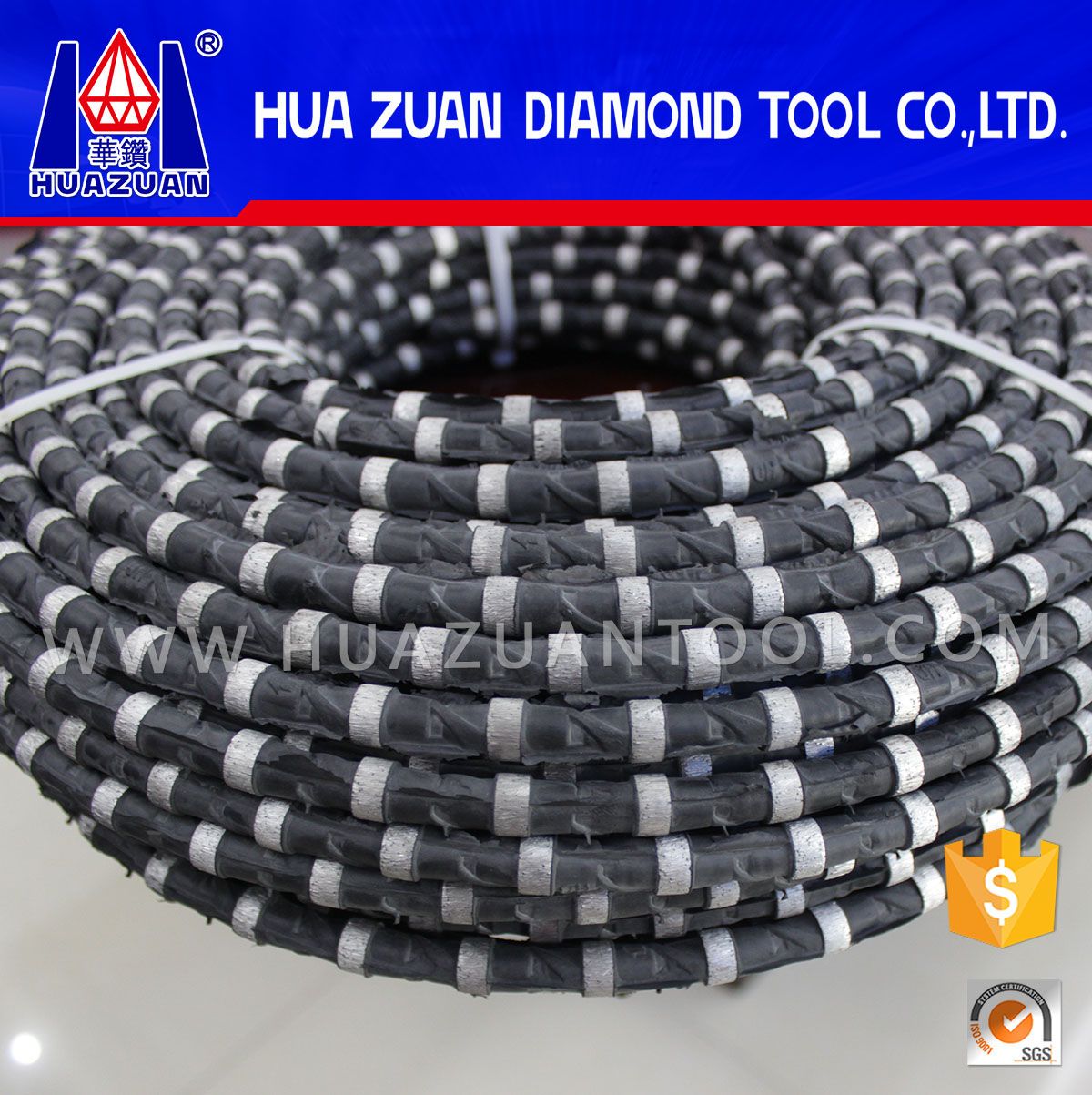

Product photo:
Our Advantage:
There are some parameter for your reference:
Diamond wire saw for Granite quarry
Compared with other methods,the use of diamond wire saw for granite quarrying reduces the waste of quarry resource, no noise ,no dust ,block regular,high output and working efficiency.
| Beads diameter | Beads/meter | Coating | Stone hardness | Wire speed(m/s) | Cutting speed(m²/h) | Life (m²/m) |
Φ10.5mm
Φ11mm
Φ11.5mm | 40 | Rubber
Rubber + Spring | Soft | 25-30 | 8-12 | 16-22 |
| Middle | 22-25 | 4-8 | 8-15 |
| Hard | 18-22 | 2-4 | 7-9 |
Φ10.5mm
Φ11mm
Φ11.5mm | Plastic
Plastic +
Spring | Soft | 25-30 | 8-12 | 16-22 |
| Middle | 22-25 | 4-8 | 8-15 |
| Soft | 18-22 | 2-4 | 7-9 |
Diamond wire saw for Marble quarry
| Beads diameter | Beads/meter | Coating | Stone hardness | Wire speed(m/s) | Cutting speed(m²/h) | Life (m²/m) |
Φ10.5mm
Φ11mm
Φ11.5mm | 26/28 | Spring | Soft | 36-38 | 19-22 | 35-65 |
| Middle | 34-36 | 9-18 | 20-35 |
| Hard | 30-32 | 6-9 | 15-25 |
Φ10.5mm
Φ11mm
Φ11.5mm | 33 | Plastic
Plastic +
Spring | Soft | 36-38 | 19-22 | 35-65 |
| Middle | 34-36 | 9-18 | 20-35 |
| Hard | 30-32 | 6-9 | 15-25 |
Φ10.5mm
Φ11mm
Φ11.5mm | Rubber | Soft | 36-38 | 19-22 | 35-65 |
| Middle | 34-36 | 9-18 | 20-35 |
| Hard | 30-32 | 6-9 | 15-25 |
*Other specifications are available upon request.
Company Introduction:
Quanzhou Huazuan Diamond Tools Co.,Ltd.,established in 1994 and covering an area of more than 10,000 square meters,is an enterprise with more than 20 years' experience in research, development and production.
"HUAZUAN" means made in China,as solid and stable as diamond.Driven by diamond saw blade,diamond segment and diamond wire saw as for main products,company produce a series of high quality diamond grinding and polishing tools.
Continuous innovation are made with the aims to provide high efficient safe and environmental diamond tools for customers.
With the support of Huaqiao University Tool Research Institute as well as more than 20 years research and practice, we keep the lead of industry for product quality and producing technology,and build the outstanding business relationship with more than 50 countries and region partners.
We pursue the dreams that make HUAZUAN become the arena of realizing the dreams for clients,suppliers and staffs.In recent years,company make and practice a strategic plan to reinforce a high quality production system,create a consultant service team" and reached great success.
At present,China diamond tool constantly embody the competitiveness in the world ,we expect to contribute ourselves to change the poor quality image of China diamond tool in the world with our effect.
