| Price: | US $ 0.96/Piece |
|---|---|
| Min Order: | 300/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | HUAZUAN |
|---|---|
| Raw Material: | Diamond Powder, Cobalt, Ni etc |
| Produce Art: | Sintered, Hot/Cold Press |
| Diameter Of Drill Bit: | 25~350mm |
| Thickness: | 3.5/4/4.5/5.0mm |
| Welding: | High-Frequency Welding |
| Application: | Granite, Marble, Reinforce Concrete, Concrete etc |
| Segment Height: | 10mm |
| Certification: | ISO9001:2000, SGS |
| Shipping: | by Air, by Sea, by Express(DHL, FedEx, EMS, UPS) |
| Segment Shape: | Arix Segment, Roof Type Segment, Turbo Segment etc |

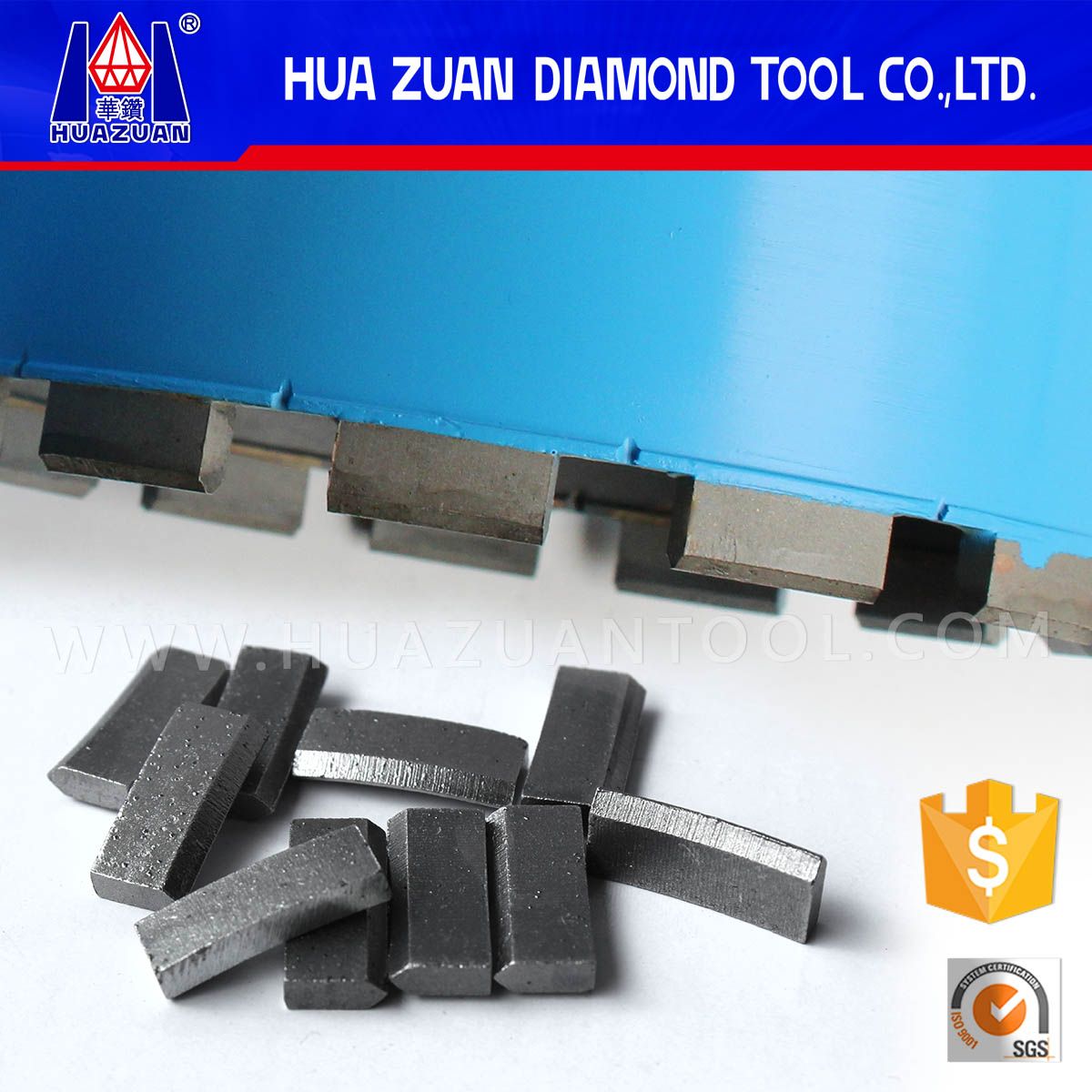

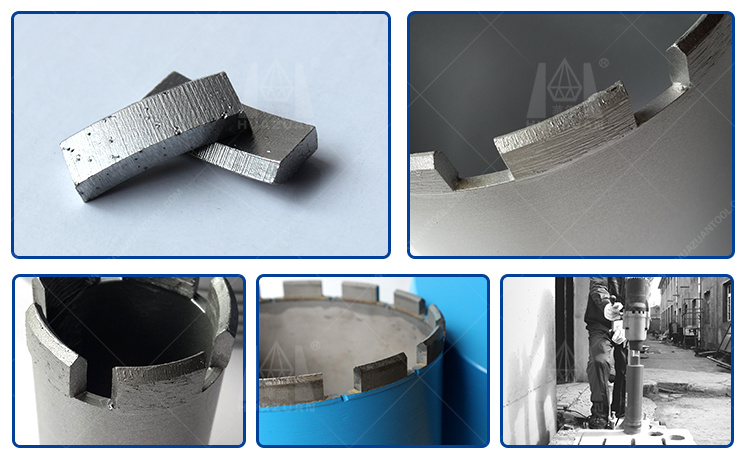

Product Name | Roof Top diamond core bit segment for reinforced concrete/Stone |
Size | 24*4*10mm ( Specialized in making any sizes of diamond segment, we can make many different kinds of quality and sizes to fit your market and your stone. ) |
Diameter | 83-200mm core drill bit ( 25-350mm diamond core drill bit segment can make ) |
Application | Diamond core drill bit segment Used for drilling reinforced concrete, granite etc. |
Feature |
1. Fast cutting/drilling & long life & Stable performance, High grade of diamonds 2. Different bonds are for different applications & precise segment size 3. Working safe, quiet, and precise, reducing cutting & working time 4. Great adaptability & No chipping |
Package | Color box,double blister card,skin packing,white box etc |
Supply ability | 50,000 pcs/month(We accept mixed order) |
Quality | ISO9001&Gold Supplier Factory=Quality Control=Competitive Price=Owntechnology=OEM |
| Core bit Diameter(mm) | Seg. Length(mm) | Seg. Thickness(mm) | Seg. Height(mm) |
25/28/32/36/38/ 40/45/51/56 | 16 | 3.5 | 10 |
| 62/66/72/76 | 24 | 3.5 | 10 |
83/89/96/102/108/116/120/ 127/132/142/152/ 159/162/180/200 | 24 | 4.0 | 10 |
| 230/250/300/350 | 24 | 4.5 | 10 |
| 500/600 | 24 | 5.0 | 10 |
| Other specifications of diamond core bit segment are available upon request. |
Company Introduction:
Quanzhou Huazuan Diamond Tools Co.,Ltd.,established in 1994 and covering an area of more than 10,000 square meters,is an enterprise with more than 20 years' experience in research, development and production.
"HUAZUAN" means made in China,as solid and stable as diamond.Driven by diamond saw blade,diamond segment and diamond wire saw as for main products,company produce a series of high quality diamond grinding and polishing tools.
Continuous innovation are made with the aims to provide high efficient safe and environmental diamond tools for customers.
With the support of Huaqiao University Tool Research Institute as well as more than 20 years research and practice, we keep the lead of industry for product quality and producing technology,and build the outstanding business relationship with more than 50 countries and region partners.
We pursue the dreams that make HUAZUAN become the arena of realizing the dreams for clients,suppliers and staffs.In recent years,company make and practice a strategic plan to reinforce a high quality production system,create a consultant service team" and reached great success.
At present,China diamond tool constantly embody the competitiveness in the world ,we expect to contribute ourselves to change the poor quality image of China diamond tool in the world with our effect.
