Agricultural Machine Rubber Hydraulic Hose

Name: Agricultural Machine Rubber Hydraulic Hose
Brand: tool-buy.com
SKU: 720444252
Availability: InStock
Rating: 4.7 (144 reviews)

Price:	US $ 2.81-10.22/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Qingdao Kingdaflex Industrial Co., Ltd.

Showroom Product Company Profile

Prod Model:	EN856 4SH 4SP
Certification:	ISO9001
Output:	800, 000m/Month
Application:	Construction Equipment, Coal Mining, Power Transmi
Standard:	DIN En856
Cover:	Oil, Abrasion and Weather Resistant Synthetic Rubb
Reinforcement:	Four High Tensile Steel Wire Spiral
Brand Name:	OEM/Kingdaflex
Capability:	Acid Alkali Resistant Rubber Hose
Color:	Black
Material:	Synthetic Rubber

Product Description

Agricultural Machine Rubber Hydraulic Hose (SAE100R9)

DIN EN856 4SP/SAE100 R12

Tube: Oil resistant synthetic rubber
Reinforcement: four high tensile steel wire braid
Cover: Oil, abrasion and weather resistant synthetic rubber
Temperature range: -40 ºC to +100 ºC

DN	Hose I.D		Wire O.D	Hose O.D	Working pressure		Burst Pressure		Minimum Bend Radius	Weight	Length
DN	inch	mm	mm	mm	Bar	psi	Bar	psi	mm	kg/m	metres
10	3/8	9.5	17.5	17.5	445	6455	110.3	16000	125	0.62	20/40
13	1/2	12.7	20.2	20.2	425	6165	110.3	16000	180	0.85	20/40
16	5/8	15.9	23.8	23.8	350	5075	110.3	16000	200	1.29	20/40
19	3/4	19.0	28.2	28.2	350	5075	110.3	16000	240	1.47	20/40
25	1	25.4	35.3	35.3	280	4060	110.3	16000	300	2.0	20/40
32	11/4	31.8	46.0	46.0	210	3045	82.7	12000	420	2.86	20/40
38	11/2	38.1	52.4	52.4	185	2685	68.9	10000	500	3.24	20/40
51	2	50.8	65.3	65.3	165	2395	68.9	10000	630	4.8	20/40

DIN EN856 4SH/SAE100 R9

DN	Hose I.D		Wire O.D	Hose O.D	Working Pressure		Burst Pressure		Minimum Bend Radius	Weight	Length
DN	inch	mm	mm	mm	Bar	psi	Bar	psi	mm	kg/m	metres
19	3/4	19.0	28.4	32.2	420	6090	1680	24360	280	1.53	20/40
25	1	25.4	35.2	38.7	380	5510	1520	22040	340	2.06	20/40
32	11/4	31.8	41.9	45.5	325	4751	1300	18850	460	2.46	20/40
38	11/2	38.1	48.8	53.5	290	4205	1160	16820	560	3.35	20/40
51	2	50.8	63.2	68.1	250	3625	1000	14500	700	4.55	20/40

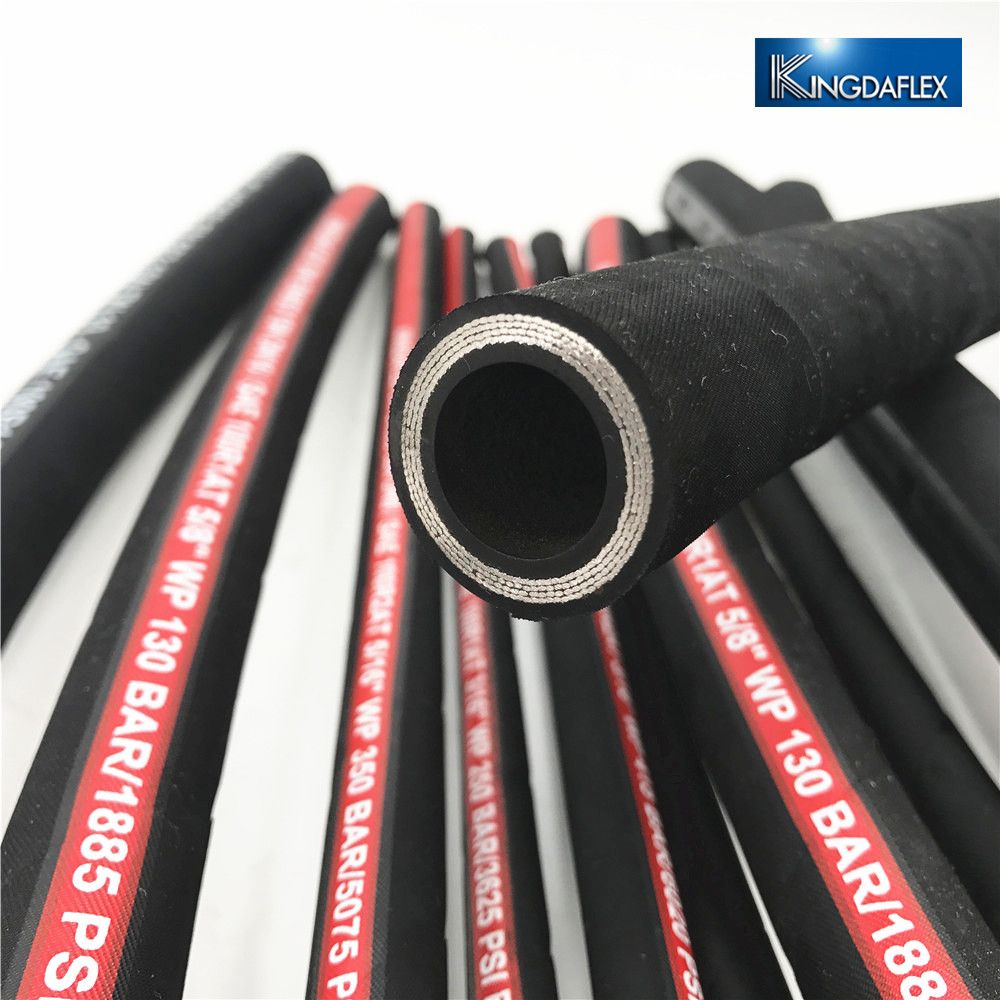

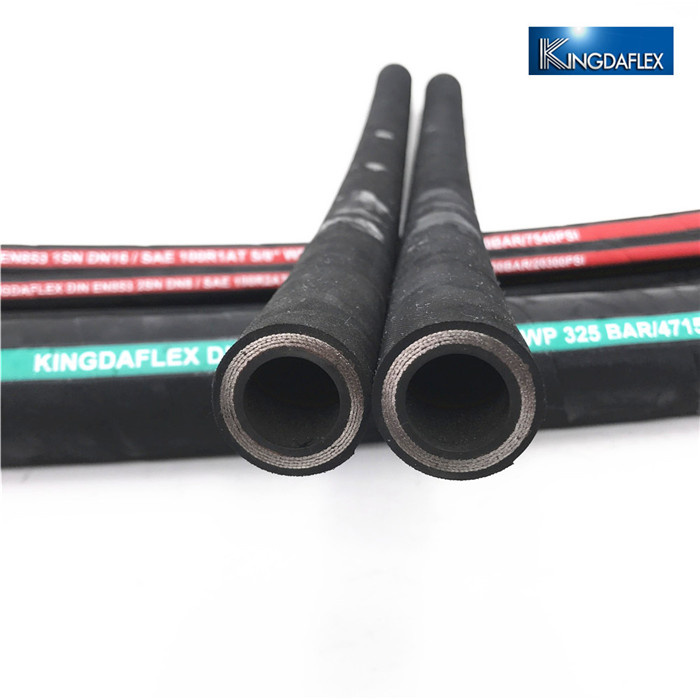

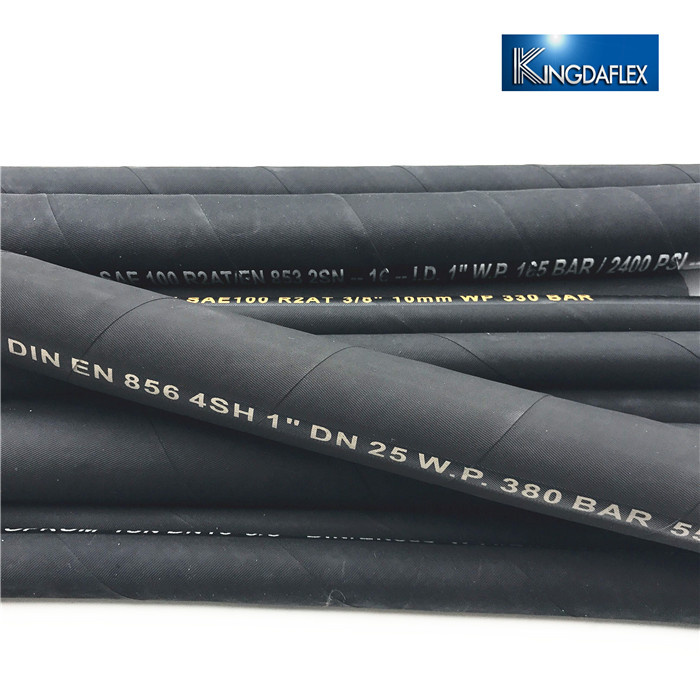

Product Show:

Application Range:

Company Information:

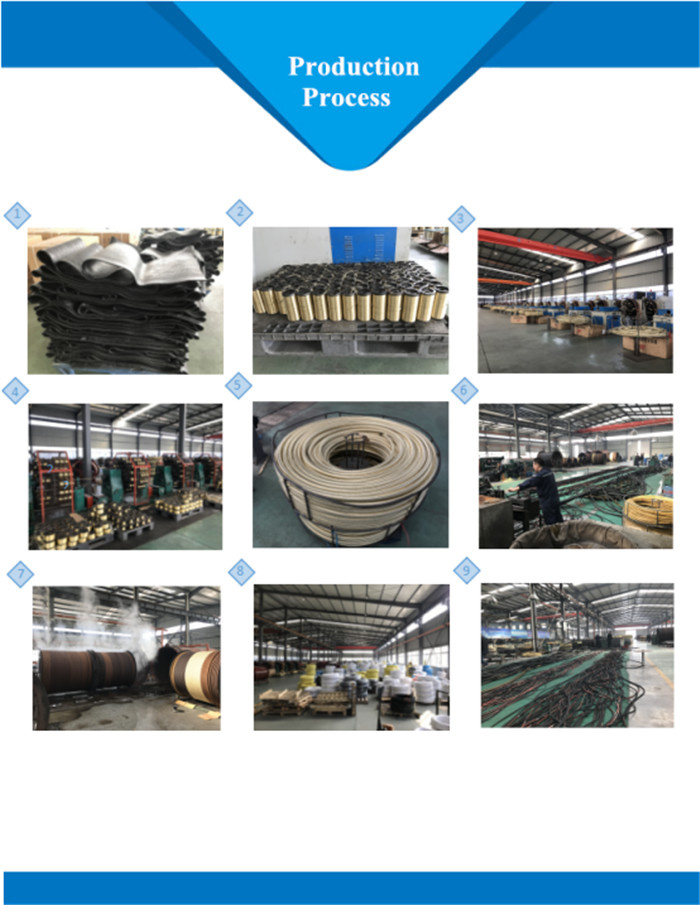

Production Process:

Our Main Product:
1. Hydraulic Hose
SAE 100R1AT/EN853 1SN
SAE 100R2AT/EN853 2SN
SAE 100R5
SAE 100R7/R8
SAE 100R9/R12
SAE 100R14/Teflon hose
EN856 4SP/4SH
2. Smooth(Wrapped) Air/Water/Oil hose
3. Welding hose
Oxygen hose
Acetylene hose
Lpg hose/Propane hose
Twin hose
4. Oil/Water suction and discharge hose
5. Sandblast hose
6. Fire sleeve

FAQ:

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 20 days or it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: T/T, L/C, OA, Western union.

Contact Information:

Kingdaflex Industrial is a professional manufacturer & exporter of hydraulic hose and industrial hose in China many years. Since the establishment, we have controlled and inspected raw materials strictly to ensure the quality. Meanwhile, we are continuing to refine our manufacturing and processing systems to achieve customers' requirements all the time.

Hydraulic Hose including:

SAE100 R1AT/EN853 1SN

SAE100 R2AT/EN853 2SN

EN857 1SC/2SC

EN856 4SH/4SP

SAE100 R3/R6/R5/R7/R8

SAE100 R16/R17

R12/R13/R15

R14/Teflon Hose

Fire Sleeve

Hose Fitting

Industrial Hose including:

Oxygen Hose, Acetylene Hose, LPG Hose, Twin Hose

Air/Water Hose, Oil/Fuel Hose

Sandblast Hose

Suction & Discharge Hose

Concrete Pump Hose

Slurry Hose

PVC Hose

Our products are widely used in agriculture, construction, coal mining, machinery, garden industry, automobile industry, oil & gas industry. With competitive prices, stable products quality and timely delivery, We have established long-term business relations with customers from more than 30 countries.

Welcome customers from all over the world to contact us!
