Prod Model: |
22317BKD1 |
Inner: |
85mm |
Outer: |
180mm |
Thickness: |
60mm |
Weight: |
7.65kg |
Rolling Body: |
Roller Bearings |
Spherical: |
Aligning Bearings |
Product Description

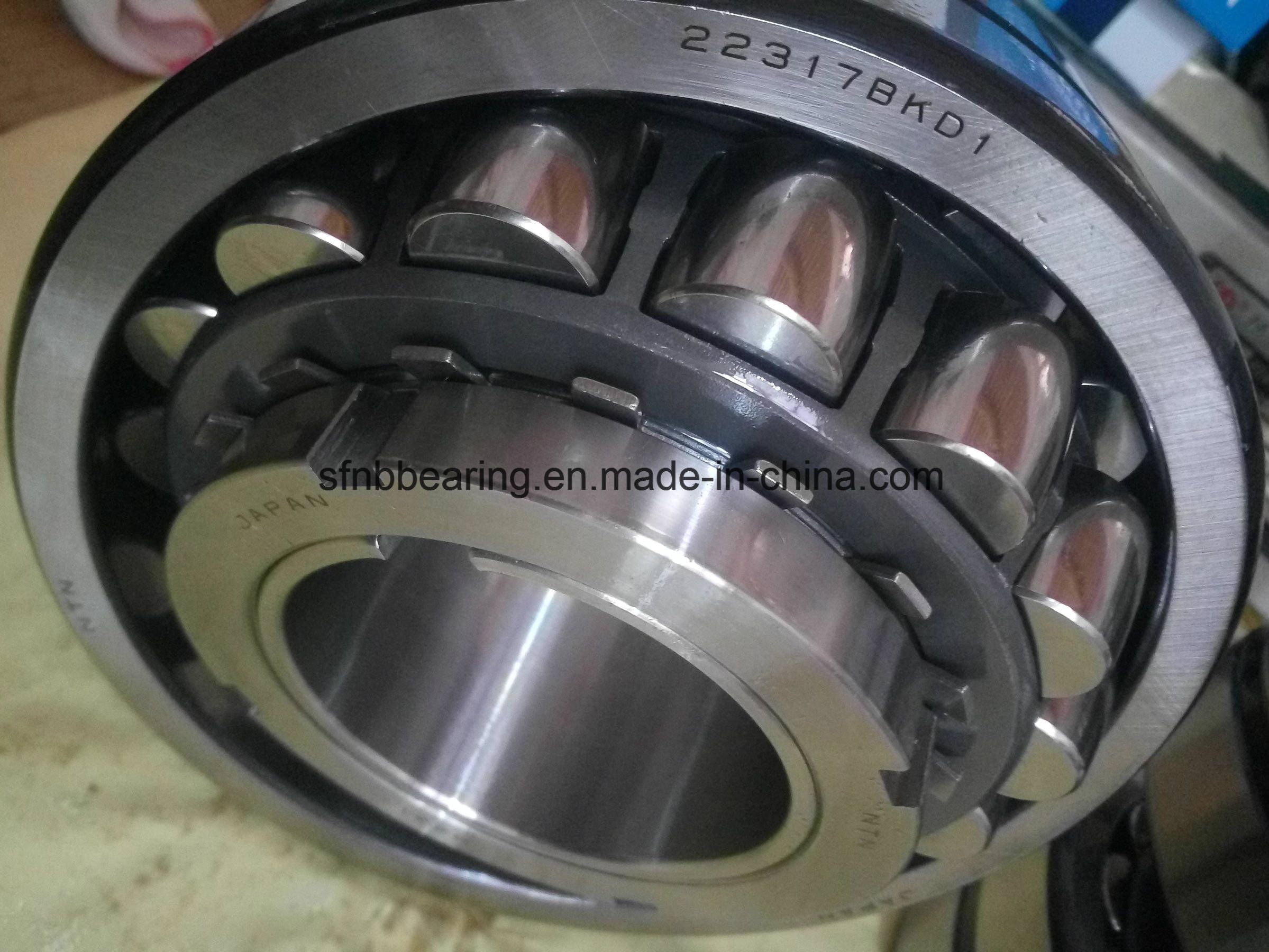

Agricultural machinery bearing SKF 22317BKD1 with adapter sleeve
NO 1. our adwantages:
1. 14 years bearing products manufacturing and 4 years exporting experiences.
2. OEM order and non-standard bearing order can be accepted.
3. Our main bearing products include Deep groove ball bearings, tapered roller bearings, cylindrical rollerbearings, spherical ball bearings, spherical roller bearings, angular contact bearings, angular contact bearings, needle roller bearings, thrust ball bearings, spherical bearings, automotive bearings pump bearings, and many nonstandard bearings are also in our product range.
4. Sample available
NO 2. Description: Spherical roller bearing
Race: we use the most advanced technology-cold extrusion process. Besides, the race will make two or three times temper to guarantee its high precision.
Rolling element: we use the rolling technology to process the roller and the steel ball of high precision bearing, the most advantage of our technology is to promote productive and productive efficiency. At the same time, our technology can prolong the bearing working life. The hardness and the diamention stability will also promote.
Steel cage: in order to avoid avoid cracks and guarantee the hardness, we use pattern "high temperature+long time", our cage of high precision bearing have reached advanced level in china at surface abrasion resistance and fatigue strength.
C(J), CC--Two window-type steel cages, flangeless inner ring and guide ring centred on the inner ring
EC(J), ECC(J)--Two window-type steel cages, flangeless inner ring, guide ring centred on the inner ring and reinforced roller complement.
CA--One-piece machined brass cage, double-pronged, retaining flanges on the inner ring and guide ring centred on the inner ring
CAF-- As CA, but with a steel cage.
ECA, ECAC-- Reinforced roller complement, one-piece machined brass cage, double-pronged, retaining flanges on the inner ring, guide ring centred on the inner ring.
ECAF-- As ECA, but with a steel cage.
E-- For bearings with a bore diameter d ≤ 65 mm: Two pressed window-type steel cages, flangeless inner ring and guide ring centred on the inner ring
CAFA-- One-piece machined steel cage, double-pronged, centred on the outer ring raceway, retaining flanges on the inner ring and guide ring centred on the inner ring
Features:
- Double row spherical roller bearing for applications that support radial and oscillating axial loads
- C4 radial clearance allows thermal expansion for continuous operating temperatures up to 200 degrees C/392 degrees F
- Straight bore for fitting to a conventional cylindrical shaft
- Outer ring-guided brass cage evenly spaces rollers for reduced friction, vibration, and noise
- Open design, circumferential groove and three lubrication holes in the outer ring allow for lubrication in place
NO 3. OEM all brand bearing
1. deep groove ball bearing 6000,6200,6300,6400,61800,61900,Z,RS,ZZ,2RS
2. spherical roller bearing 22200,22300,23000,24000,23100,24100,CA,CC,E,W33
3. cylindrical roller bearing N,NU,NJ,NN,NUP,E,ECP,ECM,ECJ
4. taper roller bearing 30200,30300,32200,32300,31300,32000
5. Aligning ball bearing 1200,1300,2200,2300,
6. needle roller bearing NA,NAV,NK,NKI,RNA,NK,RNAV,ZKLF,ZKLN,ZARF,ZARN
7. thrust ball bearing 51100,51200,51300,51400,E,M
8. angular contact ball bearing7000,7100,7200,7300,AC,BECBM,C
9. spherical plain bearing GE,GEG,GEEW,U,UC,UG,GX,GAC,SA,SABP
10.Wheel hub bearing /ceramic bearing/plastic bearing/lazy susan bearing
NO 4. Spherical Roller Bearing Specification:
Seals Types | 2RS,OPEN |
Vibration Level | Z1V1,Z2V2,Z3V3 |
Clearance | C2,C0,C3,C4,C5 |
Tolerance Codes | ABEC-1,ABEC-3,ABEC-5 |
Materral | GCr15-China/AISI52100-USA/Din100Cr6-Germany |
MOQ | 1Set at least |
Delivery Time | 15-45 days after contract |
Payment Terms | TT/PAPAL/WESTERN UNION |
Package | Tube package+outer carton+pallets; Single box+outer carton+pallets; Tube packge+middle box+outer carton+pallets; According to your requirement |
NO 5. Spherical roller bearing Models and Size:
Designation
| Principal Dimension
| (kN) Basic Load Ratings | (r/min) Speed ratings | Mass
|
d | D | B | r min | Dynamic
| Static
| Grease
| Oil
| kg |
23032 | 160 | 240 | 60 | 2.1 | 376 | 730 | 1500 | 1900 | 13.5 |
24032CA | 160 | 240 | 80 | 2.1 | 636 | 1164 | 1100 | 1500 | 12.9 |
24132CA | 160 | 270 | 109 | 2.1 | 1010 | 1700 | 700 | 900 | 25.4 |
2638 | 190 | 280 | 67 | 2.5 | 542 | 978 | 1200 | 1500 | 13.7 |
23038K | 190 | 290 | 75 | 2.1 | 626 | 1100 | 1200 | 1500 | 20.5 |
23038CA | 190 | 290 | 75 | 2.1 | 765 | 735 | 1300 | 1700 | 16.9 |
24038CA | 190 | 290 | 100 | 2.1 | 980 | 1000 | 950 | 1300 | 22.8 |
23144CA | 220 | 370 | 120 | 4 | 1570 | 1520 | 900 | 1200 | 54.7 |
23144K | 220 | 370 | 120 | 4 | 1330 | 1330 | 900 | 1200 | 54.8 |
22244 | 220 | 400 | 108 | 4 | 1200 | 2100 | 850 | 1200 | 57.6 |
23244 | 220 | 400 | 144 | 4 | 1800 | 2820 | 670 | 850 | 94.6 |
22344/W33 | 220 | 460 | 145 | 5 | 1700 | 3090 | 670 | 850 | 129 |
23948CA | 240 | 320 | 60 | 2.1 | 635 | 710 | 1300 | 1700 | 14.9 |
23048 | 240 | 360 | 92 | 3 | 820 | 1800 | 900 | 1200 | 37.6 |
23048K/W33 | 240 | 360 | 92 | 3 | 820 | 1800 | 900 | 1200 | 37.4 |
23148 | 240 | 400 | 128 | 4 | 1200 | 2560 | 760 | 990 | 77.2 |
24148/W33 | 240 | 400 | 160 | 4 | 1200 | 3300 | 430 | 540 | 81.6 |
Bearings NO. | d | D | B | C | C0 | Weight |
| mm | mm | mm | kN | kN | kg |
21317 EK | 85 | 180 | 41 | 325 | 375 | 5.15 |
22317 E | 85 | 180 | 60 | 550 | 620 | 7.65 |
22317 E/VA405 | 85 | 180 | 60 | 550 | 620 | 7.65 |
22317 EK | 85 | 180 | 60 | 550 | 620 | 7.5 |
22218 E | 90 | 160 | 40 | 325 | 375 | 3.4 |
22218 EK | 90 | 160 | 40 | 325 | 375 | 3.35 |
21318 E | 90 | 190 | 43 | 380 | 450 | 6.1 |
21318 EK | 90 | 190 | 43 | 380 | 450 | 6 |
22318 E | 90 | 190 | 64 | 610 | 695 | 9.05 |
22318 E/VA405 | 90 | 190 | 64 | 610 | 695 | 9.05 |
22318 EK | 90 | 190 | 64 | 610 | 695 | 8.85 |
22219 E | 95 | 170 | 43 | 380 | 450 | 4.15 |
22219 EK | 95 | 170 | 43 | 380 | 450 | 4.05 |
21319 E | 95 | 200 | 45 | 425 | 490 | 7.05 |
21319 EK | 95 | 200 | 45 | 425 | 490 | 6.95 |
22319 E | 95 | 200 | 67 | 670 | 765 | 10.5 |
22319 E/VA405 | 95 | 200 | 67 | 670 | 765 | 10.5 |
22319 EK | 95 | 200 | 67 | 670 | 765 | 10.5 |
22220 E | 100 | 180 | 46 | 425 | 490 | 4.9 |
22220 EK | 100 | 180 | 46 | 425 | 490 | 4.8 |
21320 E | 100 | 215 | 47 | 425 | 490 | 8.6 |
We can accept customized bearing service,besides,we can supply bearing with brand SKF, ZKL, NTN, NSK, KOYO, TIMKEN,NACHI, LYC, HCH, ZWZ

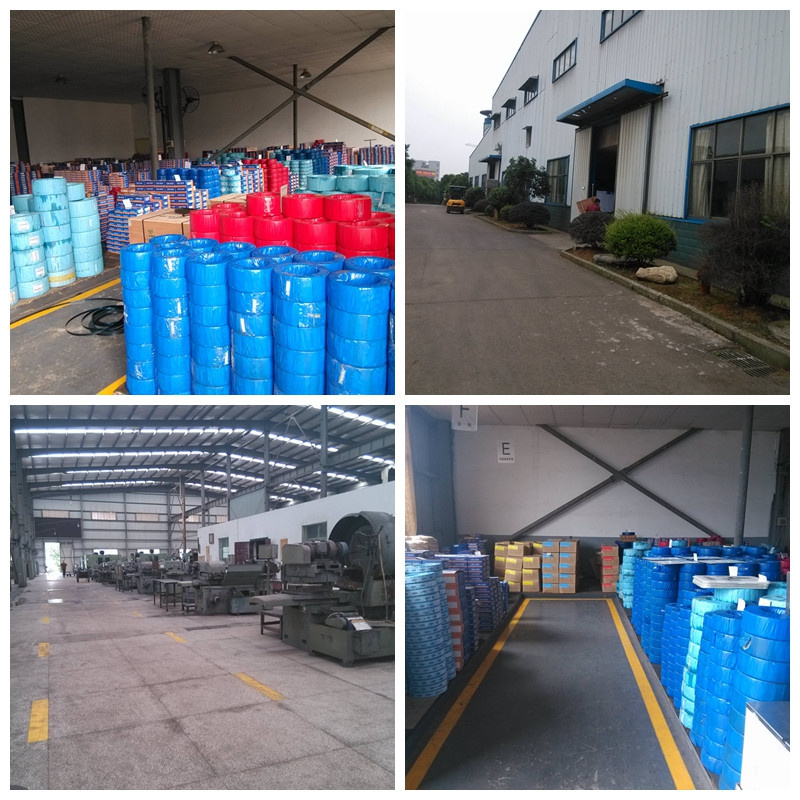

NO 6. Our Bearing Factory:

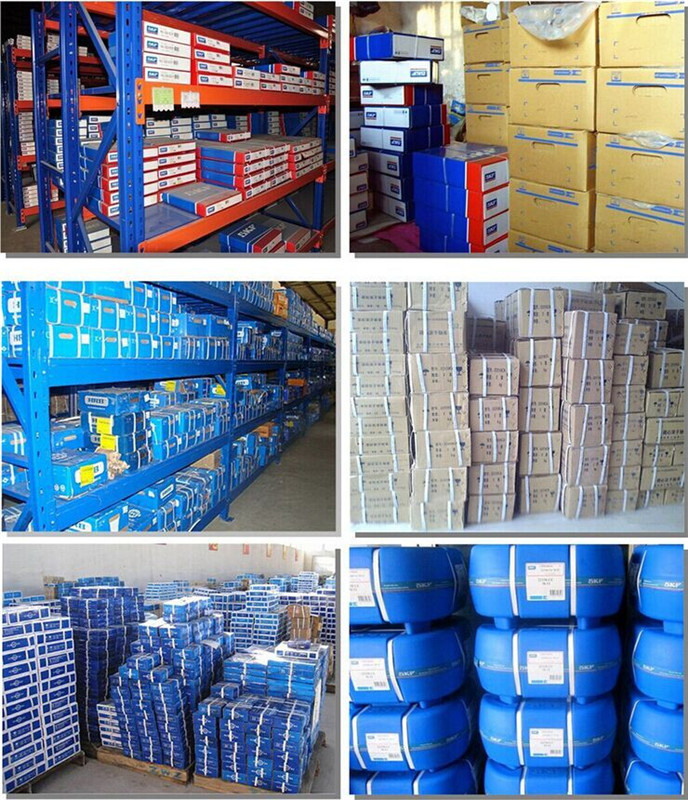

NO 8. Our Bearing Warehouse:

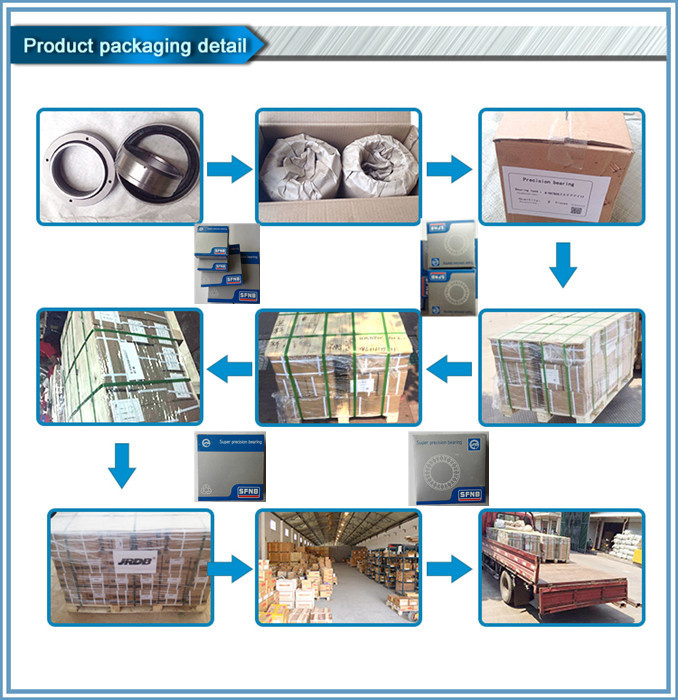

NO 9. Our Bearing Packaging Box:
Why Choose Us:
SFNB bearing company has 14 years manufacture experience and is one of the biggest adjustment center in north of China.
We have large stock of original brand and our own brand bearing.
Sample is available.
We can accept OEM service.
SFNB Bearing Co., Ltd. Was founded in March 2008. We were principally engaged in the research, development and manufacture of bearings in the early stage. Now we are mainly engaged in the sales of internationally-famous brand bearings. Our products are sold in Britain, America, Japan, Italy and Southeast Asia, well appreciated by their purchasers.
SFNB bearing company was founded in March 2008. We are not only principally engaged in the research, development and manufacture of bearings but also engaged in the sales of internationally-famous brand bearings. Our products are sold in Britain, America, Japan, Italy and Southeast Asia, well appreciated by their purchasers.
Main product:
1, Deep groove ball bearings
2, Ceramic ball bearings
3, Angular contact ball bearings
4, Self-aligning ball bearings
5, Thrust ball bearings
6, Linear bearings
7, Needle bearings
8, Pillow block bearings
9, Rod end bearings
10, Cylindrical roller bearings
11, Spherical roller bearings
12, spherical Thrust roller bearings
13, Taper roller bearings
14, Slewing bearings
15, sliding bearings
16, Excavator bearings
17, Blender bearings
18, Other bearings
In addition, our company can customize according to customers' needs of various types of products.
Our bearings have been widely used in various industries, such as
1) Mining, mineral processing, and cement
2) Motors and generators
3) Wind
4) Industrial pumps
5) Industrial transmission
6) Industrial fans
7) Aerospace
8) Buildings
9) Two rounds of cars
10) Skidding of the wheel
11) Food and drink
12) Plastic and rubber
13) Railway
14) Line drive control
15) Compressors
16) Printing equipment
17) Pulp and paper
18) Bicycle
In order to meet the needs of the masses of customers and improve the market competitiveness of our company, we can provide OEM service according to our customers' needs. We have gained ISO9001 certificate, CE certificate, GOST certificate and SGS certificate. Our target is to carry out the strategic investment along with the development of market and need of new products. With our strategic, excellent products, top technology and outstanding service, we sincerely expect cooperation with more customers and friends for a better future.
