Prod Model: |
GYFXTY-FG/FL |
Cable Structure: |
Uni-Loose Tube ADSS |
Fiber Count: |
2-24 Cores |
Installation Tensile: |
1800n |
Bend Radius (Under Installation): |
20 X External Diameter of Cable |
Strength Member: |
Two Parallel FRP and Fiber Reinforce Glass Yarn |
Out Sheath: |
HDPE/LSZH Sheath/Flame Retardant Sheath/Anti-Roden |
Applications: |
Outdoor Aerial |
Operating Temperature: |
-40°c~+70°c |
Certificate: |
ISO9001 TCL RoHS |
Material Of Jacket: |
Black Polyethylene (PE) |
Application: |
Communication |
Type: |
Single-mode Fiber |
Certification: |
CCC |
Connection Structure: |
Other |
Core: |
2-24 |
Brand: |
Efon |
Sheath Material: |
PE/LSZH Sheath/Flame Retardant PE/Anti-Rodent PE |
Product Description

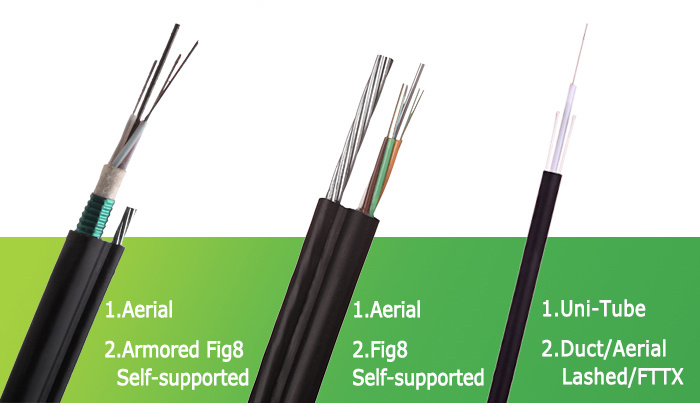

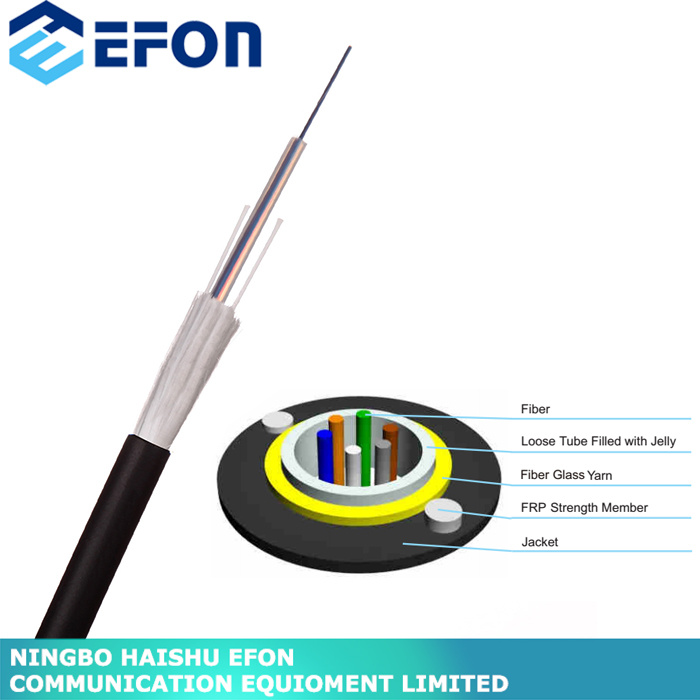

Description All Dielectric Aerial ADSS Optical Fiber Cable with Short Span 50m Uni-Tube All Dielectric Aerial Drop cable is Especially designed for Fiber to the Subscriber applications. It is a flat, all dielectric cable ideally suited for self-supporting drop-type installations as well as conduit builds. Features
Small size, Low cost.
Up to 24 fibers.
Uni-tube gel-filled construction for superior fiber protection.
Two parallel FRP wire and overall glass yarn to enhance tensile resistant.
And protect cable from mechanical damage.
Designed for use with inexpensive attachment hardware.
Self-supported no messenger needed.
Applications
Duct, Aerial
FTTx, Access.
Optical Characteristics
Fiber Type | G.652 | G.655 | 50/125^m | 62.5/125^m |
Attenuation (+20X) | 850 nm | | | <3.0 dB/km | <3.3 dB/km |
1300 nm | | | <1.0 dB/km | <1.0 dB/km |
1310 nm | <0.36 dB/km | <0.40 dB/km | | |
1550 nm | <0.22 dB/km | <0.23 dB/km | | |
Bandwidth | 850 nm | | | >500 MHz-km | >200 Mhz-km |
1300 nm | | | >500 MHz-km | >500 Mhz-km |
Numerical Aperture | | | 0.200±0.015 NA | 0.275±0.015 NA |
Cable Cut-off Wavelength λcc | <1260 nm | <1450 nm | | |

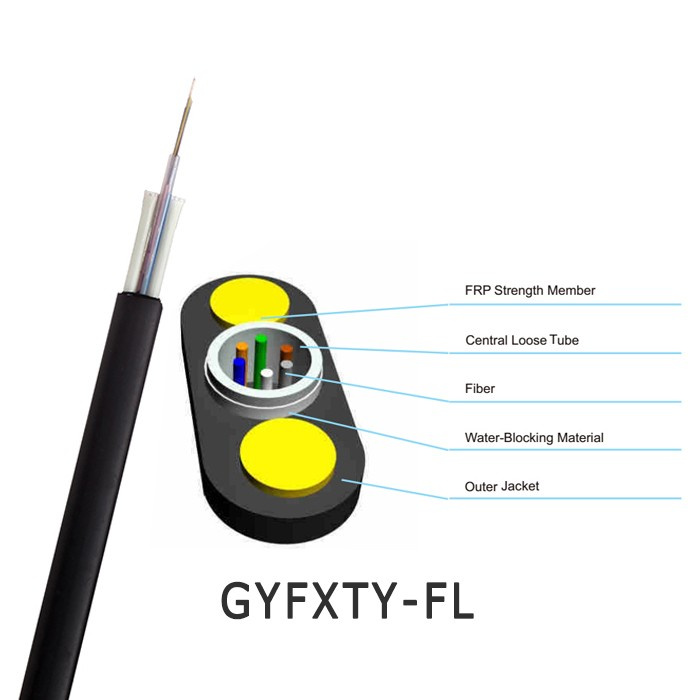

Structure and Technical Specifications GYFXTY-FL(Flat Drop)
Fiber Count | Nominal Diameter (mm) | Nominal Weight (kg/km) | Allowable Tensile Load (N) | Allowable Crush Resistance (N/100mm) | Aerial Install span with 1%sag |
Short Term | Long Term | Short Term | Long Term | NESC Light | NESC Medium | NESC Heavy |
2~12 | 4.5*8.0 | 39 | 1800 | 750 | 2000 | 800 | 100meters | 80meters | 50meters |
14~24 | 4.9*8.4 | 45 | 1800 | 750 | 2000 | 800 | 80meters | 60meters | 40meters |

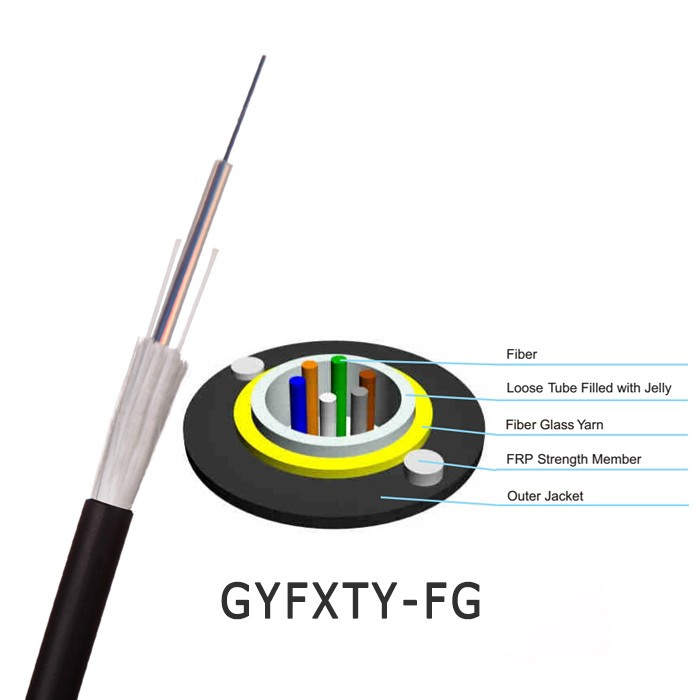

Structure and Technical Specifications GYFXTY-FG(Round Drop)
Fiber Count | Nominal Diameter (mm) | Nominal Weight (kg/km) | Allowable Tensile Load (N) | Allowable Crush Resistance (N/100mm) | Aerial Install span with 1%sag |
Short Term | Long Term | Short Term | Long Term | NESC Light | NESC Medium | NESC Heavy |
2~12 | 6.5 | 35 | 1000 | 400 | 1000 | 300 | 80meters | 50meters | 30meters |
14~24 | 7.0 | 40 | 1200 | 500 | 1000 | 300 | 70meters | 40meters | 20meters |
Note: Larger spans can be achieved if necessary with installation sags larger than 1% of span.
This datasheet can only be a reference, but not a supplement to the contract. Please contact our
sales people for more detailed information.
Hybrid designs (containing single mode and multi mode fiber) and composite designs (containing
copper conductors) are also available.
We produce and tesr cable comply with following standard
Mechanical Performance |
Max Tension Performance | IEC 60794-1-2-E |
Max. Operation Tension | IEC 60794-1-2-E1 |
Crush Test | IEC 6079 -1-2-E3 |
Impact Test | IEC 60794-1-2-E4 |
Repeated Bending | IEC 60794-1-2-E6 |
Torsion Test | IEC 60794-1-2-E7 |
Cable bend | IEC 60794-1-2-E11A |
Attenuation Coefficient | ITU-T G.652 |
Structural Test | IEC-60793-1-20 |
Environmental Performance |
Temperature Cycling | IEC 60794-1-2-F1 |
Water Penetration | IEC 60794-1-2-F5B |
Filing Compound Flow | IEC 60794-1-E14 |
You May Like

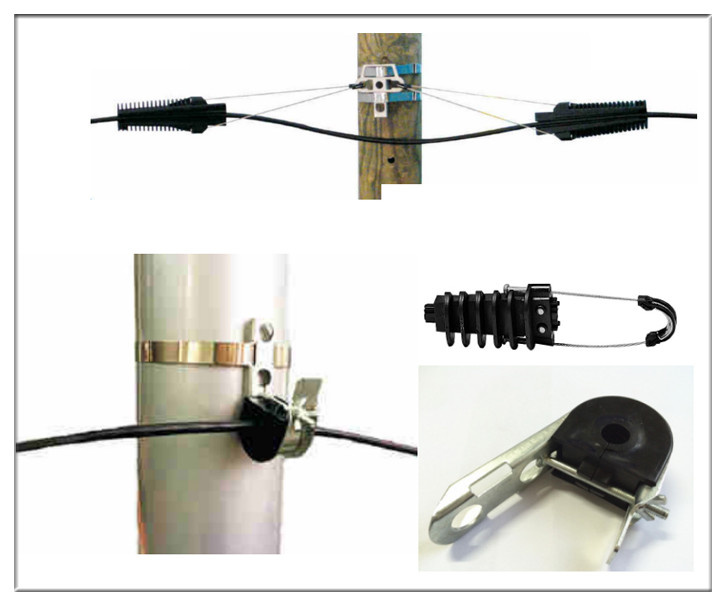

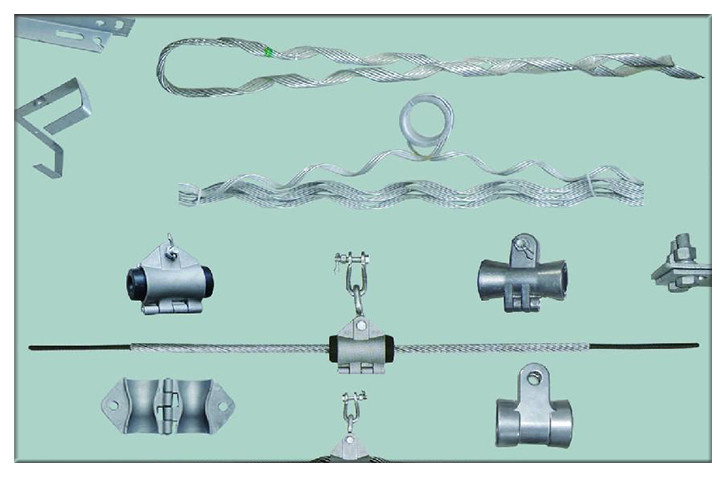

You May Need : Cable Fitting for ADSS drop cable
